Front view of Tekton 18 inch breaker bar. Item #SBH01118

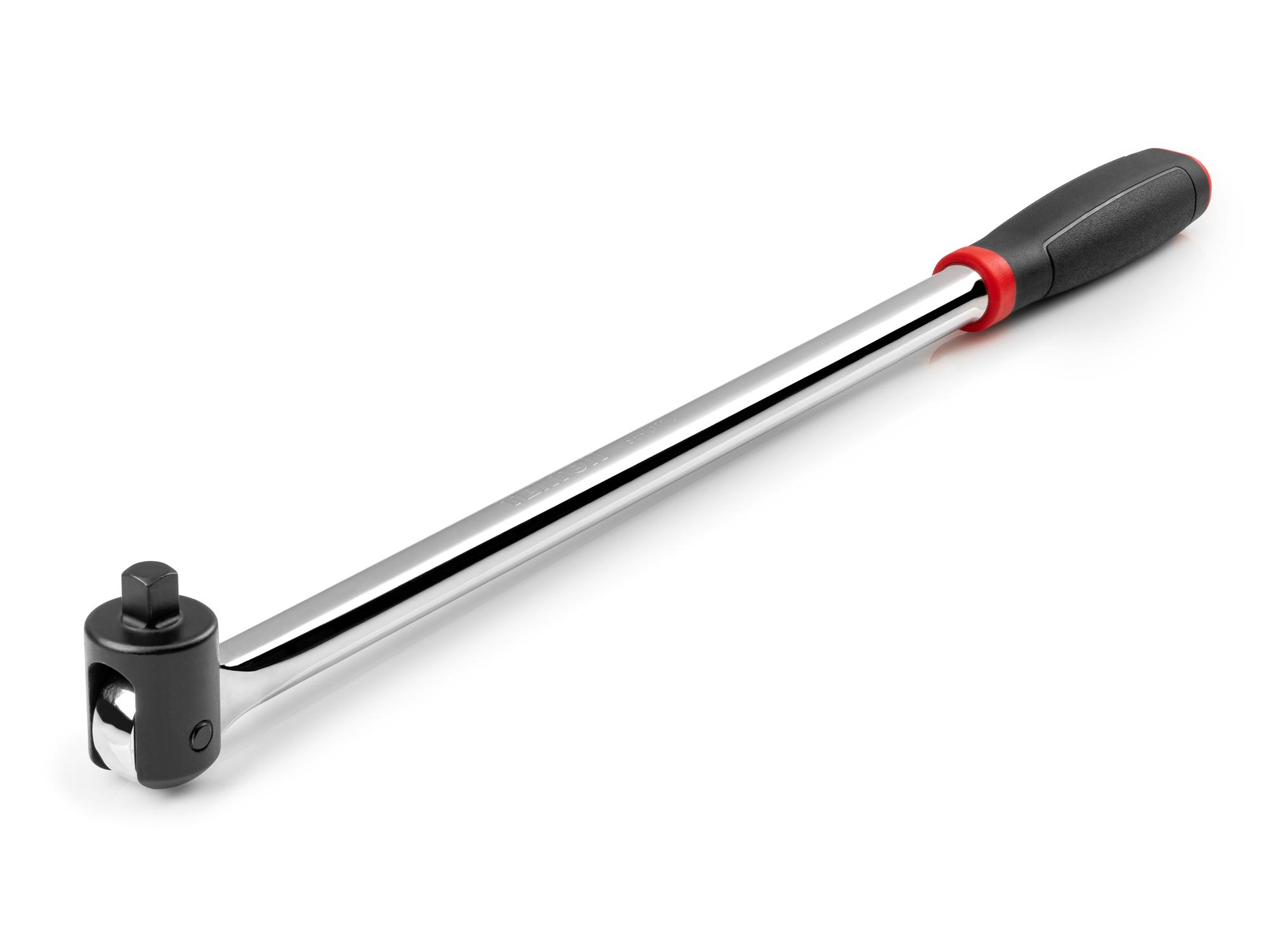

Front-right angle view of Tekton 18 inch breaker bar. Item #SBH01118

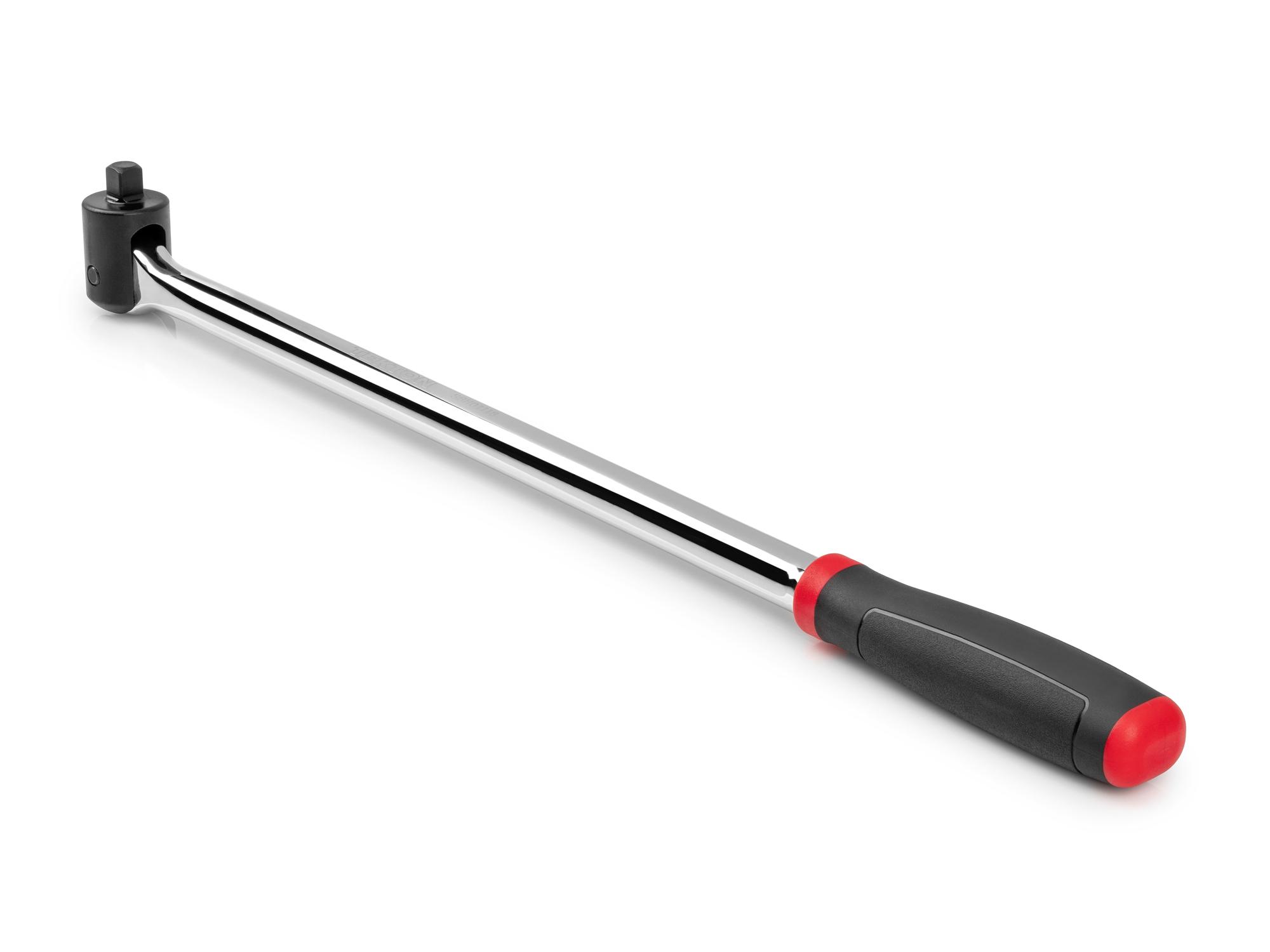

Back angle view of Tekton 18 inch breaker bar. Item #SBH01118

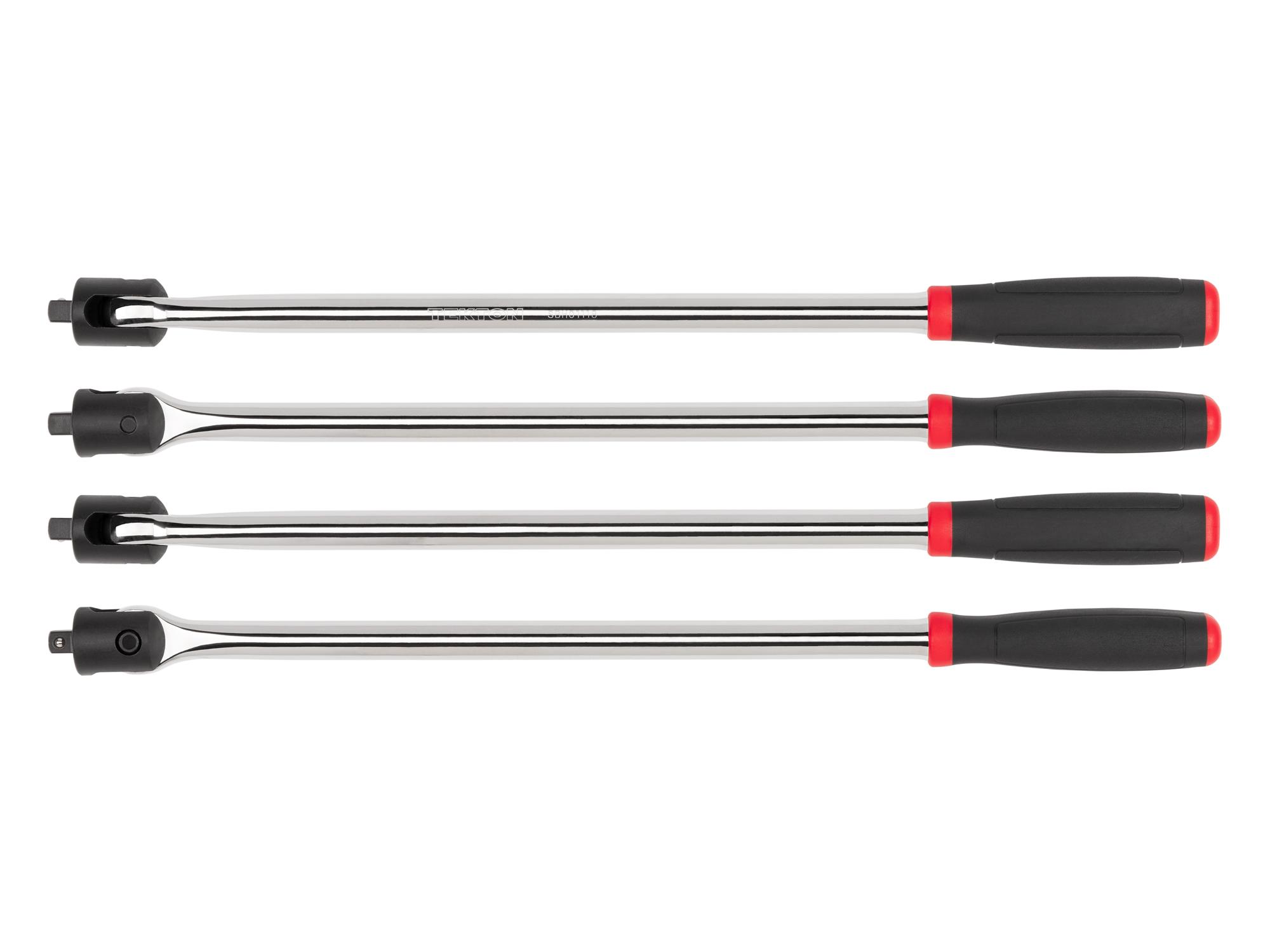

Side view of Tekton 18 inch breaker bar. Item #SBH01118

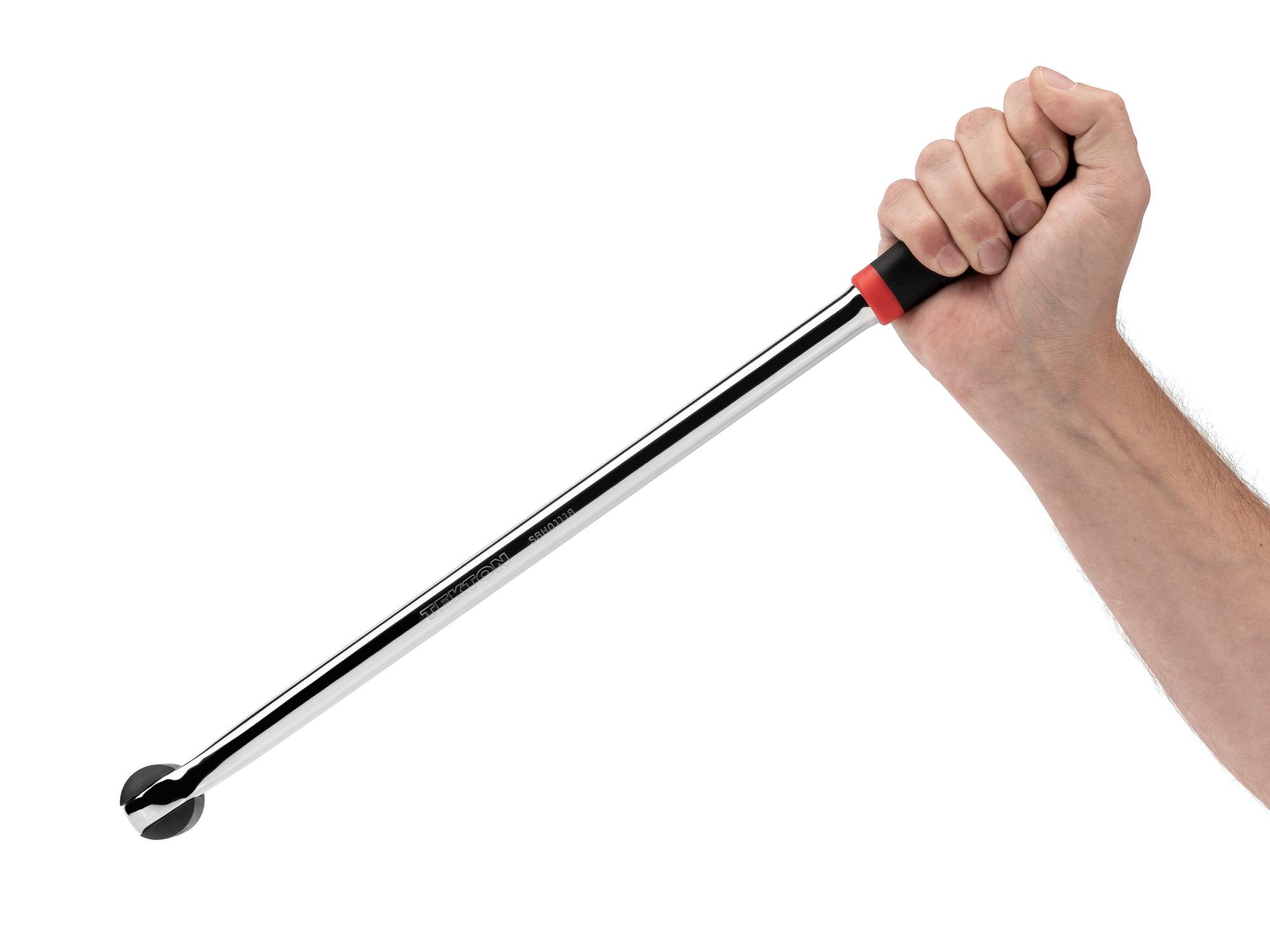

Person holding Tekton 18 inch breaker bar. Item #SBH01118
Tap image to zoom in
Item #SBH01118
3/8 Inch Drive

18 Inch Comfort Grip Breaker Bar

•

Grip Type

Without Comfort Grip
$40
With Comfort Grip
$40
$40.00
Add to Cart
DetailsSpecifications

Details

Graphic showing the full range of the breaker bar head rotation

230º Pivoting Head

The head pivots smoothly and continuously through a 230-degree arc. An internal spring controls the tension of the head, allowing it to hold its position while you work.
The parts of a breaker bar head, with each part labeled

Parts and Assembly

The breaker bar head is made of AISI 4140 steel and heat treated to be stronger and more ductile than the handle.
Graphics comparing external breaker bar heads to internal breaker bar heads

Stronger External Head

Our external head design better resists spreading, twisting, or fracturing than an internal head design.
Chart showing the proof torque in ft-lb for 3/8, 1/2, and 3/4 inch drive breaker bars

Proof Torque

Our breaker bars exceed industry standards for Proof Torque, a measure of strength verified by a single-cycle test that applies torque until the specified value is reached without failure or any permanent deformation.
Data from: “Category 10, Type 1, Class 1 Handles, Hinged.” ASME B107.110-2019.
Graphic showing the working length is measured from the center of the drive tang to the end of the handle

Working Handle Length

We name our ratchets and breaker bars according to their effective working length, which is measured from the center of the drive tang to the end of the handle.
Close-up of the comfort grip handle

Comfort Grip Handle

We designed our comfort grip handle with a rounded oval shape to fit your hand without being bulky.
Graphic showing round, semi-round, oval, and Tekton's comfort grip handle shapes
Images showing the handle being pushed and pulled

Versatile Support

The rounded oval shape supports your palm and fingers when you push or pull.
Two flat sides on the steel shaft help it resist being twisted or pulled out of the handle.

Handle Materials and Construction

Santoprene

Santoprene™ TPV Overmold Grip

Shore A 55 durometer that’s abrasion and chemical resistant

polypropylene

Polypropylene Inner Handle

Shore D 68 durometer that’s impact resistant

steel

6135 Chromium-Vanadium Steel Core

Press-fit deeply into the handle and won’t pull apart

Specifications

3/8 Inch Drive x 18 Inch Comfort Grip Breaker Bar

Specs for 3/8 Inch Drive x 18 Inch Comfort Grip Breaker Bar
Country of Origin
Taiwan
Item Weight
1.98 lb.
