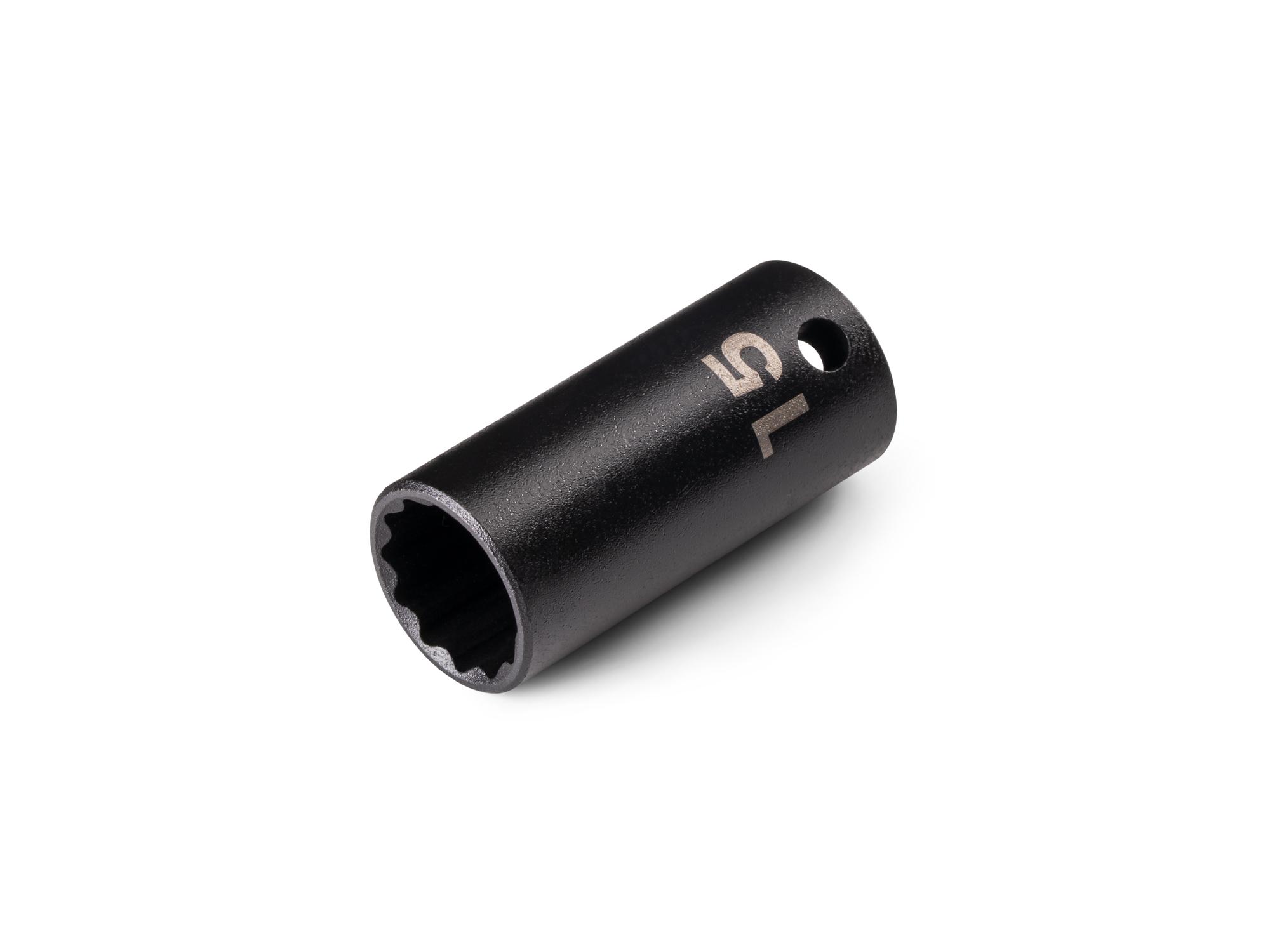

Front-right angle view of Tekton 15 millimeter impact drive 12-point socket. Item #SID14315

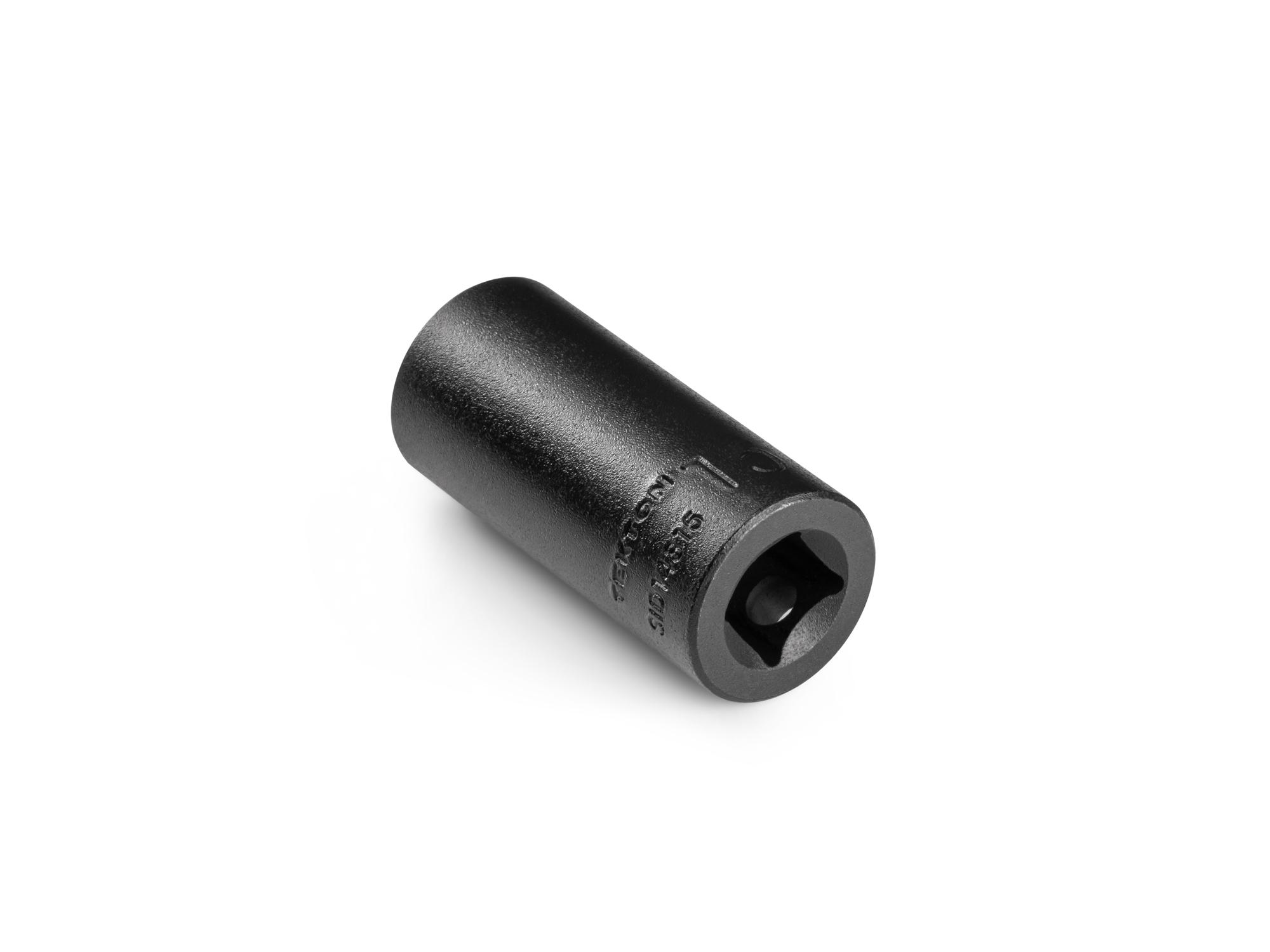

Back angle view of Tekton 15 millimeter impact drive 12-point socket. Item #SID14315
Person holding Tekton 15 millimeter impact drive 6-point socket. Item #SID14115
Tap image to zoom in
Item #SID14315

3/8 Inch Drive x 15 mm Semi-Deep 12-Point Impact Socket

•
InchMetric

Sizes

6 mm
$6
7 mm
$6
8 mm
$6
9 mm
$6
10 mm
$6
11 mm
$6
12 mm
$6
13 mm
$6
14 mm
$6
15 mm
$6
16 mm
$6
17 mm
$6
18 mm
$6
19 mm
$7
20 mm
$7
21 mm
$7
22 mm
$7
23 mm
$7
24 mm
$7
$6.00
Add to Cart

Also Available:

Shallow Socket • Deep Socket • 6-Point

DetailsSpecifications

Details

Image of Tekton 18 mm 12-Point Impact Drive Sockets in shallow, semi-deep, and deep lengths

Our 3/8 Inch Drive Impact Socket Lineup

Our 3/8 inch drive 12-point impact socket lineup consists of shallow (previously called standard), semi-deep, and deep length sockets.
Images of the front and back of a 15 mm impact socket, showing the laser marking on the front and the stamped marking on the back

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
A semi-deep 12-point impact socket cut in half to show the full-length socket well

Full-Length Socket Well

The interior well extends far into the socket, which allows for better fastener engagement in more situations.
The square end of a 19 mm impact socket, with smooth walls, chamfered inner rim, and detent pin hole labeled

Drive Tool Retention

Sockets work with both types of anvils found on 3/8 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.

50BV30 Chromium-Vanadium (Cr-V)

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

6140 Chromium-Vanadium (Cr-V)

Carbon: 0.38 - 0.43%
Chromium: 0.50 - 0.70%
Manganese: 0.6 - 0.9%
Nickel: ≤0.030%
Phosphorous: ≤0.030%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Iron: 97.38 - 98.18%

8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)

Carbon: 0.56 - 0.64%
Chromium: 0.40 - 0.60%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.25%
Nickel: 0.40 - 0.70%
Phosphorous: ≤0.035%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.04%
Vanadium: 0.15 - 0.25%
Iron: 96.13 - 97.36%

Sockets (Shallow, Semi-Deep, and Deep Lengths)

INCH

Sockets that use 6140 Cr-V or 50BV30 Cr-V

1/4 - 1 in.
(6140 Cr-V, 50BV30 Cr-V)

METRIC

Sockets that use 6140 Cr-V or 50BV30 Cr-V

6 - 24 mm
(6140 Cr-V, 50BV30 Cr-V)

Accessories

Impact socket extensions that use 6140 Cr-V

3 in., 6 in., and 10 in. Extensions
(6140 Cr-V)

Impact socket adapter and reducer that use 8660 Ni-Cr-Mo

Adapter and Reducer
(8660 Ni-Cr-Mo)

Color coded icons showing that impact universal joints use 8660 Ni-Cr-Mo for the ball end and 4140 Cr-Mo for the socket end

Universal Joint
(Ball: 8660 Ni-Cr-Mo)
(Socket: 4140 Cr-Mo)

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. All pieces have a corrosion-resistant manganese phosphate coating.
Learn More

Specifications

3/8 Inch Drive x 15 mm Semi-Deep 12-Point Impact Socket

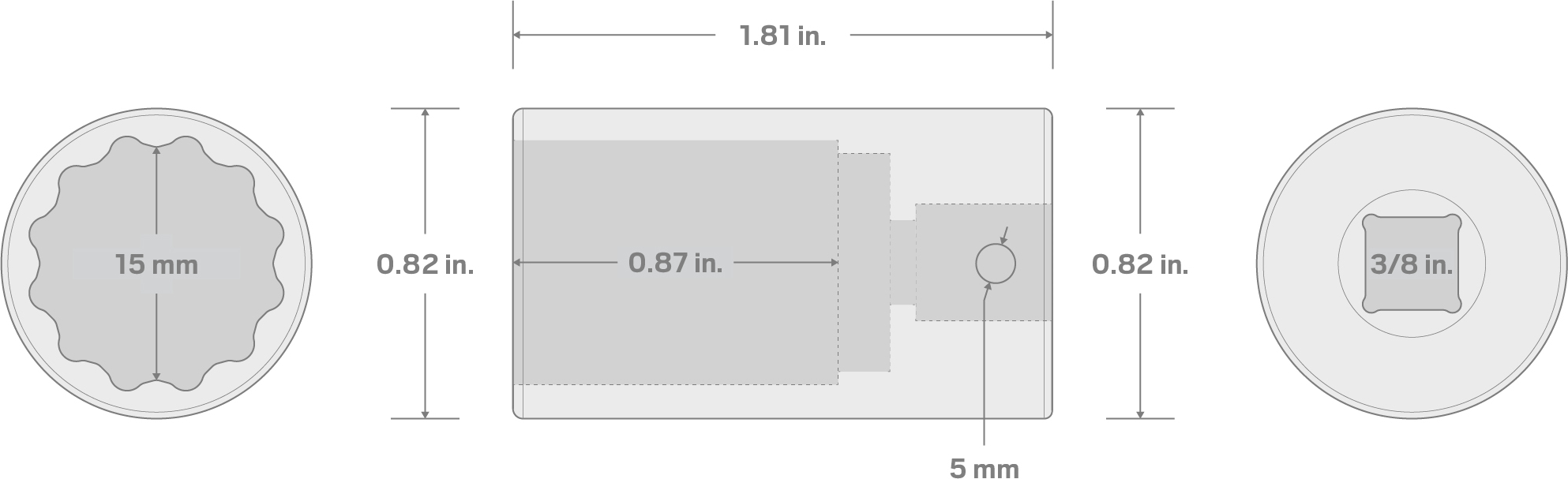

Specs for 3/8 Inch Drive x 15 mm Semi-Deep 12-Point Impact Socket
Country of Origin
Taiwan
Item Weight
0.14 lb.
