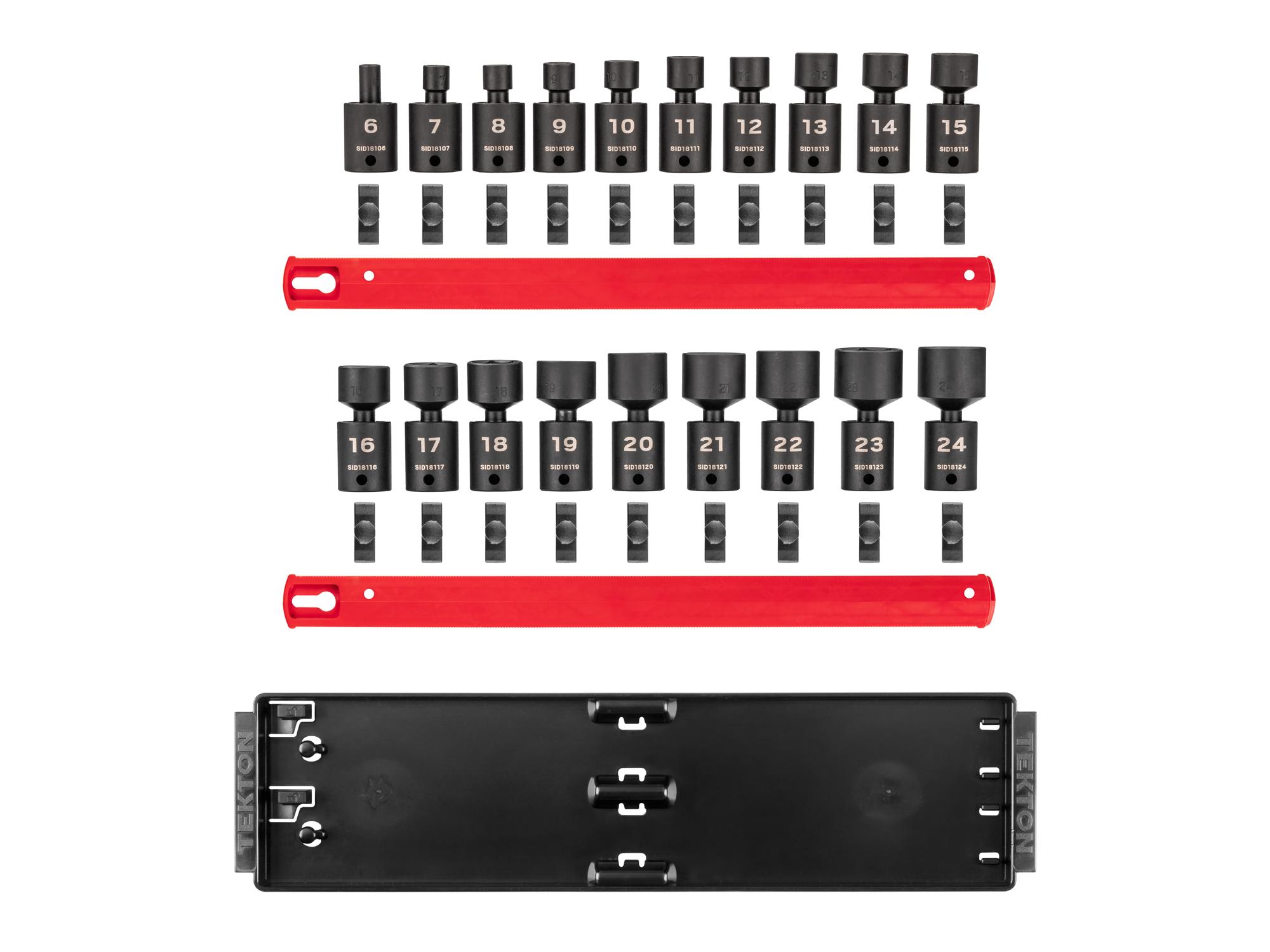

Laid out contents of Tekton rail impact drive universal joint socket set. Item #SID97103

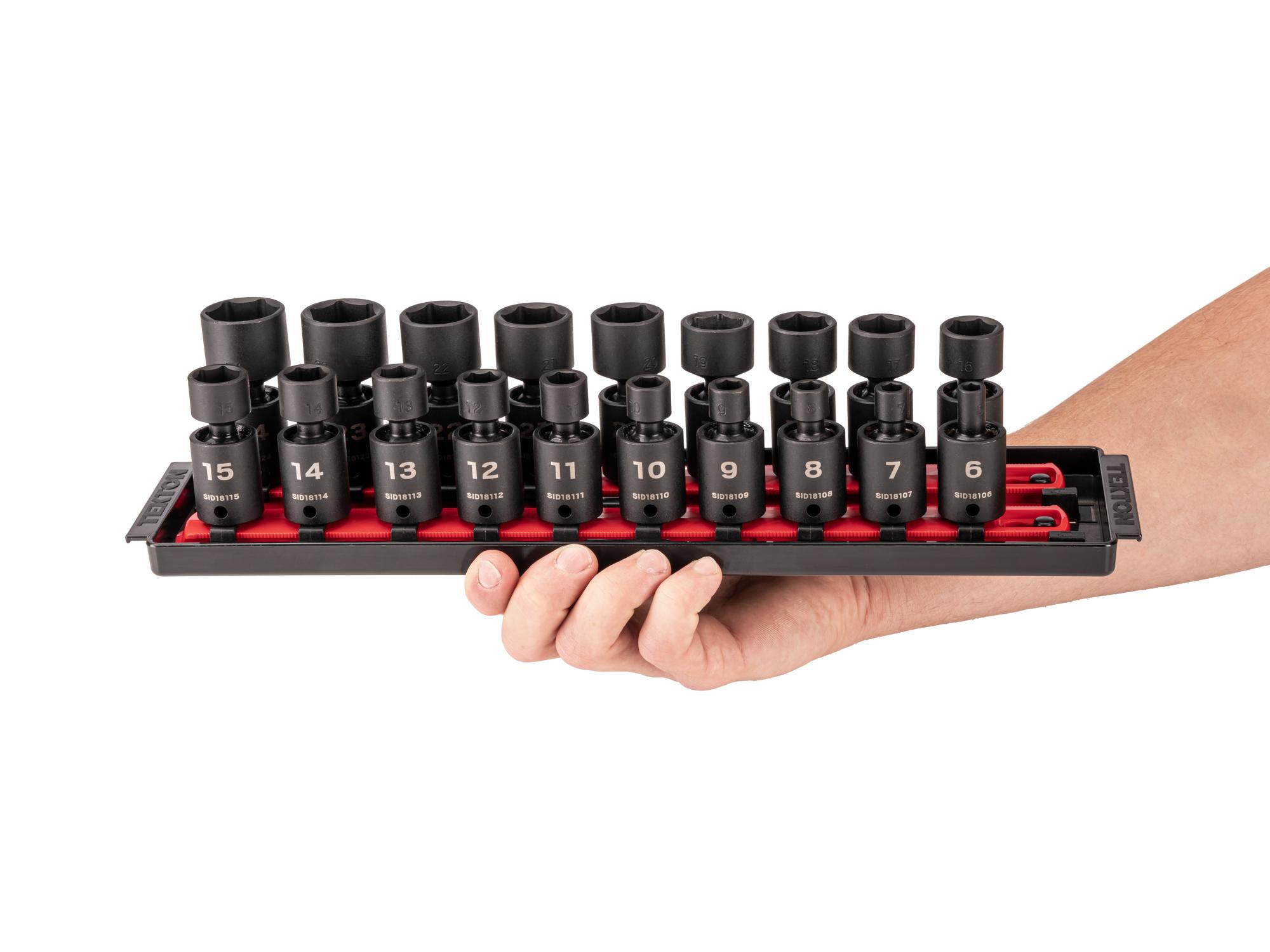

Person holding Tekton rail impact drive universal joint socket set. Item #SID97103
Tap image to zoom in
Item #SID97103
3/8 Inch Drive
Shallow
6‑Point

Universal Joint Impact Socket Set with Rails and Tray (19-Piece)

MM
6 - 24 mm
•
InchMetricInch and Metric

Set Range

6 - 24 mm
8 - 19 mm

Organization Option

Front-right angle view of Tekton impact drive universal joint socket set. Item #SID97003
Tool Only
$194
Front view of Tekton case impact drive universal joint socket set. Item #SID97302
Case
$200
Front-right angle view of Tekton rail impact drive universal joint socket set. Item #SID97103
Rail
$210
$210.00
Add to Cart
Set Includes:
DetailsSpecifications

Details

A Tekton universal joint impact socket has a reduced height compared to a universal joint with shallow length socket. The universal joint impact socket is marked with a letter "A", the universal joint is marked with a letter "B", and the shallow length socket on the universal joint is marked with a letter "C".

Compact Design for Tight Spaces

These sockets are shorter than our shallow length impact sockets on U-joints, allowing access into tighter areas. One less connection point creates a stiffer joint reducing the loss of impact power.
A: Universal joint socket #SID18115. B: Universal joint #SIA12102. C: Shallow length socket #SID12115
Exact dimensions can be found in the specs section of each product.

30-Degree Working Angle

The joint rotates smoothly and continuously at up to a 30-degree angle.
The pinless 6-sided ball design of the Tekton socket compared to pinned ball and pinless 4-lug ball designs

6-Sided Pinless Joint

Our solid ball-and-socket-style joint is stronger than joints that use pins. The 6-sided ball operates more smoothly than 4-lug designs.
A separated u-joint socket, with each part labeled

Parts and Assembly

The socket base and ball/socket are coated with a corrosion-resistant manganese phosphate finish.
The universal joint impact socket comes pre-lubricated with SuperLube Multi-Purpose Synthetic Grease (NLGI 2) with Syncolon® (PTFE). Maintain the lubrication using this grease or a comparable grease as needed to reduce wear over time.
Close-up of the 6-point opening on a socket

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners.
Graphic showing how the radiused corners on an impact socket apply force to the flat sides of a 6-point fastener

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.
A 19 mm universal joint socket, with the stamped and laser markings highlighted

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
A 19 mm universal joint socket with the detent pin hole, chamfered inner rim, and smooth walls labeled

Drive Tool Retention

The universal joint works with both types of anvils found on 3/8 inch drive impact wrenches.
Graphic showing green check marks on friction ring anvil and detent pin anvil
Two red socket rails in a tray with a twist-to-lock graphic

Socket Rail Organization

  • Patented twist-to-lock design securely holds sockets on the rail
  • Keyhole slot mounts to wall or workbench
  • Combine multiple socket rails with trays and other accessories
Shop Socket Organization

Specifications

3/8 Inch Drive Shallow 6-Point Universal Joint Impact Socket Set with Rails and Tray, 19-Piece (6 - 24 mm)

Specs for 3/8 Inch Drive Shallow 6-Point Universal Joint Impact Socket Set with Rails and Tray, 19-Piece (6 - 24 mm)
Country of Origin
Sockets made in Taiwan. Rails and tray made in USA.
Item Weight
6.32 lb.
