New

Front-right angle view of Tekton impact drive 12-point socket set. Item #SID91120

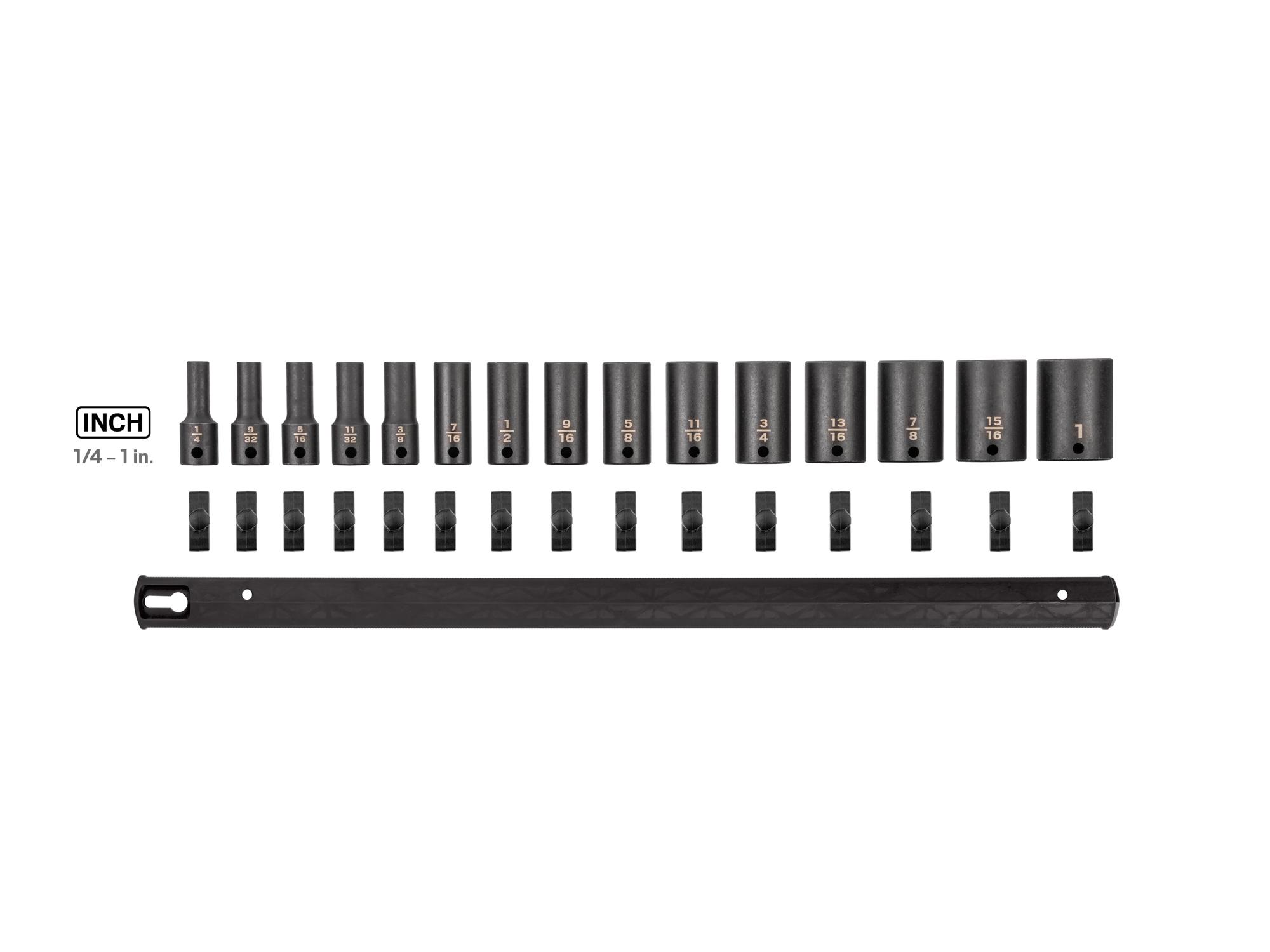

Laid out contents of Tekton impact drive 12-point socket set. Item #SID91120

Tap Click image to zoom in

Item #SID91120

3/8 Inch Drive Semi-Deep 12-Point Impact Socket Set with Rail (15-Piece)

1/4 - 1 in.

3/8 Inch Drive Shallow, Semi-Deep, and Deep 12-Point Impact Socket Set with Rails and Trays (57-Piece)

1/4 - 1 in.

•

Inch Metric Inch and Metric

Set Range

1/4 - 1 in.

5/16 - 3/4 in.

Socket Depth

Shallow, Semi-Deep, and Deep

$160

$64.00

Set Includes:

IN Semi-Deep Sockets
1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1 in. (15 sizes)
18 Inch Socket Rail

Details Specifications

Details

Images of the front and back of a 15 mm impact socket, showing the laser marking on the front and the stamped marking on the back

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.

Fully Stepped Shoulders

The narrowed socket diameter goes all the way down to the base of the socket on small sizes. This allows for better reach into tight, recessed areas.

Full-Length Socket Well

The interior well extends far into the socket, which allows for better fastener engagement in more situations.

The square end of a 19 mm impact socket, with smooth walls, chamfered inner rim, and detent pin hole labeled

Drive Tool Retention

Sockets work with both types of anvils found on 3/8 inch drive impact wrenches:

Graphic showing green check marks on friction ring anvil and detent pin anvil

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.

50BV30 Chromium-Vanadium (Cr-V)

Show Elements

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Show Elements

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

6140 Chromium-Vanadium (Cr-V)

Show Elements

Carbon: 0.38 - 0.43%
Chromium: 0.50 - 0.70%
Manganese: 0.6 - 0.9%
Nickel: ≤0.030%
Phosphorous: ≤0.030%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Iron: 97.38 - 98.18%

8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)

Show Elements

Carbon: 0.56 - 0.64%
Chromium: 0.40 - 0.60%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.25%
Nickel: 0.40 - 0.70%
Phosphorous: ≤0.035%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.04%
Vanadium: 0.15 - 0.25%
Iron: 96.13 - 97.36%

Sockets (Shallow, Semi-Deep, and Deep Lengths)

INCH

Sockets that use 6140 Cr-V or 50BV30 Cr-V

1/4 - 1 in.
(6140 Cr-V, 50BV30 Cr-V)

METRIC

6 - 24 mm
(6140 Cr-V, 50BV30 Cr-V)

Accessories

Impact socket extensions that use 6140 Cr-V

3 in., 6 in., and 10 in. Extensions
(6140 Cr-V)

Impact socket adapter and reducer that use 8660 Ni-Cr-Mo

Adapter and Reducer
(8660 Ni-Cr-Mo)

Universal Joint
(Ball: 8660 Ni-Cr-Mo)
(Socket: 4140 Cr-Mo)

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. All pieces have a corrosion-resistant manganese phosphate coating.

Learn More

Socket Rail Organization

Patented twist-to-lock design securely holds sockets on the rail
Keyhole slot mounts to wall or workbench
Combine multiple socket rails with trays and other accessories

Specifications
