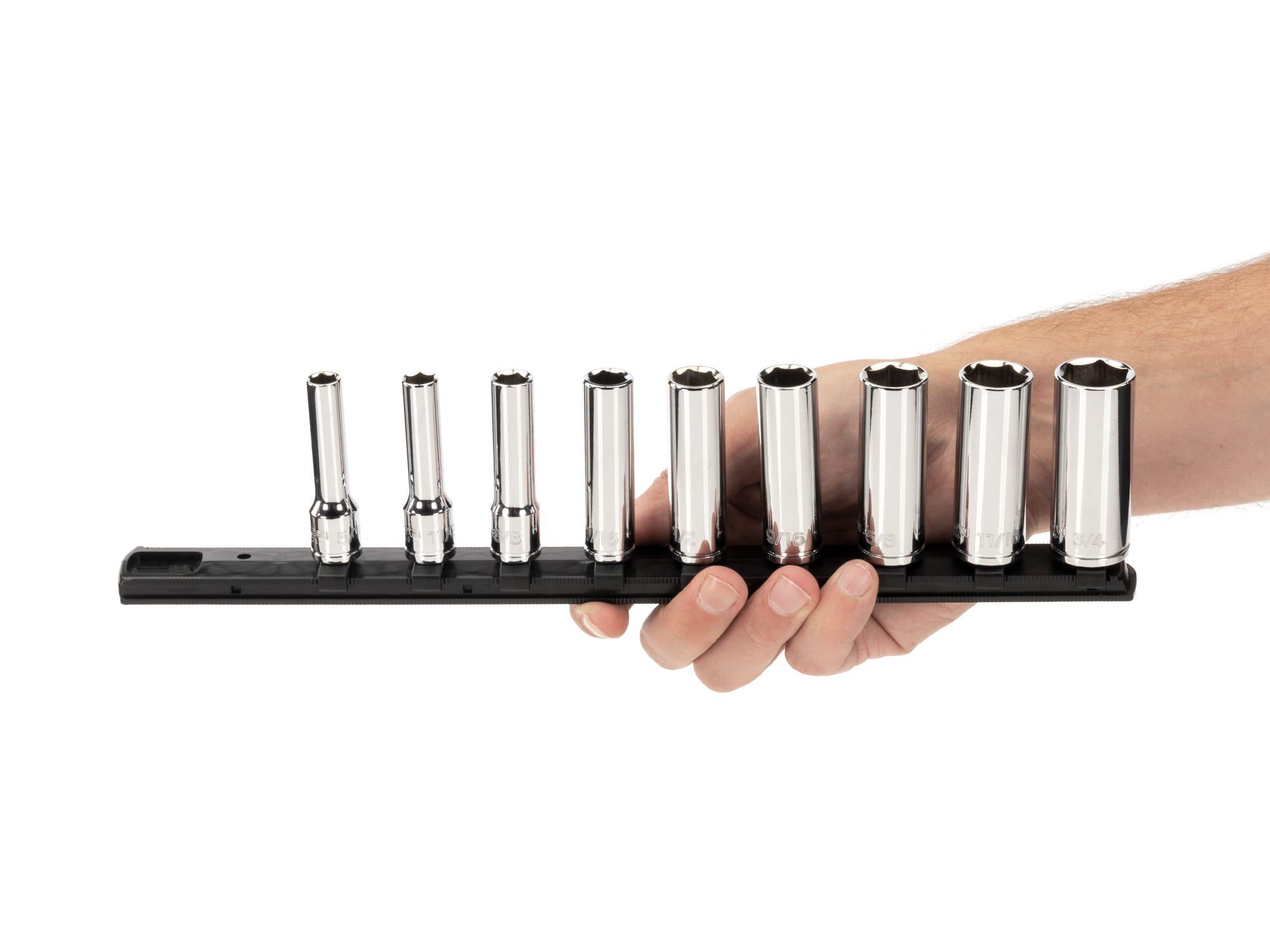

3/8 Inch Drive 6-Point Inch Sets

Item #SHD91105
•
Ships today
$32.00

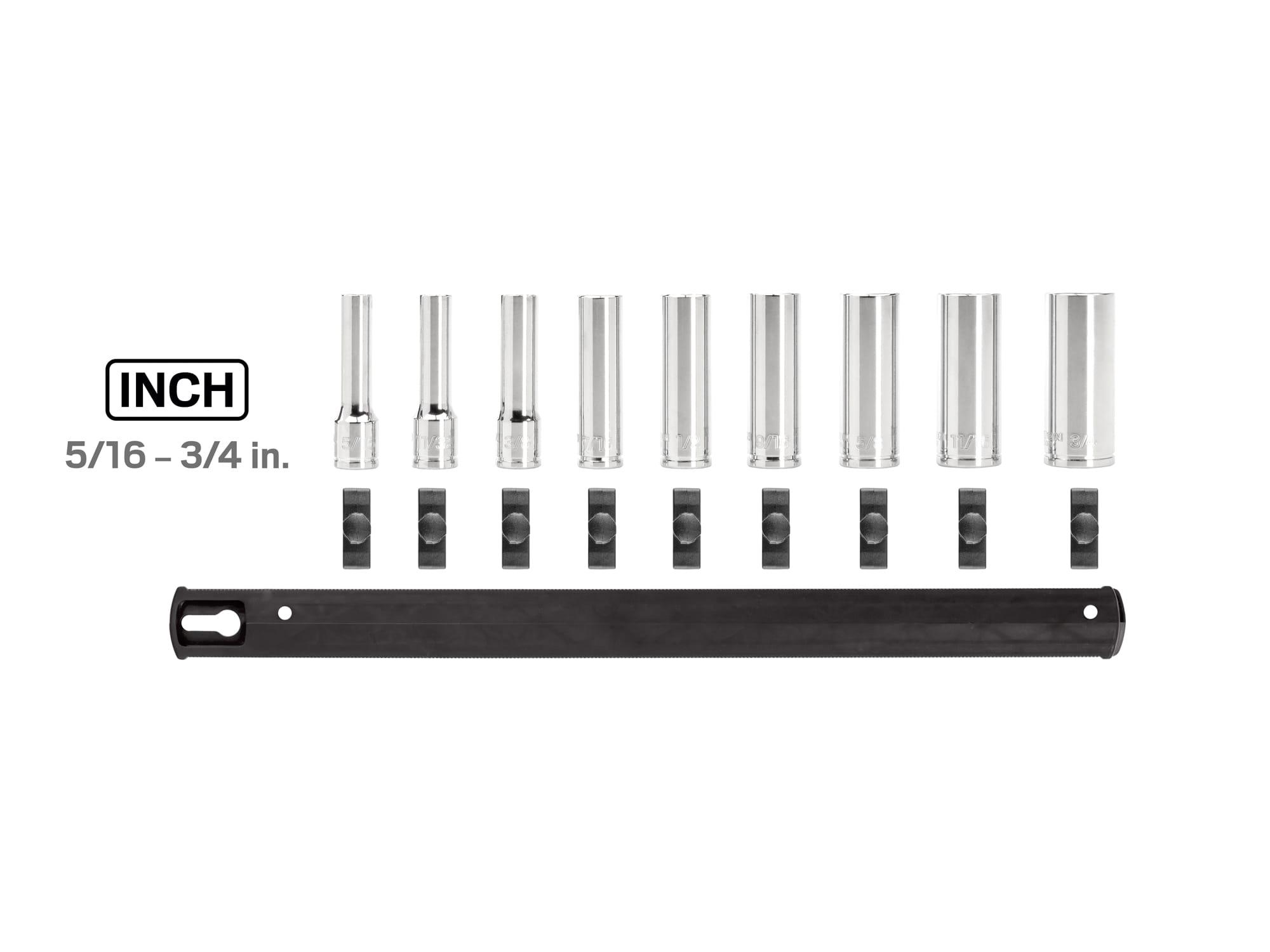

Set Includes:
Description

Large, Stamped Markings

  • Permanently impressed into the material by a roll-stamp die
  • As large as possible while still being readable along the socket’s curved surface
  • Clearly visible size numbers with extra-deep outline

Fully Stepped Shoulders

Narrowed diameter stretches to the base of the socket on small, deep-length sizes. This provides greater reach into tight, recessed areas.


Exterior + Interior Finishes

  • Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
  • Interior is protected against rust with clear coat, rather than commonly-used metallic paint

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.

Secure Drive Tool Engagement

  • Four detent grooves provide a secure connection with the retaining ball of a drive tool
  • Beveled inner rims help guide the socket onto other tools

High Torque Strength

Meets minimum value of 1.2 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.

METRIC SERIES

ANSITEKTON
Source: ASME B107.5M - 2002

INCH SERIES

ANSITEKTON
Source: ASME B107.1 - 2002

Socket Rail Storage

Specs

3/8 Inch Drive Deep 6-Point Socket Set, 9-Piece (5/16-3/4 in.) - Rails

A. Length 2.5 in.
B. Socket End Diameter 0.47 in.
C. Drive End Diameter 0.67 in.
D. Socket Opening Size 5/16 in.
E. Drive Size 3/8 in.
F. Well Depth 0.7 in.
Weight 0.14 lb.
Country of Origin Taiwan
