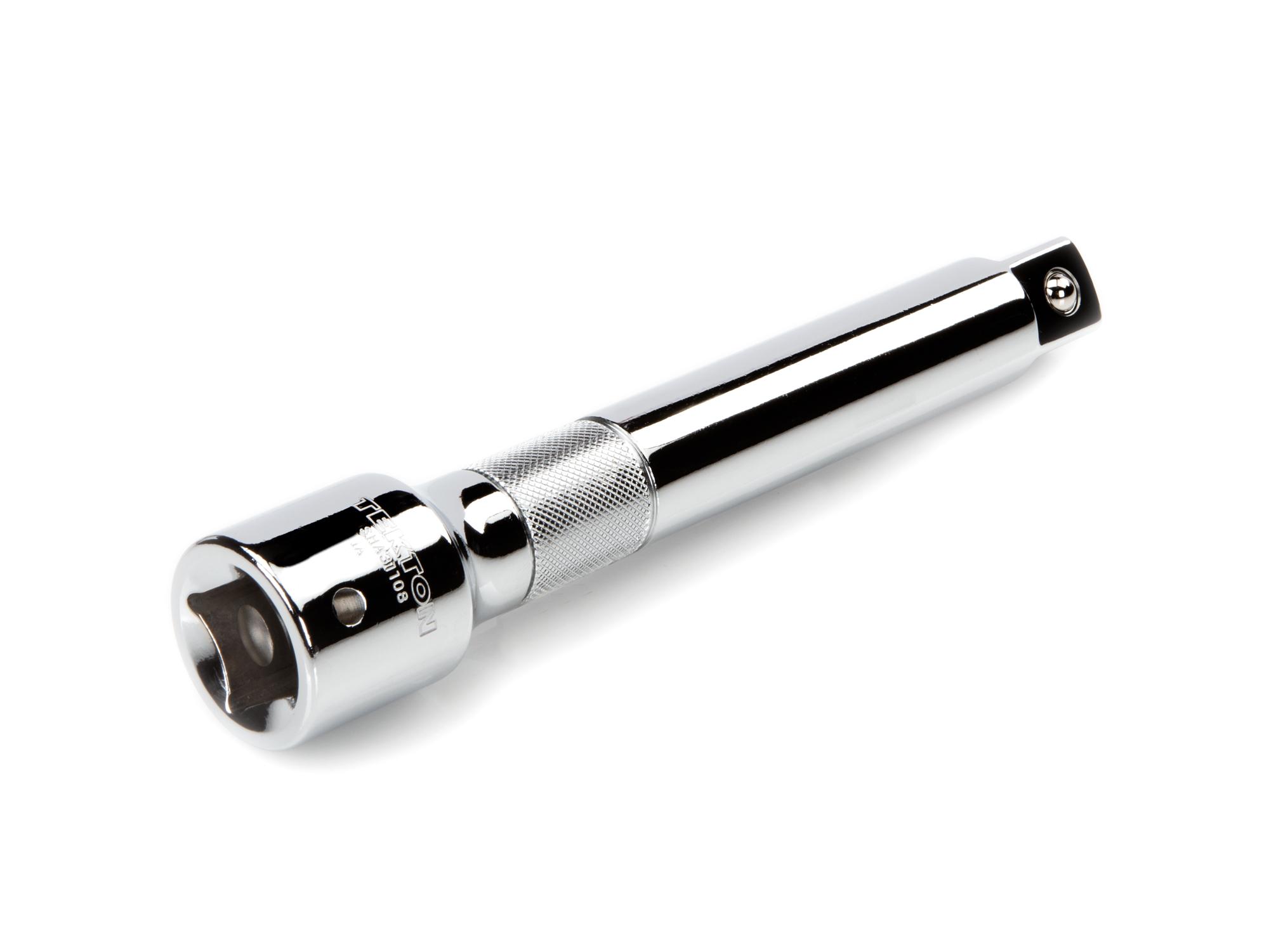

3/4 Inch Drive Extensions
Attach an extension to your drive tool for reaching past obstructions or into tight, narrow spaces with your socket.
The extension’s chrome-plated finish is highly corrosion resistant and easily wipes clean to a mirror finish.
Available in 3 Lengths

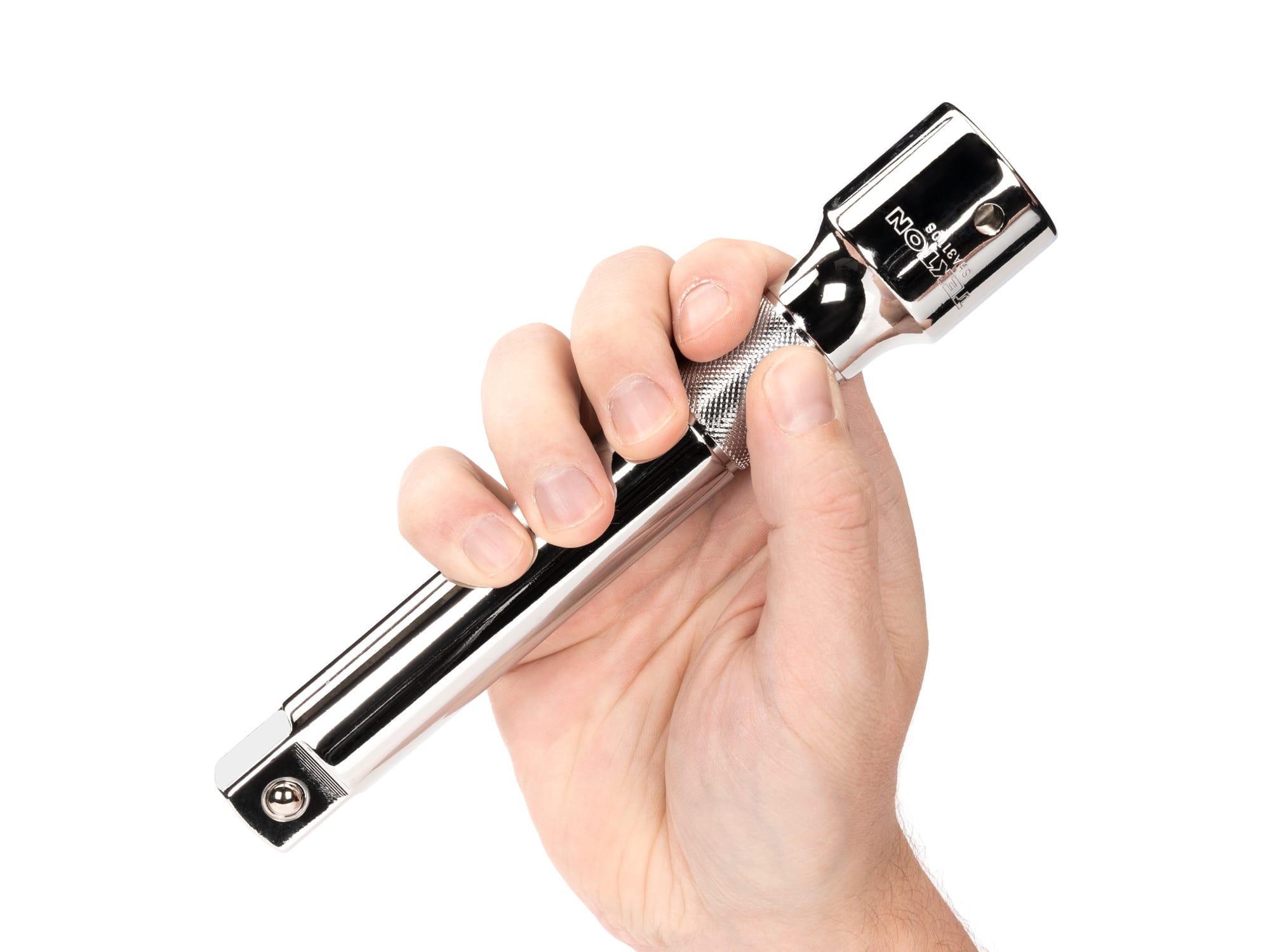

The knurled band offers a firm grip for starting or turning loosened fasteners by hand and for pulling the extension on and off of a drive tool.

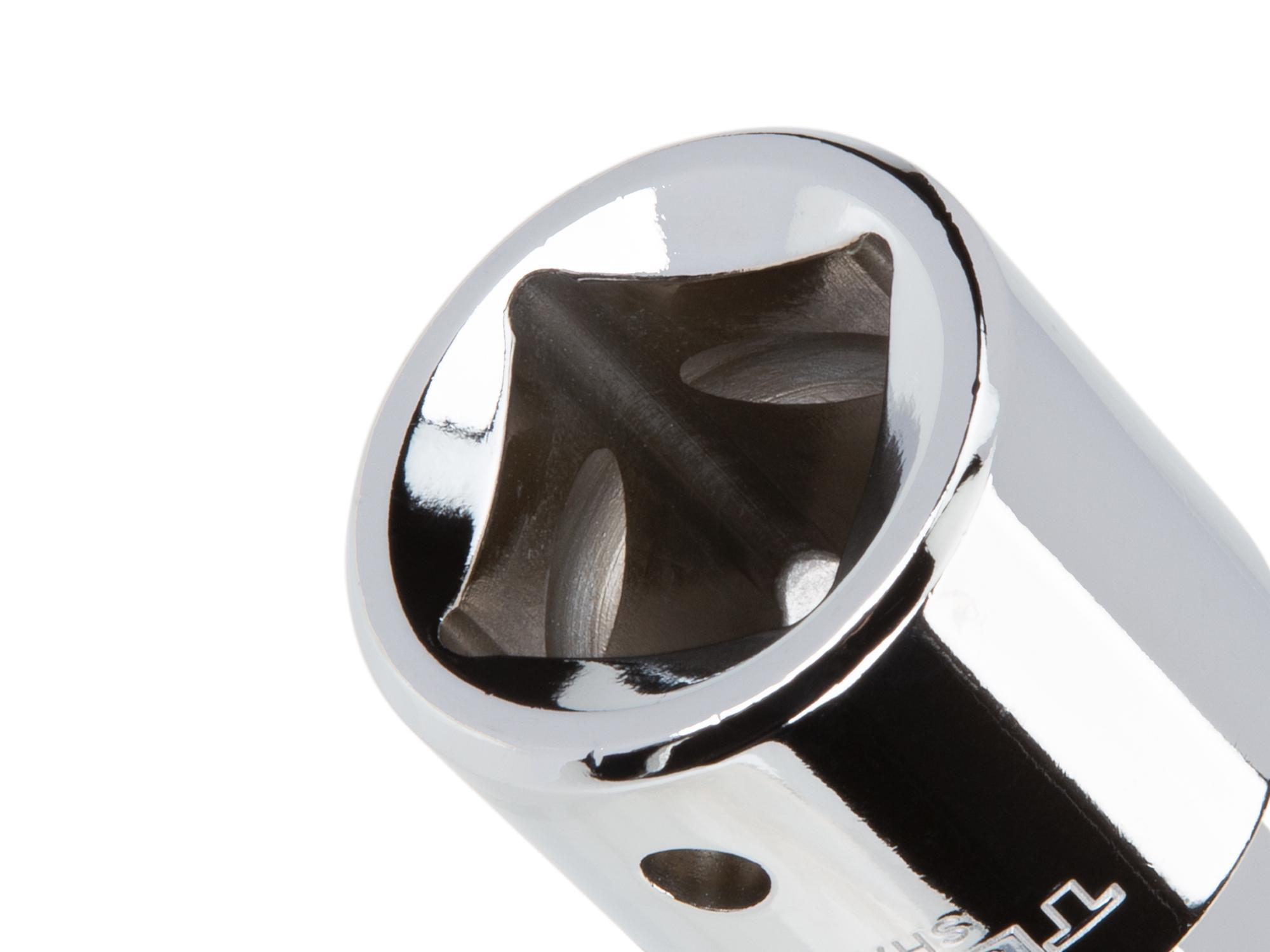

Secure Drive Tool Engagement
A. Four detent grooves provide a secure connection with the retaining ball of a drive tool.
B. Drilled through-hole allows ability to lock onto a drive tang with a retaining pin.
C. Beveled edge helps guide a drive tang smoothly into place.
D. Radiused corners reinforce the strength of the drive end by eliminating sharp angles that are prone to cracking under stress.
Spring-Loaded Retaining Ball
The extension's spring-loaded retaining ball latches into the detents of a socket and holds it firmly in place.
3/4 Inch Drive x 8 Inch Extension
|A. Length||7.9 in.|
|B. Diameter||1 in.|
|C. Shaft Diameter||1 in.|
|D. Tang Size||3/4 in.|
|E. Drive Size||3/4 in.|
|F. Locking Pin Hole Diameter||6 mm|
|Country of Origin||Taiwan|
