TEKTON 3/4 Inch Drive x 1-5/16 Inch Deep 6-Point Impact Socket

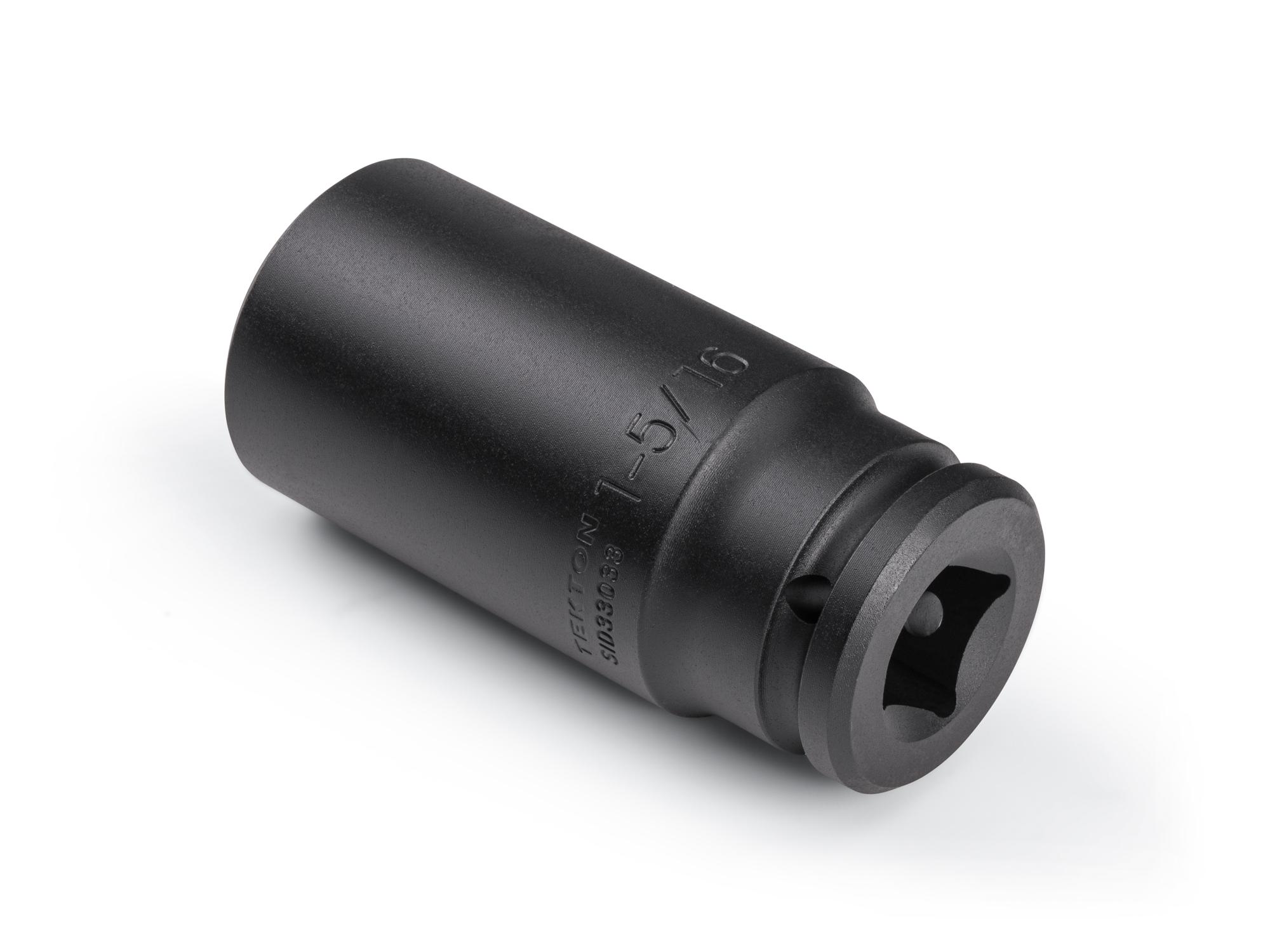

Back angle view of Tekton impact drive 6-point socket. Item #SID33033
Person holding Tekton impact drive 6-point socket. Item #SID33033
Tap image to zoom in
Item #SID33033

3/4 Inch Drive x 1-5/16 Inch Deep 6-Point Impact Socket

•
InchMetric

Sizes

1/2 in.
$18
9/16 in.
$18
5/8 in.
$18
11/16 in.
$18
3/4 in.
$19
13/16 in.
$19
7/8 in.
$21
15/16 in.
$21
1 in.
$23
1-1/16 in.
$24
1-1/8 in.
$26
1-3/16 in.
$26
1-1/4 in.
$27
1-5/16 in.
$27
1-3/8 in.
$30
1-7/16 in.
$30
1-1/2 in.
$31
1-9/16 in.
$32
1-5/8 in.
$33
1-11/16 in.
$34
1-3/4 in.
$35
1-13/16 in.
$35
1-7/8 in.
$36
1-15/16 in.
$38
2 in.
$40
2-1/16 in.
$42
2-1/8 in.
$44
2-3/16 in.
$46
2-1/4 in.
$48
2-5/16 in.
$50
2-3/8 in.
$52
2-7/16 in.
$55
2-1/2 in.
$58
$27.00
Add to Cart

Also Available in Shallow

#SID32033

Compatible with Retaining Pin and Ring Set (1-1/2 in. I.D.)

#SIA38537

Recommended: Socket Retaining Pin and Ring Removal Tool

#PNH70000

DetailsSpecifications

Details

Image showing Tekton 36 mm 6-Point Impact Drive Sockets in shallow and deep lengths

Part of Our 3/4 Inch Drive Impact Socket Lineup

Our 3/4 inch drive 6-point impact socket lineup consists of shallow and deep sockets.
Inch and metric sizes of 3/4 inch drive deep impact sockets lined up next to each other.

Every Socket Is 4.13 Inches Long

Unlike most other sets, our 3/4 inch drive deep impact sockets are 4.13 inches long and consistent in length across every size.
A deep 6-point impact socket cut in half to show the full-length socket well

Full-Length Socket Well

The interior well extends fully into the socket, which provides room to fit over long threaded studs and allows the nut to travel within it.
The front of the socket has laser markings, the back has stamped markings.

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
Ring groove supports retaining ring usage, smooth walls support friction ring, and through holes support retaining pin.

Drive Tool Retention

Works with three types of anvils found on 3/4 inch drive impact wrenches.
Graphic showing green check marks on through-hole anvil, friction ring anvil, detent pin anvil.
Graphic showing how the force applied by a socket to a fastener is on the flat sides of the socket and not the corners, preventing fastener round-off.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.
Tekton #SID32057, #SIA31503, #SIA31506, and #SIA34014 on a light gray background.

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more

All of our 3/4 inch drive sockets, extensions, universal joints, adapters, and reducers are made out of 4140 steel and have a corrosion-resistant manganese phosphate coating.

Specifications

3/4 Inch Drive x 1-5/16 Inch Deep 6-Point Impact Socket

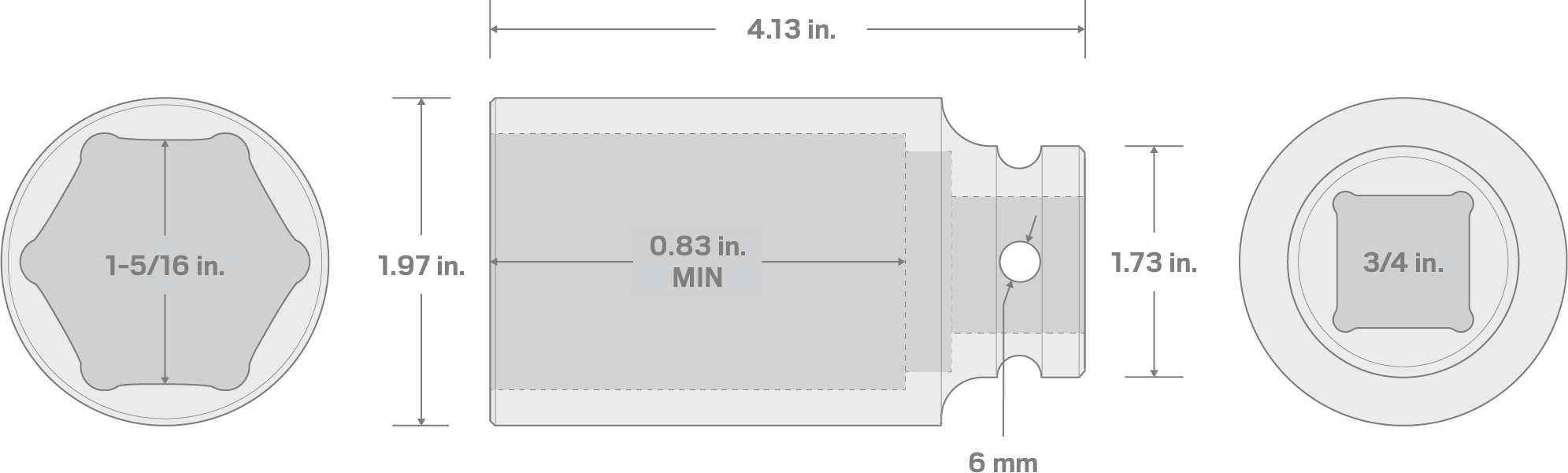

Specs for 3/4 Inch Drive x 1-5/16 Inch Deep 6-Point Impact Socket
Country of Origin
Taiwan
Item Weight
1.91 lb.
