Expand Your Range
Secure Drive Tool Engagement
A. Four detent grooves provide a secure connection with the retaining ball of a drive tool.
B. Drilled through-hole allows ability to lock onto a drive tang with a retaining pin.
C. Beveled edge helps guide a drive tang smoothly into place.
D. Radiused corners reinforce the strength of the drive end by eliminating sharp angles that are prone to cracking under stress.
Spring-Loaded Retaining Ball
The spring-loaded retaining balls of the adapter and reducer latch into the detents of sockets and hold them firmly in place. The adapter features two retaining balls for connecting with heavy, 1 inch drive sockets and accessories.

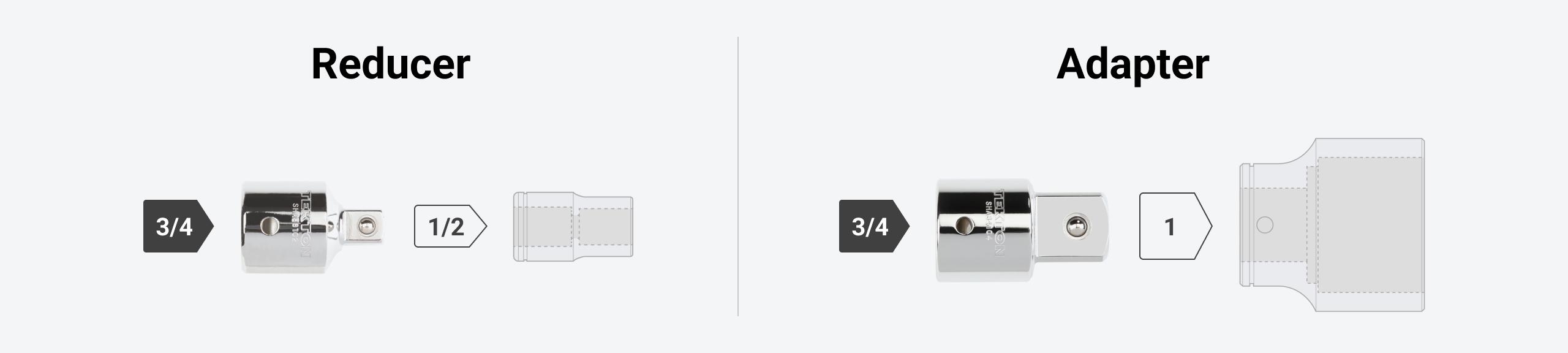

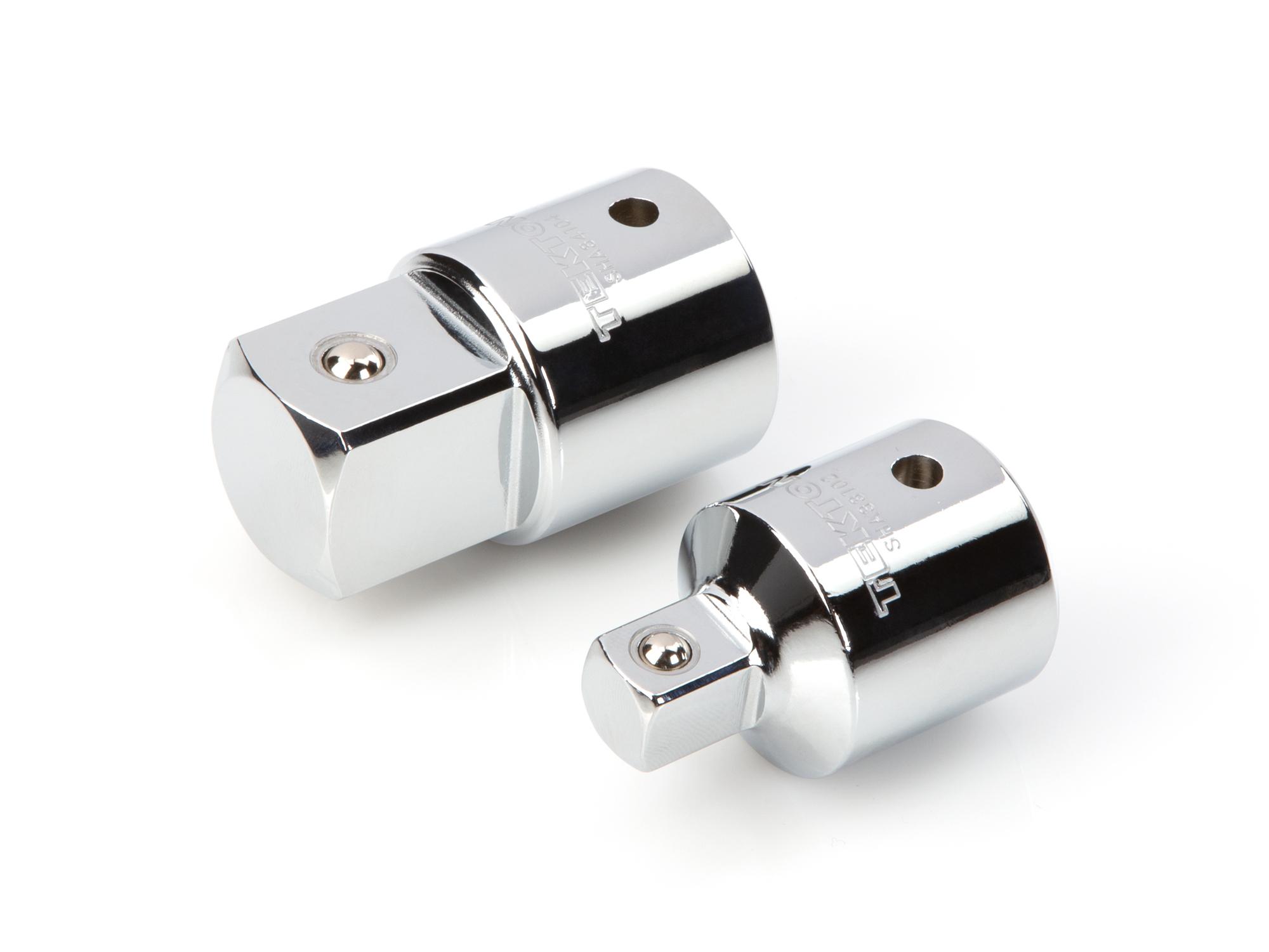

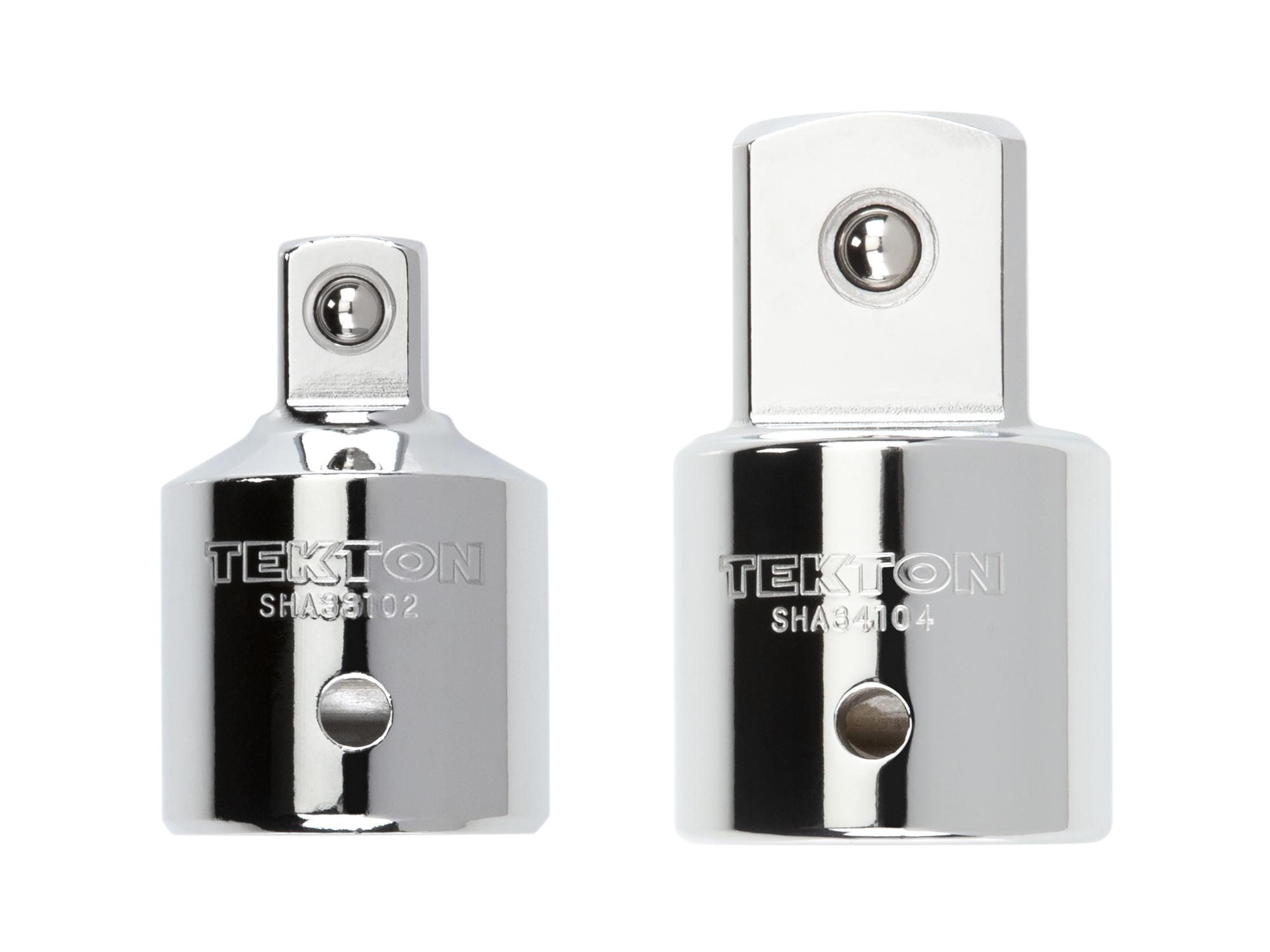

3/4 Inch Drive Adapter/Reducer Set (2-Piece)
|A. Length||2.1 in.|
|B. Diameter||1.4 in.|
|C. Tang Size||1/2 in.|
|D. Drive Size||3/4 in.|
|E. Locking Pin Hole Diameter||6 mm|
|Country of Origin||Taiwan|
