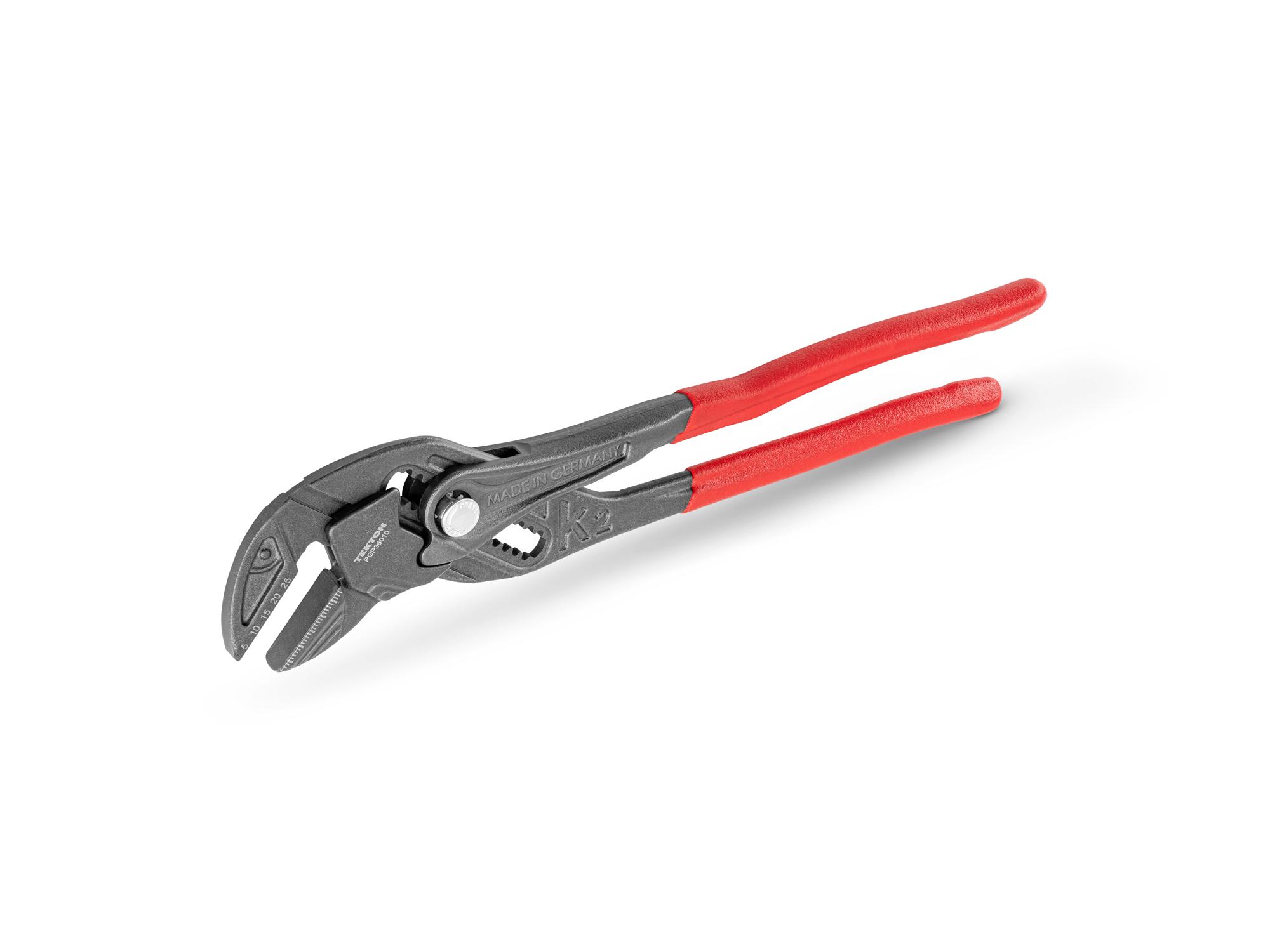

Front-right angle view of Tekton 10 inch gripping pliers set. Item #PGP36010

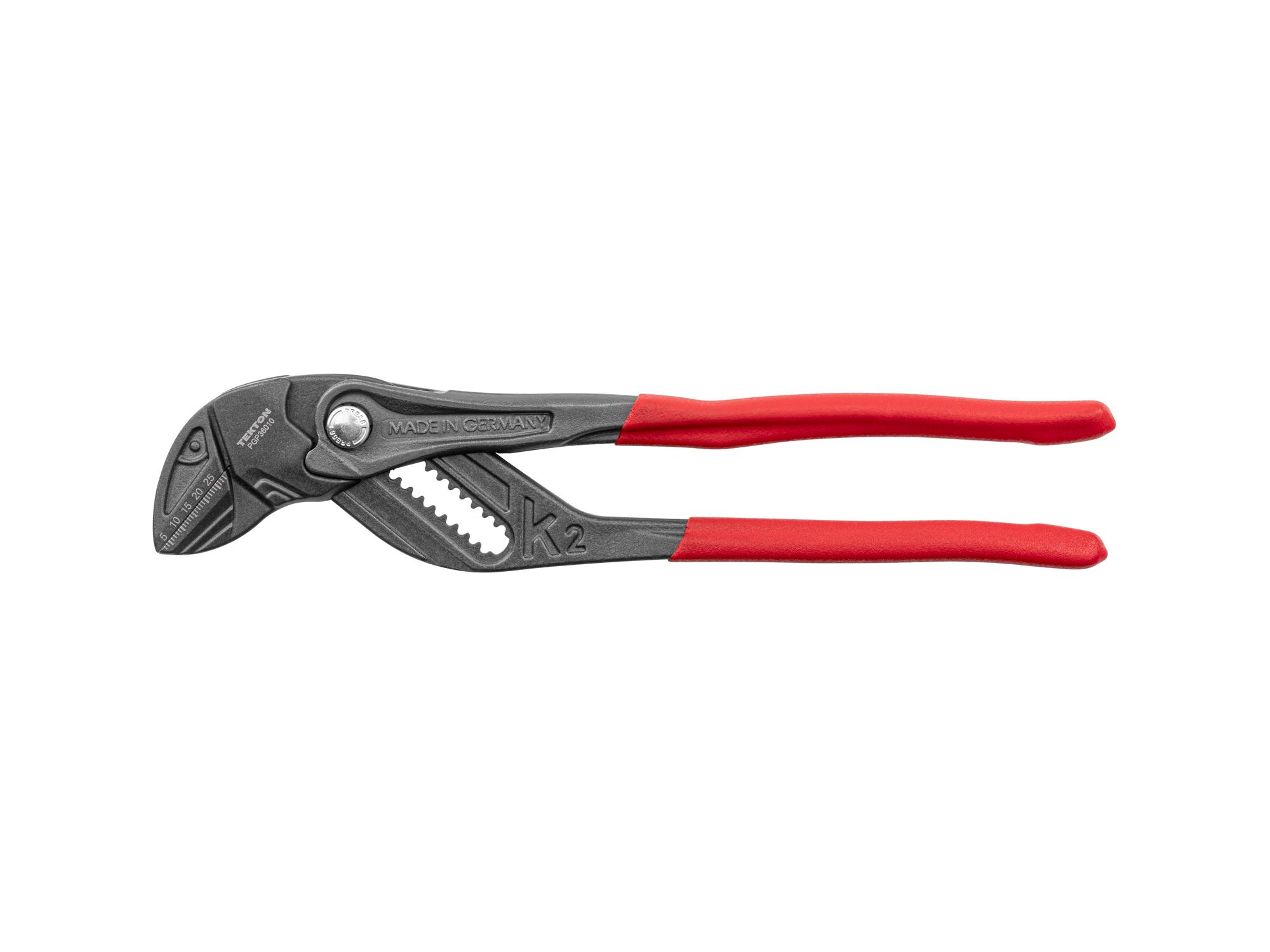

Front view of Tekton 10 inch gripping pliers set. Item #PGP36010

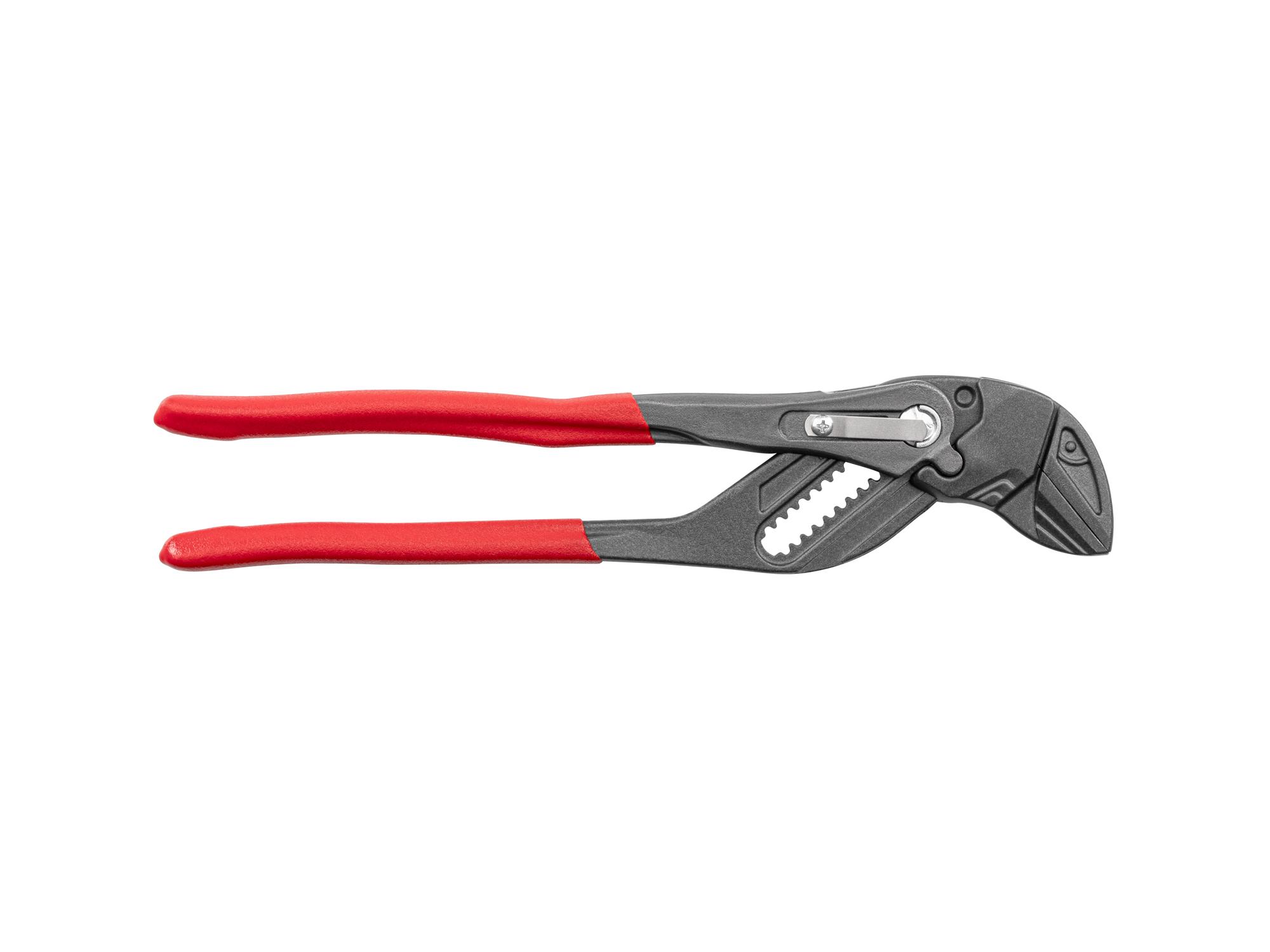

Back view of Tekton 10 inch gripping pliers set. Item #PGP36010

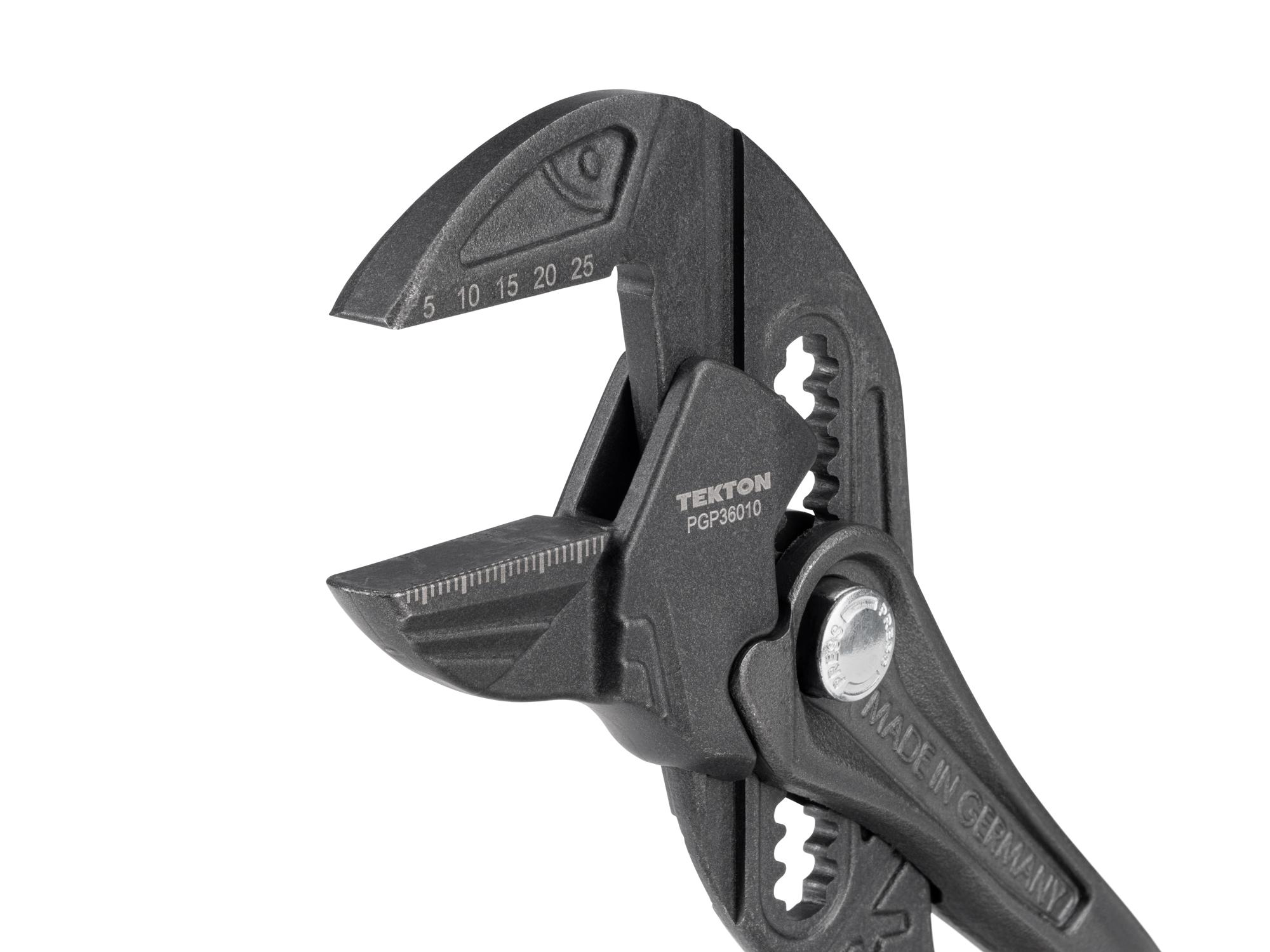

Closeup view of Tekton 10 inch gripping pliers set. Item #PGP36010

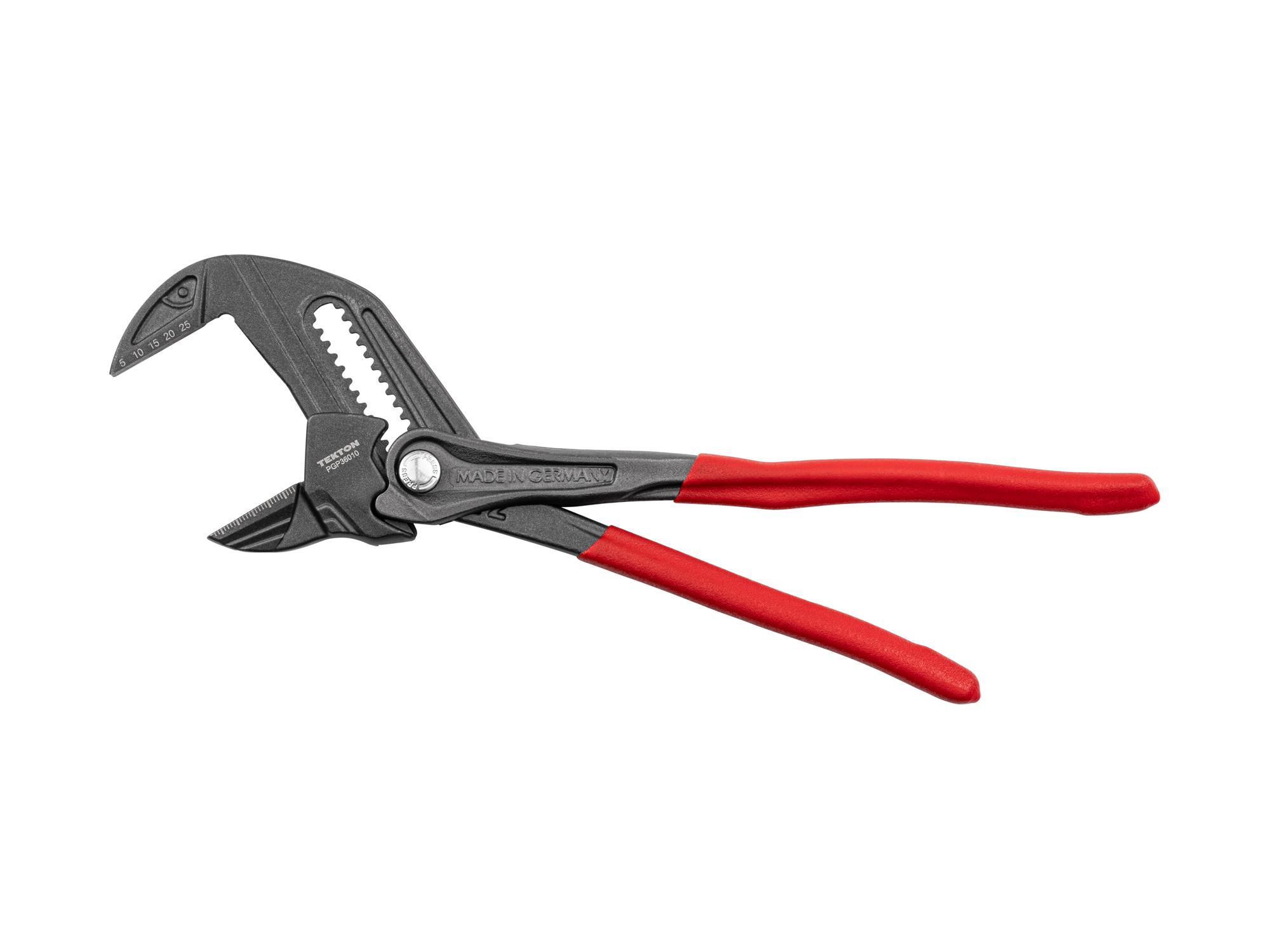

Dimensions for Tekton 10 inch gripping pliers set. Item #PGP36010

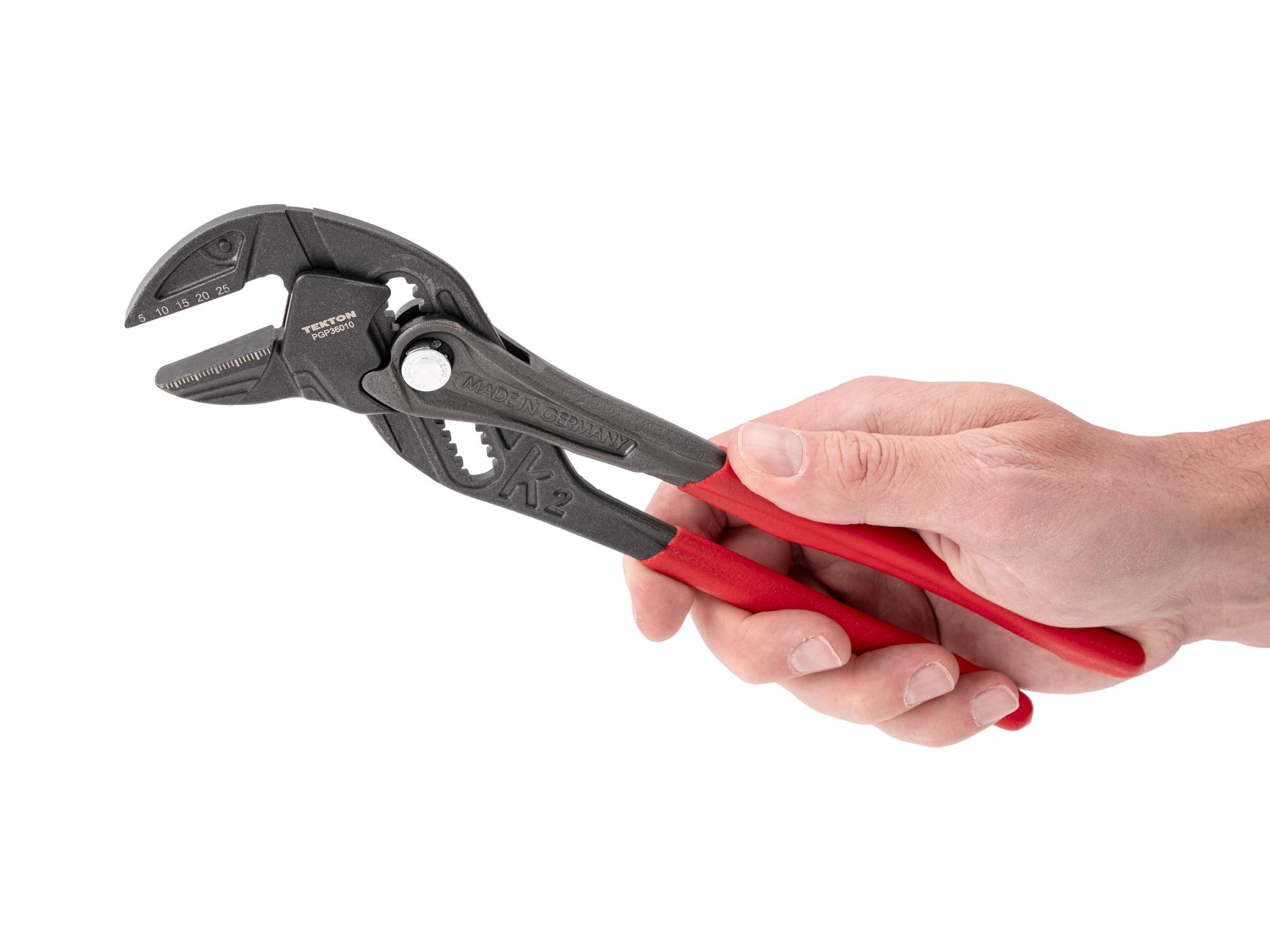

Person holding Tekton 10 inch gripping pliers set. Item #PGP36010
Tap image to zoom in

Item #PGP36010

10 Inch Pliers Wrench

$60.00

Details

Push Button for Quick Adjustments

Our pliers wrench offers quick adjustments and flat, parallel jaws that self-clamp as you apply force to the top handle. Its slim, lightweight design improves access in tight spaces and reduces fatigue when working at a distance and overhead. Press the domed button and slide the handle to set the jaw size.

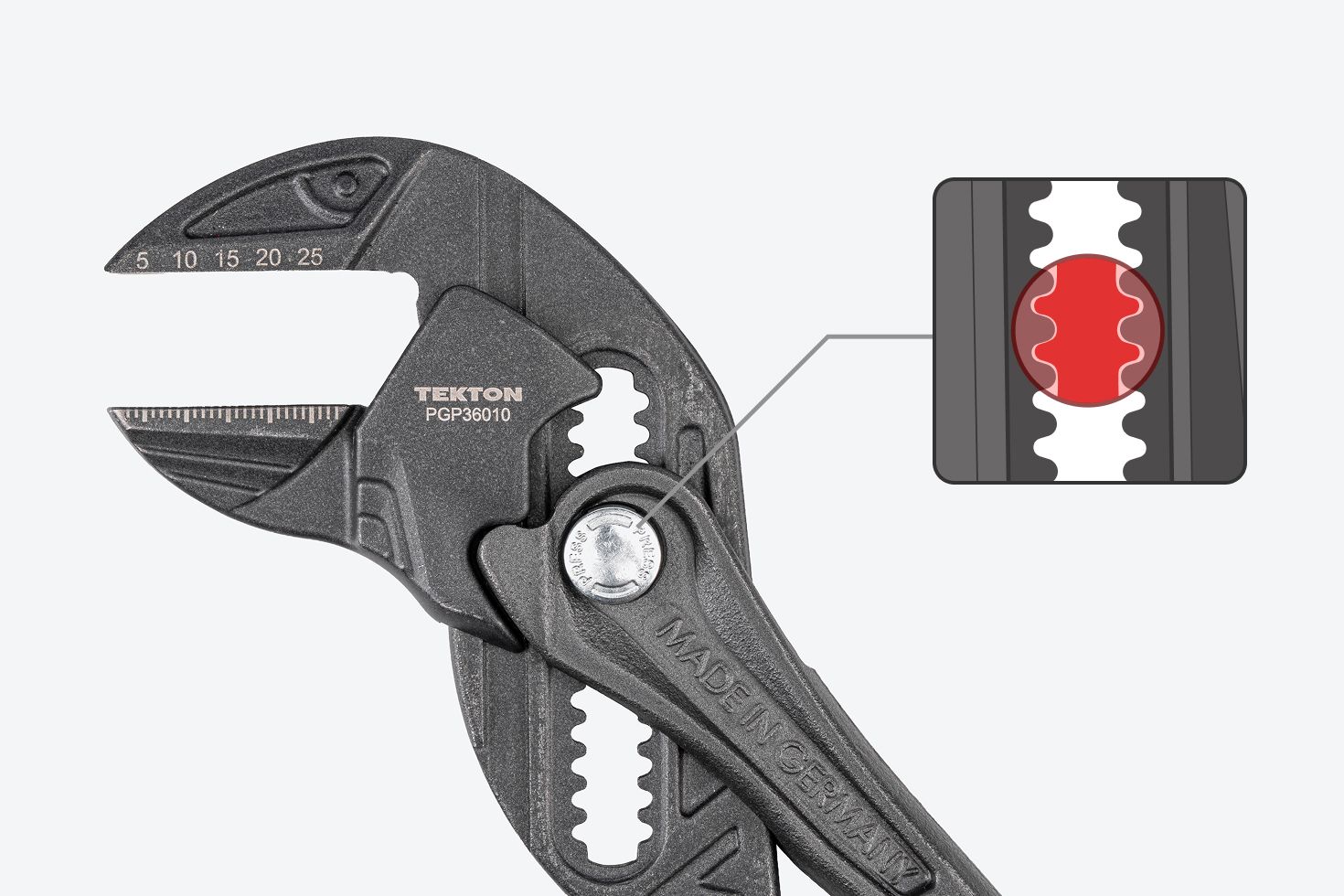

Graphic showing the button's teeth coming into contact with the tongue-and-groove track.

13 Positions on a Tongue-and-Groove Track

Adjust the jaw size by pushing in the domed button and sliding the handle to one of 13 locked positions. The push button has four rounded teeth that interlock with matching slots on both sides of the grooved track, creating a secure lock under heavy force.

Jaw Travel at Each Setting

Each adjustment position has some jaw travel built in, letting you open or close slightly without changing positions. There's about 1/4 inch of travel at the smallest position and 1/8 inch at the largest.

Clamping Pressure Increases While Turning

The top handle acts as a lever that pushes the floating jaw along a channel to maintain even pressure between parallel clamping surfaces.

The more force you apply to the top handle, the more the jaws naturally clamp onto the workpiece.

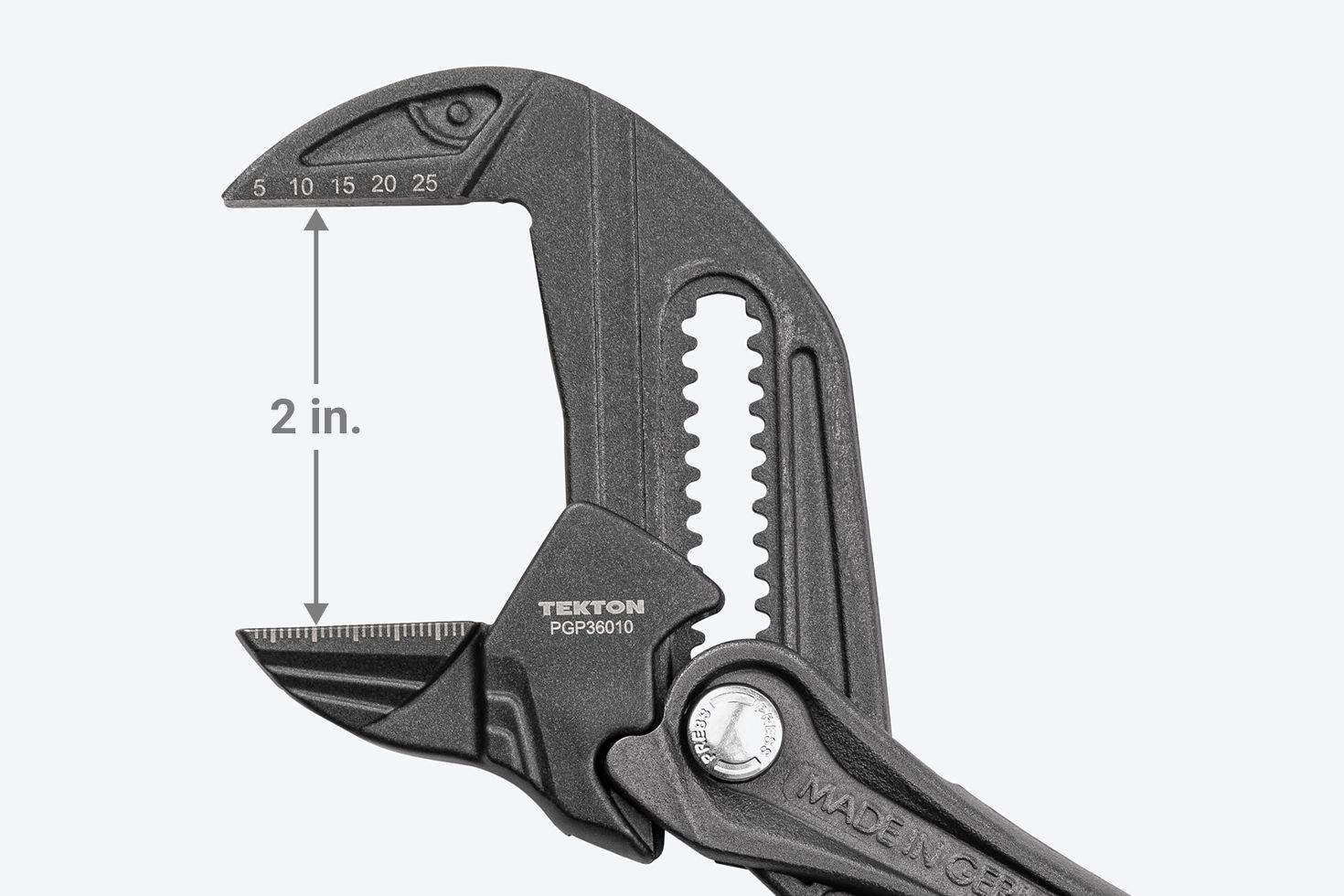

2 inch label on the open jaw of a pliers wrench

2 Inch Jaw Capacity

A full 2 inch jaw capacity lets you grip a wide range of nuts, fittings, and parts that would otherwise require several wrench sizes.

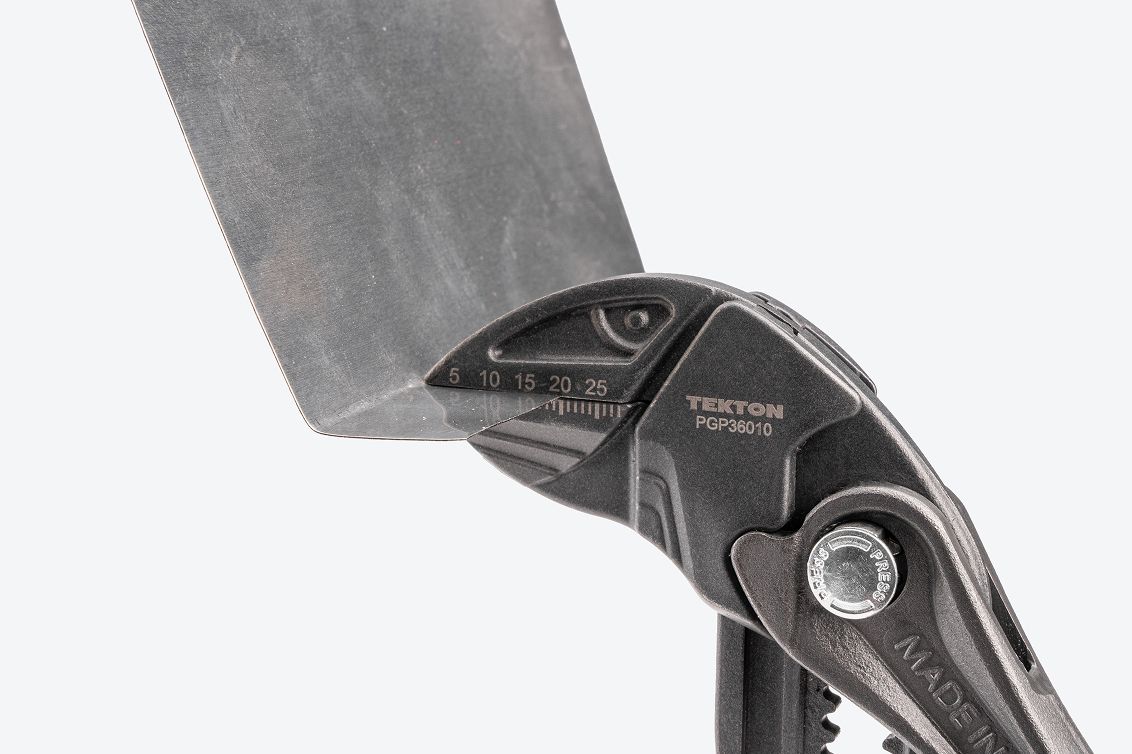

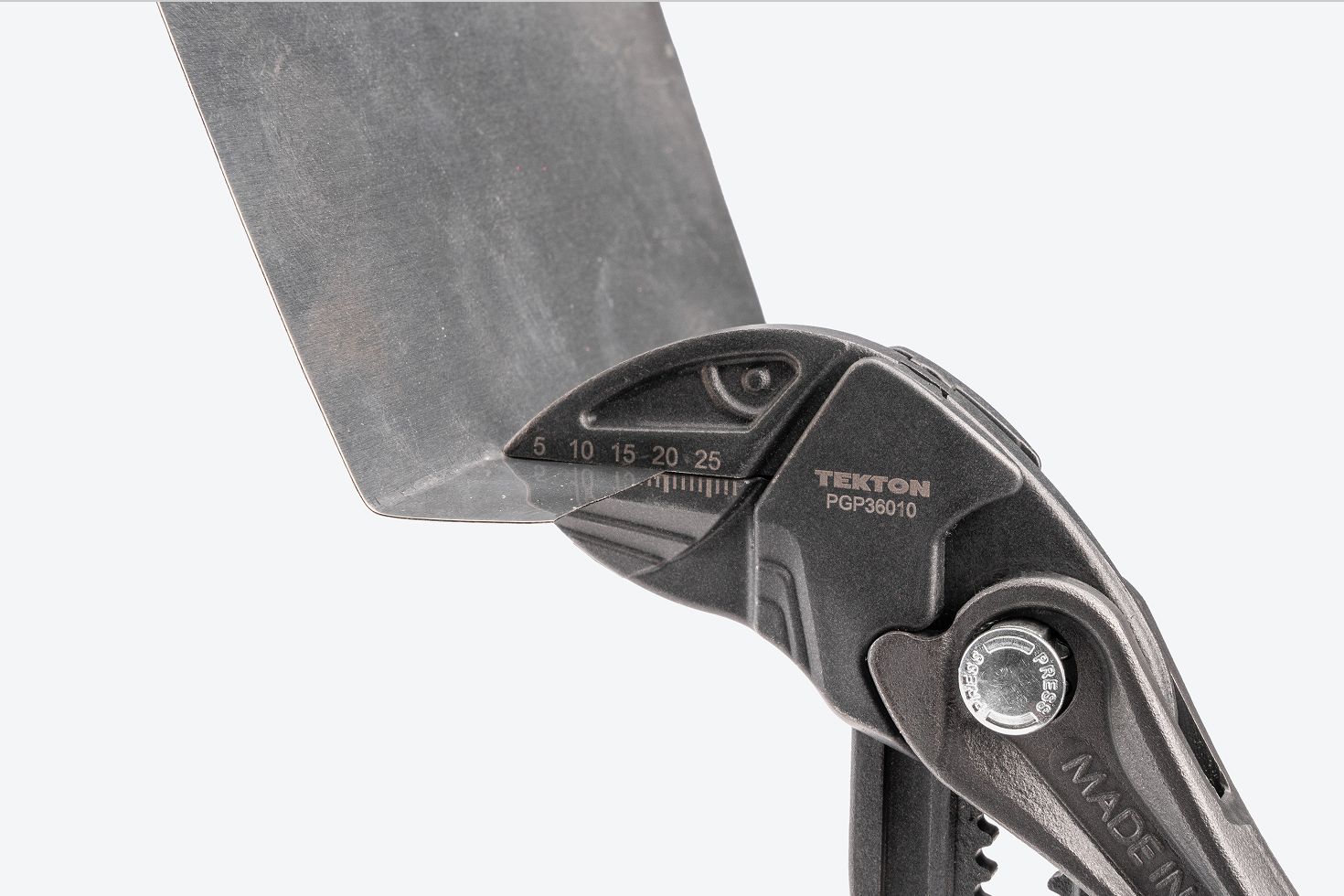

A pliers wrench clamping onto sheet metal.

Metric Ruler on the Jaws

The smooth parallel jaws can be used to pinch and bend sheet metal, and a laser-marked metric ruler lets you take a measured bite up to 28 mm.

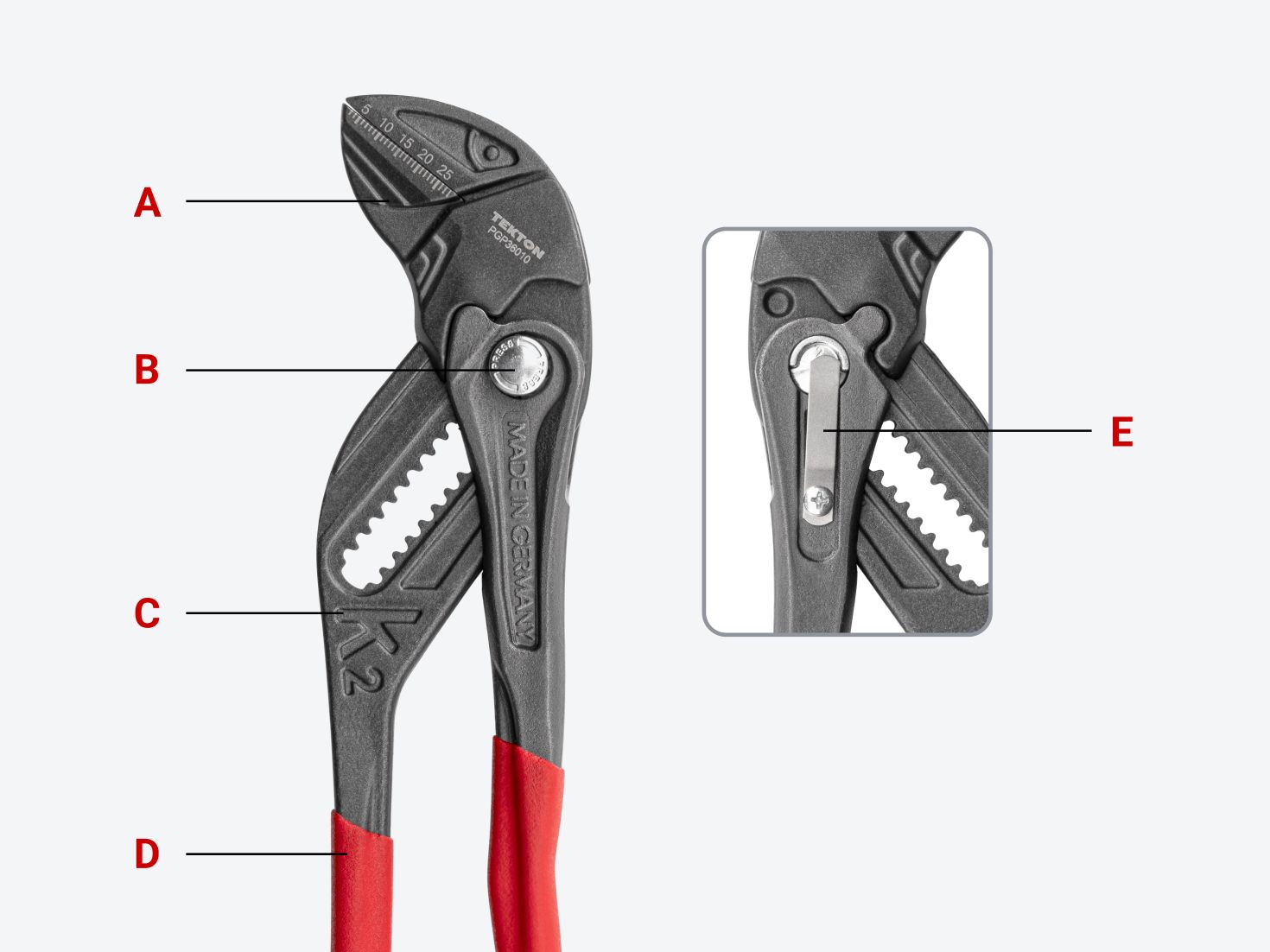

Pliers wrench with different points labeled

Parts and Materials

A. Floating steel jaw

B. Steel push button

C. Enamel-coated steel handles

D. Textured PVC-based handle grips

E. Steel spring


Specifications

10 Inch Pliers Wrench

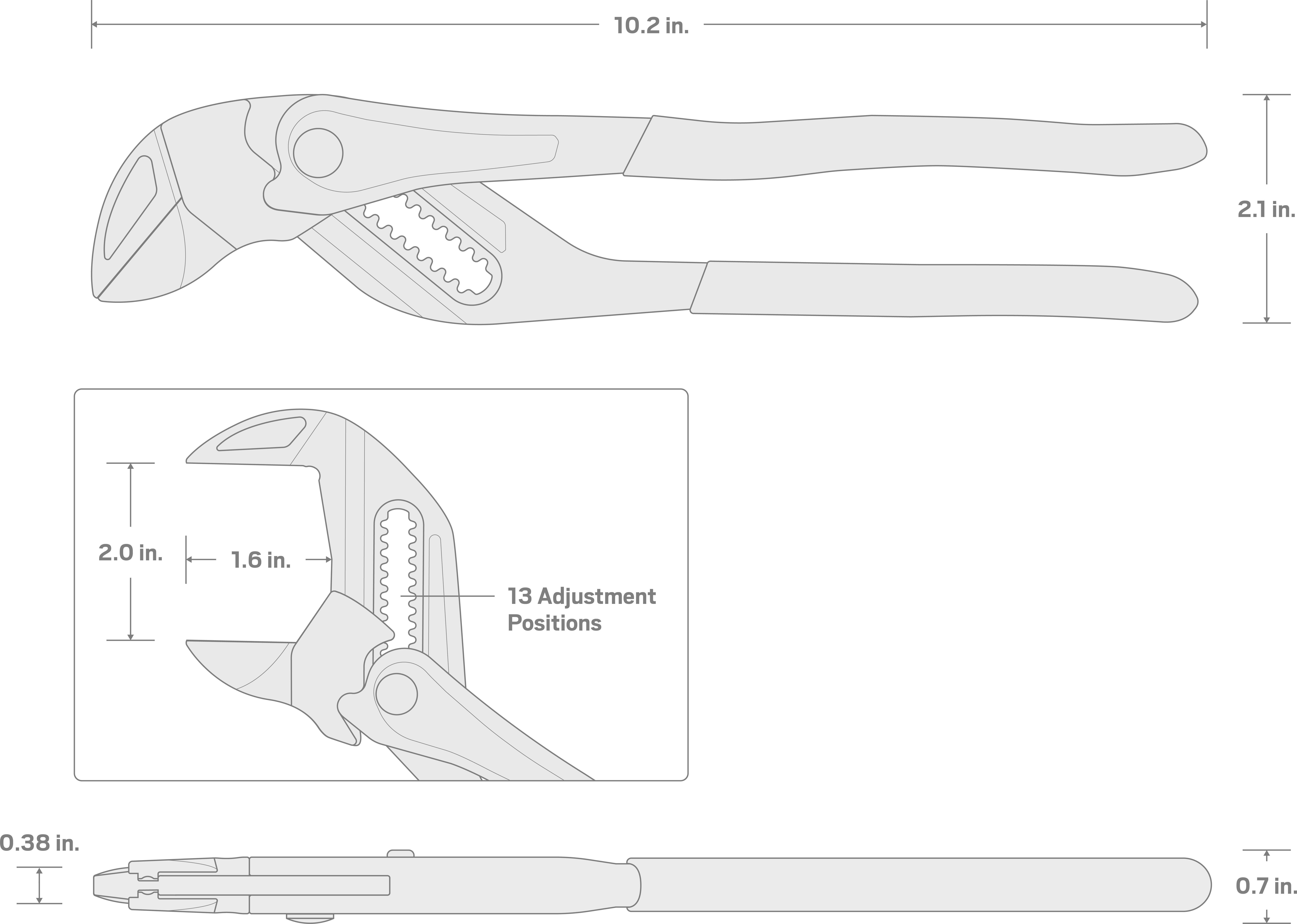

Specs for 10 Inch Pliers Wrench
Country of Origin
Germany
Item Weight
0.89 lb.
