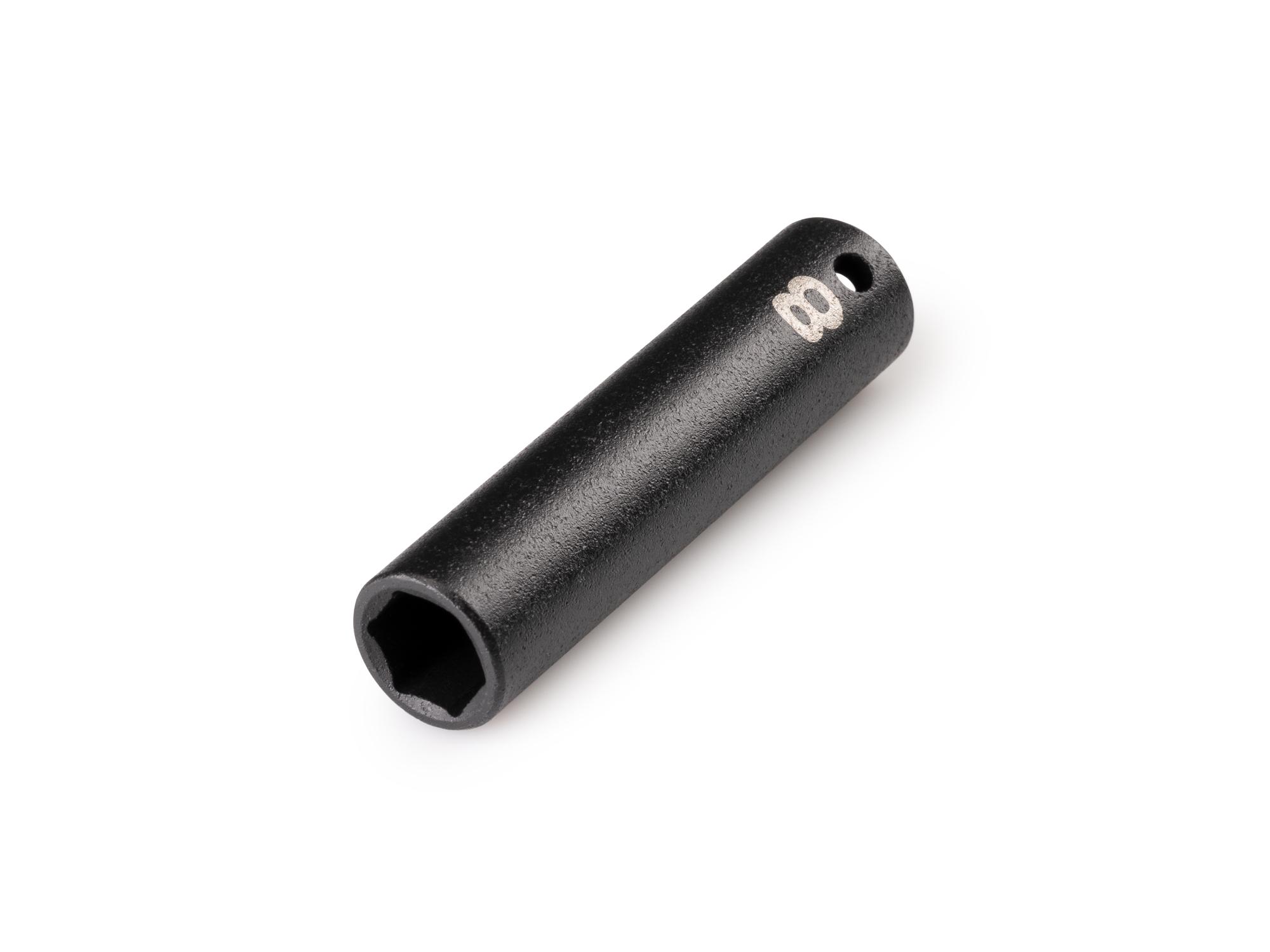

Front-right angle view of Tekton impact drive 6-point socket. Item #SID03108

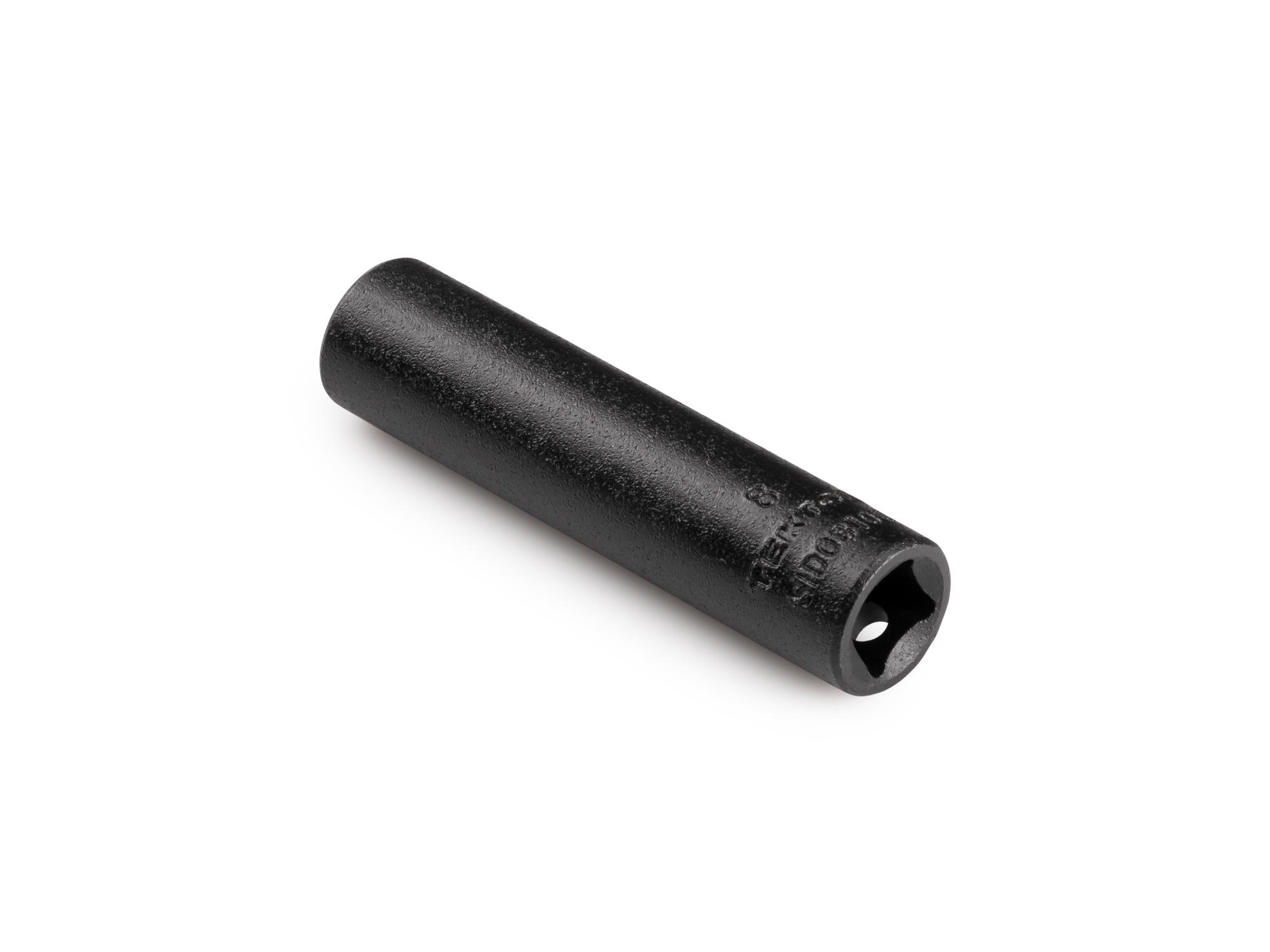

Back angle view of Tekton impact drive 6-point socket. Item #SID03108

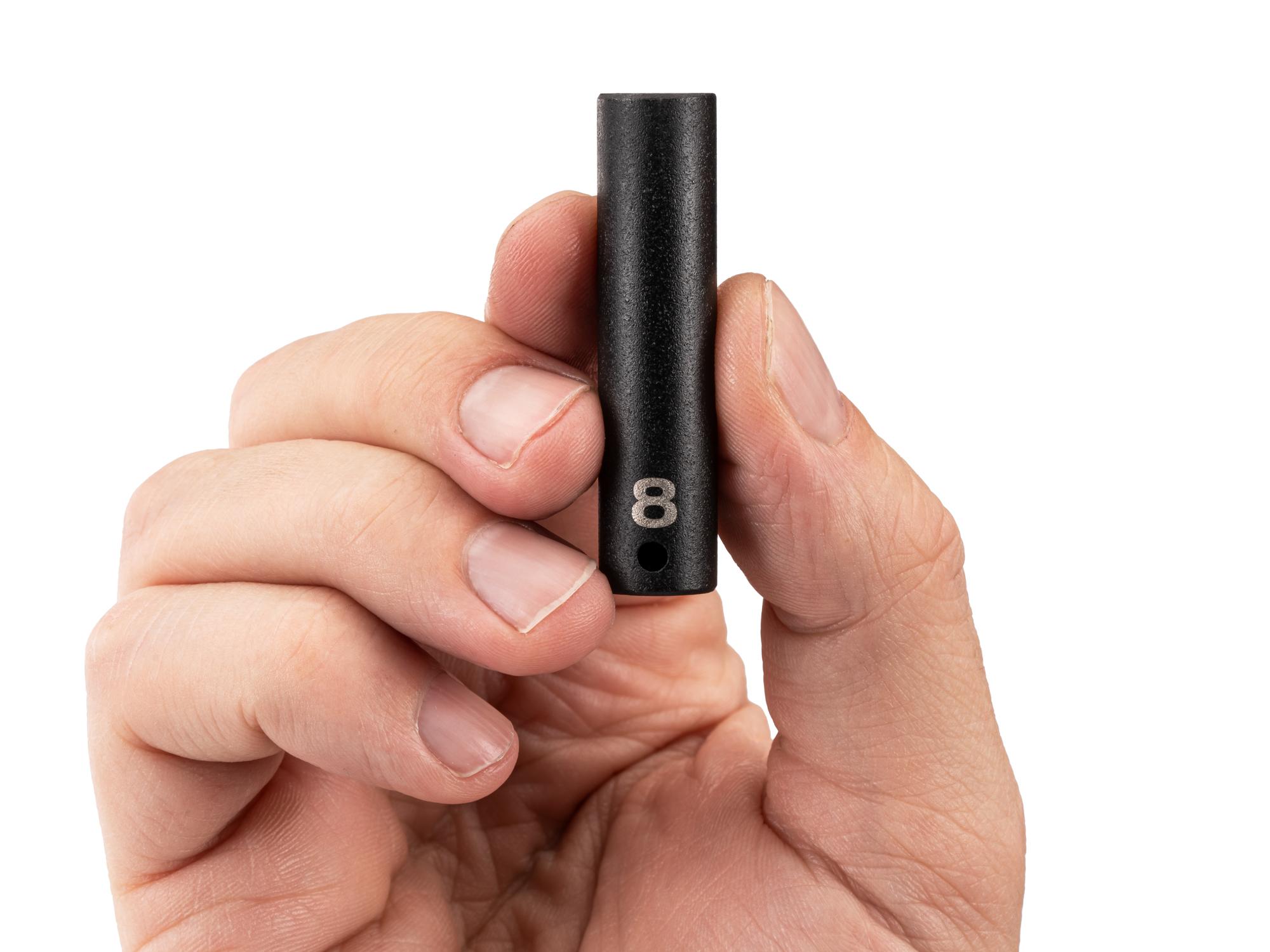

Person holding Tekton impact drive 6-point socket. Item #SID03108
Tap image to zoom in
Item #SID03108
1/4 Inch Drive
Deep
6‑Point
MM

8 mm Impact Socket

•
InchMetric

Sizes

4 mm
$6
4.5 mm
$6
5 mm
$6
5.5 mm
$6
6 mm
$6
7 mm
$6
8 mm
$6
9 mm
$6
10 mm
$6
11 mm
$6
12 mm
$6
13 mm
$6
14 mm
$6
15 mm
$6
16 mm
$6
17 mm
$6
$6.00
Add to Cart

Also Available In:

Shallow

Semi-Deep

12-Point

DetailsSpecifications

Details

Graphic showing Tekton 10 mm 6-Point Impact Drive Sockets in shallow, semi-deep, and deep lengths

Part of Our 1/4 Inch Drive Impact Socket Lineup

Our 1/4 inch drive 6-point impact socket lineup consists of shallow, semi-deep, and deep sockets.
Front laser markings and back stamped markings on a 10 mm deep impact socket

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
A deep 6-point impact socket cut in half, showing how the interior well extends fully into the socket

Full-Length Socket Well

The interior well extends fully into the socket, which provides room to fit over long threaded studs.
The drive end of a 10 mm impact socket with notes for the smooth walls, chamfered inner rim, and detent pin hole

Drive Tool Retention

Each socket works with both types of anvils found on 1/4 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil
Graphic showing how the force applied by a socket to a fastener is on the flat sides of the socket and not the corners, preventing fastener round-off.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.

50BV30 Chromium-Vanadium (Cr-V)

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

6140 Chromium-Vanadium (Cr-V)

Carbon: 0.38 - 0.43%
Chromium: 0.50 - 0.70%
Manganese: 0.6 - 0.9%
Nickel: ≤0.030%
Phosphorous: ≤0.030%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Iron: 97.38 - 98.18%

8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)

Carbon: 0.56 - 0.64%
Chromium: 0.40 - 0.60%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.25%
Nickel: 0.40 - 0.70%
Phosphorous: ≤0.035%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.04%
Vanadium: 0.15 - 0.25%
Iron: 96.13 - 97.36%

Sockets (Shallow and Deep Lengths)

inch impact sockets

5/32 – 11/16 Inch Sockets
Shallow: 6140 Cr-V
Deep: 50BV30 Cr-V

metric impact sockets

4 – 17 mm Sockets
Shallow: 6140 Cr-V
Deep: 50BV30 Cr-V

Accessories

impact extensions

3 in., 6 in., and 9 in. Extensions
6140 Cr-V

impact adapter

Adapter
8660 Ni-Cr-Mo

impact universal joint

Universal Joint
Ball: 8660 Ni-Cr-Mo
Socket: 4140 Cr-Mo

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. All pieces have a corrosion-resistant manganese phosphate coating.
Learn More

Specifications

1/4 Inch Drive x 8 mm Deep 6-Point Impact Socket

Specs for 1/4 Inch Drive x 8 mm Deep 6-Point Impact Socket
Country of Origin
Taiwan
Item Weight
0.06 lb.
