Home/Impact Sockets/12-Point Impact Sockets/Individuals

Size: 12 mm (metric) deep 12-point impact socket. Has a high-visibility laser etched size marking and a permanent stamped size marking. SID03312.

Size: 12 mm (metric) deep 6-point impact socket. Has a high-visibility laser etched size marking and a permanent stamped size marking. SID03112.

Tap Click image to zoom in

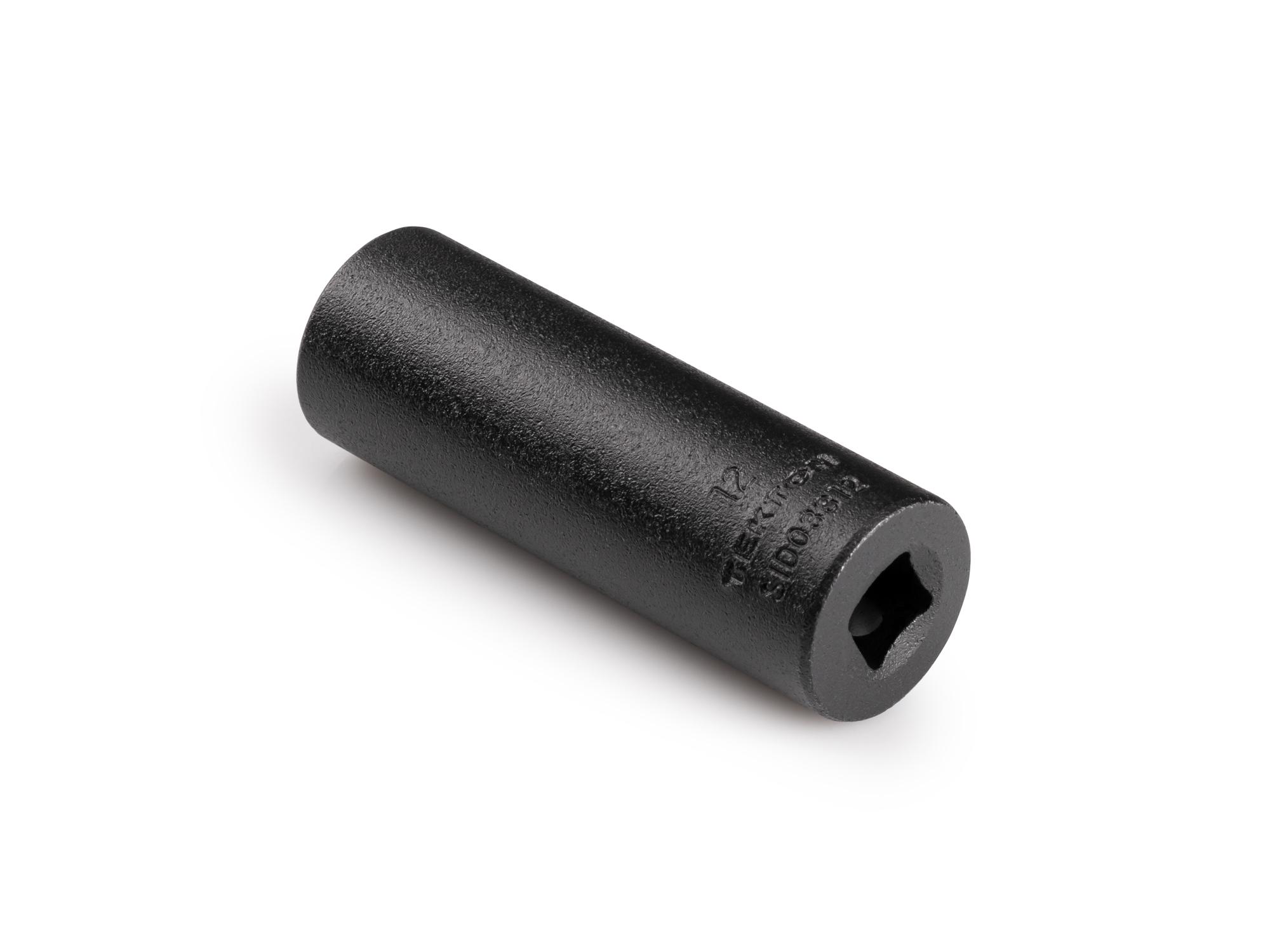

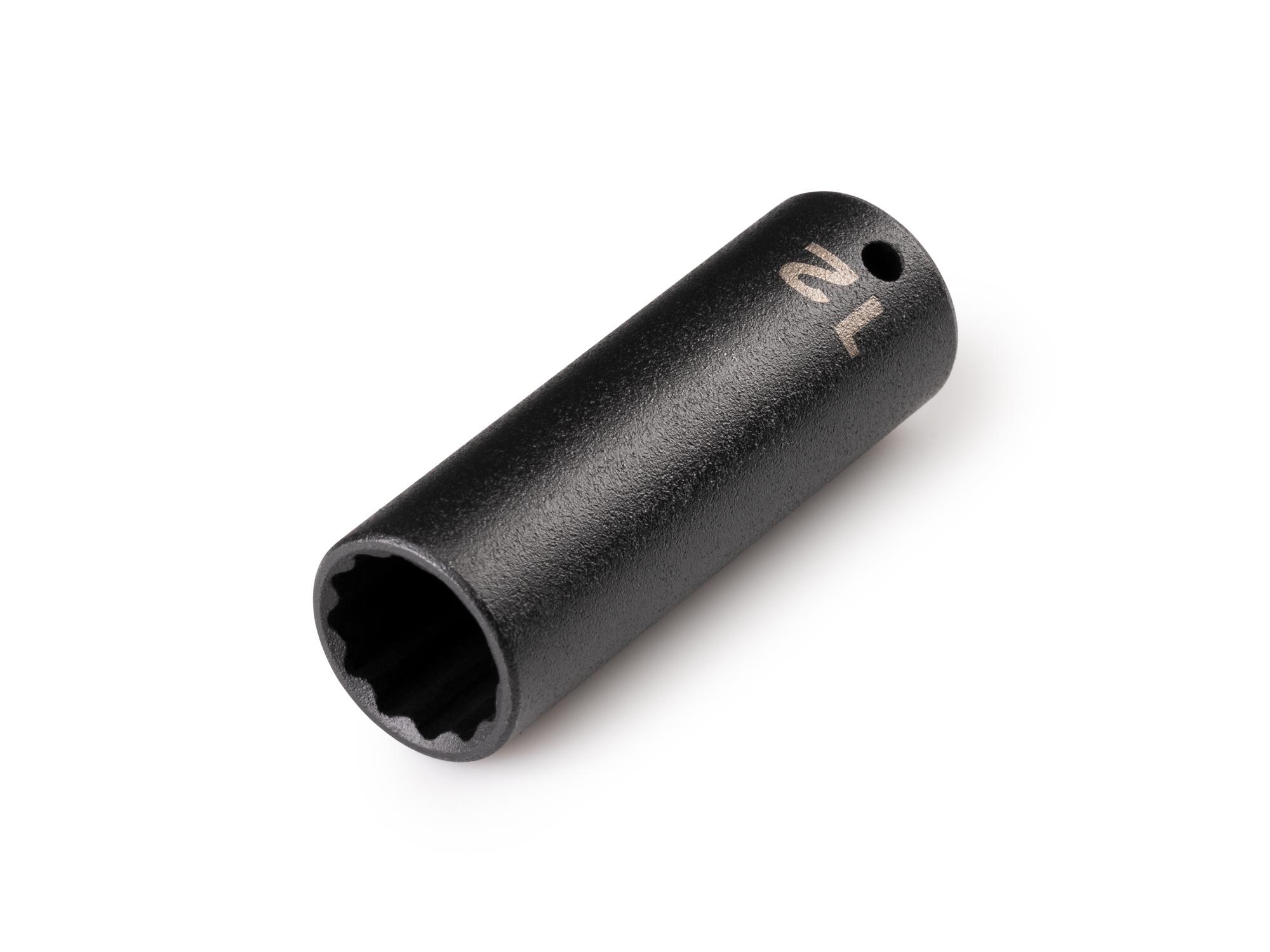

Item #SID03312

1/4 Inch Drive x 12 mm Deep 12-Point Impact Socket

1/4 Inch Drive x 5/32 Inch Deep 12-Point Impact Socket

•

Inch Metric

Size

$5.00

Details

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.

Full-Length Socket Well

The interior well extends far into the socket, which allows for better fastener engagement in more situations.

Drive Tool Retention

Each socket works with both types of anvils found on 1/4 inch drive impact wrenches:

Graphic showing green check marks on friction ring anvil and detent pin anvil

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.

50BV30 Chromium-Vanadium (Cr-V)

Show Elements

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Show Elements

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

6140 Chromium-Vanadium (Cr-V)

Show Elements

Carbon: 0.38 - 0.43%
Chromium: 0.50 - 0.70%
Manganese: 0.6 - 0.9%
Nickel: ≤0.030%
Phosphorous: ≤0.030%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Iron: 97.38 - 98.18%

8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)

Show Elements

Carbon: 0.56 - 0.64%
Chromium: 0.40 - 0.60%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.25%
Nickel: 0.40 - 0.70%
Phosphorous: ≤0.035%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.04%
Vanadium: 0.15 - 0.25%
Iron: 96.13 - 97.36%

Sockets (Standard and Deep Lengths)

5/32 – 11/16 Inch Sockets
Standard: 6140 Cr-V
Deep: 50BV30 Cr-V

4 – 17 mm Sockets
Standard: 6140 Cr-V
Deep: 50BV30 Cr-V

Accessories

3 in., 6 in., and 9 in. Extensions
6140 Cr-V

Adapter
8660 Ni-Cr-Mo

Universal Joint
Ball: 8660 Ni-Cr-Mo
Socket: 4140 Cr-Mo

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. All pieces have a corrosion-resistant manganese phosphate coating.

Learn More

Specs
