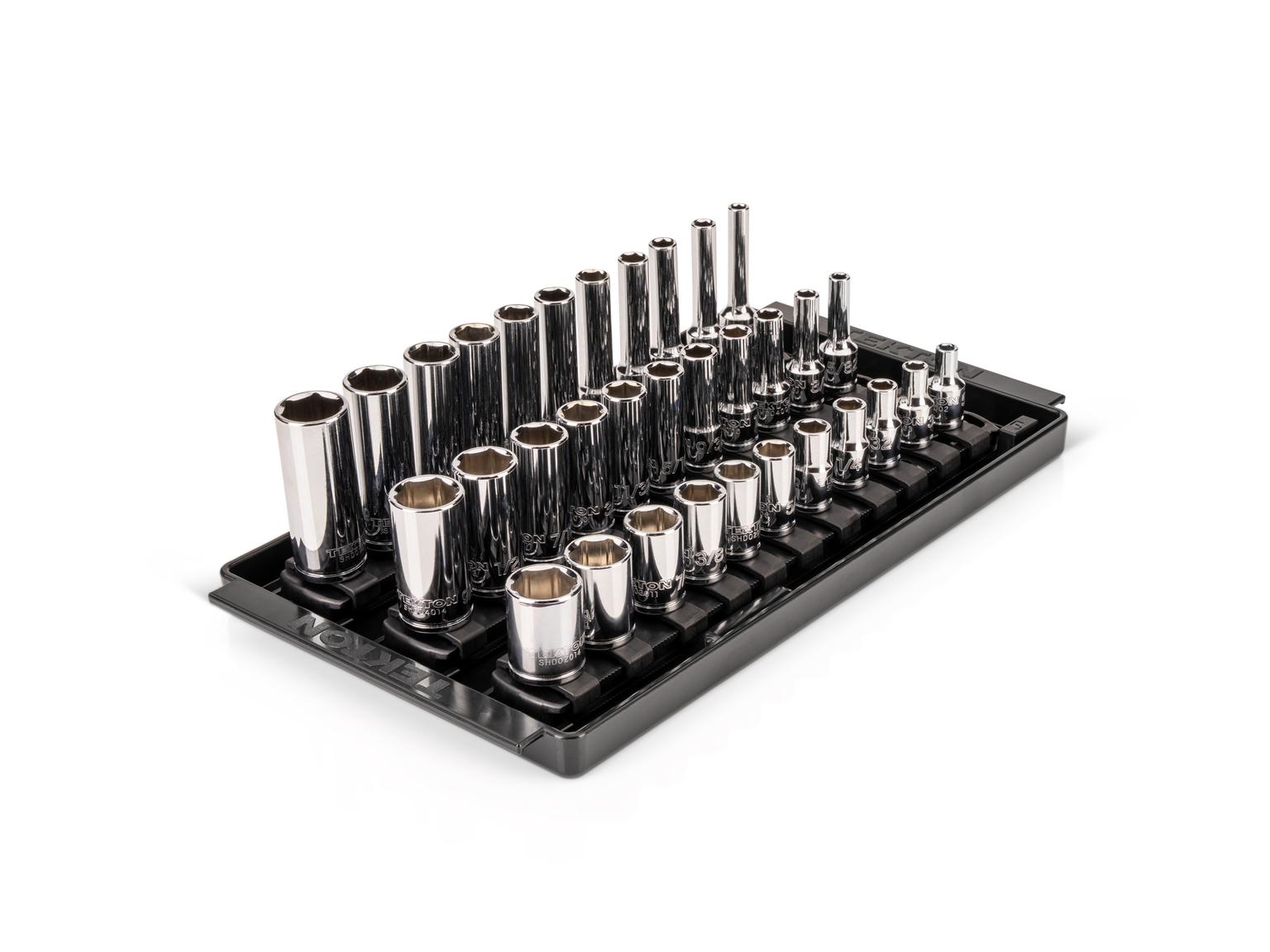

TEKTON 1/4 Inch Drive Shallow, Semi-Deep, and Deep 6-Point Socket Set with Rails and Trays, 33-Piece (5/32 - 9/16 in.)

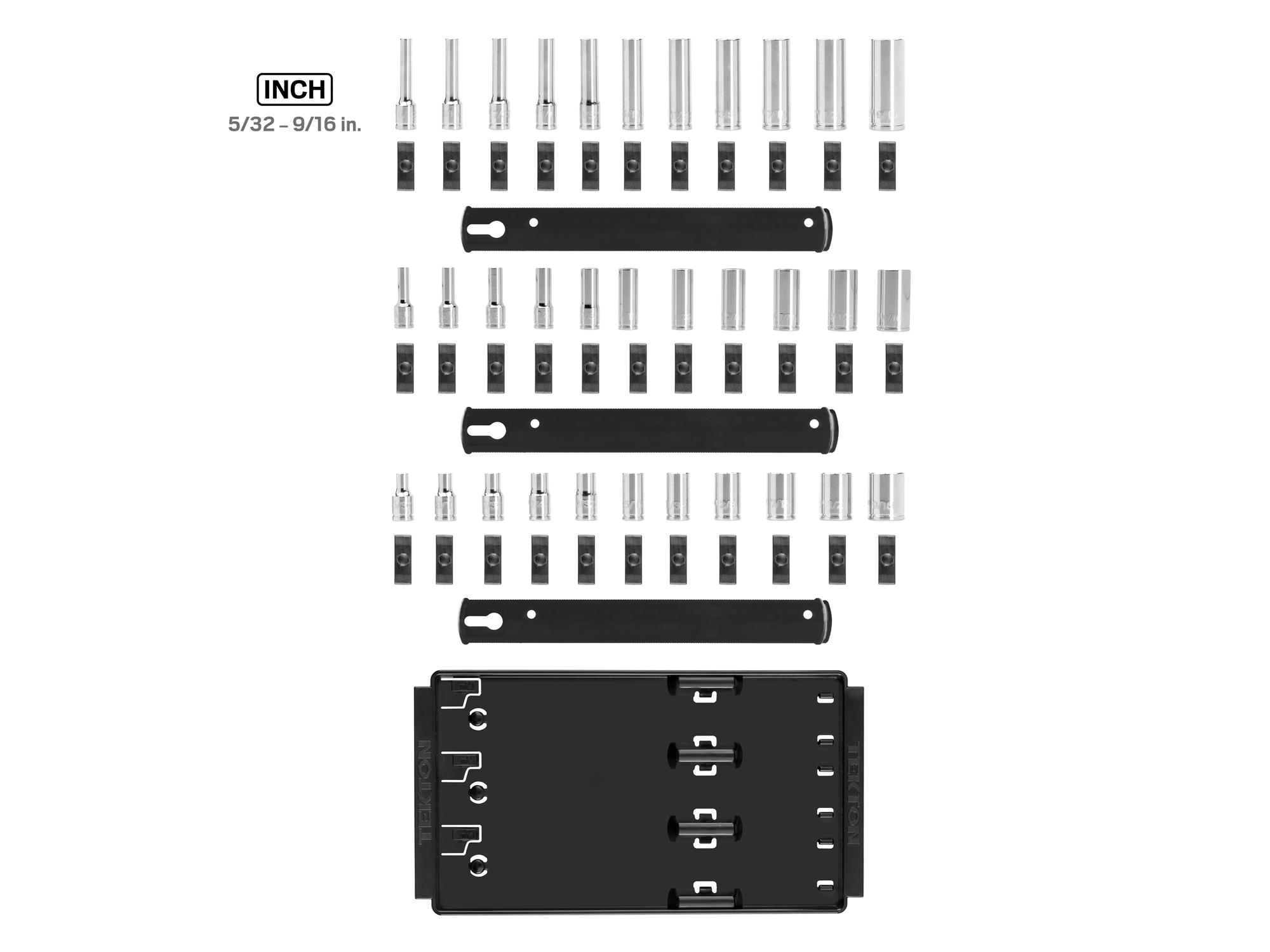

Laid out contents of Tekton rail and tray hand drive 6-point socket set. Item #SHD90121

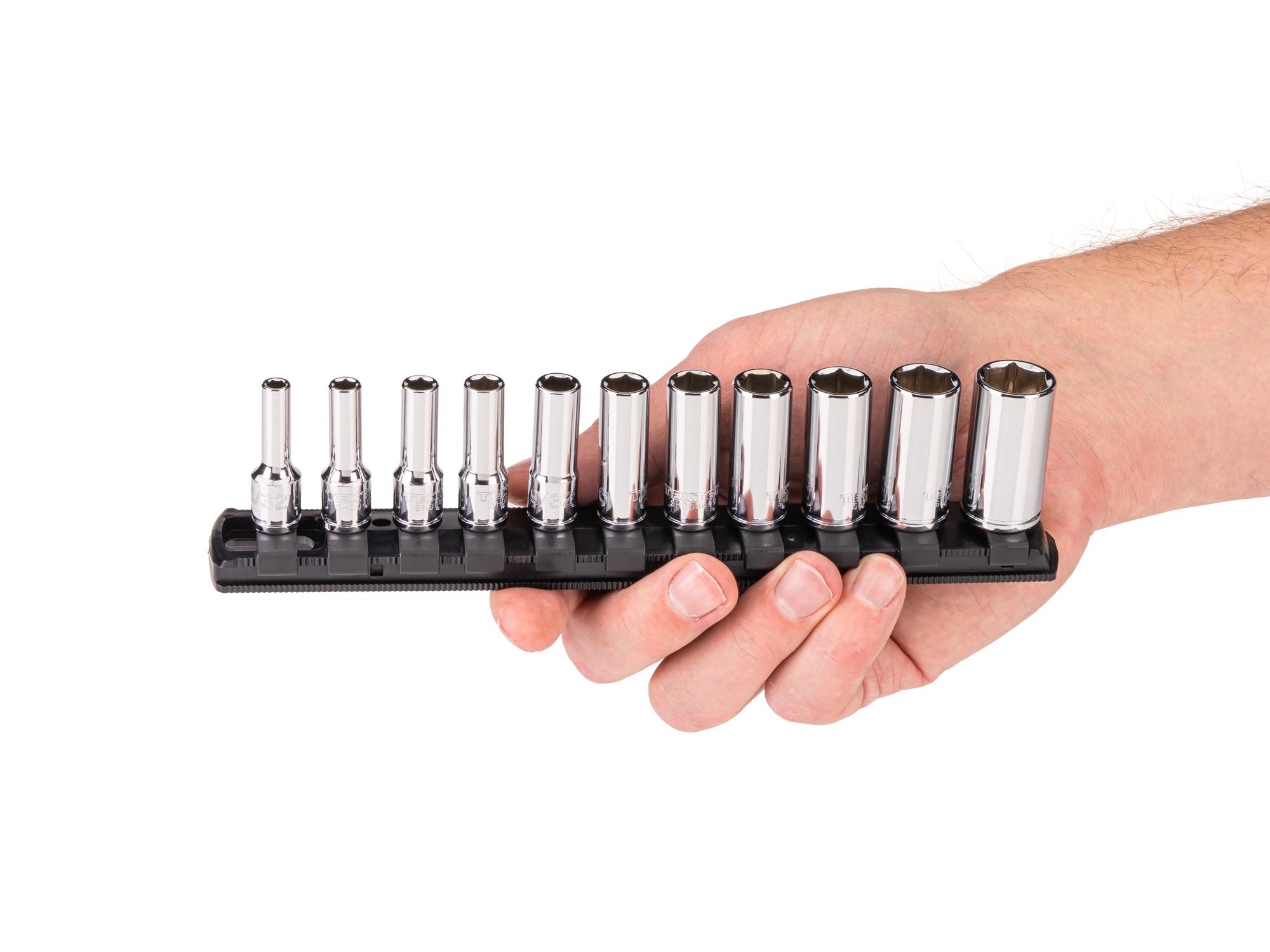

Person holding Tekton rail hand drive 6-point socket set. Item #SHD90117
Tap image to zoom in
Item #SHD90121

1/4 Inch Drive Shallow, Semi-Deep, and Deep 6-Point Socket Set with Rails and Tray (33-Piece)

IN
5/32 - 9/16 in.
•
InchMetricInch and Metric

Set Range

5/32 - 9/16 in.

Socket Depth

Shallow
$28
Semi-Deep
$32
Deep
$35
Shallow and Deep
$56
Shallow, Semi-Deep, and Deep
$80
$80.00
Add to Cart

Also Available in 12-Point

#SHD90123

Set Includes:
DetailsSpecifications

Details

Graphic showing Tekton 10 mm 6-Point Hand Drive Sockets in shallow, semi-deep, and deep lengths

Part of Our 1/4 Inch Drive Socket Lineup

Our 1/4 inch drive 6-point socket lineup consists of shallow, semi-deep, and deep sockets.
A hand holding a 5/32 inch semi-deep socket

Large, Stamped Markings

  • Markings are permanently impressed into the material by a roll-stamp die
  • Sizes are as large as possible while still being readable along the socket's curved surface

Fully Stepped Shoulders

Narrowed diameter stretches to the base of the socket on small sizes. This provides greater reach into tight, recessed areas.
Graphic showing a comparison between the diameter of a competitor's deep socket and the longer narrowed diameter of a Tekton deep socket

Exterior and Interior Finishes

  • The exterior is chrome-plated to resist corrosion and wipe clean to a mirror finish
  • The interior is protected against corrosion with chrome plating that is supplemented with a clear coat or painted finish where needed for full coverage
The 6-point socket opening of a semi-deep hand drive socket

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.

Secure Drive Tool Engagement

Four detent grooves provide a secure connection with the retaining ball of a drive tool.

High Torque Strength

Meets a minimum value of 1.3 times the ASME standard for proof torque. Verified by a single-cycle test that applies torque until the specified value is reached without failure or permanent deformation.
Data from: ASME B107.110-2019
Three black 1/4 inch drive socket rails in a tray with a twist-to-lock graphic in the lower right corner

Socket Rail Organization

  • Patented twist-to-lock design securely holds sockets on the rail
  • Keyhole slot mounts to wall or workbench
  • Combine multiple socket rails with trays and other accessories

Specifications

1/4 Inch Drive Shallow, Semi-Deep, and Deep 6-Point Socket Set with Rails and Trays, 33-Piece (5/32 - 9/16 in.)

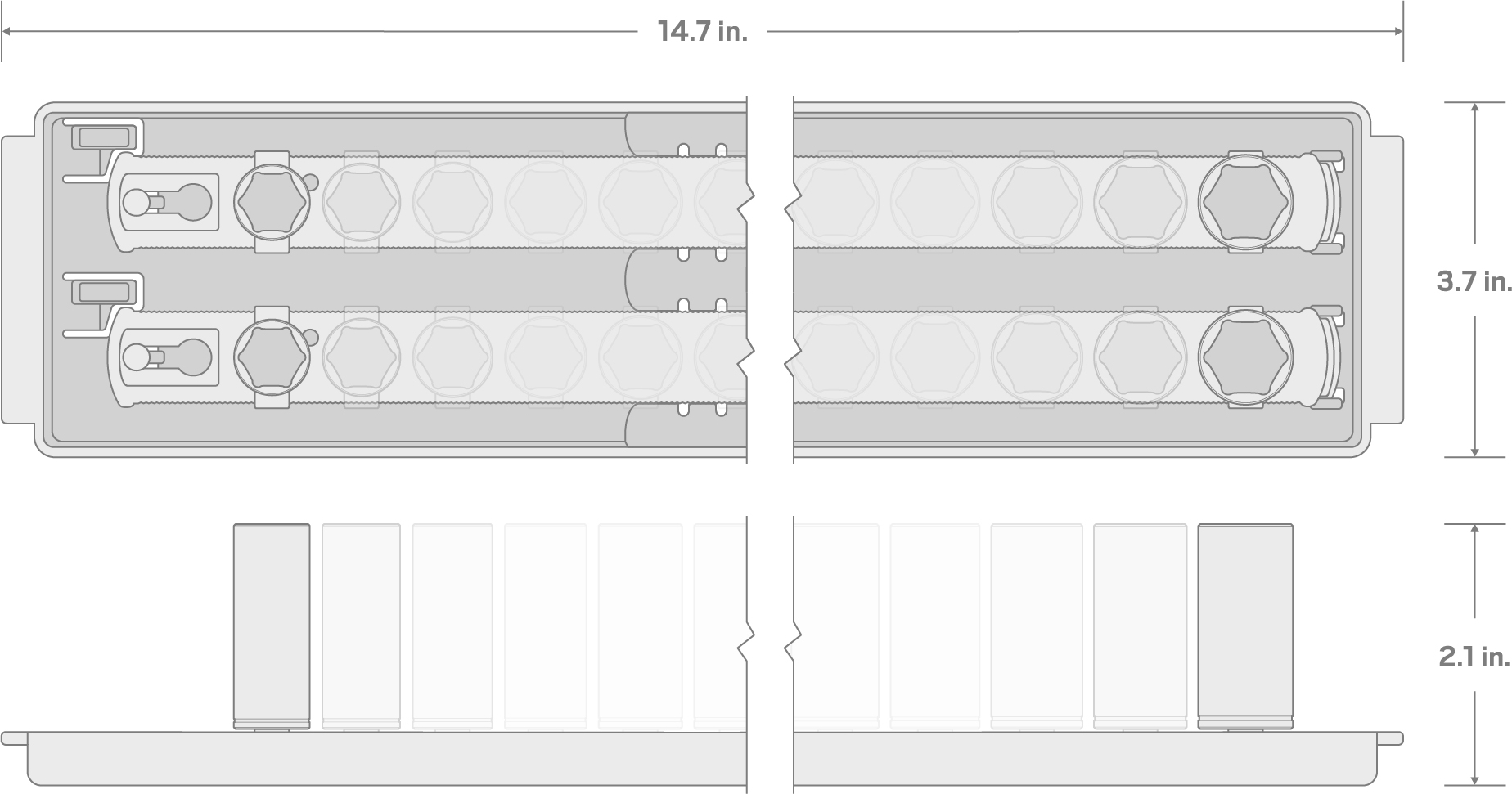

Specs for 1/4 Inch Drive Shallow, Semi-Deep, and Deep 6-Point Socket Set with Rails and Trays, 33-Piece (5/32 - 9/16 in.)
Country of Origin
Sockets made in Taiwan. Rails and tray made in USA.
Item Weight
2.2 lb.
