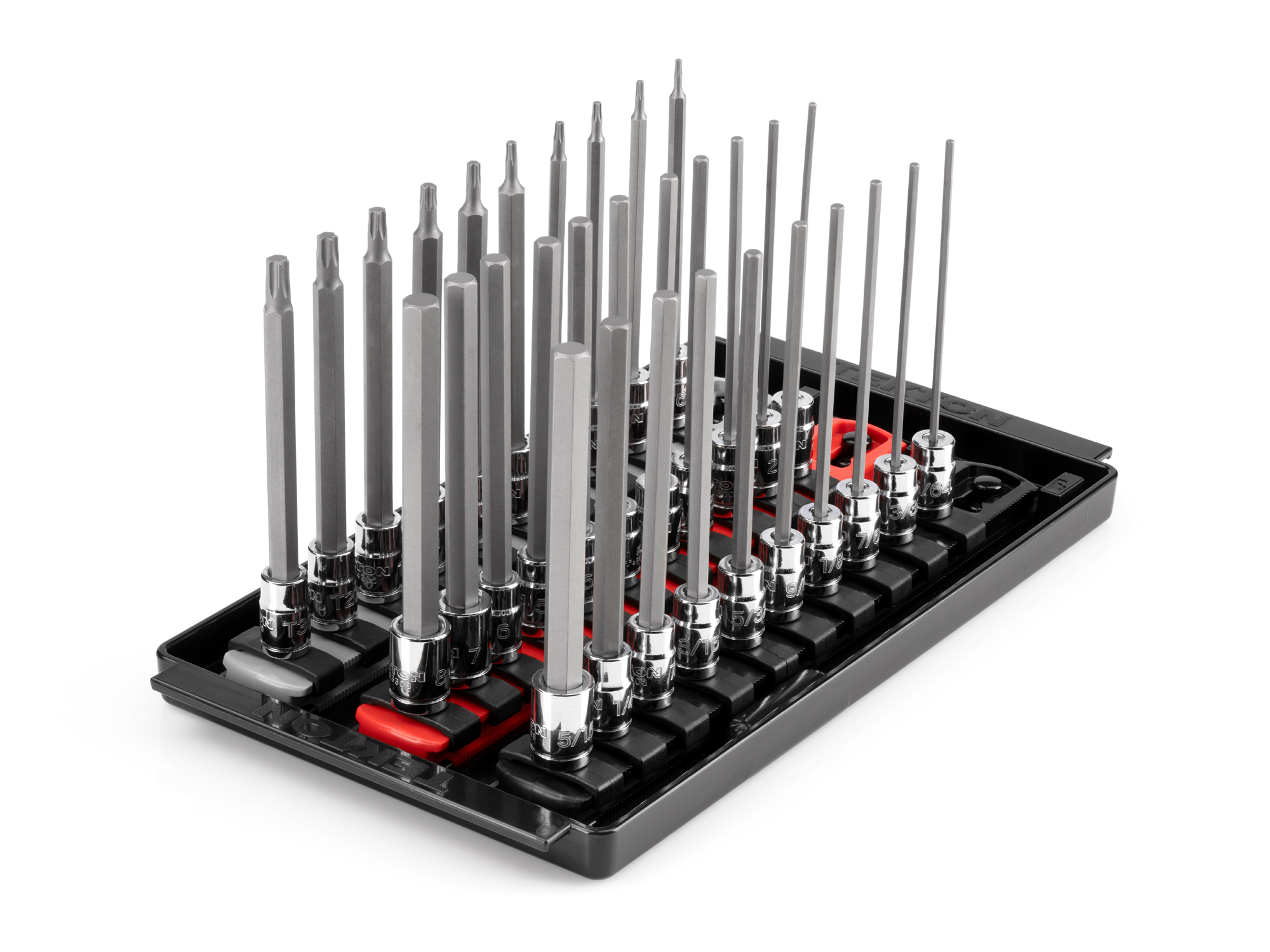

Front-right angle view of Tekton rail and tray hand drive bit socket set. Item #SHB90205

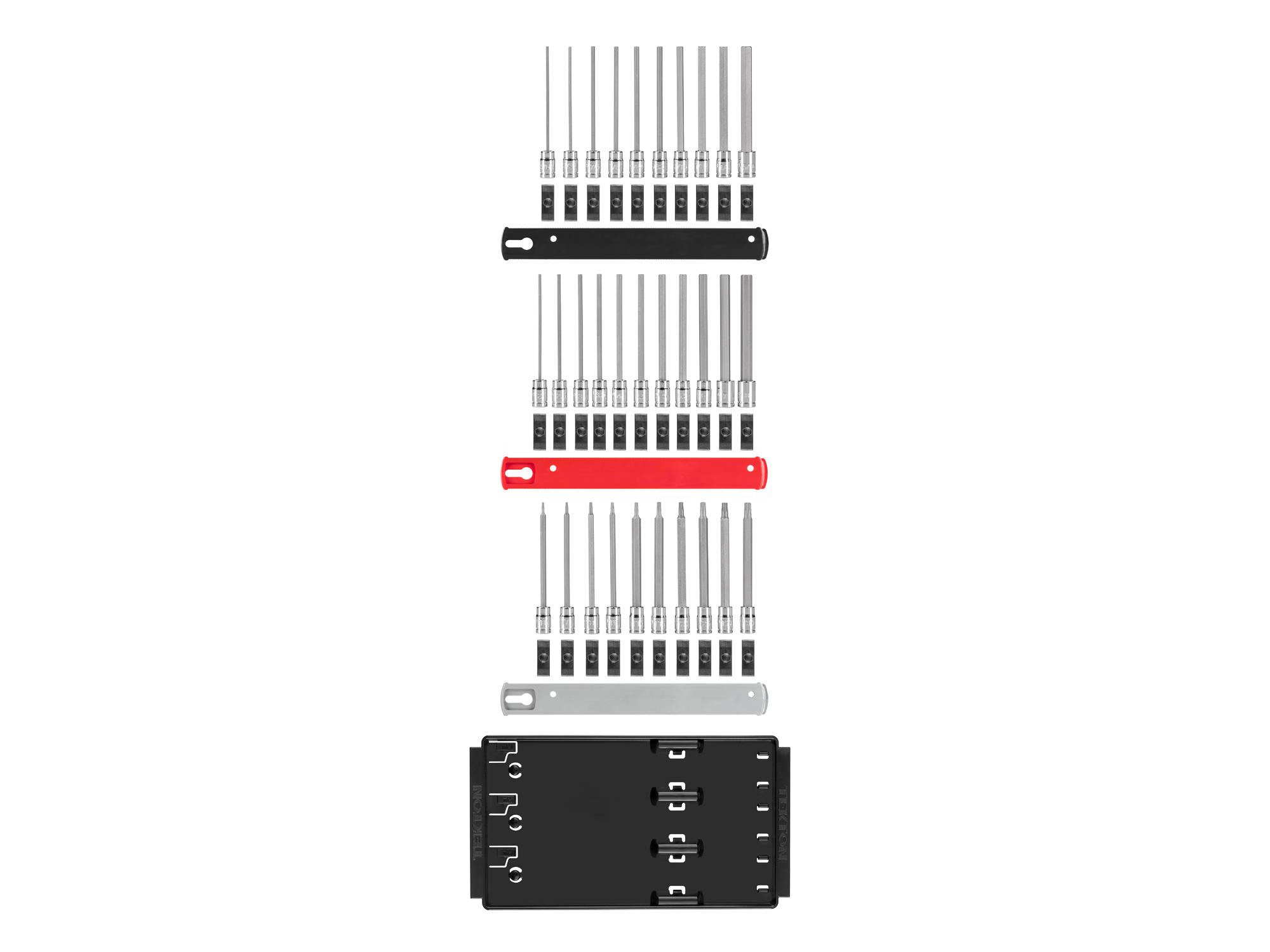

Laid out contents of Tekton rail and tray hand drive bit socket set. Item #SHB90205

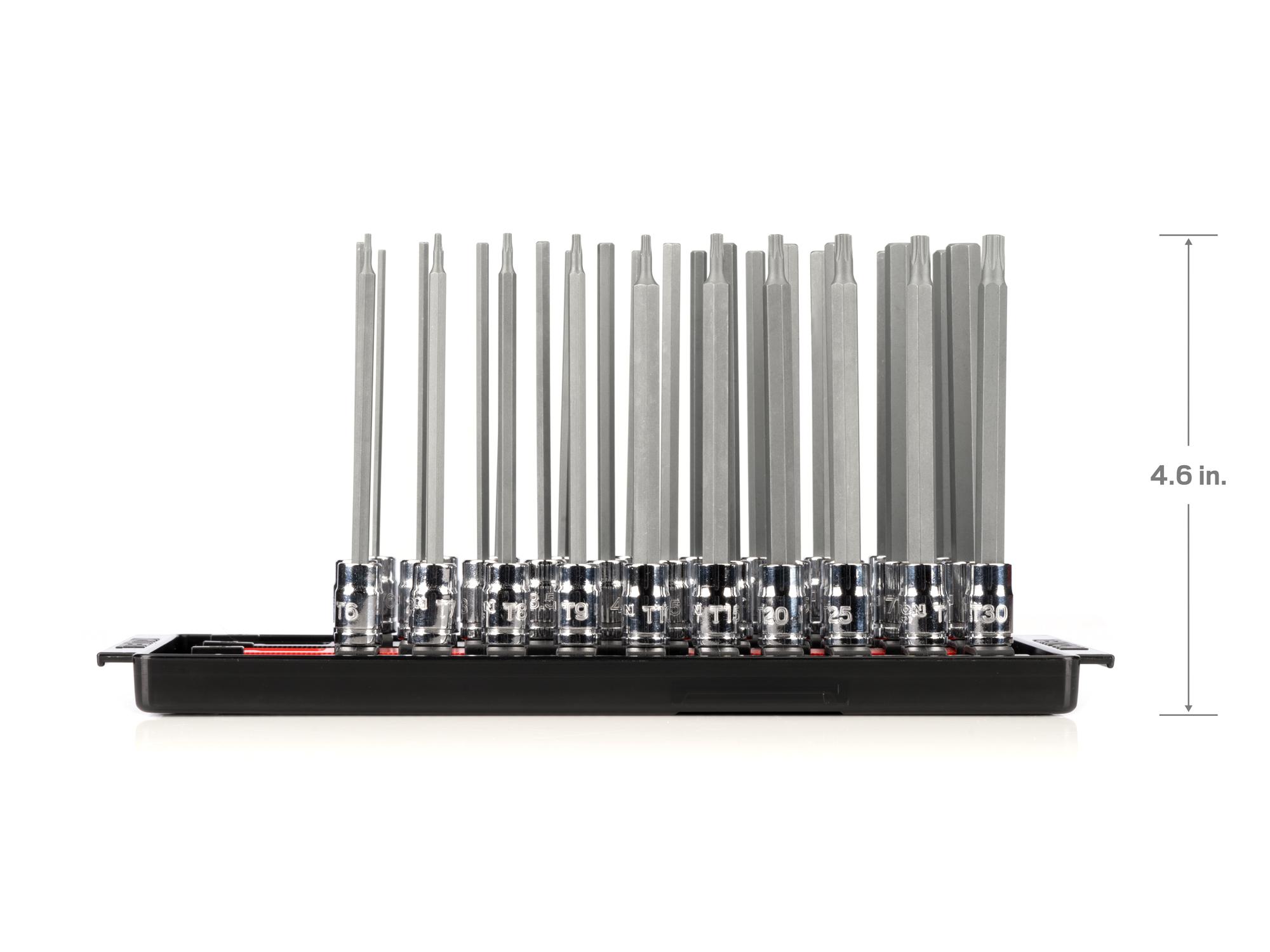

Dimensions for Tekton rail hand drive bit socket set. Item #SHB90205

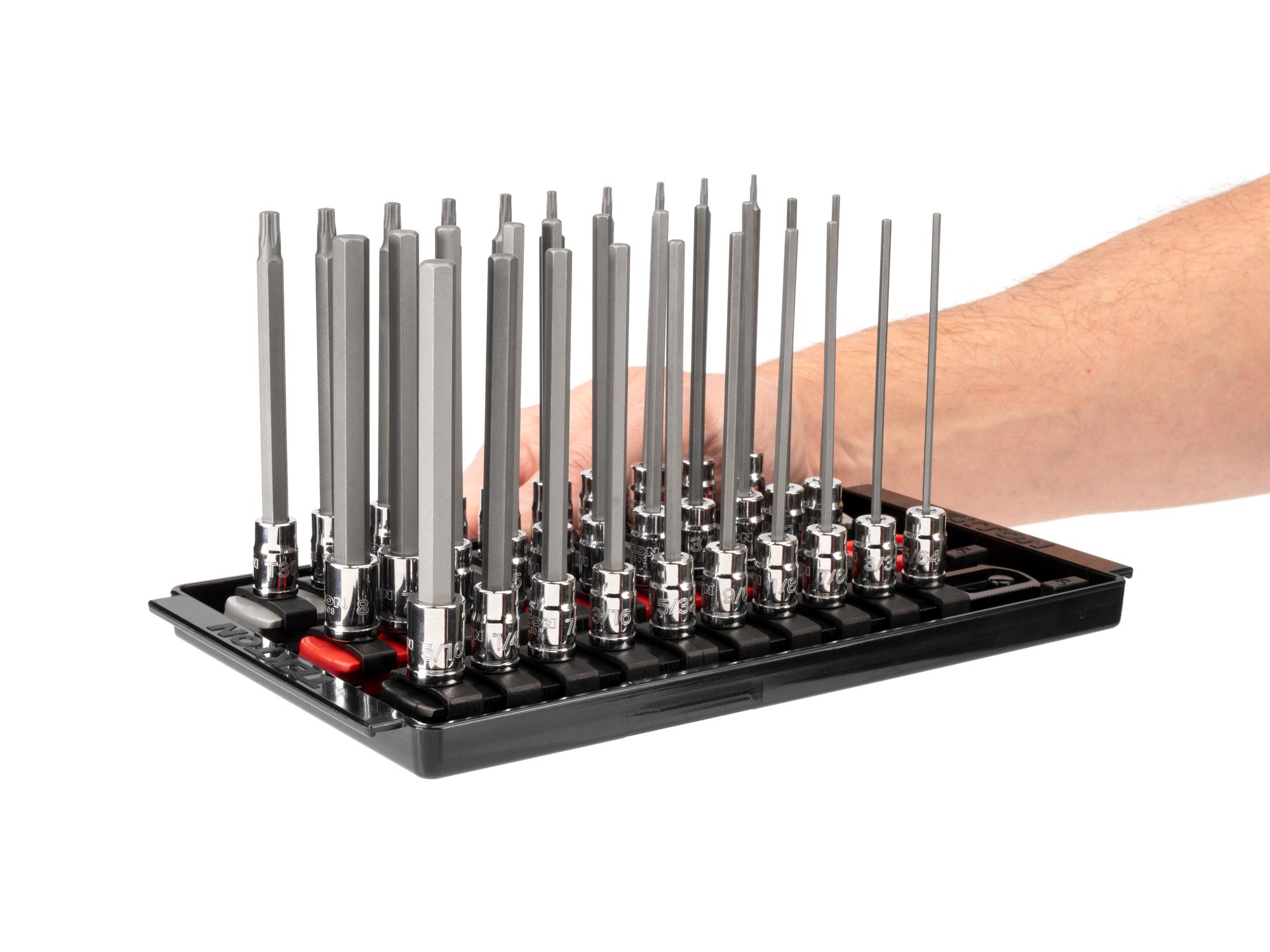

Person holding Tekton rail and tray hand drive bit socket set. Item #SHB90205
Tap image to zoom in
Item #SHB90205
1/4 Inch Drive

Long Bit Socket Set with Rails and Tray (31-Piece)

IN
5/64 - 5/16 in.
MM
2 - 8 mm
Torx/Star
T6 - T30
•

Organization Option

Front-right angle view of Tekton case hand drive bit socket set. Item #SHB90303
Case
$82
Front-right angle view of Tekton rail and tray hand drive bit socket set. Item #SHB90205
Rail
$95
$95.00
Add to Cart

Also Available In:

Standard Length

Set Includes:
DetailsSpecifications

Details

A close up of a hex bit socket tip and Torx bit socket tip

Refined Edges

Each bit has slightly chamfered edges and a smooth top face to optimize engagement with fasteners.
An illustration showing the reach of a long bit socket compared to standard length bits

Long Reach Bits

Long bits allow you to reach deep into narrow, recessed areas.
The steel bit is press fit into the socket.

Straight, Permanent Connection

Bits are pressed directly into the socket for a permanent connection. The carefully-controlled process ensures bits are exceptionally straight, and the tightly-mated fit results in a bit that won't loosen over time or under stress.
socket material

6140 Chromium-Vanadium (Cr-V) Steel Socket

Heat-treated to 40.5–47.5 HRC. Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish.

bit material

S2 Steel Bit

Heat-treated to 57-63 HRC to resist shocks and maintain geometry under stress.

A person holding a 5 mm bit socket

Large, Stamped Markings

  • Markings are permanently impressed into the material by a roll-stamp die
  • Sizes are as large as possible while still being readable along the socket's curved surface
A close up of the end of drive tool accessories

Secure Drive Tool Engagement

Four detent grooves provide a secure connection with the retaining ball of a drive tool.
A black, red, and gray socket rail with black clips in a Tekton tray and twist to lock callout

Socket Rail Organization

  • Patented twist-to-lock design securely holds sockets on the rail
  • Keyhole slot mounts to wall or workbench
  • Combine multiple socket rails with trays and other accessories
Shop Socket Organization

Specifications

1/4 Inch Drive Long Hex and Torx Bit Socket Set with Rails and Tray, 31-Piece (5/64 - 5/16 in., 2 - 8 mm, T6 - T30)

Specs for 1/4 Inch Drive Long Hex and Torx Bit Socket Set with Rails and Tray, 31-Piece (5/64 - 5/16 in., 2 - 8 mm, T6 - T30)
Country of Origin
Sockets made in Taiwan. Rails made in USA.
Item Weight
2.3 lb.
