1/4 Inch Drive 6-Point Socket Set with Rails, 28-Piece (4-15 mm)
Item #SHD90211
•
$60.00
Details
Large, Stamped Markings
- Permanently impressed into the material by a roll-stamp die
- As large as possible while still being readable along the socket’s curved surface
- Clearly visible size numbers with extra-deep outline
Fully Stepped Shoulders
Narrowed diameter stretches to the base of the socket on small, deep-length sizes. This provides greater reach into tight, recessed areas.
Exterior + Interior Finishes
- Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
- Interior is protected against rust with clear coat, rather than commonly-used metallic paint
6-Point Socket Opening
Provides an exact fit and maximum contact for hex fasteners
Prevents Fastener Round-Off
Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.
Secure Drive Tool Engagement
- Four detent grooves provide a secure connection with the retaining ball of a drive tool
- Beveled inner rims help guide the socket onto other tools
High Torque Strength
Meets minimum value of 1.2 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.
METRIC SERIES
| ANSI | TEKTON | ||
| Source: ASME B107.5M - 2002 | |||
INCH SERIES
| ANSI | TEKTON | ||
| Source: ASME B107.1 - 2002 | |||

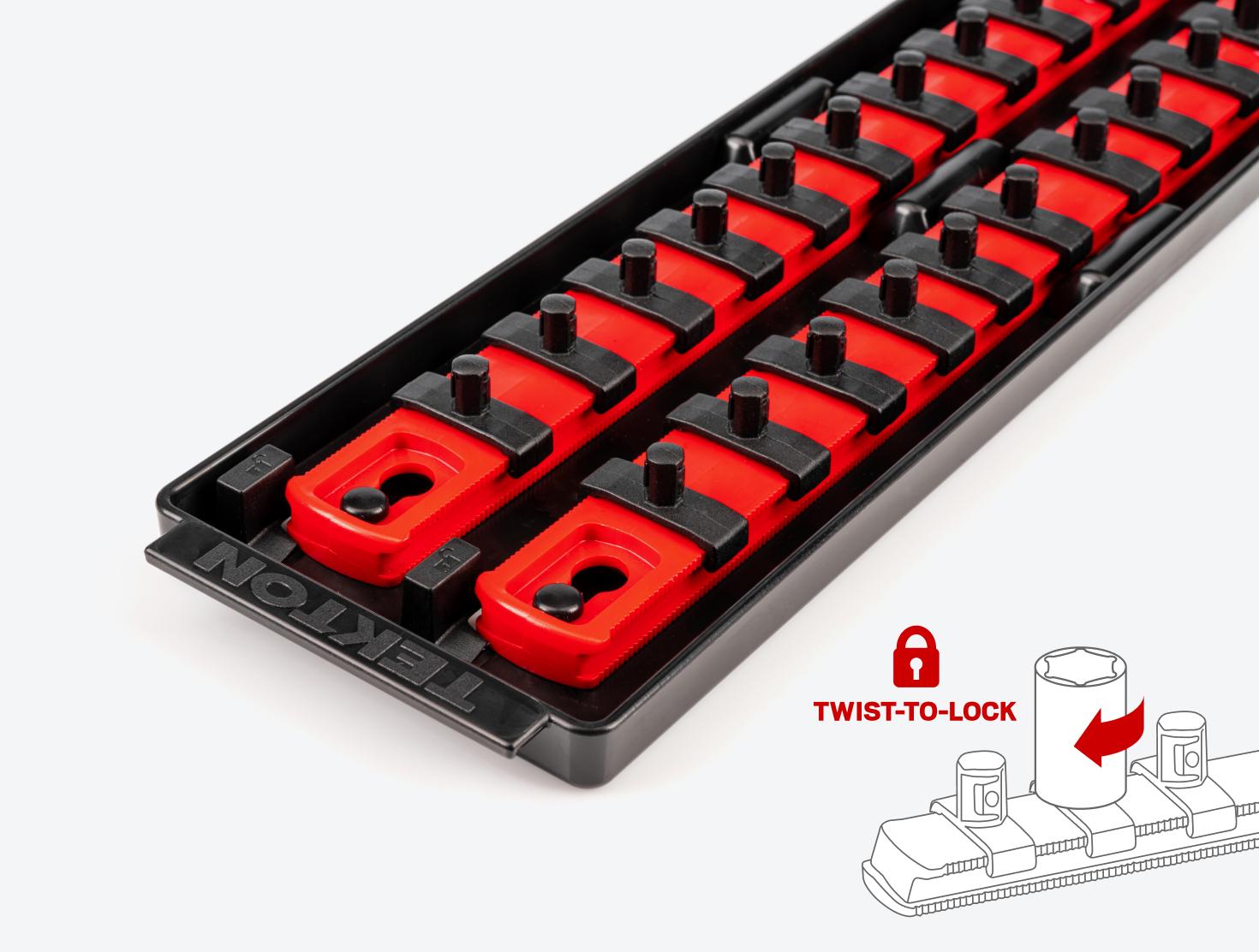

Socket Rail Storage
- Patented twist-to-lock design securely holds sockets on the rail
- Keyhole slot mounts to wall or workbench
- Combine multiple socket rails with storage trays and other accessories
Specs
1/4 Inch Drive 6-Point Socket Set with Rails, 28-Piece (4-15 mm)
| Country of Origin | Sockets made in Taiwan. Rails and tray made in USA. |
| Item Weight | 2.53 lb. |
