Item #SHD90001
1/4 Inch Drive
Shallow
Semi‑Deep
Deep
6‑Point

Socket Set (12-Piece)

IN
5/8, 11/16 in.
MM
16, 17 mm
•
$36.00
Add to Cart

Shop Additional Set Ranges

1/4 Inch Drive 6-Point Sockets

Also Available In:

Set Includes:

Details

A hand holding a 5/32 inch semi-deep socket

Large, Stamped Markings

  • Markings are permanently impressed into the material by a roll-stamp die
  • Sizes are as large as possible while still being readable along the socket's curved surface
A cutout of the interior and exterior finish on a 6-point socket

Exterior and Interior Finishes

  • The smooth chrome-plated exterior resists corrosion and wipes clean to a mirror finish
  • The interior is protected against corrosion with chrome plating that is supplemented with a clear coat or painted finish where needed for full coverage
The inside of a 6-point chrome socket

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners.
Graphic showing how the radiused corners on a hand drive socket apply force to the flat sides of a 6-point fastener

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.
An extension going into the drive end of a socket

Secure Drive Tool Engagement

Four detent grooves provide a secure connection with the retaining ball of a drive tool.
Tekton socket inch and metric proof of torque charts comparing to ASME standard

High Torque Strength

Meets a minimum value of 1.3 times the ASME standard for proof torque. Verified by a single-cycle test that applies torque until the specified value is reached without failure or permanent deformation.
Data from: ASME B107.110-2019. Sizes 5/8 in., 11/16 in., and 17 mm do not have a standard ASME measurement.
Tekton 1/4 inch drive sockets and accessories on a light gray background.

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more

  • 50BV30 Chromium-Vanadium (Cr-V)
    - Semi-deep sockets
    - Deep sockets
    - External star (E-star) sockets
    - Adapter
  • 4140 Chromium-Molybdenum (Cr-Mo)
    - Universal joint socket head
  • 6140 Chromium-Vanadium (Cr-V)
    - Extra-shallow sockets
    - Shallow sockets
    - Extensions
    - Universal joint socket base/pivot block
    - Universal joint base/pivot block/tang
    - Hex bit holder socket
  • 6150 Chromium-Vanadium (Cr-V)
    - Universal joint socket pin
    - Universal joint pin
Materials shown are for 1/4 inch drive hand drive sockets and accessories.

Specifications

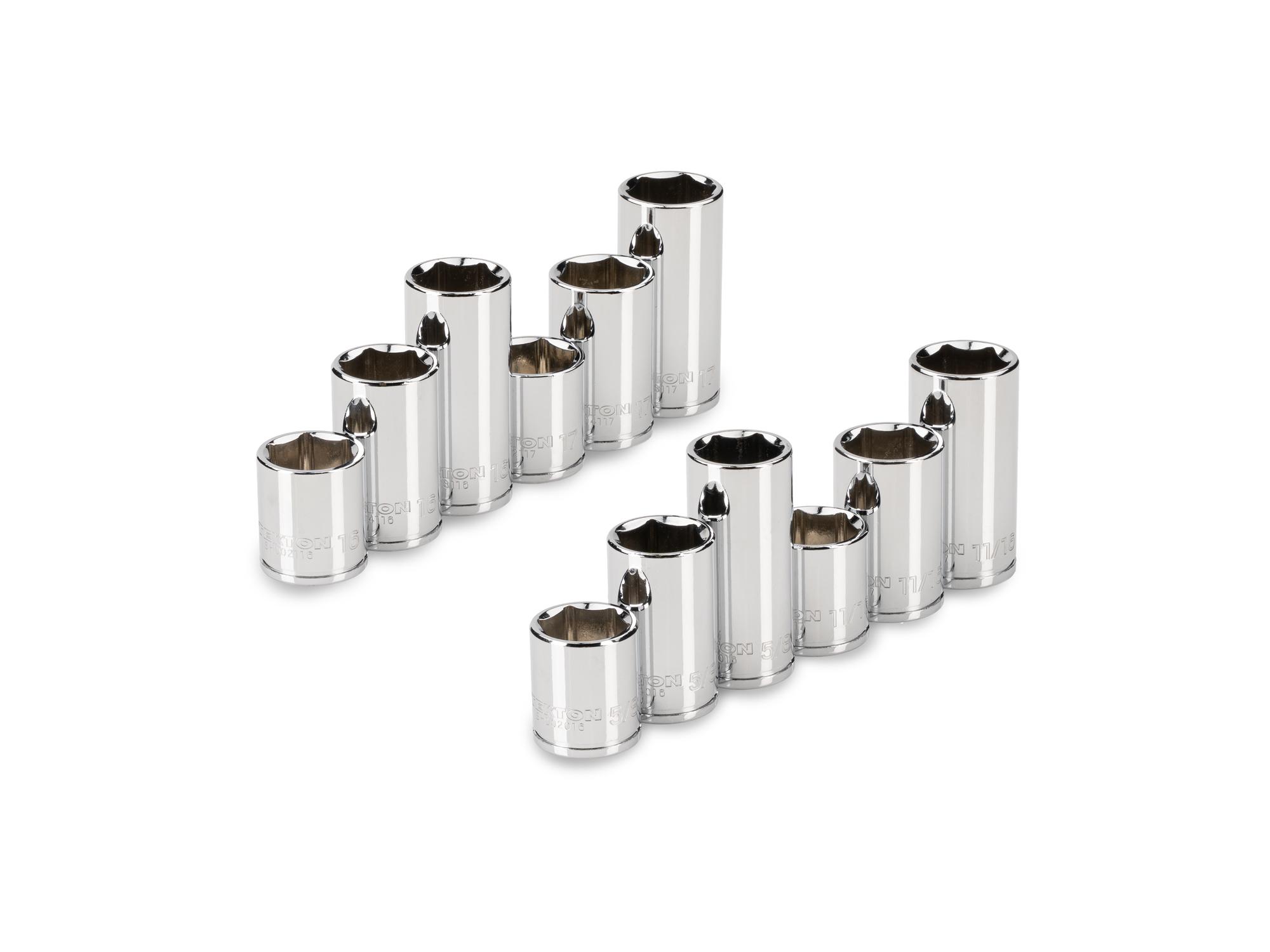

1/4 Inch Drive Shallow, Semi-Deep, and Deep 6-Point Socket Set, 12-Piece (5/8, 11/16 in., 16, 17 mm)

Country of Origin
Taiwan
Item Weight
1.79 lb.
