TEKTON 1/4 Inch Bit Ratchet and Insert Bit Set with 6 x 4 Inch Foam Organizer (82-Piece)

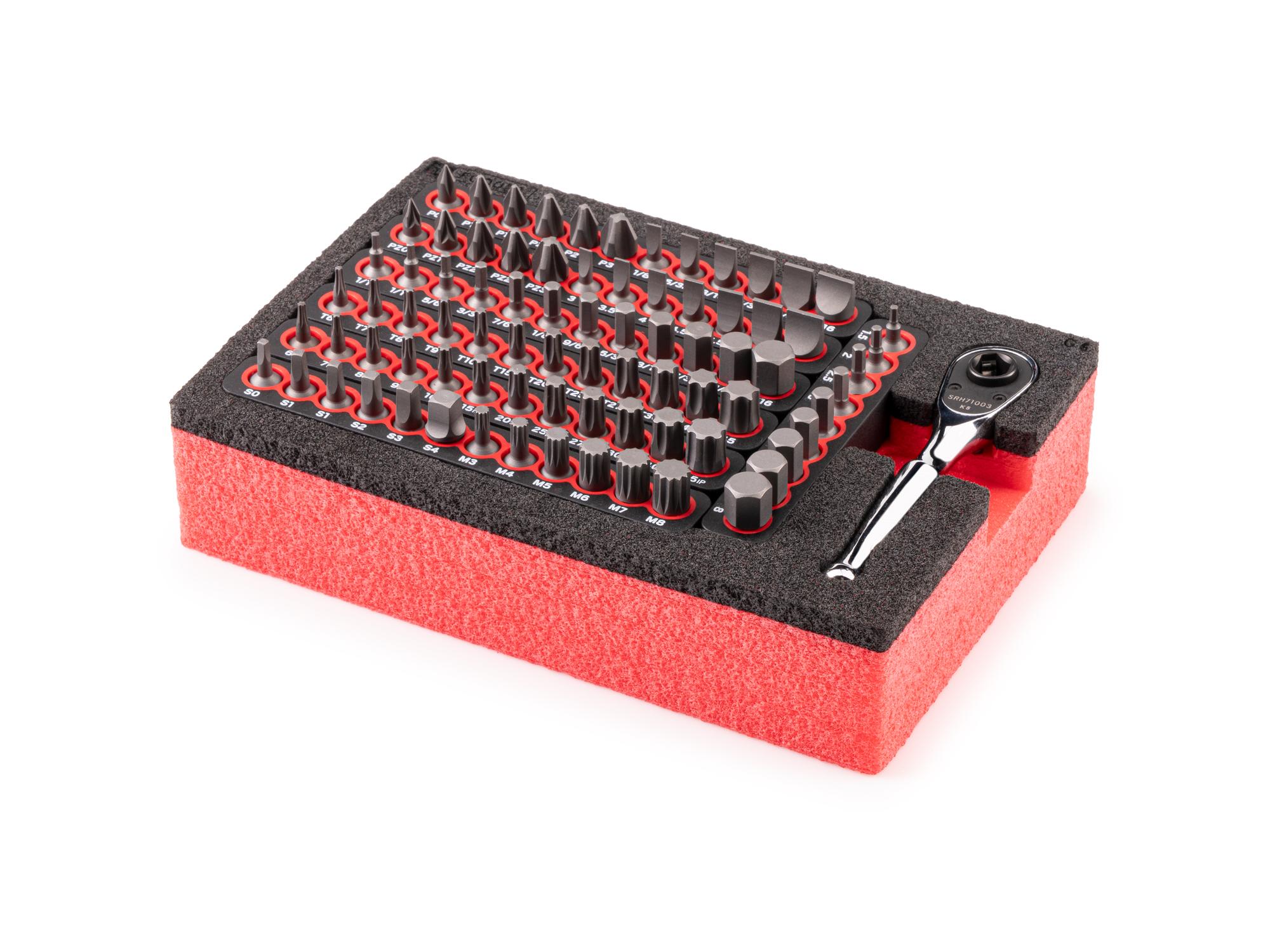

Front-right angle view of Tekton foam bit set. Item #DRV34001
Tap image to zoom in
Item #DRV34001
1/4 Inch Hex Shank
0.75 Inch Bit Length

Bit Ratchet and Insert Bit Set with 6 x 4 Inch Foam Organizer (82-Piece)

Phillips Slotted Star Torx Plus Hex Triple Square Square Pozidriv
•
$60.00
Add to Cart
Set Includes:
DetailsSpecifications

Details

Bits with Rails

A graphic showing a 0.75 inch bit in a bit ratchet is 0.86 inches

Short Length for Improved Access


Shorter than typical insert bits, these 0.75 inch bits pair with a bit ratchet for low-profile, high-leverage driving in tight spaces.


A typical bit is 0.98 inches tall, Tekton bit #DZC10925 is 0.75 inches tall
Close-up image of the tip of a star bit.

Hardened Steel with Precise Tip Geometry


The bits are made of S2 tool steel and are through-hardened to 58 - 61 HRC. Tight tolerances on the tip geometry keep the bit seated in the screw, reducing slip and wear.


A 3/16 inch slotted bit being removed from a rail.

Stamped Markings and Satin Finish


The tip size is permanently stamped onto every bit in large, clear type. A zinc-phosphate coating adds a satin finish that resists corrosion.

Free-Standing Bit Rails


The flexible rails securely grip the bits so they can’t fall out, while also making it easy to remove any bit one-handed. The rails can also stand upright on a surface.


Sizes are printed on the rails for easy identification

Sizes are printed on the rails for easy identification

A bit being removed from the rail. Set #D93009 is shown.

Bit Ratchet

Graphic showing how the C-clip grips a bit

Compatible with 1/4 Inch Hex Bits

Our bit ratchet uses a C-shaped metal retaining clip to provide a friction fit to grip the bit. Compatible with the most common retention groove types.
illustration of smooth, notched, and ring groove 1/4 inch hex bits

72-Tooth Gear = 5º Swing Arc

The single half-moon pawl maintains 12 teeth engaged with the gear at all times, ensuring that it won't slip or skip under stress.

Foam Organization

Material and Construction


We use USA-made, cross-linked polyethylene (XLPE) foam, a closed-cell material that won't absorb liquids. Each organizer has two layers that are permanently heat-laminated together, with densities that are selected to produce clean, tear-resistant cutouts and a secure fit for each tool.


Shown: #SHD90800

Foam socket organizers being cut

Cut in Michigan


We design and CNC-cut each foam organizer in our Grand Rapids, Michigan, manufacturing facility to optimize for high tool density, easy access, and secure fit of Tekton tools.

Specifications

1/4 Inch Bit Ratchet and Insert Bit Set with 6 x 4 Inch Foam Organizer (82-Piece)

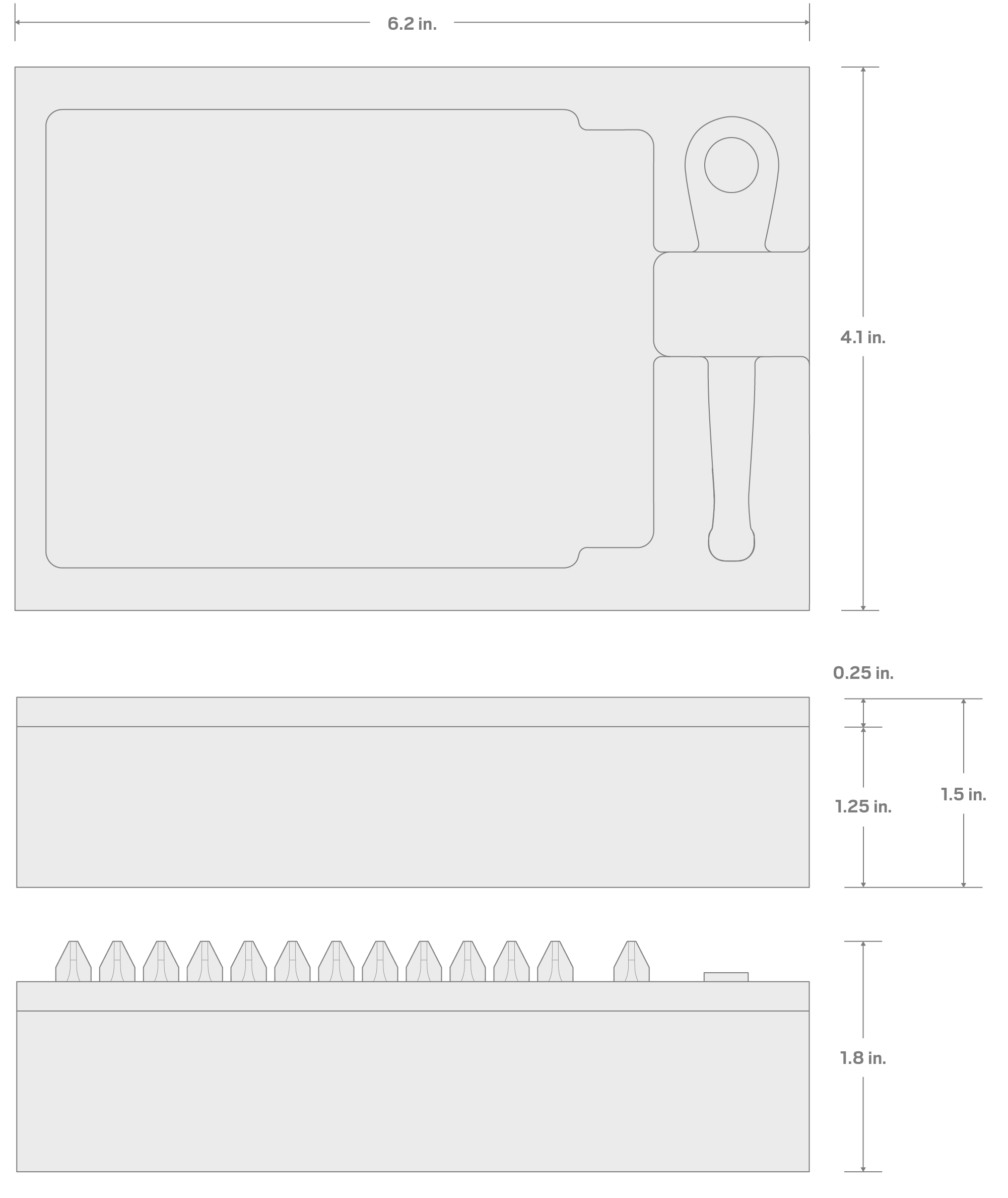

Specs for 1/4 Inch Bit Ratchet and Insert Bit Set with 6 x 4 Inch Foam Organizer (82-Piece)
Country of Origin
Bits, bit rails, and bit ratchet made in Taiwan. Foam made in USA.
Item Weight
0.95 lb.
