TEKTON SIB29216-T 1/2 Inch Drive x MT16 Tamper-Resistant Triple Square Impact Bit Socket
TEKTON SIB29216-T 1/2 Inch Drive x MT16 Tamper-Resistant Triple Square Impact Bit Socket
TEKTON SIB29216-T 1/2 Inch Drive x MT16 Tamper-Resistant Triple Square Impact Bit Socket
Click image to zoom in

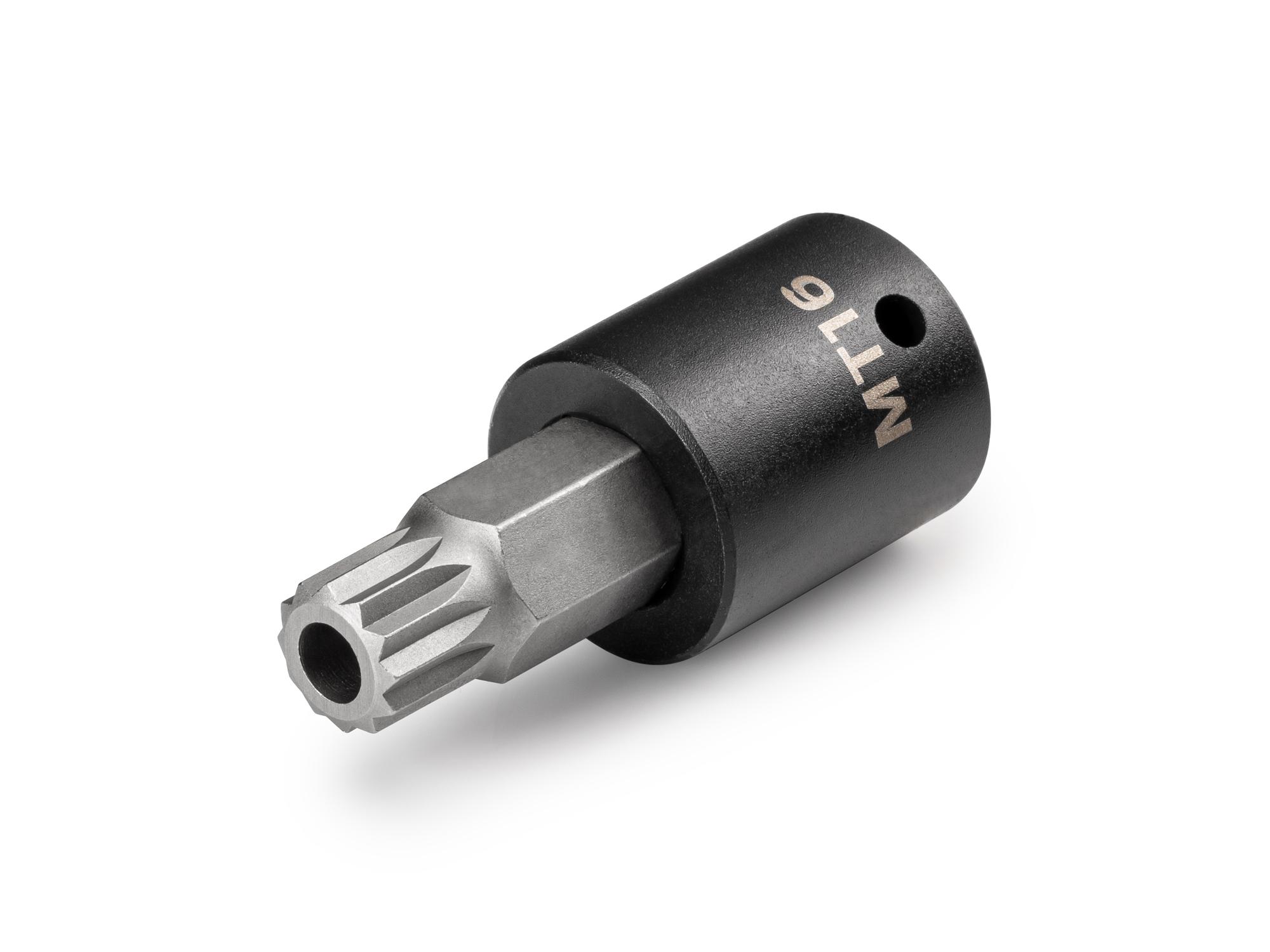

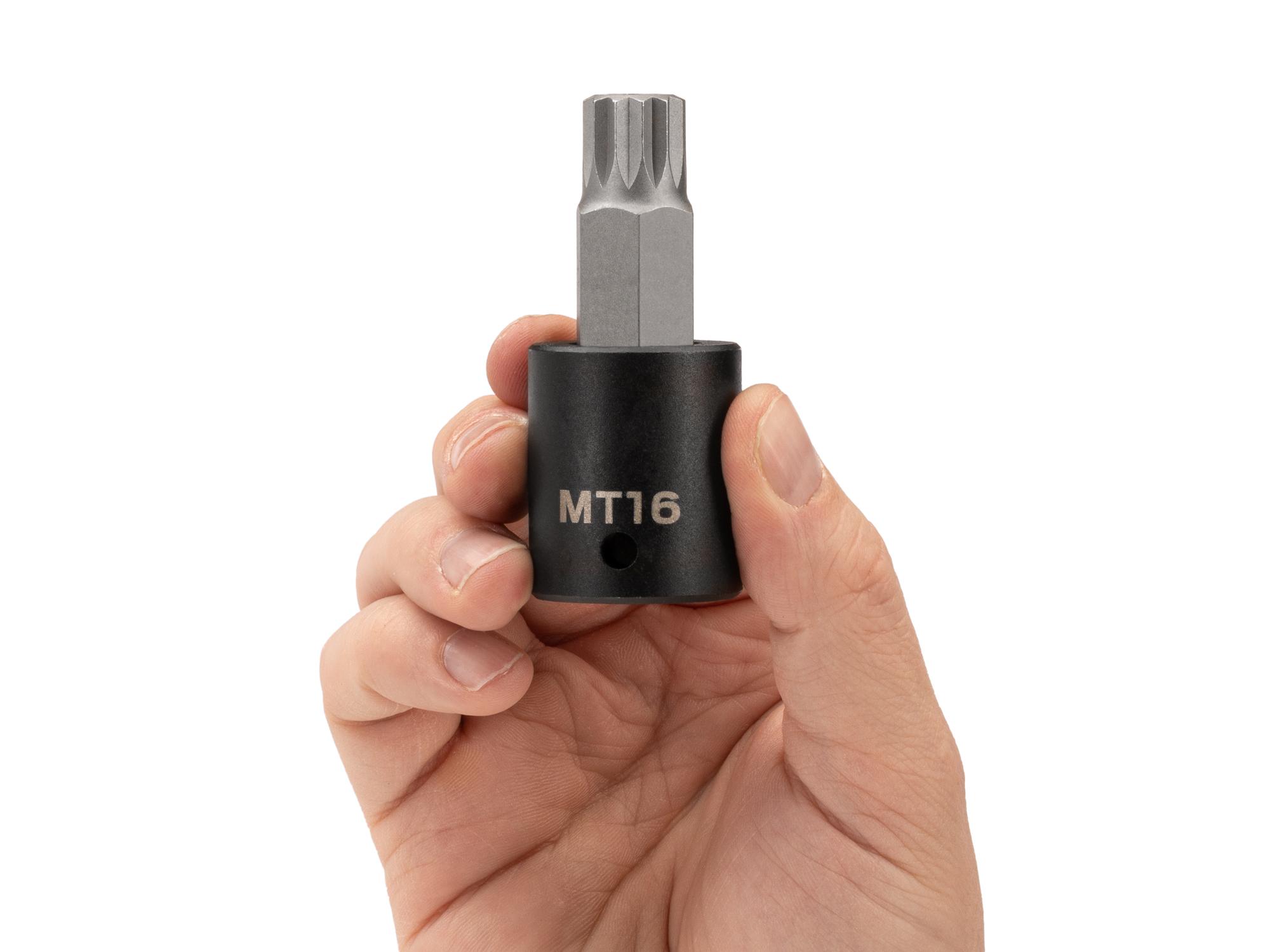

1/2 Inch Drive x MT16 Tamper-Resistant Triple Square Impact Bit Socket

#SIB29216
 •
$9.00

Details

Strong, Precise Triple Square Bits

The triple square (also called XZN) tip is machined to precise tolerances for an exact fit with triple square fasteners.

90º Geometry

The internal star shape is formed by 3 squares superimposed, each with a 30º offset. The points are shaped to an internal angle of 90º, different from double-hex geometries.

Strong 2-Piece Design

Our two-piece bit socket design allows us to optimize the steel alloys, heat treatments, and forming processes for the bit and socket separately. This results in a tool that’s higher performing and more durable than traditional 1-piece impact bit sockets.
A

Steel Bit

The bit is made from hardened S2 steel for a tip that maintains its geometry even under stress.

B

Permanent Connection

Bits are pressed directly into the socket for a permanent connection.

C

4140 Cr-Mo Socket

The socket is made from 4140 chromium-molybdenum (Cr-Mo) steel and properly heat-treated for use on impact wrenches.

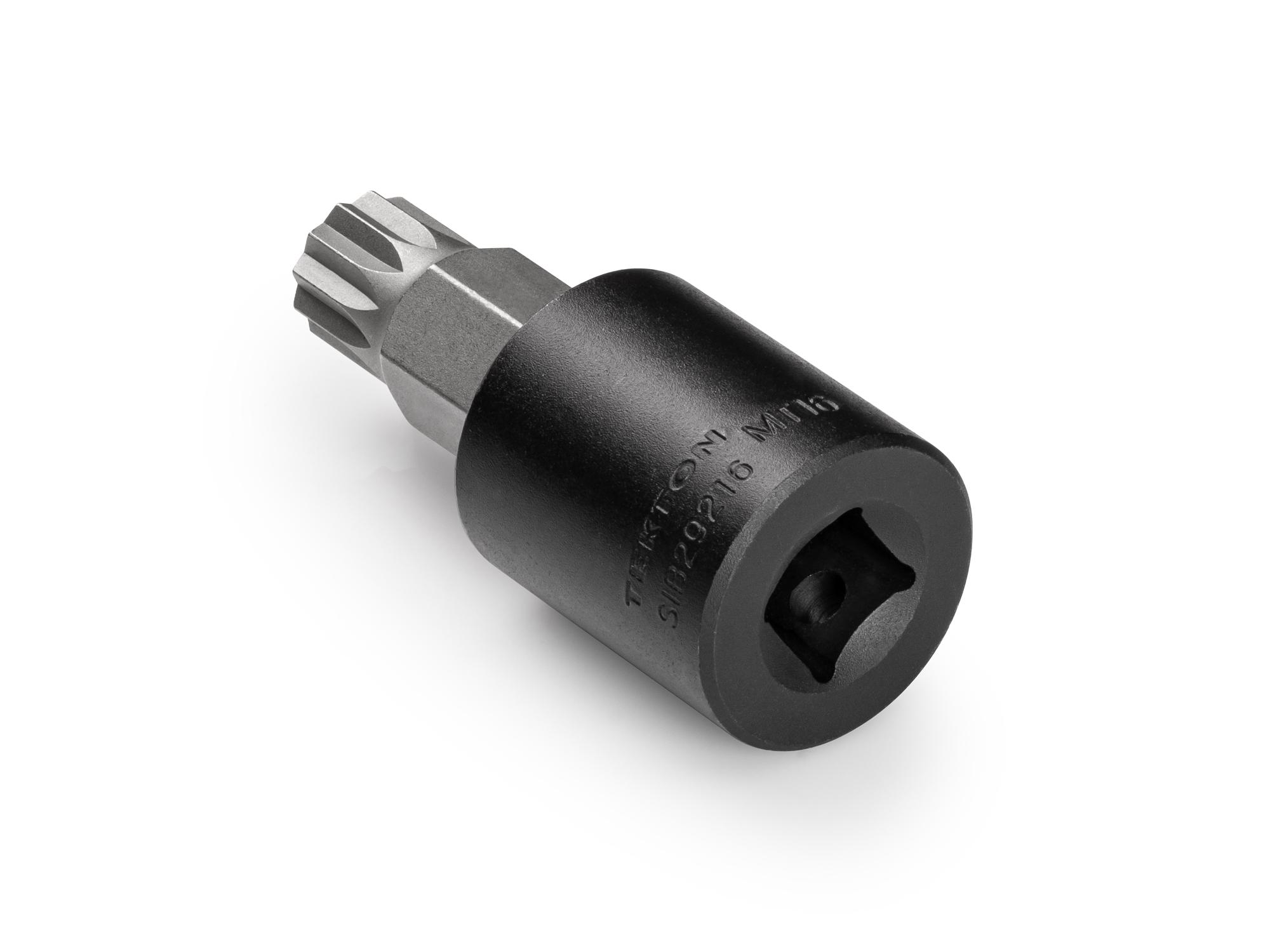

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.

Extended Reach

The straight, extended length bit allows you to reach deeper into recesses than other shorter and tapered-style bits.

Drive Tool Retention

Sockets work for both types of anvils found on 3/8 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil

Specs

1/2 Inch Drive x MT16 Tamper-Resistant Triple Square Impact Bit Socket

Specs for 1/2 Inch Drive x MT16 Tamper-Resistant Triple Square Impact Bit Socket
Country of Origin
Taiwan
Item Weight
0.57 lb.
