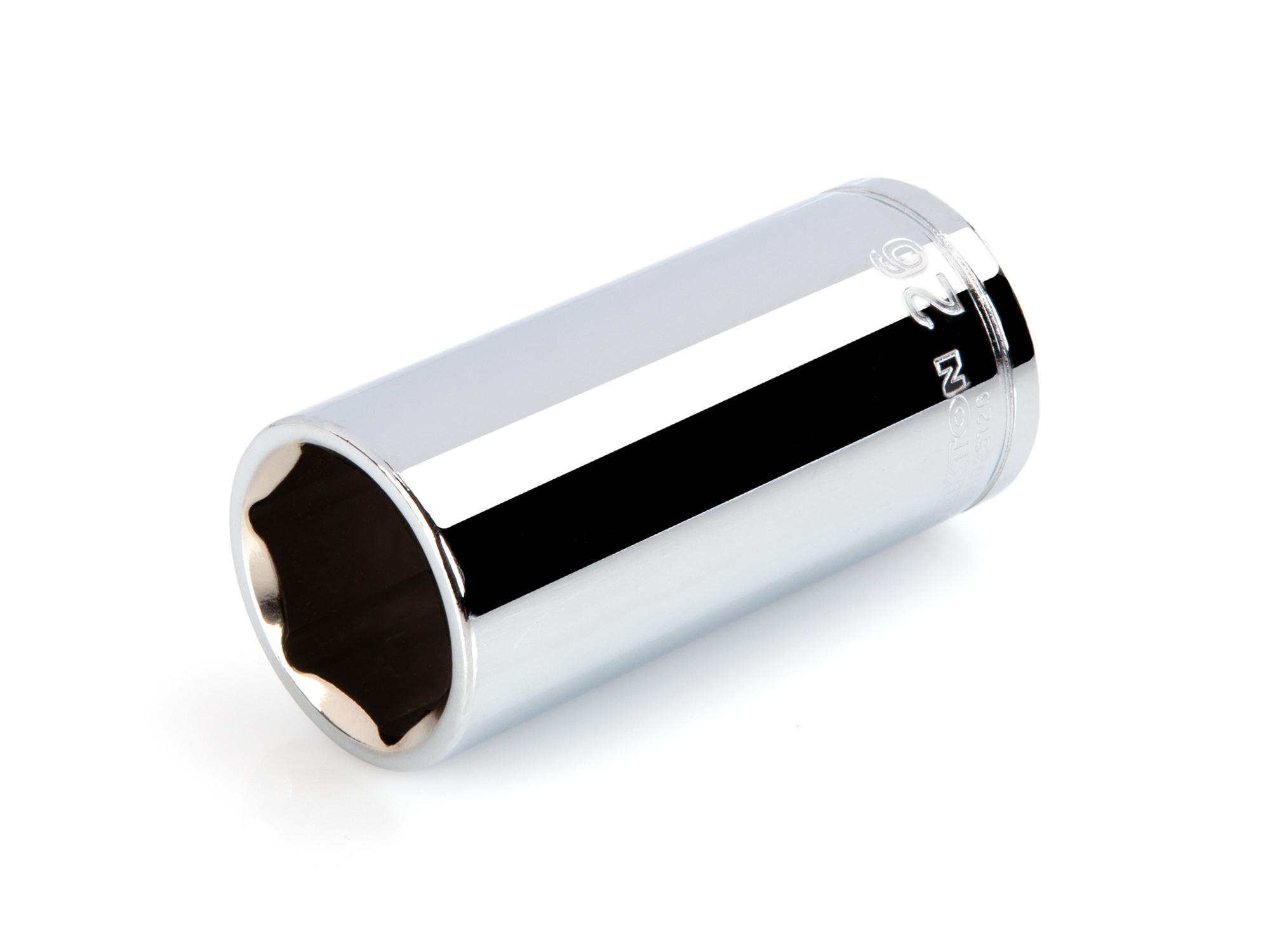

TEKTON SHD23126-T 1/2 Inch Drive x 26 mm Deep 6-Point Socket
Click image to zoom in

1/2 Inch Drive x 26 mm Deep 6-Point Socket

#SHD23126
 •
InchMetric

Size

10 mm
$6
11 mm
$6
12 mm
$6
13 mm
$6
14 mm
$6
15 mm
$6
16 mm
$6
17 mm
$6
18 mm
$6
19 mm
$7
20 mm
$7
21 mm
$7
22 mm
$7
23 mm
$7
24 mm
$8
25 mm
$8
26 mm
$9
27 mm
$9
28 mm
$9
29 mm
$9
30 mm
$9
31 mm
$9
32 mm
$9
33 mm
$11
34 mm
$11
35 mm
$13
36 mm
$13
37 mm
$13
38 mm
$13
$9.00

Also available in standard-length


DetailsSpecs

Details

Socket Markings

Large, Stamped Markings

  • Permanently impressed into the material by a roll-stamp die
  • As large as possible while still being readable along the socket's curved surface
  • Clearly visible size numbers with extra-deep outline
Socket Markings
Deep-length socket in tight, recessed area

Fully Stepped Shoulders

Narrowed diameter stretches to the base of the socket on small, deep-length sizes. This provides greater reach into tight, recessed areas.


Tekton deep-length socket with fully stepped shoulers
Socket cut in half

Exterior + Interior Finishes

  • Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
  • Interior is protected against rust with clear coat, rather than commonly-used metallic paint
Socket cut in half
6-Point Socket Opening

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners

Prevents Fastener Round-Off

6-Point Socket Grips Sides

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.

Drive tool engaging socket

Secure Drive Tool Engagement

  • Four detent grooves provide a secure connection with the retaining ball of a drive tool
  • Beveled inner rims help guide the socket onto other tools

High Torque Strength

Meets minimum value of 1.2 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.

METRIC SERIES

1/2 inch drive deep-length sockets torque specs chart (metric series)
ANSITEKTON
Source: ASME B107.5M - 2002

INCH SERIES

1/2 inch drive deep-length sockets torque specs chart (inch series)
ANSITEKTON
Source: ASME B107.1 - 2002

Specs

1/2 Inch Drive x 26 mm Deep 6-Point Socket

Specs for 1/2 Inch Drive x 26 mm Deep 6-Point Socket
Country of Origin
Taiwan
Item Weight
0.64 lb.
