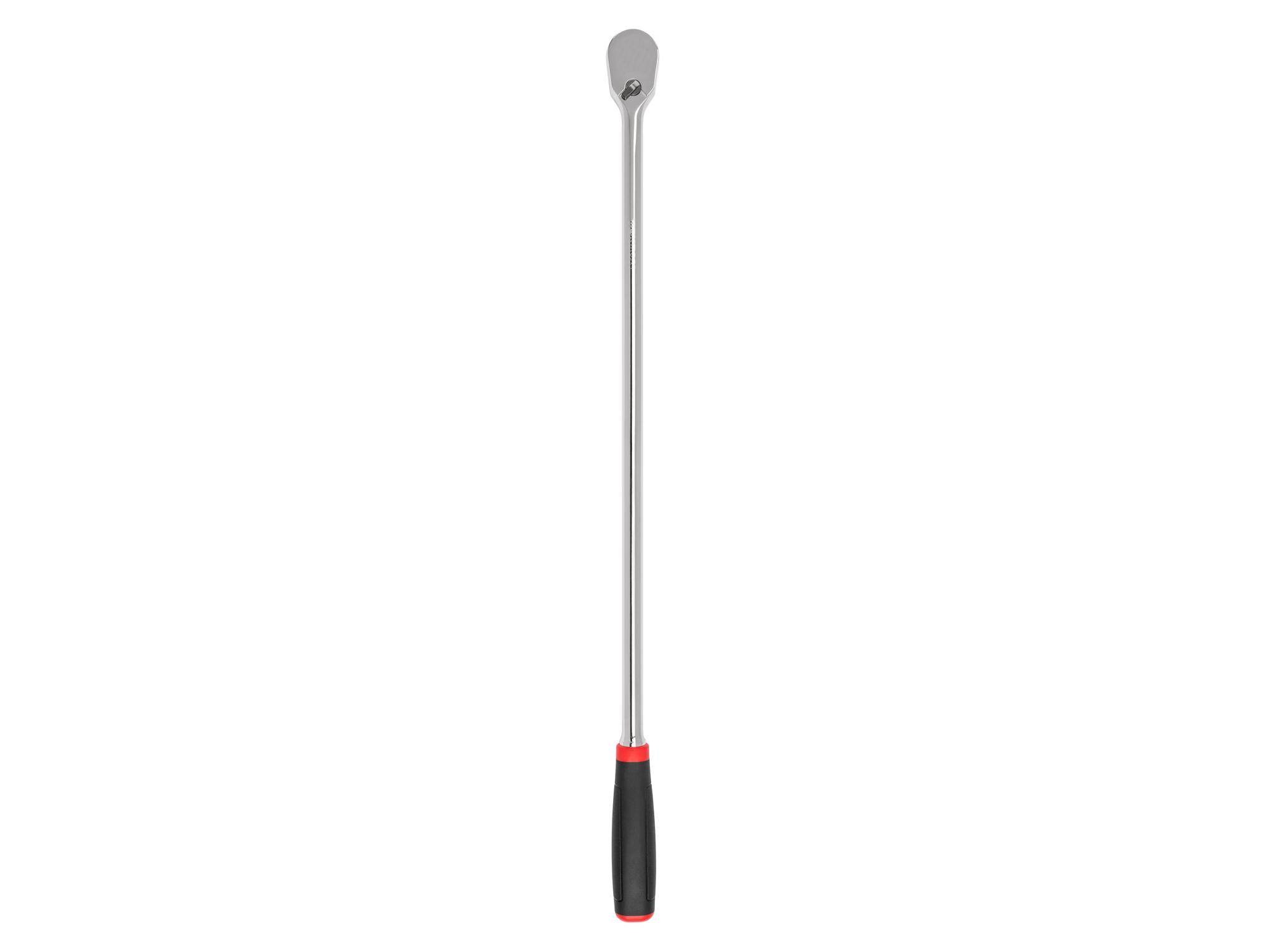

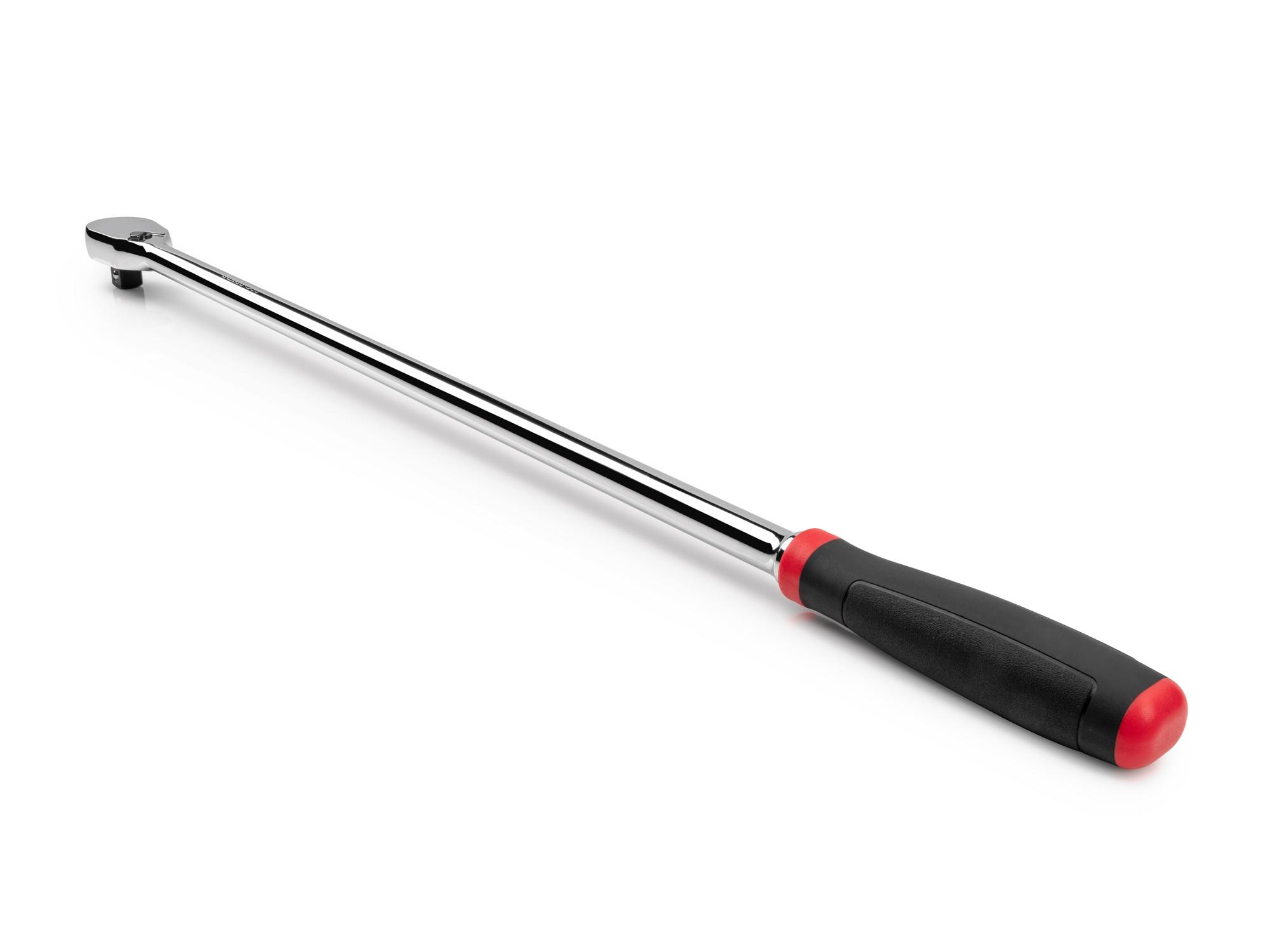

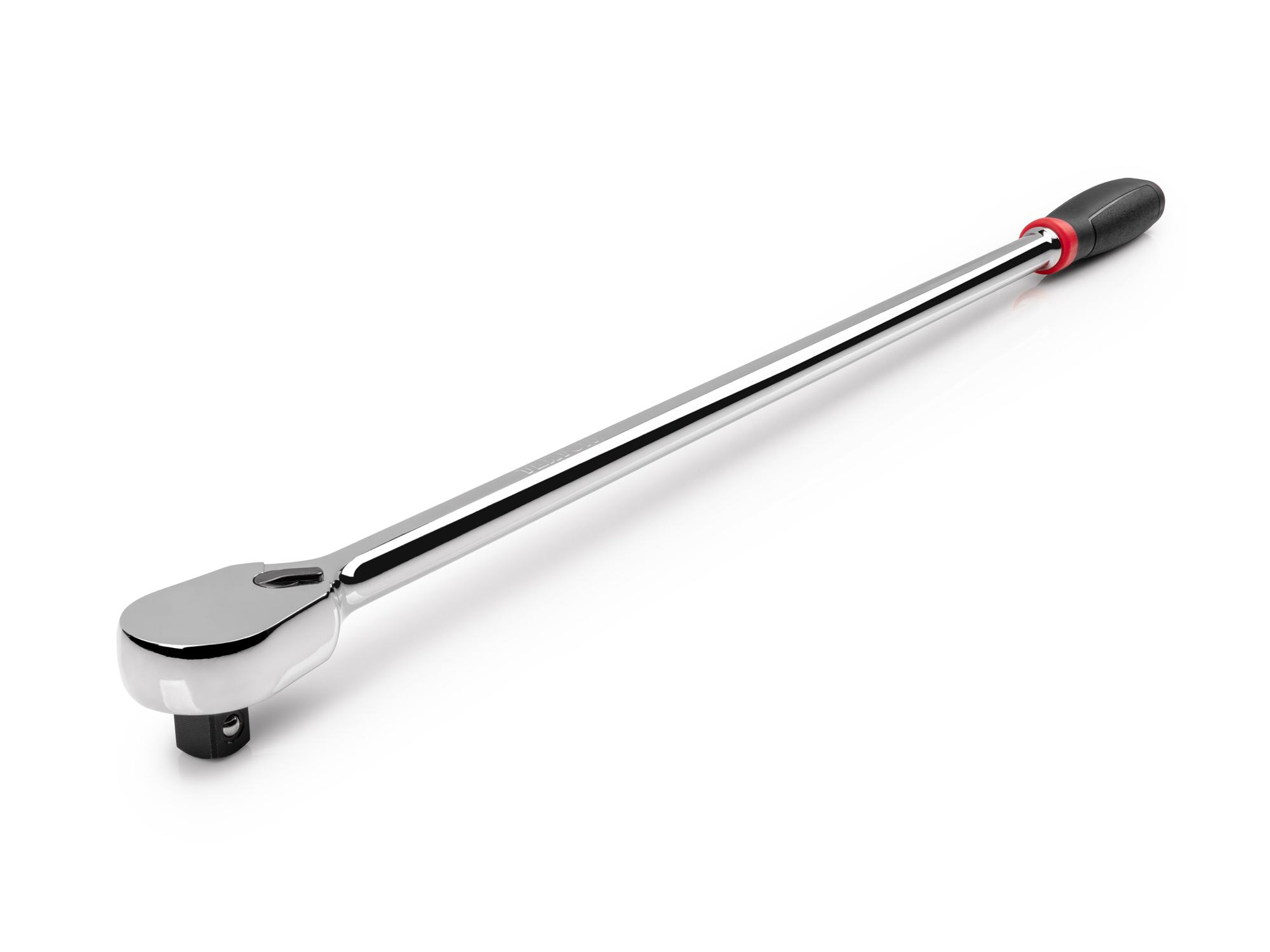

1/2 Inch Drive x 24 Inch Comfort Grip Ratchet

Item #SRH02224
$56.00
  • 90-tooth gear produces a working swing arc of just 4 degrees

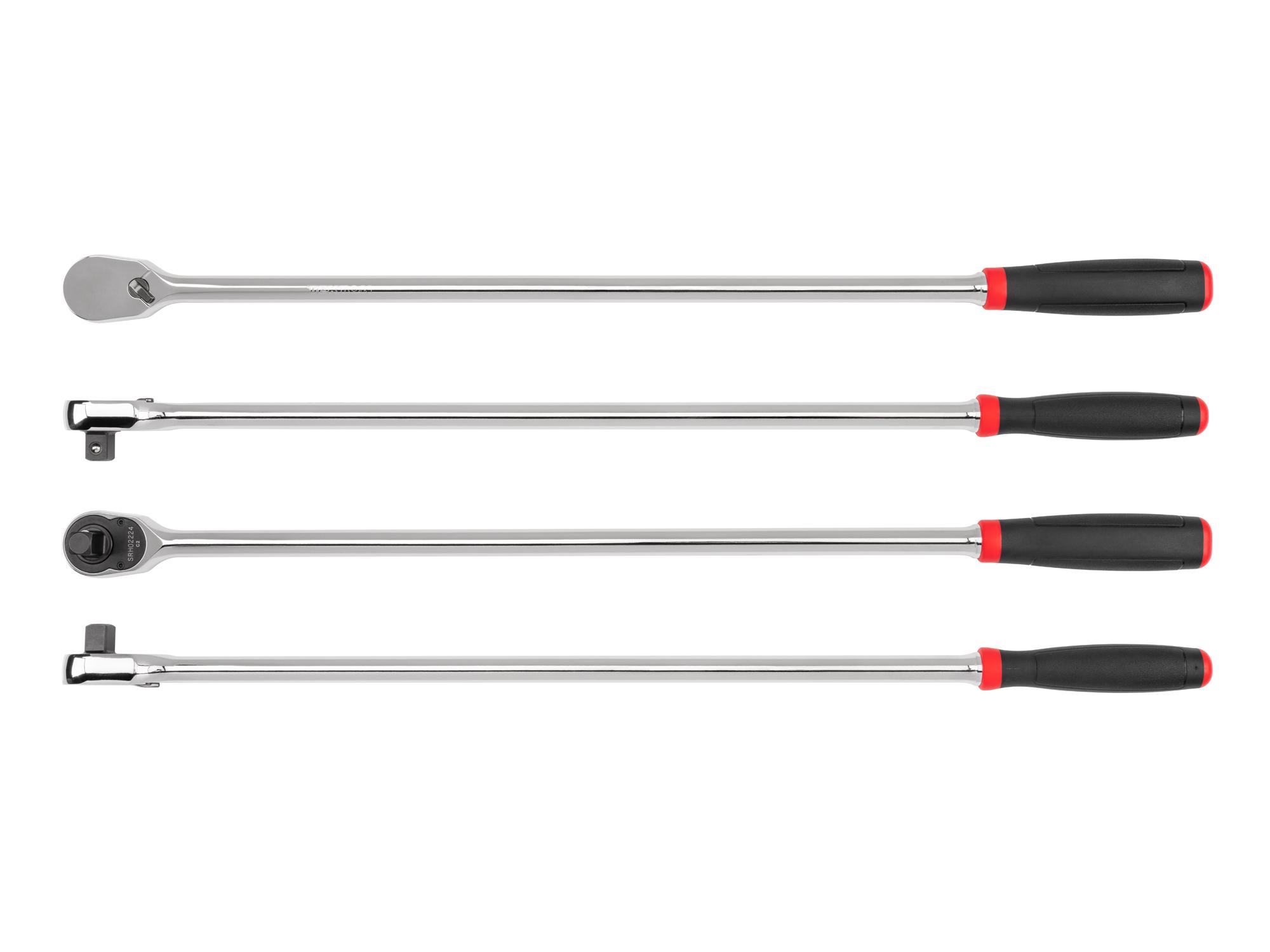

  • 180-degree, 9-position flex head lets you approach your work from any angle
  • Ultra-compact head is reduced in height, width, and length

Details

90-Tooth Gear = 4° Swing Arc

90-Tooth Gear = 4° Swing Arc

The single half-moon pawl maintains 6 to 9 teeth (depending on the drive size) in contact with the gear at all times, ensuring that it won't slip or skip under stress.

Ultra-Compact Head

Unlike conventional "low profile" designs that focus on controlling only the thickness of the head, we reduced the size in every dimension: height, width, and length.

Classic, Non-Quick-Release Drive

To add or remove sockets, push or pull them over the spring-actuated detent ball. The ratchet’s flat back improves its clearance since there’s no release button to get in the way.

Comfort Grip Handle

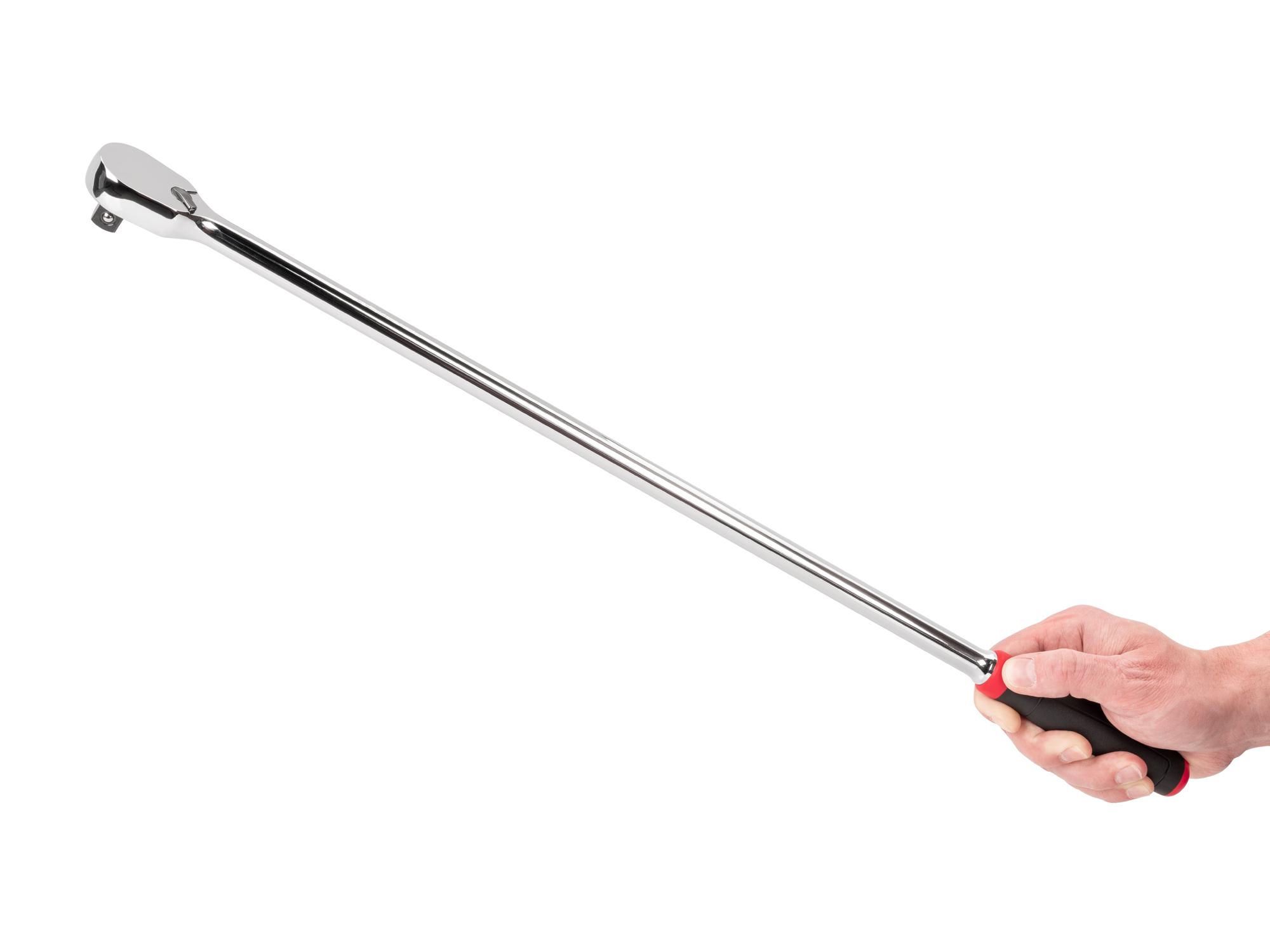

We designed our comfort grip handle with a rounded oval shape to fit your hand without being bulky.

Comfort Grip Handle

We designed our comfort grip handle with a rounded oval shape to fit your hand without being bulky.

The rounded oval shape supports your palm and fingers when you push or pull

The rounded oval shape supports your palm

and fingers when you push or pull

The rounded oval shape supports your palm and fingers when you push or pull

The rounded oval shape supports your palm and fingers when you push or pull

Handle Materials and Construction


Handle Materials and Construction


Rigid Inner Handle

  • Made of polypropylene
  • Impact resistant
  • Shore D 68 durometer

Soft Overmold Grip

  • Made of SantopreneTM TPV
  • Abrasion and chemical resistant
  • Lightly textured on two sides
  • Shore A 55 durometer
TEKTON Comfort Grip Handle cutaway views

Steel Shaft Core

  • Made of 6135 Chromium-Vanadium steel
  • Fully chrome-plated finish
  • Press-fit deeply into the handle and won't pull apart

Won't Twist Out
The steel shaft has two flat sides so it can't twist inside the handle

TEKTON Comfort Grip Handle cutaway views

Steel Shaft Core

  • Made of 6135 Chromium-Vanadium steel
  • Fully chrome-plated finish
  • Press-fit deeply into the handle and won't pull apart

Rigid Inner Handle

  • Made of polypropylene
  • Impact resistant
  • Shore D 68 durometer

Soft Overmold Grip

  • Made of SantopreneTM TPV
  • Abrasion and chemical resistant
  • Lightly textured on two sides
  • Shore A 55 durometer

Won't Twist Out
The steel shaft has two flat sides so it can't twist inside the handle

Working Handle Length

To be clear and consistent about the size of our ratchets, we use the actual working length (center of drive tang to end of handle), not the overall length of the tool. As a result, Tekton tools may be a little longer than other similarly described tools in the market.

Proof Torque

Our ratchets meet (and most far exceed) industry standards for important baselines like Proof Torque, a measure of strength verified by a single-cycle test that applies torque until the specified value is reached without failure or any permanent deformation.

Parts + Assembly

Specs

1/2 Inch Drive x 24 Inch Comfort Grip Ratchet

Specs for 1/2 Inch Drive x 24 Inch Comfort Grip Ratchet
Tooth Count
90
Country of Origin
Taiwan
Item Weight
2.37 lb.
