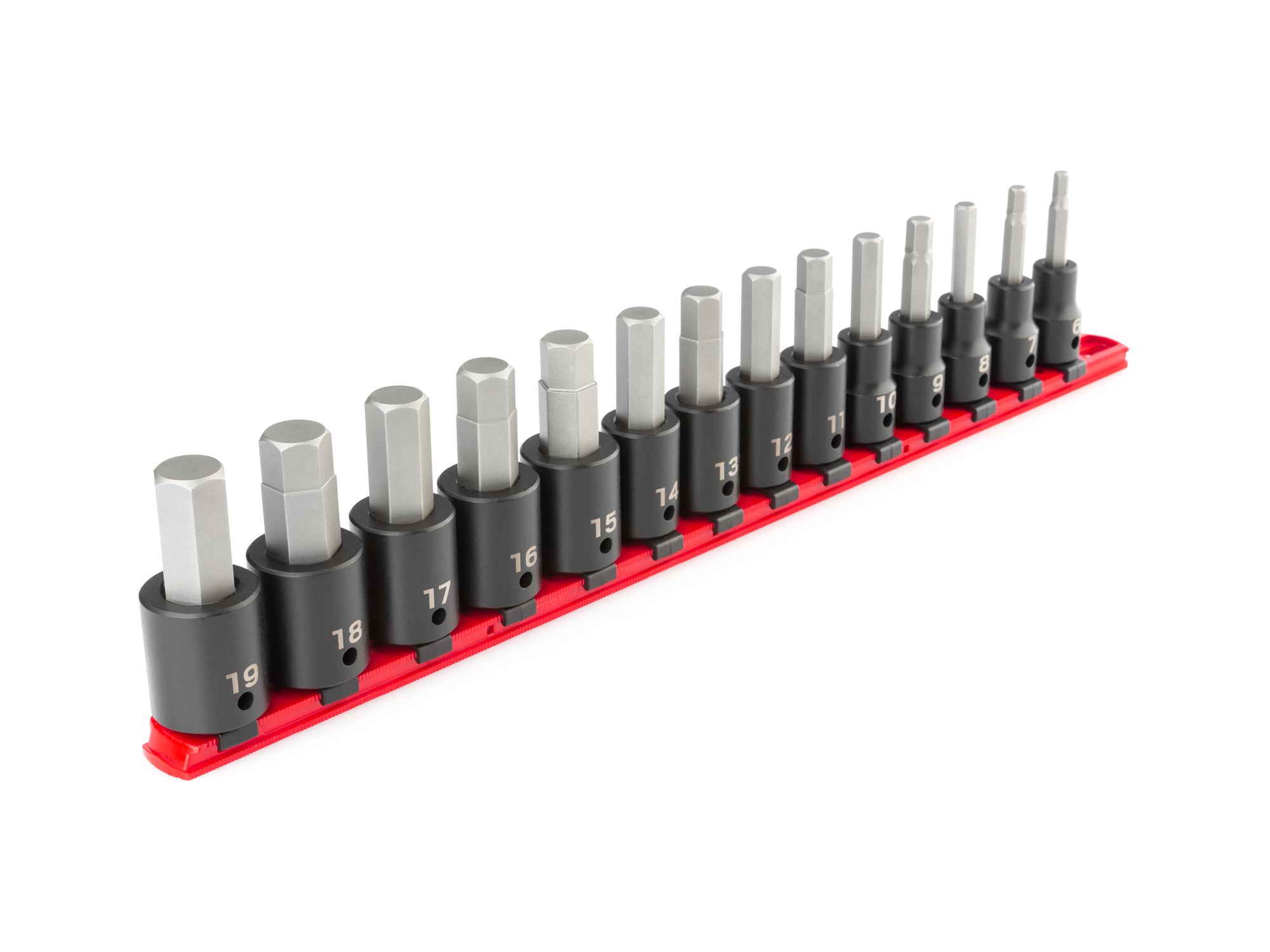

Front-right angle view of Tekton rail impact drive bit socket set. Item #SIB92101

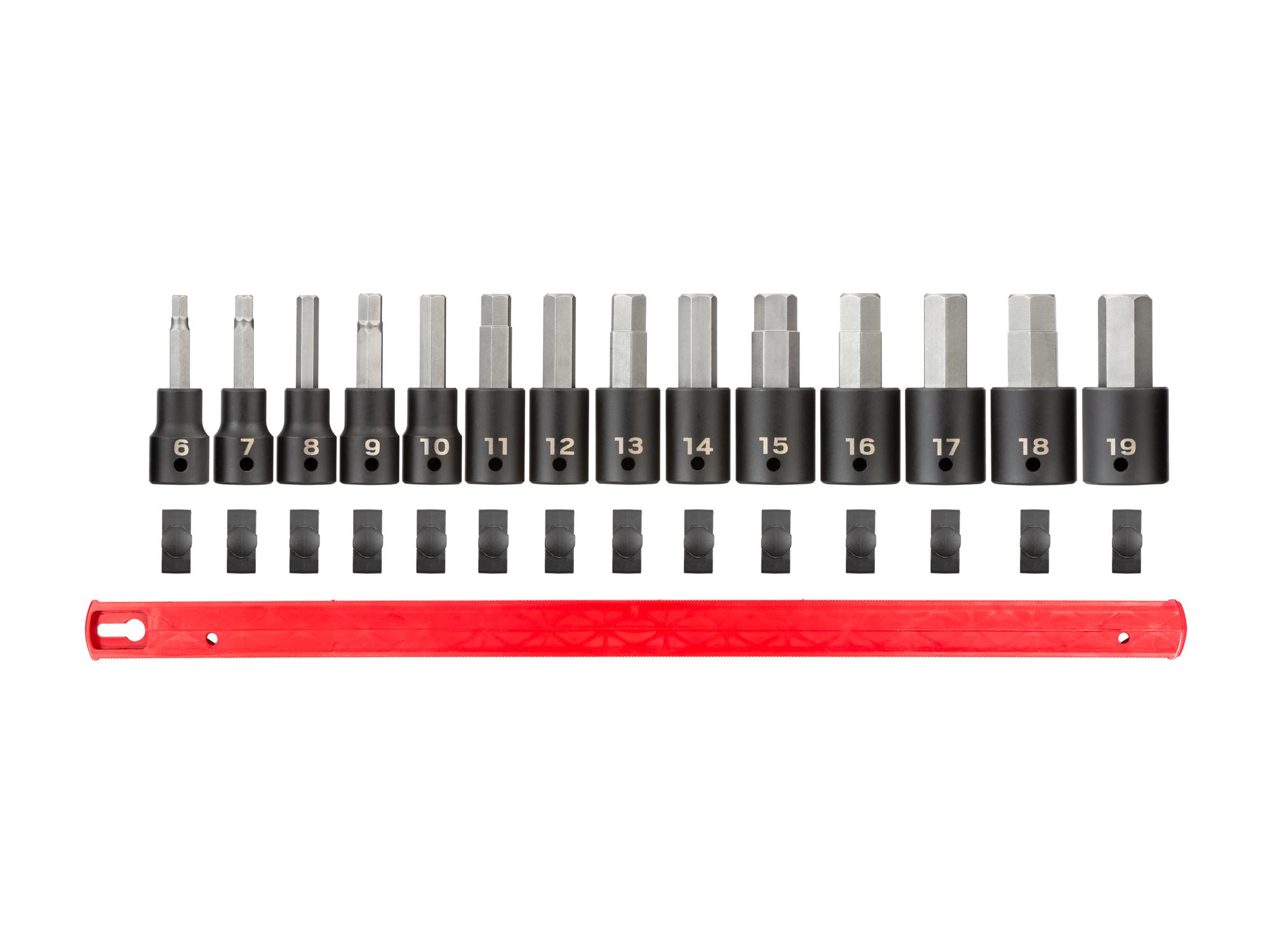

Laid out contents of Tekton rail impact drive bit socket set. Item #SIB92101

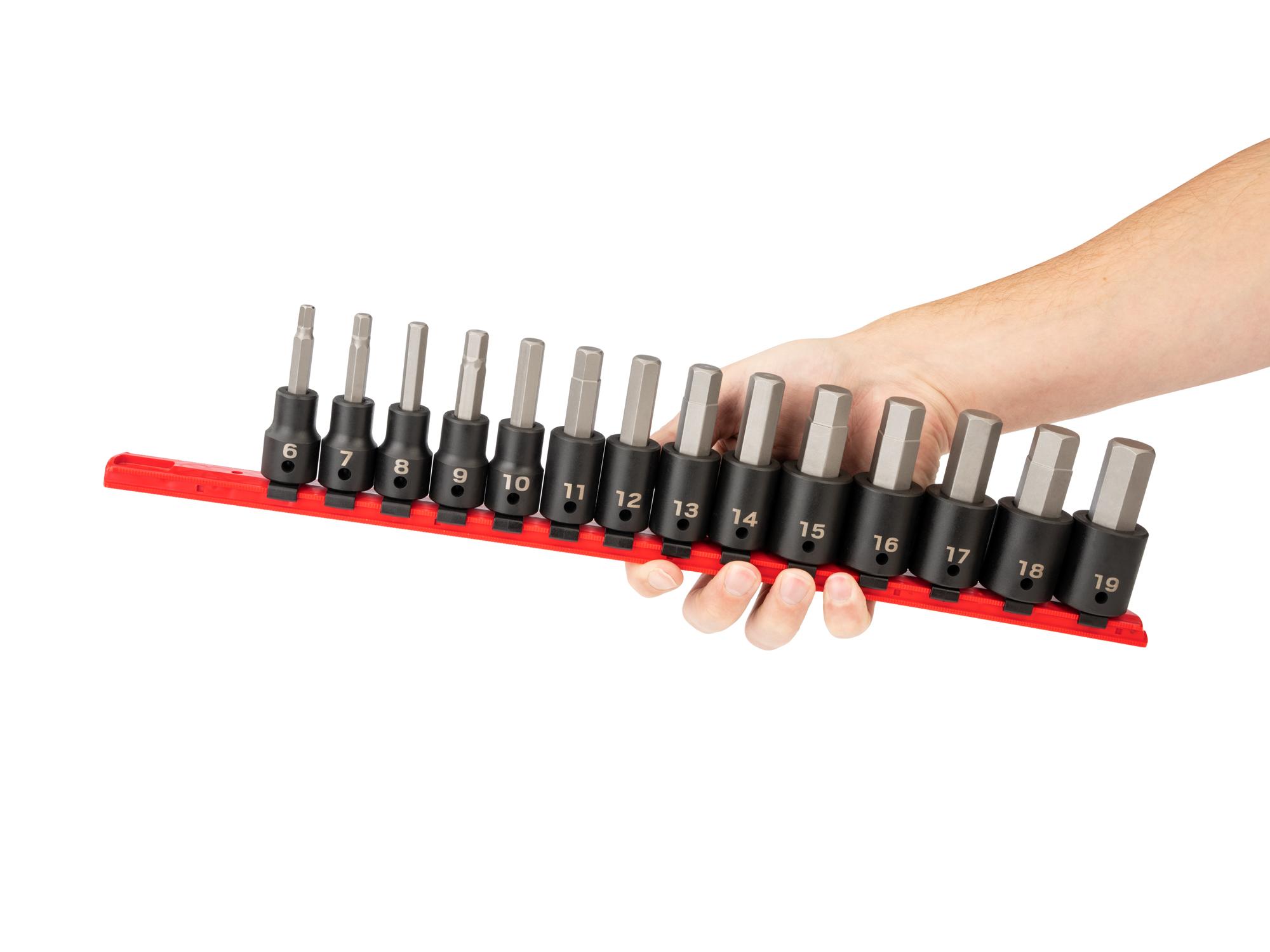

Person holding Tekton rail impact drive bit socket set. Item #SIB92101
Tap image to zoom in
Item #SIB92101
1/2 Inch Drive

Hex Impact Bit Socket Set with Rail (14-Piece)

MM
6 - 19 mm

Set Range

1/4 - 3/4 in., 6 - 19 mm
1/4 - 3/4 in.
6 - 19 mm

Organization Option

$90.00
Out of Stock
Set Includes:
DetailsSpecifications

Details

The tip of a hex impact bit socket

Strong, Precise Steel Bits

The 6-sided hexagonal tip is machined to precise tolerances for an exact fit with hex fasteners.
The steel bit is press fit into the socket.

Two-Piece Design

Our two-piece bit socket design allows us to optimize the steel alloys, heat treatments, and forming processes for the bit and socket separately for a tool that’s higher performing and more durable than traditional one-piece impact bit sockets.
Impact socket material

4140 Chromium-Molybdenum (Cr-Mo) Steel Socket

Heat-treated to 40-45 HRC for use on impact wrenches. Coated with a corrosion-resistant manganese phosphate finish.

Impact socket bit material

S2 Steel Bit

Heat-treated to 57-63 HRC to resist shocks and maintain geometry under stress.

The drive end of a 13 mm impact bit socket, with smooth walls, beveled inner rim, and detent pin hole highlighted

Drive Tool Retention

Sockets work with both types of anvils found on 1/2 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil
Front laser markings and back stamped markings on a 13 mm impact bit socket

Two Size Markings

The size is marked in two ways on every socket: a high-visibility laser marking and a permanent stamped marking.
A red socket rail with black clips and twist to lock callout

Socket Rail Organization

  • Patented twist-to-lock design securely holds sockets on the rail
  • Keyhole slot mounts to wall or workbench
  • Combine multiple socket rails with trays and other accessories
Shop Socket Organization

Specifications

1/2 Inch Drive Hex Impact Bit Socket Set with Rail, 14-Piece (6 - 19 mm)

Specs for 1/2 Inch Drive Hex Impact Bit Socket Set with Rail, 14-Piece (6 - 19 mm)
Country of Origin
Sockets made in Taiwan. Rails made in USA.
Item Weight
5.83 lb.
