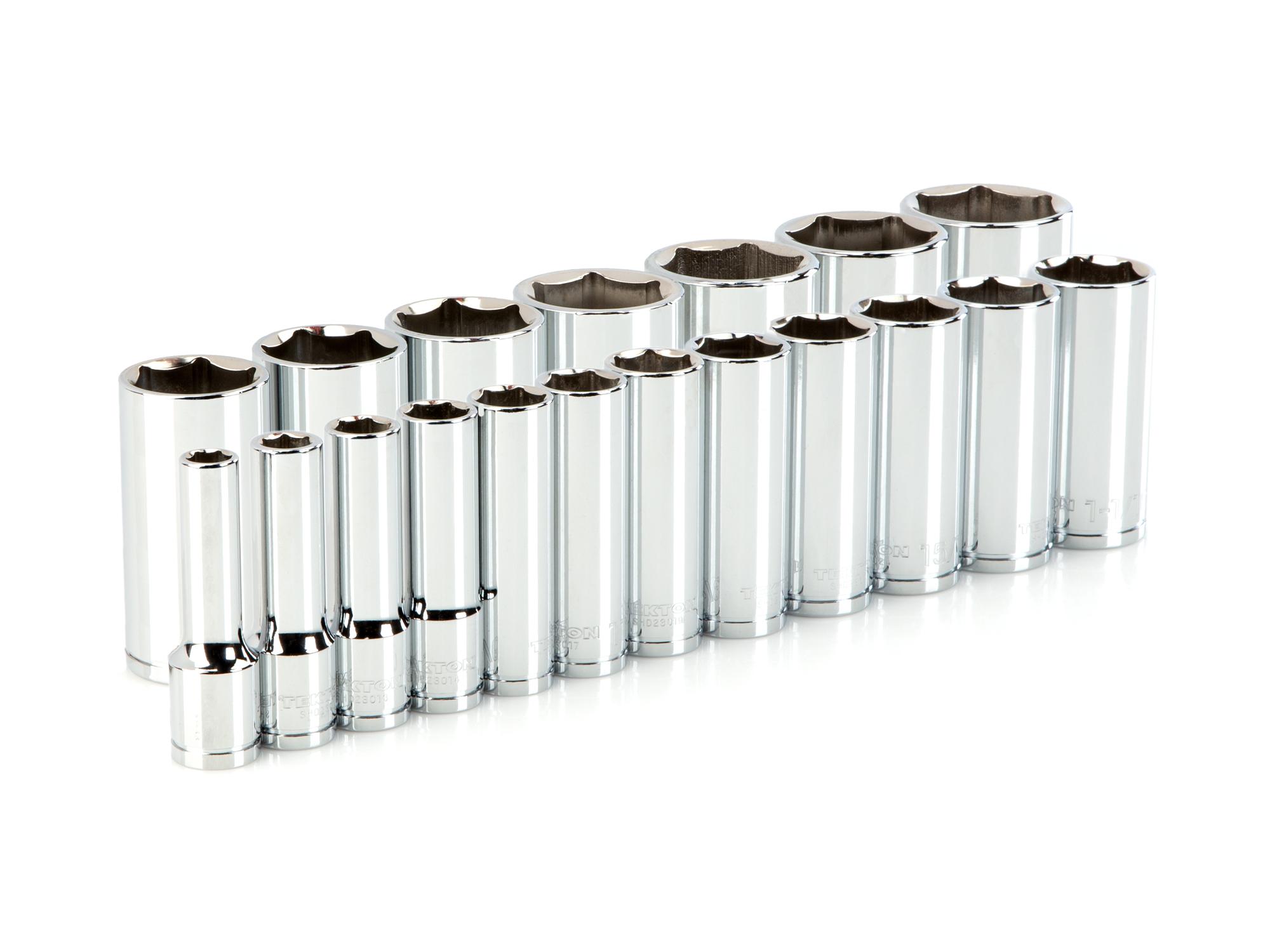

1/2 Inch Drive Deep 6-Point Socket Sets (3/8 - 1-1/2 in., 10-38 mm)

Item #SHD92013

•

Available in 4-6 weeks

Also available in standard-length sockets

Set Includes:

IN Deep length
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-7/16, 1-1/2 in. (19 sizes)

Description

Large, Stamped Markings

Permanently impressed into the material by a roll-stamp die
As large as possible while still being readable along the socket’s curved surface
Clearly visible size numbers with extra-deep outline

Fully Stepped Shoulders

Narrowed diameter stretches to the base of the socket on small, deep-length sizes. This provides greater reach into tight, recessed areas.

Exterior + Interior Finishes

Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
Interior is protected against rust with clear coat, rather than commonly-used metallic paint

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.

Secure Drive Tool Engagement

Four detent grooves provide a secure connection with the retaining ball of a drive tool
Beveled inner rims help guide the socket onto other tools

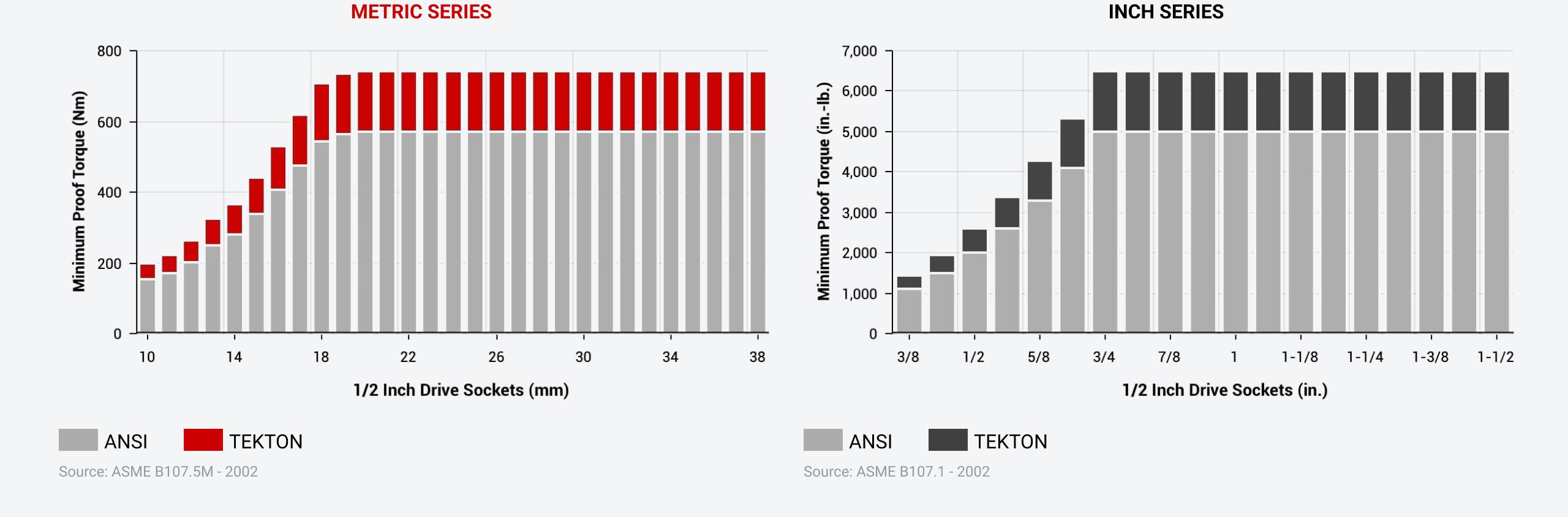

High Torque Strength

Meets minimum value of 1.2 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.

METRIC SERIES

	ANSI		TEKTON
Source: ASME B107.5M - 2002

INCH SERIES

	ANSI		TEKTON
Source: ASME B107.1 - 2002

Specs

1/2 Inch Drive Deep 6-Point Socket Set, 19-Piece (3/8 - 1-1/2 in.)

A. Length	3.02 in.
B. Socket End Diameter	0.58 in.
C. Drive End Diameter	0.87 in.
D. Socket Opening Size	3/8 in.
E. Drive Size	1/2 in.
F. Well Depth	1.0 in.
Weight	0.25 lb.
Country of Origin	Taiwan
