Front-right angle view of Tekton impact drive 6-point socket set. Item #SID92002
Item #SID23132
Tap image to zoom in
Item #SID92002
1/2 Inch Drive
Deep
6‑Point
12‑Point

Axle Nut Impact Socket Set (14-Piece)

MM
27 - 39 mm
•

Organization Option

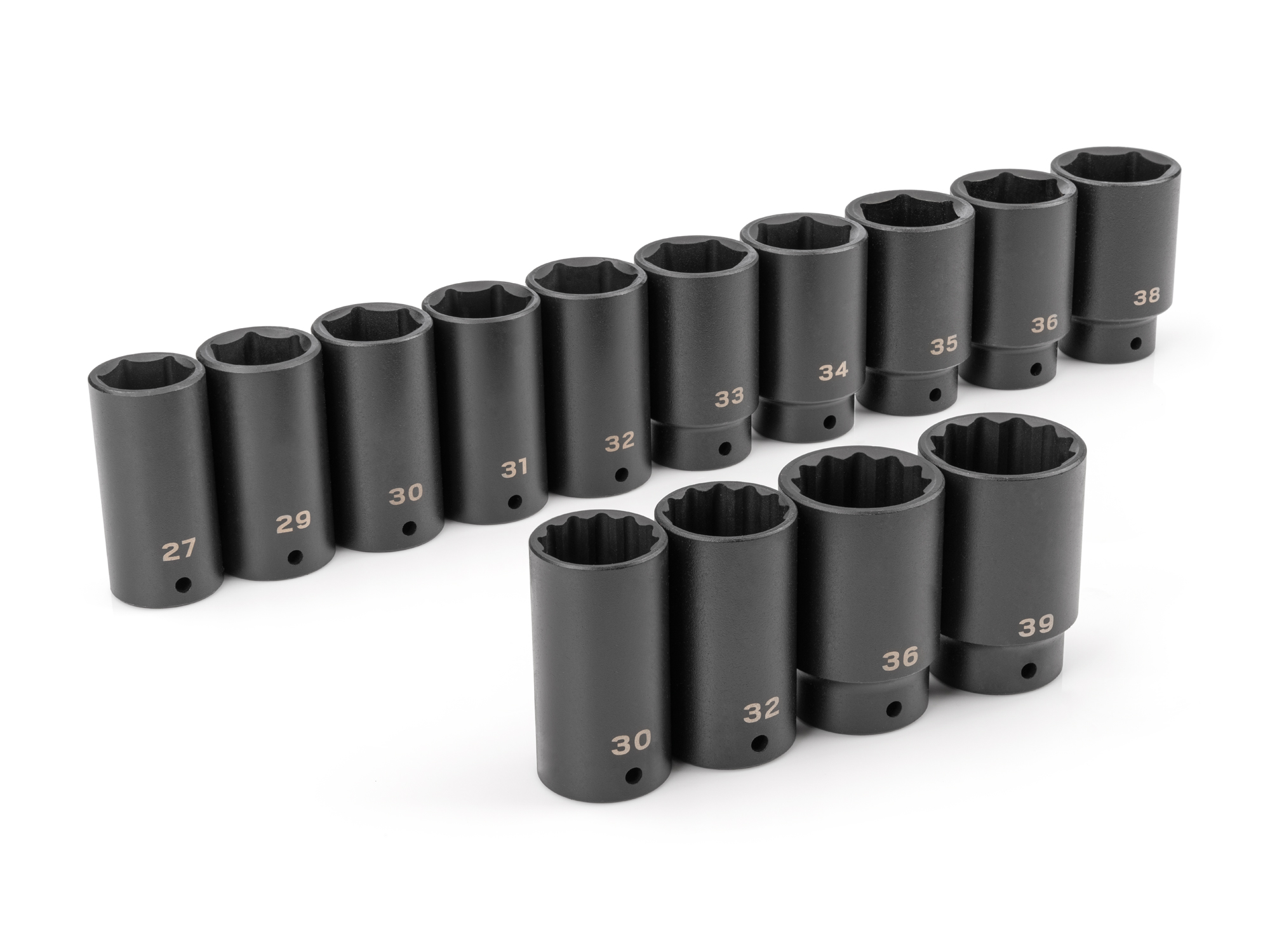

Front-right angle view of Tekton impact drive 6-point socket set. Item #SID92002
Tool Only
$143

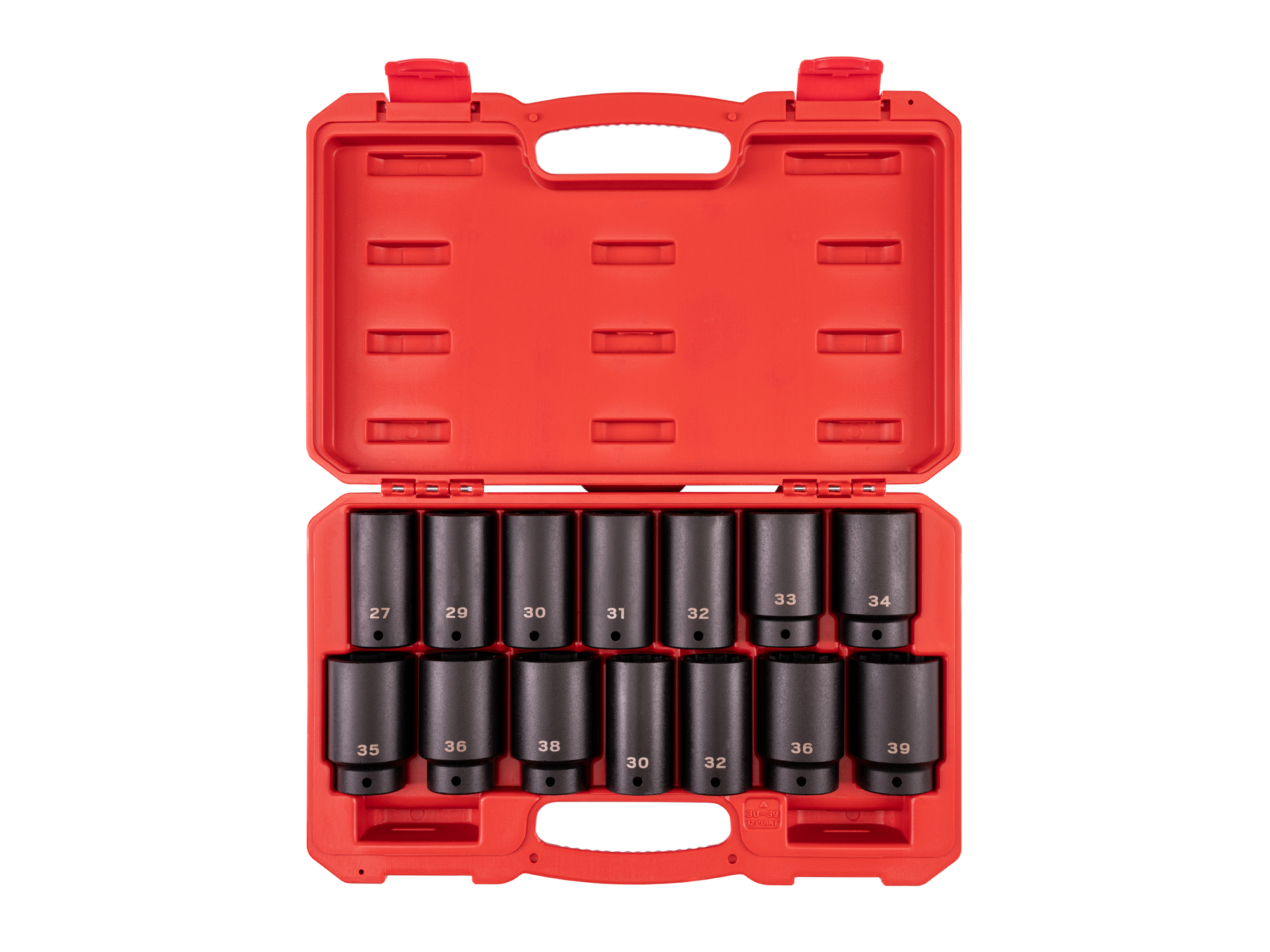

Front view of Tekton case impact drive 6-point socket set. Item #SID92341
Case
$150
$143.00
Add to Cart

This set contains impact sockets from our current lineup that fit axle nut sizes commonly found on passenger vehicles.


Set Includes:
DetailsSpecifications

Details

A 36 mm impact socket being used to remove an axle nut

Quickly Remove Axle Nuts

Impact sockets are ideal for quickly and safely removing and replacing axle nuts. This set contains sockets for servicing both 6- and 12-point axle nuts.
Close-up image of a 6-point axle nut next to a 12-point axle nut
Front laser markings and back stamped markings on a 32 mm impact socket

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
Cutaway view of an impact socket, showing the interior well

Deep Length for Greater Reach

  • The deep socket can reach into wells to access axle nuts without the use of an impact extension, which could reduce torque.
  • The interior well extends far into the socket, providing ample room for the axle nut and spindle.
The drive end of a 34 mm impact socket, with labels for the smooth walls, chamfered inner rim, and detent pin hole

Drive Tool Retention

Sockets work with both types of anvils found on 1/2 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil
A 6-point and 12-point impact socket next to each other

6- and 12-Point Socket Openings

Provide an exact fit for hex and 12-point fasteners, respectively.
Graphics showing how the radiused corners on an impact socket apply force to the flat sides of a 6- or 12-point fastener

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.
Chart comparing the ANSI proof torque standard with Tekton impact sockets

Sockets Exceed ANSI Torque Standards

Each socket size meets a minimum of 1.3 times the ANSI/ASME standard for proof torque.
(A single-cycle test applies torque until a specified value is reached without failure or permanent deformation.)
Cr-V sockets include 6-point 27, 29, 30, 31, and 32mm and 12-point 30 and 32mm. Cr-Mo sockets include 6-point 33, 34, 35, 36, and 38mm and 12-point 36 and 39mm

High-Performing Steel Alloys

We choose the best combination of steel alloys, heat treating specifications, and forming processes for each socket to meet the highest performance requirements.

50BV30 Chromium-Vanadium (Cr-V)

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

All sockets have a corrosion-resistant manganese phosphate coating. Learn More About Our Materials

Specifications

1/2 Inch Drive Deep 6-Point and 12-Point Axle Nut Impact Socket Set, 14-Piece (27 - 39 mm)

Country of Origin
Taiwan
Item Weight
16.32 lb.
