Home/Hand Drive Sockets/12-Point Sockets/Socket Only Sets

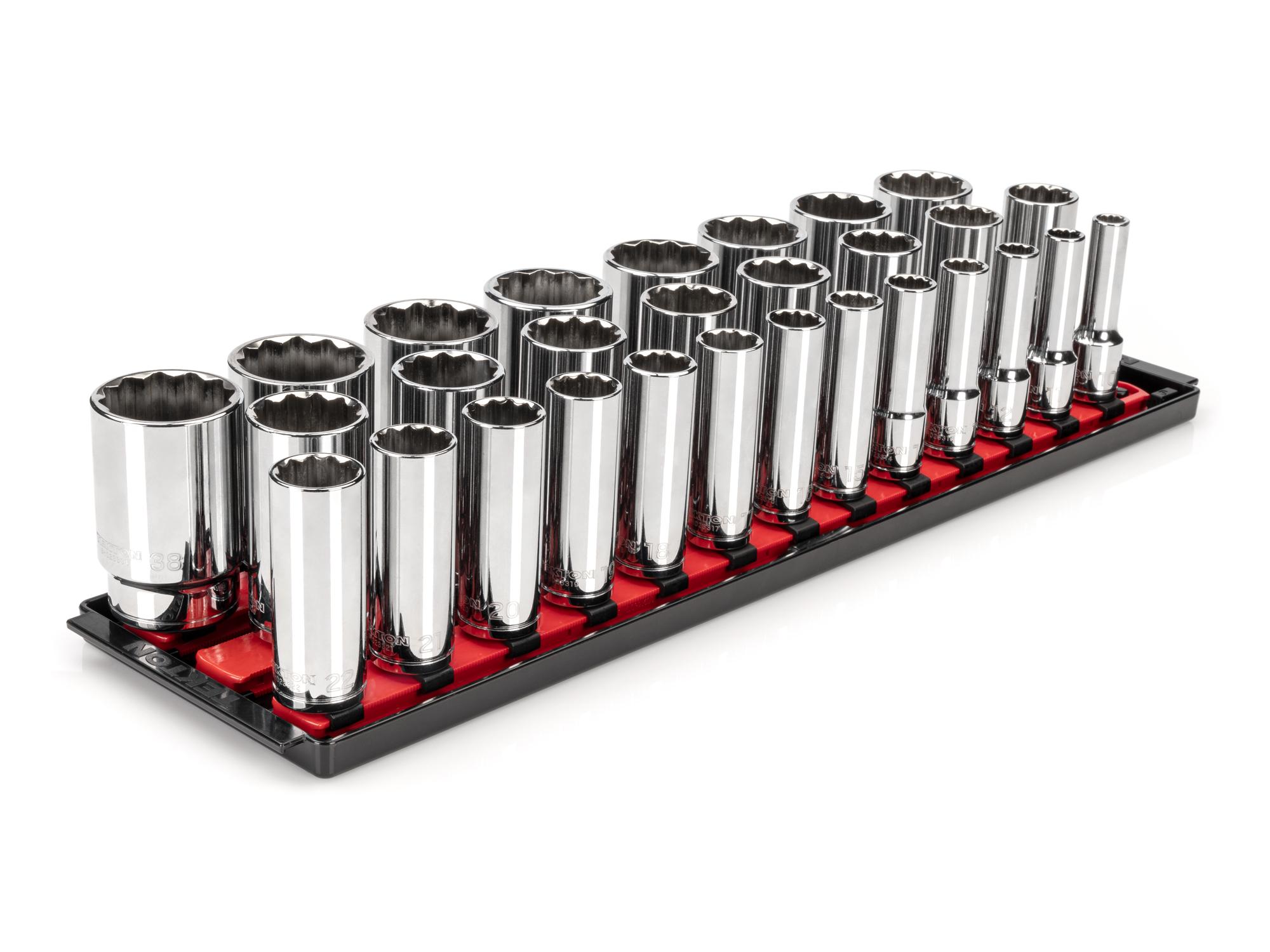

TEKTON 1/2 Inch Drive Deep 12-Point Socket Set with Rails and Tray, 29-Piece (10-38 mm)
Set includes 10–38 mm (metric) 12-point deep length sockets. Comes with organization rails and tray. No skipped sizes. SHD92129.
Set includes 10–38 mm (metric) 12-point deep length sockets. Comes with organization rails and tray. No skipped sizes. SHD92129.
Tap image to zoom in
Item #SHD92129

1/2 Inch Drive Deep 12-Point Socket Set with Rails and Tray (29-Piece)

•
InchMetricInch and Metric

Set Range

10 - 24 mm
10 - 32 mm
10 - 38 mm

Socket Depth

Standard Socket
$148
Deep Socket
$190
$190.00

Also Available in 6-Point

#SHD92125

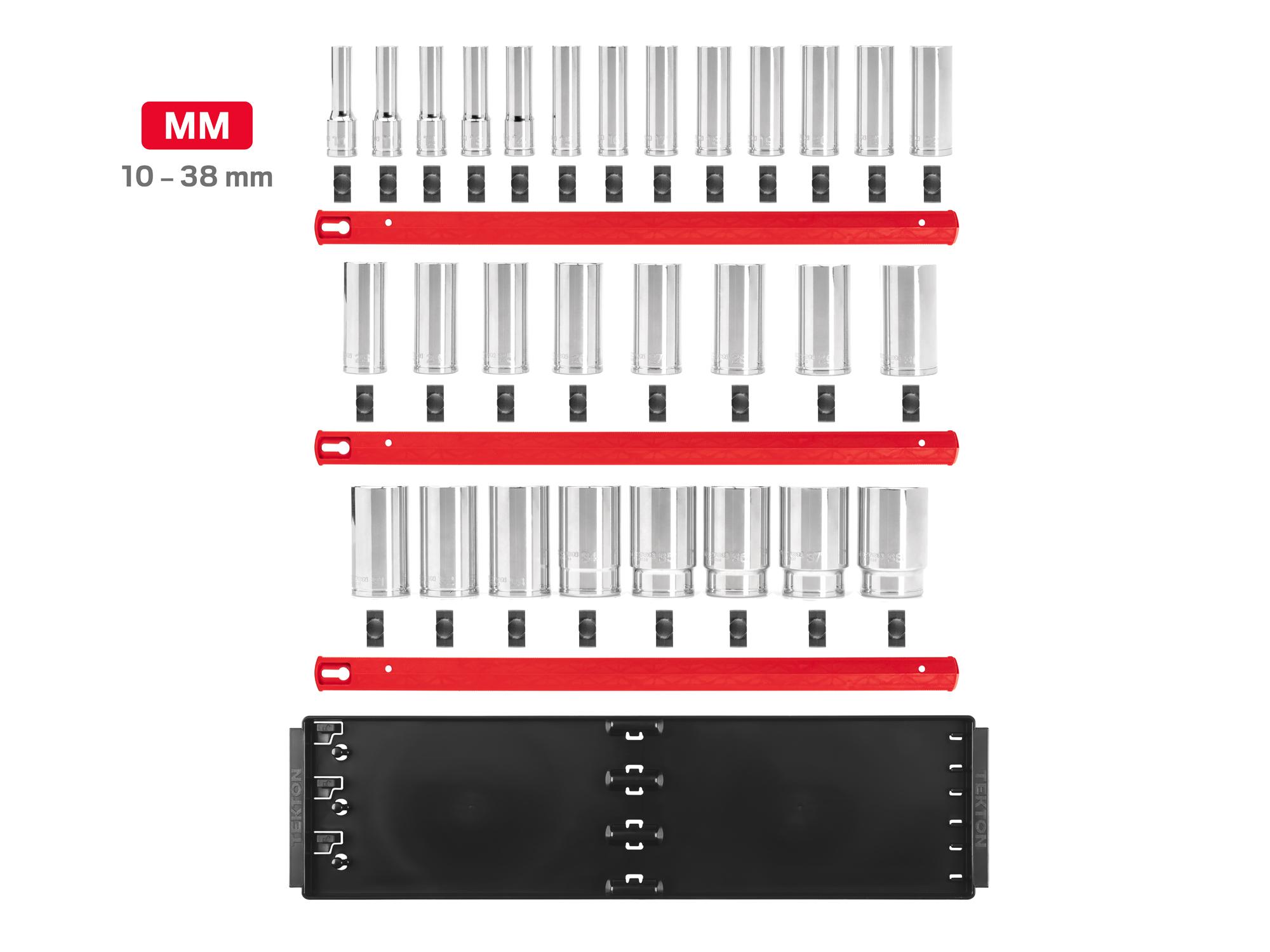

Set Includes:
DetailsSpecs

Details

Socket Markings

Large, Stamped Markings

  • Permanently impressed into the material by a roll-stamp die
  • As large as possible while still being readable along the socket's curved surface
  • Clearly visible size numbers with extra-deep outline
Socket Markings
Deep-length socket in tight, recessed area

Fully Stepped Shoulders

Narrowed diameter stretches to the base of the socket on small, deep-length sizes. This provides greater reach into tight, recessed areas.


Tekton deep-length socket with fully stepped shoulers
Socket cut in half

Exterior + Interior Finishes

  • Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
  • Interior is protected against rust with clear coat, rather than commonly-used metallic paint
Socket cut in half
12-Point Socket Opening

12-Point Socket Opening

Get more access positions for multiple types of fasteners


12-Point Socket Fastener Types

Prevents Fastener Round-Off

12-Point Socket Grips Sides

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.

Drive tool engaging socket

Secure Drive Tool Engagement

  • Four detent grooves provide a secure connection with the retaining ball of a drive tool
  • Beveled inner rims help guide the socket onto other tools

High Torque Strength

Meets minimum value of 1.2 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.

METRIC SERIES

1/2 inch drive deep-length sockets torque specs chart (metric series)
ANSITEKTON
Source: ASME B107.5M - 2002

INCH SERIES

1/2 inch drive deep-length sockets torque specs chart (inch series)
ANSITEKTON
Source: ASME B107.1 - 2002
Socket Rails

Socket Rail Storage

Specs

1/2 Inch Drive Deep 12-Point Socket Set with Rails and Tray, 29-Piece (10 - 38 mm)

Specs for 1/2 Inch Drive Deep 12-Point Socket Set with Rails and Tray, 29-Piece (10 - 38 mm)
Country of Origin
Sockets made in Taiwan. Rails and tray made in USA.
Item Weight
20.48 lb.
