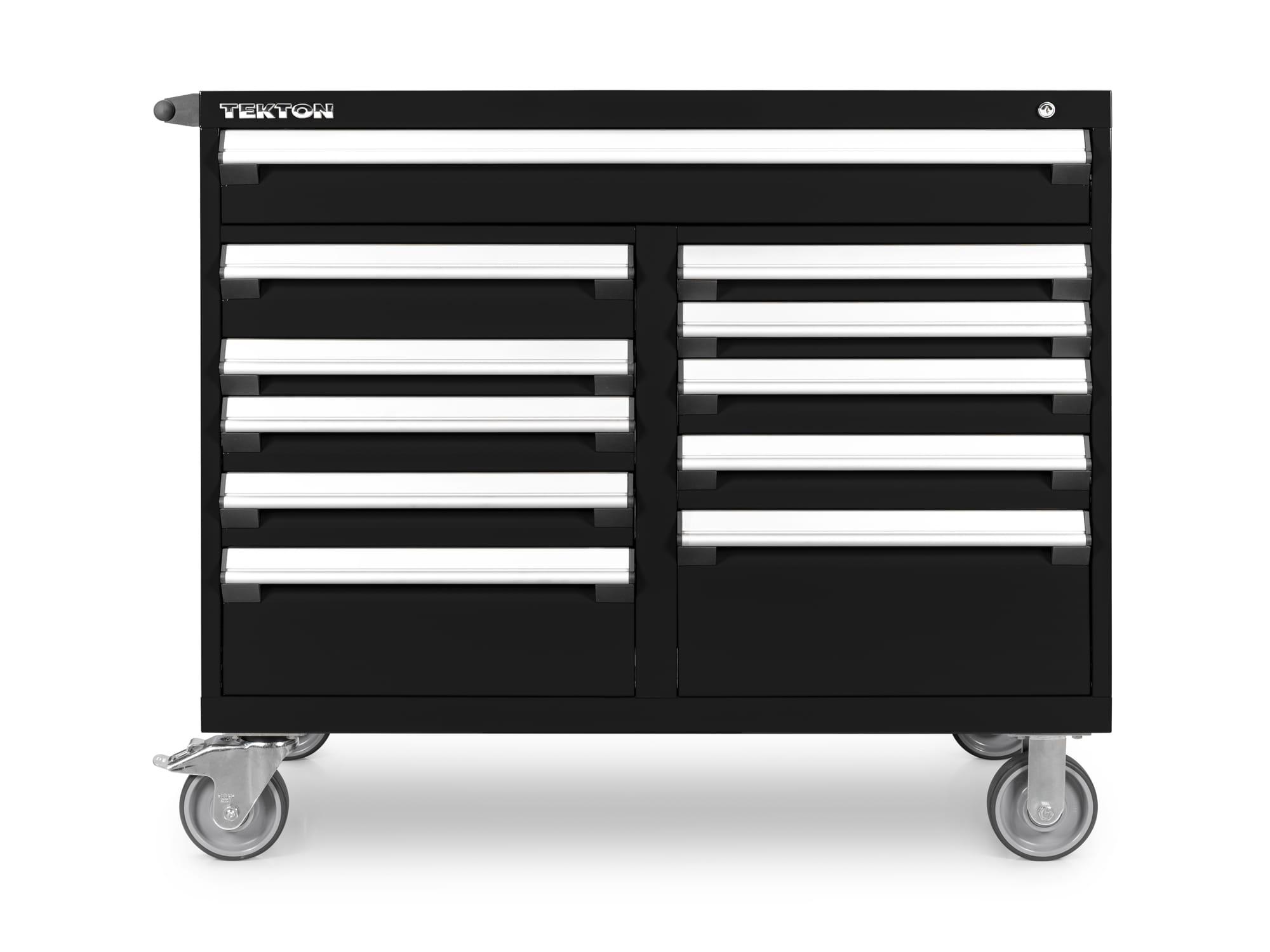

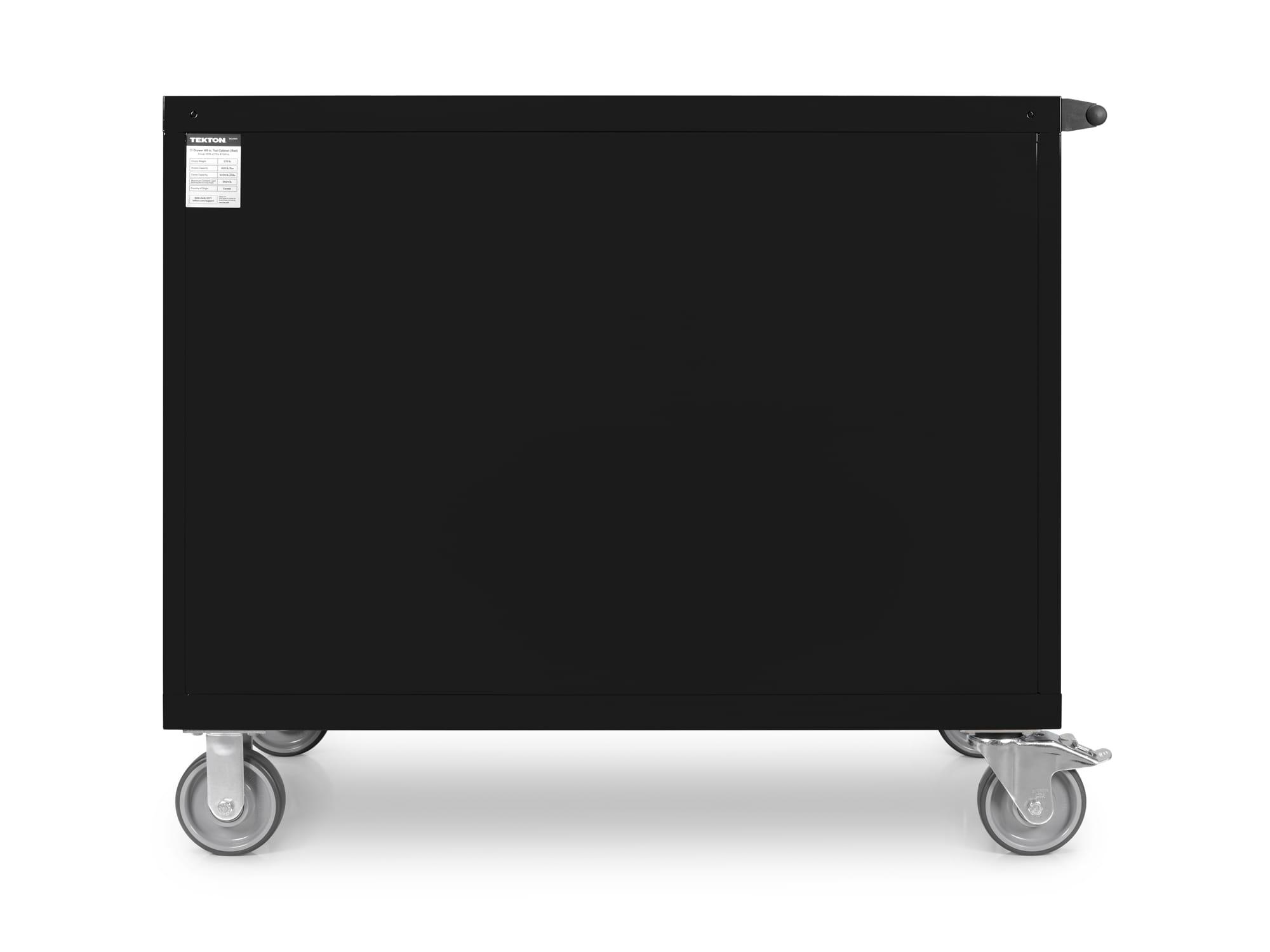

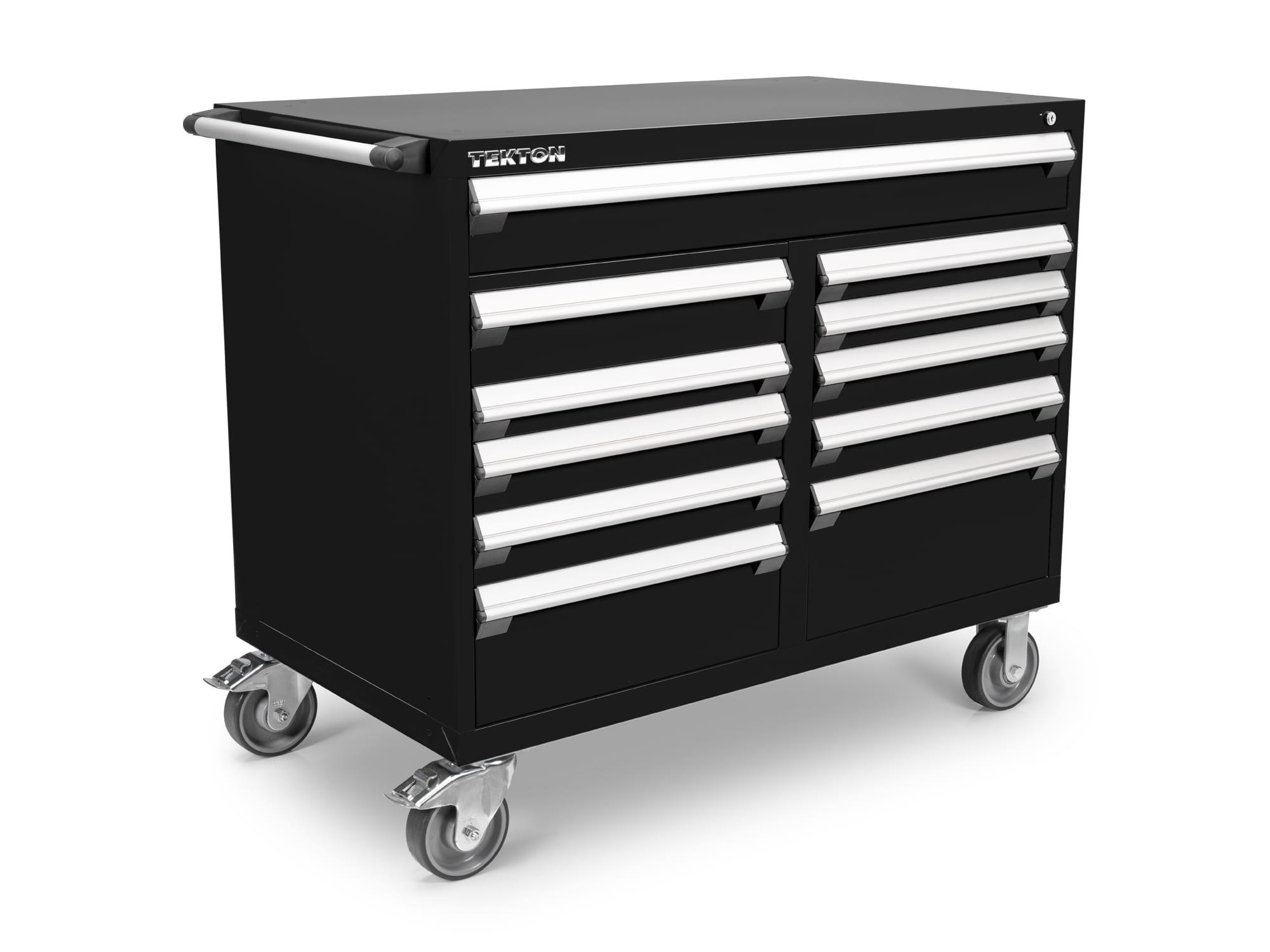

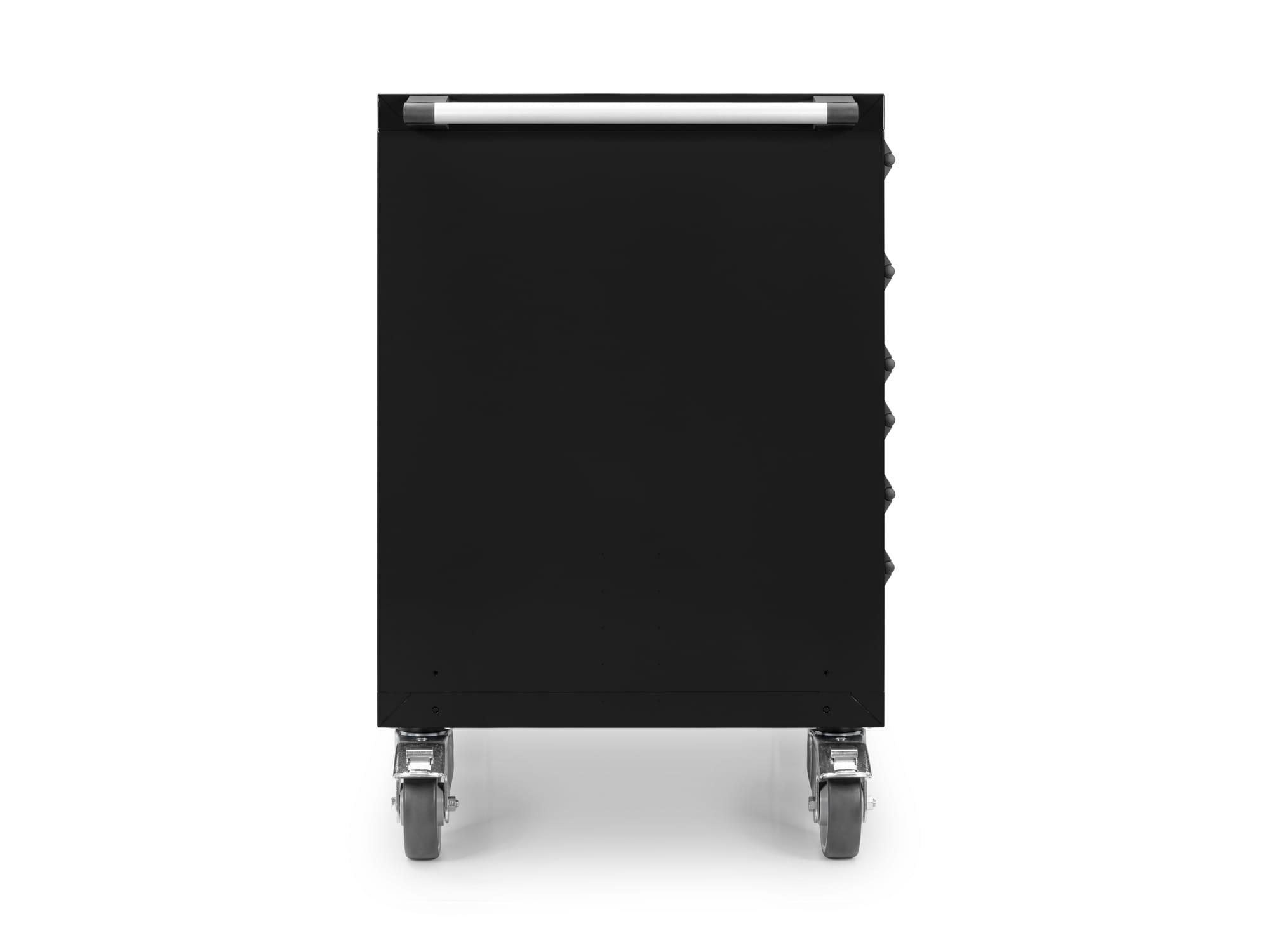

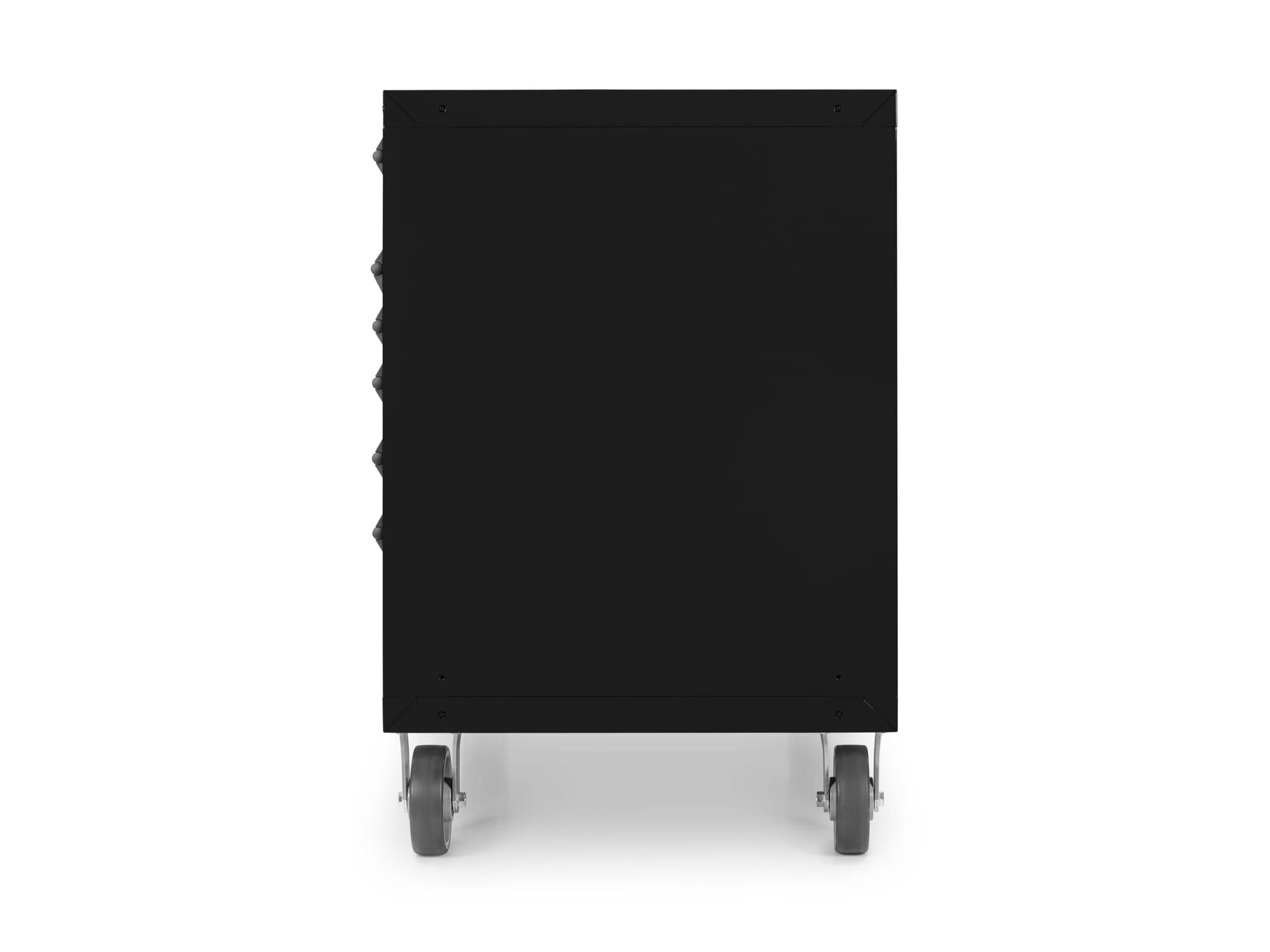

11-Drawer 50/50 Split Bank Tool Cabinet, Black (48 W x 27 D x 41.5 H in.)
90-Day Trial
Add a Tekton Tool Cabinet to your garage risk-free—if you decide the cabinet isn't for you within 90 days, you can send it back to us at no cost.
Note that if you return a cabinet as a part of the 90-Day Trial, we will ask you to ship it back to us in its original wood crate. For this reason, it's important that you keep the wood crate in which the Tool Cabinet arrives to qualify for this offer.
Please read the terms of the 90-Day Tool Cabinet Trial for details.
Free shipping to 48 U.S. states
We ship tool cabinets for free to 48 states within the USA, excluding Alaska and Hawaii where we charge a flat $275 shipping fee. We also ship tool cabinets to Canada for a flat $275 fee. In all cases, shipping includes a liftgate delivery service.
Allow between 2 and 6 days for delivery of your tool cabinet after you place an order on Tekton.com. Expedited and overnight shipping options are not available for orders including a tool cabinet.
Details
Drawer Configurations for Everyday Professional Use
Drawer Configurations for Everyday Professional Use
48 Inch Wide 11-Drawer 50/50 Split Bank
#OCL43201 and #OCL43101
Select a drawer to view its dimensions:
Height
Width and Depth
The Most Robust Rolling Tool Cabinets, Made in North America
The Most Robust Rolling Tool Cabinets, Made in North America
400 lb. Capacity for Every Drawer
Each drawer is supported by an independent steel carriage system that holds up to 400 lb. at full extension.
Carriage Construction:
- 12 ga side rails
- 14 ga welded crossmembers
- 10 bearings (6 ball, 2 floating, 2 nylon)
Drawers are tested with 200 lb. to over 130,000 open-and-close cycles, which equates to opening the
drawer 10 times a day for 35 years.
Cabinet Housing Max Load: 12,000 lb.
The cabinet housing is made of commercial grade steel components ranging from 20 ga to 12 ga
in thickness.
Without the casters the cabinet housing can support a vertical load of
12,000 lb. and remain
completely
functional. It can support a vertical load of 24,000 lb. before breaking.
Total Caster Max Load: 4,400 lb.
The cabinet comes with 4 industrial casters, 2 locking swivel and 2 fixed. Each caster supports a max load of
1,100 lb., for a total cabinet weight capacity of 4,400 lb.
The caster wheels are made of
a non-marking
polyurethane that resists shocks, vibrations, and a variety of chemicals.
Long-Lasting Electrostatic Powder Coat Finish
Tekton Tool Cabinets are finished with an electrostatic powder coat, which results in a uniformly thick, durable paint layer that's resistant to corrosion and chemicals.

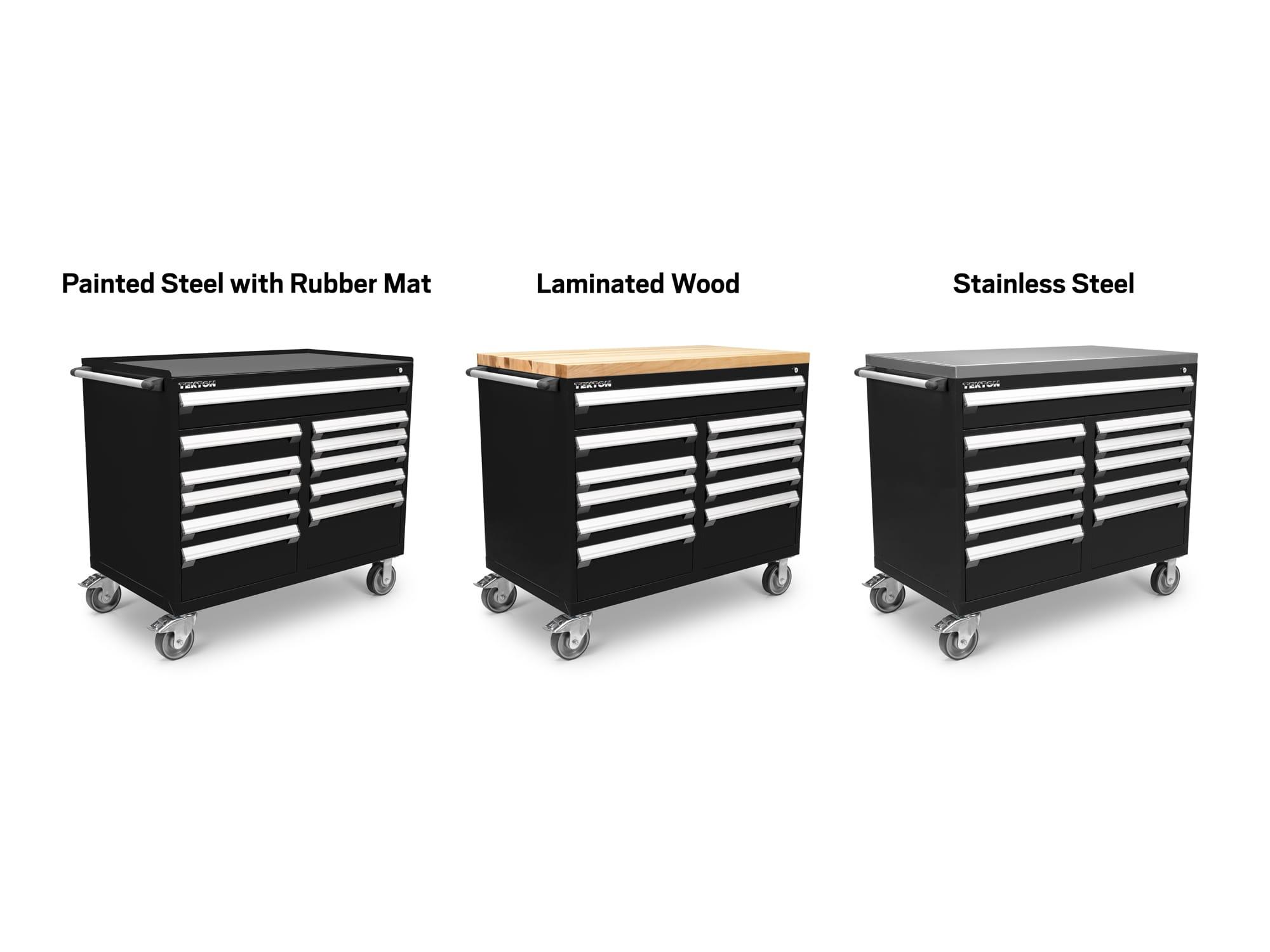

Some assembly is required to install the top onto your cabinet.
Drawer Features
Drawer Features
Lift Anywhere Handle
Open drawers easily and smoothly by lifting anywhere along the wide-grip handle made of sturdy rust-proof anodized aluminum.
Central Locking System
Central Locking System
Secure all drawers at once with the keyed locking system. Includes 2 keys.
100% Drawer Extension
Each drawer extends all the way, allowing access to the very back with no wasted space.
100% Drawer Height Clearance
Fill the drawers all the way to the brim with nothing getting in your way.
Anti-Tip Drawer System
Only one drawer per bank can be opened at a time, which prevents the cabinet from tipping.
Included Liners
Each drawer includes a 1/16-inch thick PVC liner.
Partitions and Subdividers Available
Form solid compartments of various sizes to organize your tools and restrict their movement.
The Highest Value Offered Anywhere
The Highest Value Offered Anywhere
Side-scroll
Swipe chart to compare more brands.
Specs
11-Drawer 50/50 Split Bank Tool Cabinet, Black (48 W x 27 D x 41.5 H in.)
| Country of Origin | Cabinet made in Canada. Casters made in Germany. Drawer liners made in China. |
| Item Weight | 576 lb. |
