Tool Carts

Item #ORG66203
Ships tomorrow
Only 3 left in stock
$610.00

Top Lid

  • Top lid opens to a full 90-degrees
  • Secured to the pan with a full-width 20 gauge stainless steel hinge

Handle & Lock

  • Use the recessed handle to lift open the top lid
  • The lid has a keyed lock that can be secured independently of the drawers
  • Two keys are included
    (All Tekton tool cart locks share the same key pattern)

Gas Struts

Two gas cylinder struts support the lid, allowing it to open and close smoothly and quietly.

Top Pan

Fill the top storage pan all the way to the brim (3.2 inches) with your most-used tools, and close the lid without any obstructions.

Side Handles & Corners

  • Two sides of the cart have an integrated 16 gauge steel handle
  • The polypropylene corner protectors prevent damage in the event that the cart rolls into another object

Pan Liner

  • Includes a nonslip liner that is precut to an exact fit
  • 1/16-inch thick PVC liner is reinforced with polyester fabric

Side Panels

  • Solid 16 gauge steel side panels come standard on carts with drawers
  • Pegboard sides are also available as an upgrade
    Peg holes are a combination of circular (1/4 in. diameter) and rectangular (1/8 in. x 5/16 in.) cutouts spaced 1 inch apart on center.

Full Extension

Each drawer extends all the way open, allowing access to the very back with no wasted space.

Full Clearance

Fill the drawers all the way to the brim (3 inches) without any obstructions.

Drawer Liner

  • Includes a nonslip liner that is precut to an exact fit
  • 1/16-inch thick PVC liner is reinforced with polyester fabric

Handle & Keyed Latch

  • Sturdy aluminum handle has an angled face for displaying labels
  • High-visibility orange latch opens the drawer
  • Each drawer includes two keys and can be locked independently
    (All Tekton tool cart locks share the same key pattern)

Ball Bearing Slides

  • Hardened steel ball-bearings ensure smooth rolling
  • Polyurethane dampers soften the opening and closing action
  • Strong slide rails made from 16 gauge zinc-plated steel

Leg Posts

Each leg consists of two L-⁠shaped 18 gauge steel pieces that interlock to form square posts, creating a strong and stable frame.

Bottom Pan

Keep fluid containers and other bulky items handy by storing them in the cart's sturdy bottom pan.

Pan Liner

  • Includes a nonslip liner that is precut to an exact fit
  • 1/16-inch thick PVC liner is reinforced with polyester fabric

Corner Protectors

The polypropylene corner protectors fasten to the frame. They prevent damage in the event that the cart rolls into another object.

Casters

  • 2 swivel and 2 locking swivel casters roll smoothly and quietly
  • 2.8 inch wheel diameter and 4.2 inch total height
  • Wheel treads are non-skid, non-marking, and chemical-resistant

Top Pan

Top Pan

Pan Max Load:200 lb.
Pan Storage Capacity:1,665 in.3
(Does not include extra space below the strut mounting brackets)
Pan Steel Gauge:16

Front Drawers

Front Drawers

Drawer Max Load:100 lb. each
Drawer Storage Capacity:1,296 in.3 each
Drawer Steel Gauges:Front: 18 /
Body: 20 /
Slides: 16

Bottom Pan & Casters

Bottom Pan & Casters

Pan Max Load:200 lb.
Pan Steel Gauge:16
Caster Type:2 swivel +
2 locking swivel
Caster Size:2.8 in. wheel diameter / 4.2 in. total height
Max Caster Load:250 lb. each /
1,000 lb. total

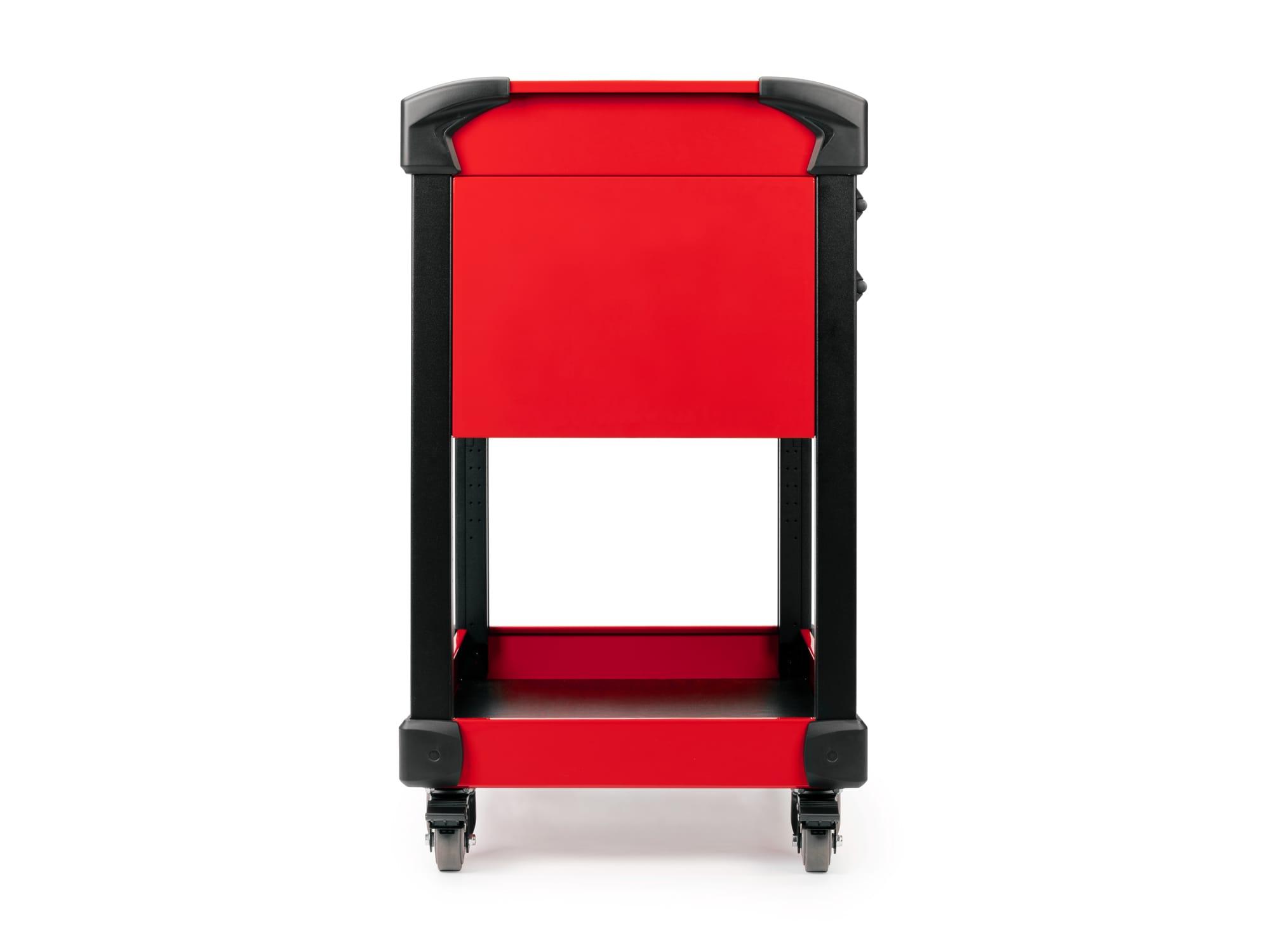

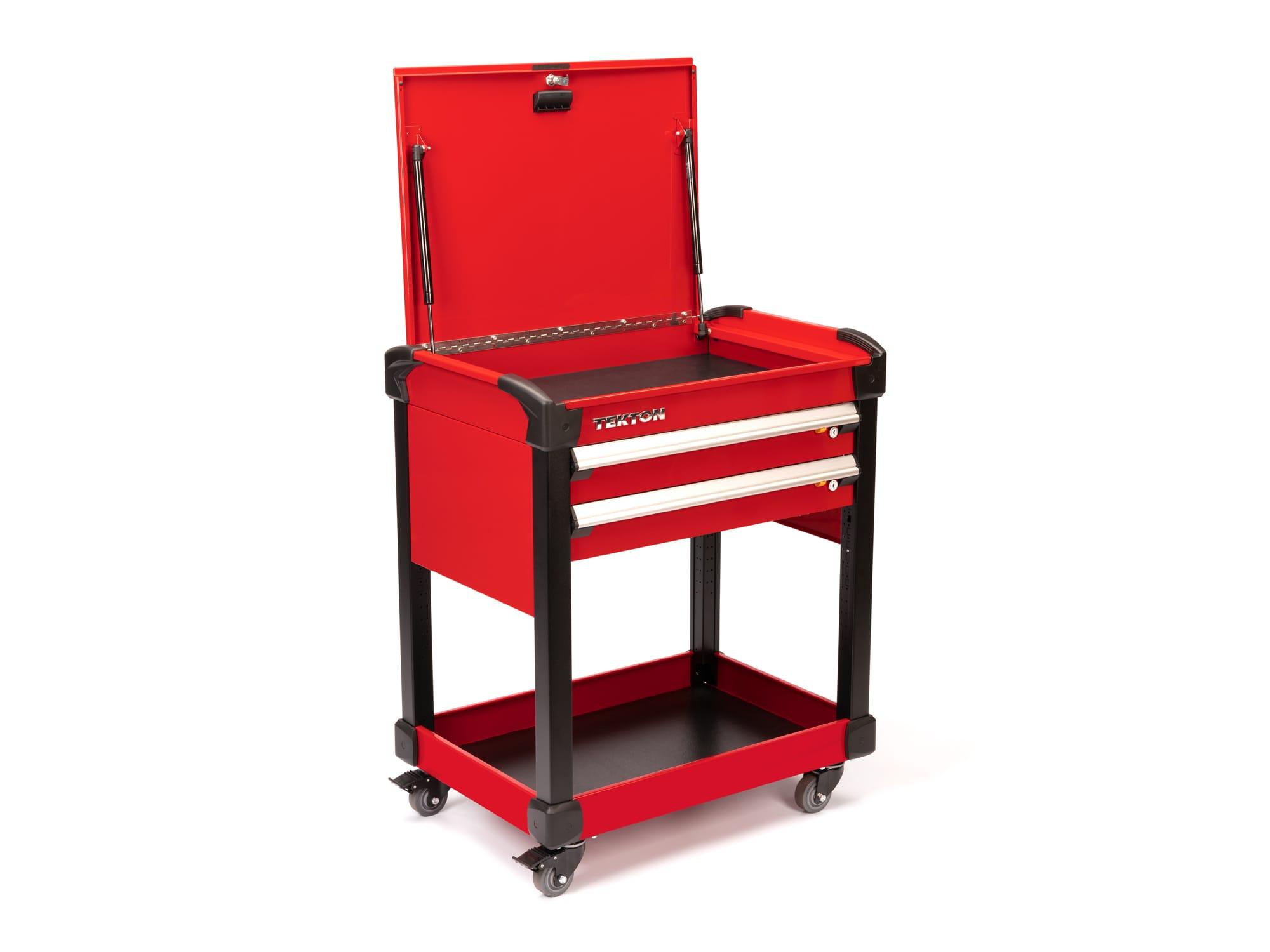

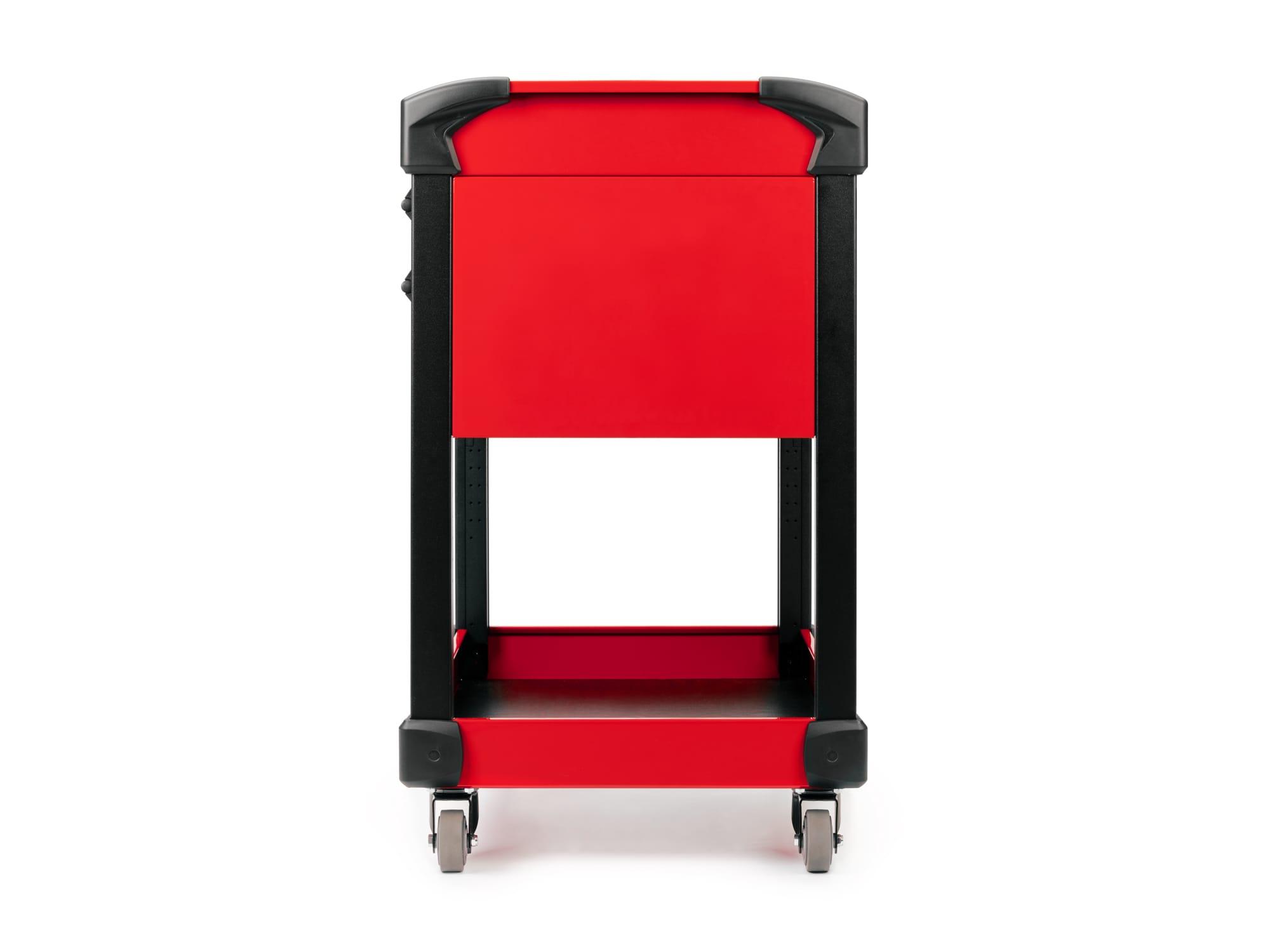

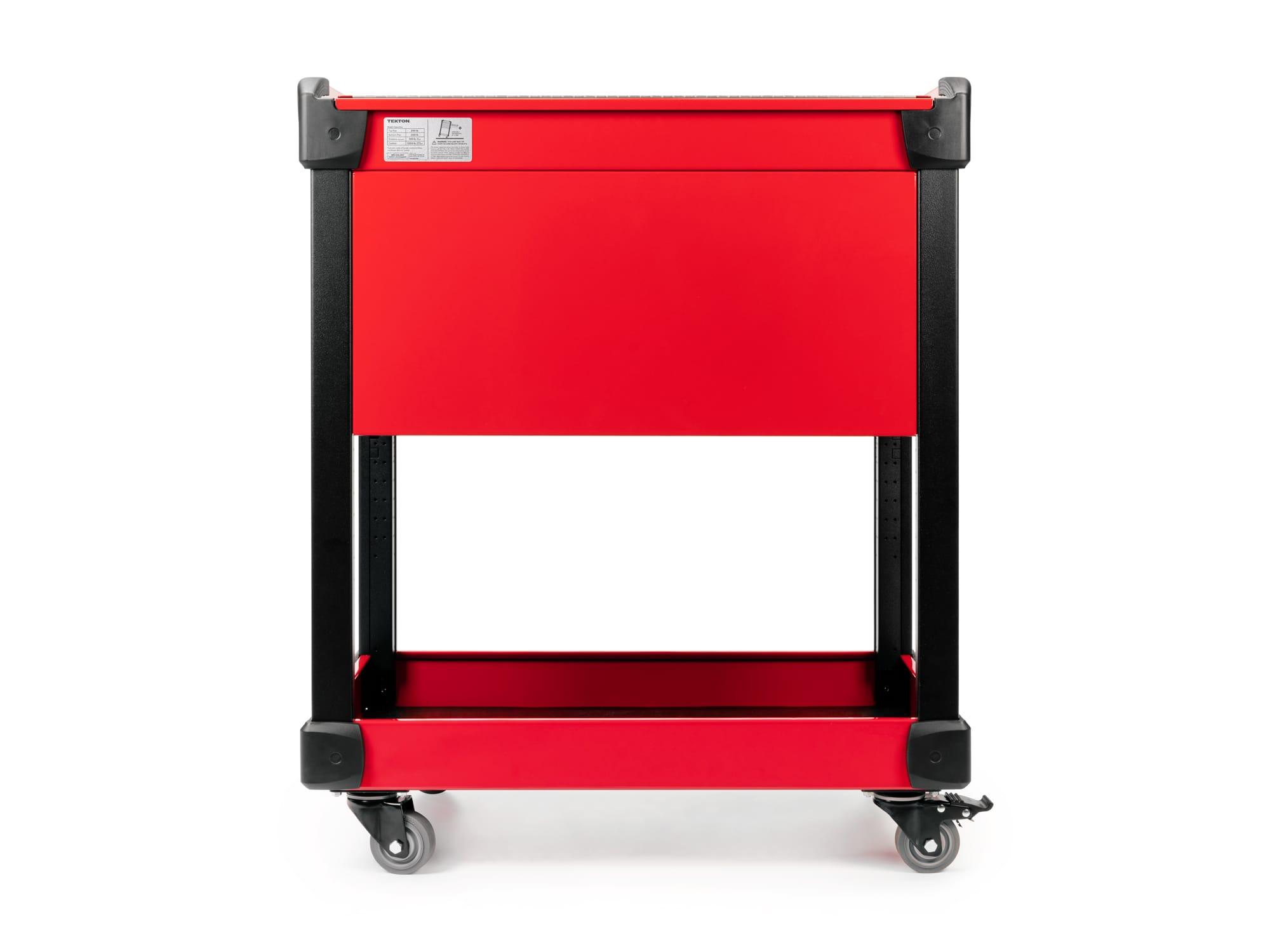

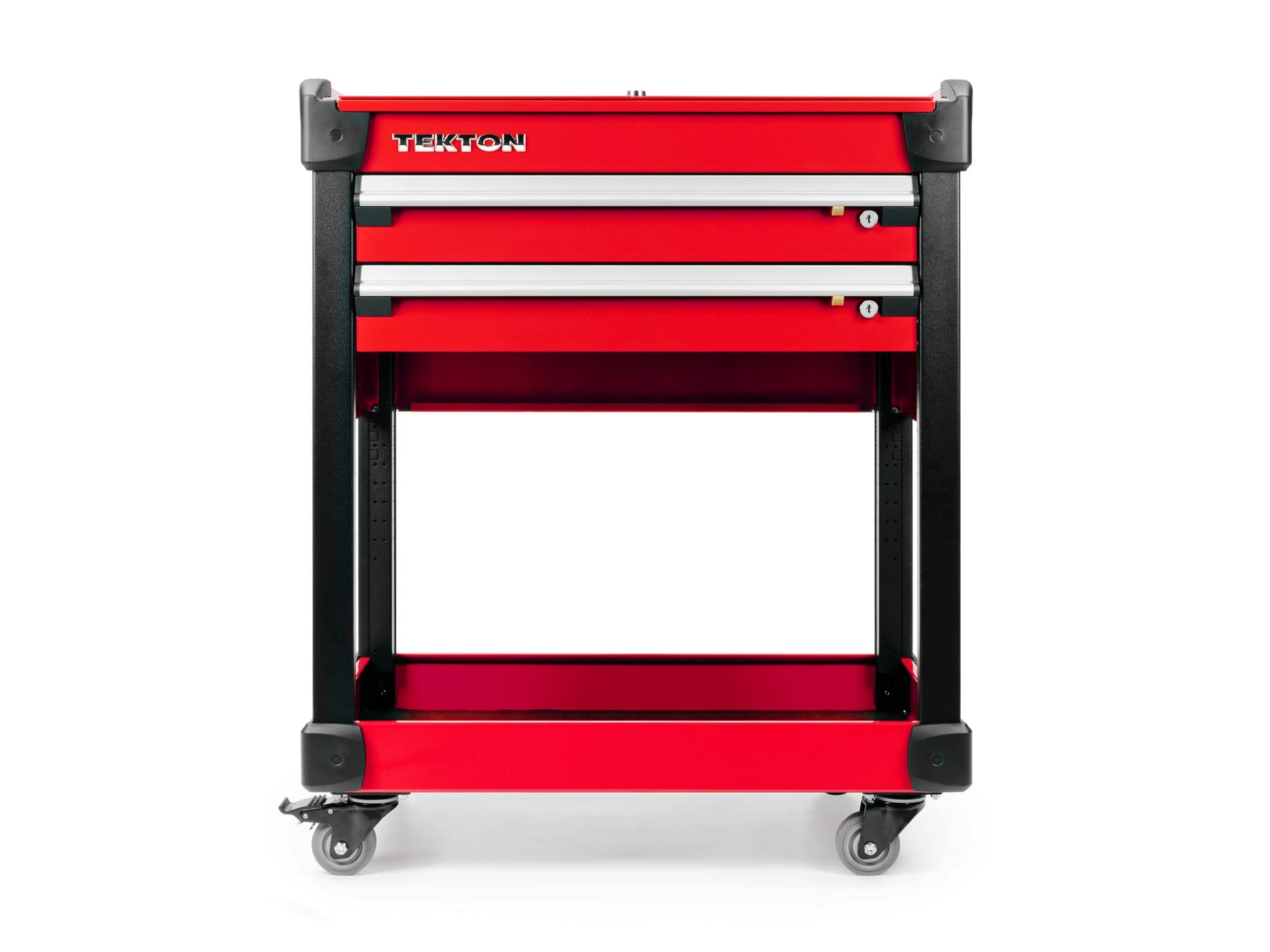

37 Inch Tall 2-Drawer Tool Cart, Red (31" W x 37" H x 21" D) - Solid Sides

A. Length 21.4 in.
B. Width 31.5 in.
C. Height 36.9 in.
D. Height with Lid Open 56.4 in.
E. Internal Height 20.4 in.
F. Top Pan Height 3.2 in.
G. Drawer Height (External) 3.9 in.
H. Caster Height 4.2 in.
I. Wheel Diameter 2.8 in.
J. Bottom Pan Height 3.2 in.
Weight 114 lb.
Country of Origin Tool carts made in Canada. Casters made in China. Drawer slides made in Taiwan.
