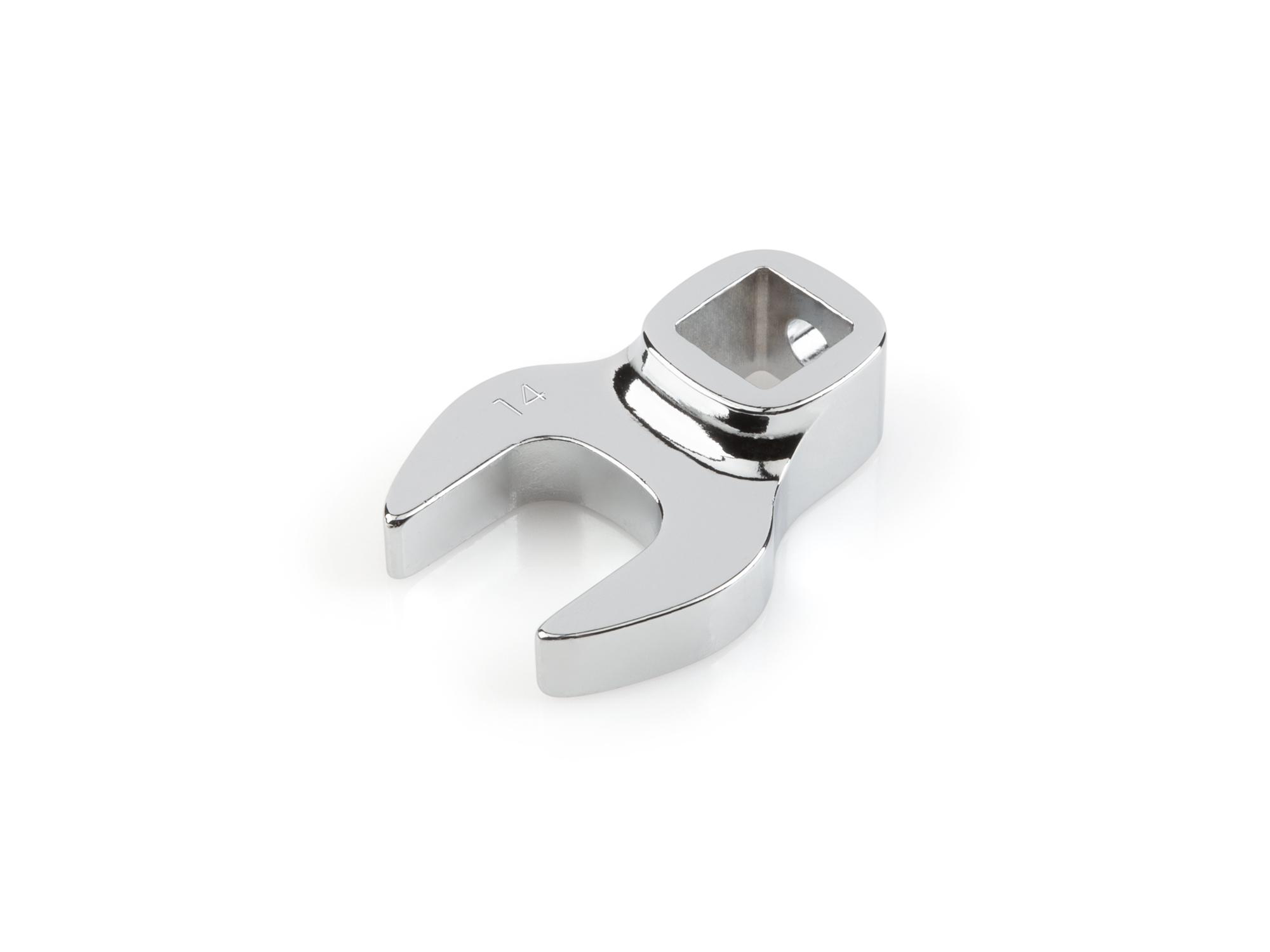

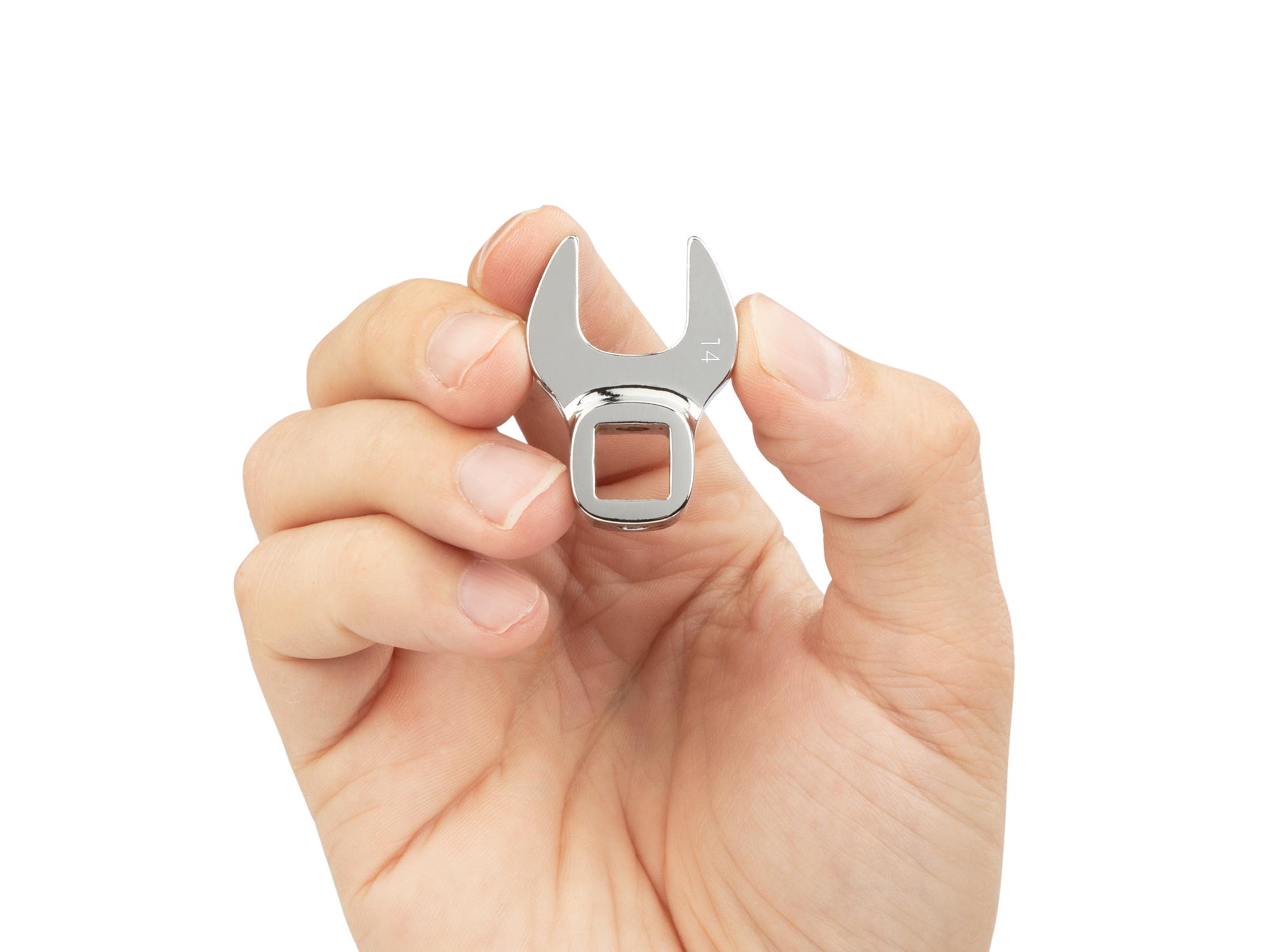

3/8 Inch Drive Crowfoot Wrenches

Item #WCF14014
•
Ships today
$12.00
•
Description

Ultimate Access Tools

Crowfoot wrenches are ultra-compact open-end wrenches made to fit into tight spaces where other tools can't reach.

Crowfoot wrenches are ultra-compact open-end wrenches made to fit into tight spaces where other tools can't reach.

Useful with Various Drive Tools

Torque to Specifications

Use with a torque wrench to tighten fittings and fasteners to specifications.

Shop torque wrenches

Apply proper torque by positioning the crowfoot wrench at a 90° angle or calculating an adjustment. Learn more

Extend Into Recesses

Use extensions to access fasteners or fittings in confined areas.

Shop extensions

Flex Around Obstacles

Use various styles of ratchets to increase your reach or angle of access.

Shop ratchets

Lean Design

We optimized our crowfoot wrenches for both access and strength by using steel only where it matters and eliminating the excess.

Crowfoot Wrench Comparison

WCF14019 • 19 mm

All excess material is removed to improve access and range of motion.

Snap-on

FCOM19A • 19 mm

Excess material (shown in red) can obstruct access and range of motion.

MAC

MCO19KS • 19 mm

Excess material (shown in red) can obstruct access and range of motion.

Two Levels of Retention

Two Levels of Retention

The smooth sides provide sufficient retention for most applications and easy removal.

The detent sides offer maximum retention for situations when you can't risk the wrench coming off.

Clear Markings

  • The size is marked on the front of each crowfoot wrench for easy identification.

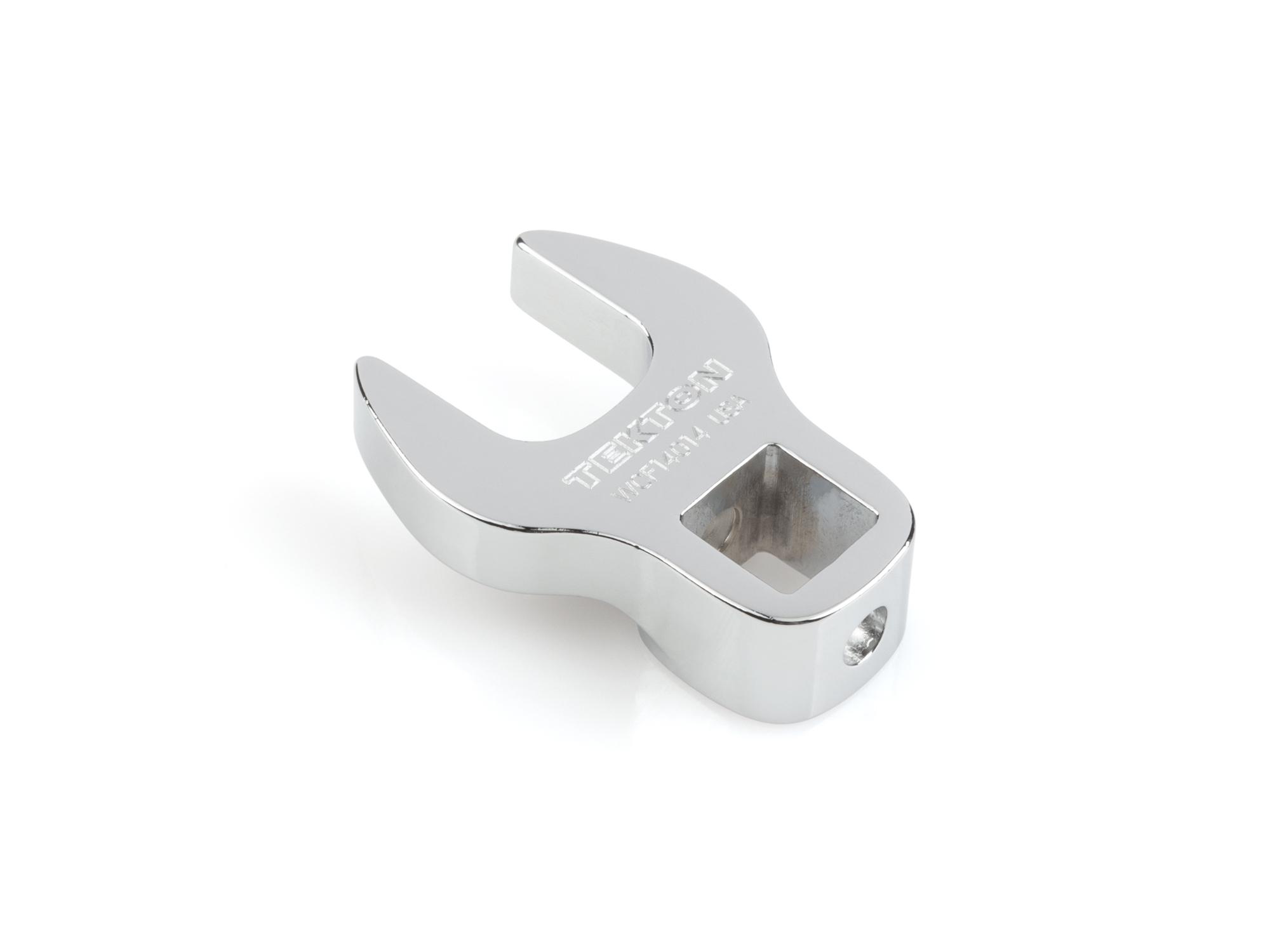

  • The item number is also provided on the back of each crowfoot wrench.
  • The size is marked on the front of each crowfoot wrench for easy identification.
  • The item number is also provided on the back of each crowfoot wrench.

Precise Manufacturing

Every crowfoot wrench is made entirely within the USA using Tekton's proprietary LaserMill™ process. Learn more

1. Laser Cut

The rough shape of the wrench is laser cut from a solid sheet of 4140 Chromium-Molybdenum steel.



2. CNC Milled

The wrench jaws and outer surfaces are machined to a precise tolerance. The square drive is broached and the detents are drilled.



3. Heat Treated

The wrench is heat treated to produce a tough part with a hardness of HRC 44-46.



4. Chrome Plated

The wrenches are polished and then plated using a combination of duplex nickel and microporous chrome for a smooth, rust-proof finish.

Specs

3/8 Inch Drive x 14 mm Crowfoot Wrench

A. Length 1.5 in.
B. Width 1.1 in.
C. Height 0.4 in.
D. Wrench Opening Size 14 mm
E. Drive Size 3/8 in.
F. Jaw Thickness 0.25 in.
G. Center to Center Length 0.89 in.
Weight 0.06 lb.
Country of Origin United States
