Home/Impact Sockets/Impact Accessories/Complete Accessory Sets
Front-right angle view of Tekton impact drive accessory set. Item #SIA93006

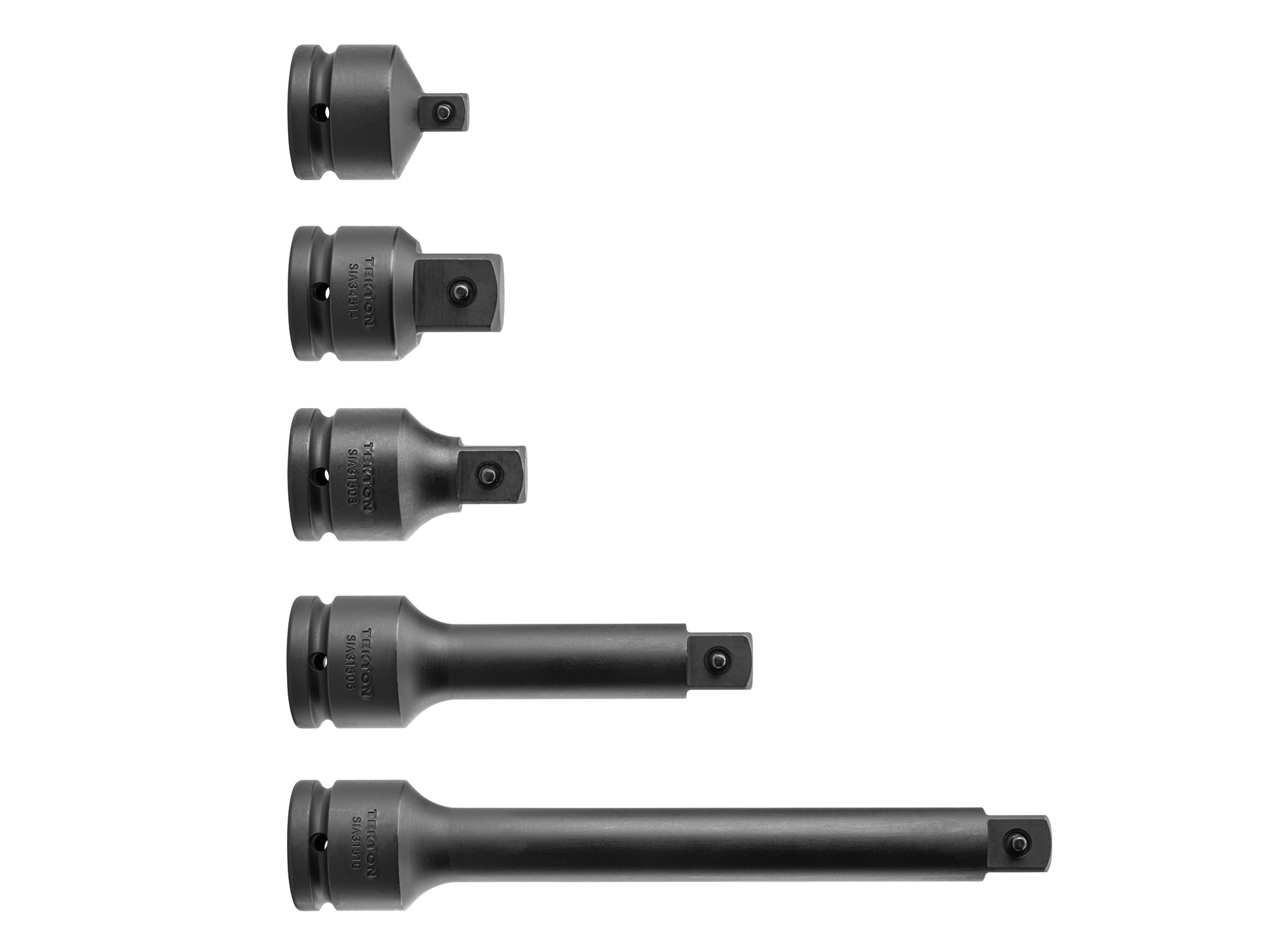

Back angle view of Tekton impact drive accessory set. Item #SIA93006
Person holding Tekton impact drive accessory set. Item #SIA93006
Click image to zoom in
Item #SIA93006

3/4 Inch Drive Accessories Set, 5-Piece (Pin Detent)

 •

Retention Type

Ball Detent, Through Hole
$65
Pin Detent
$65
$65.00

Compatible with Retaining Pin and Ring Set (1-1/2 in. I.D.)

#SIA38537

Recommended: Socket Retaining Pin and Ring Removal Tool

#PNH70000
Set includes:
DetailsSpecs

Details

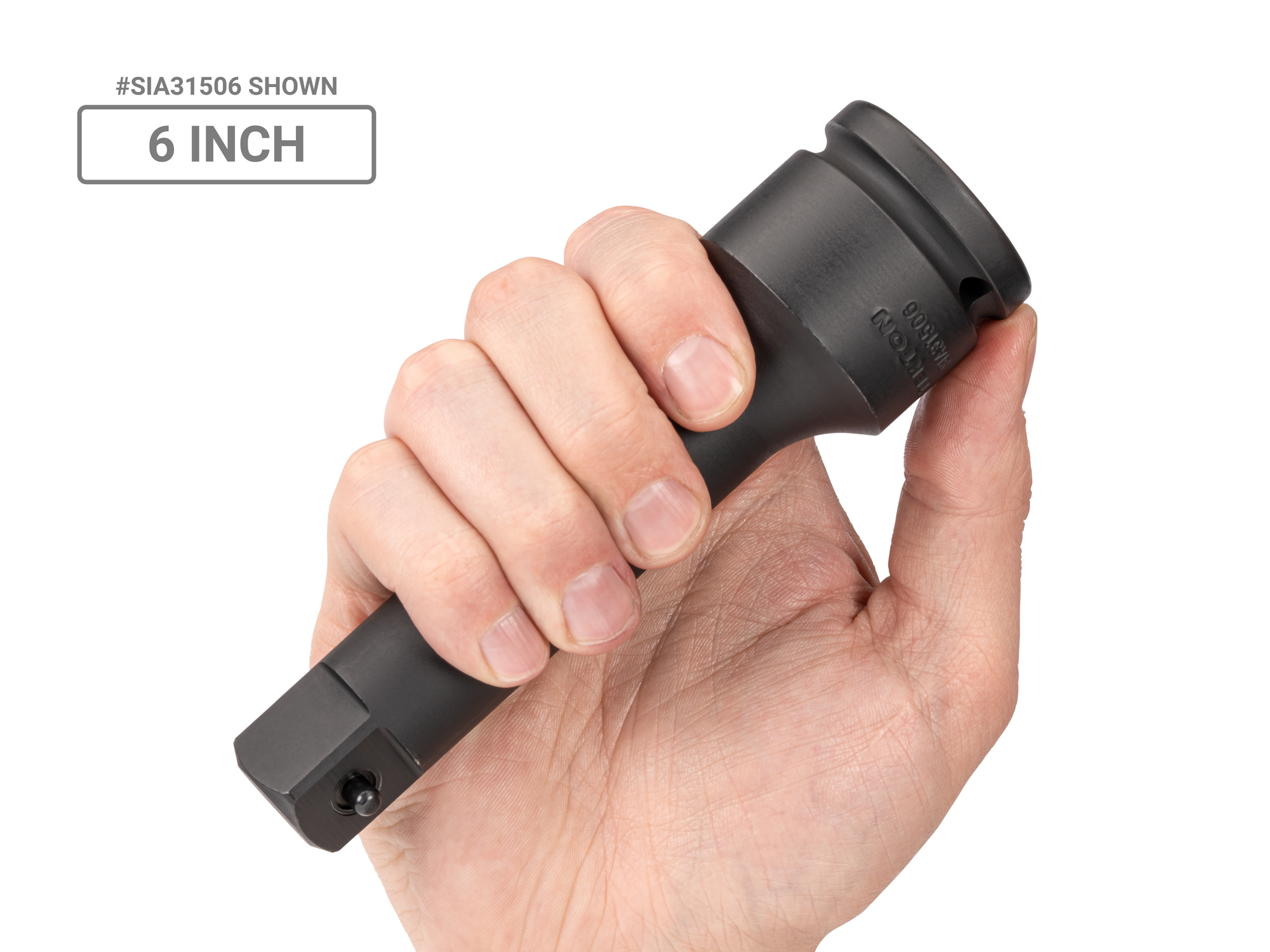

Tekton 3/4 inch drive impact extensions are available in 3 inch, 6 inch, and 10 inch lengths.

Three Extensions

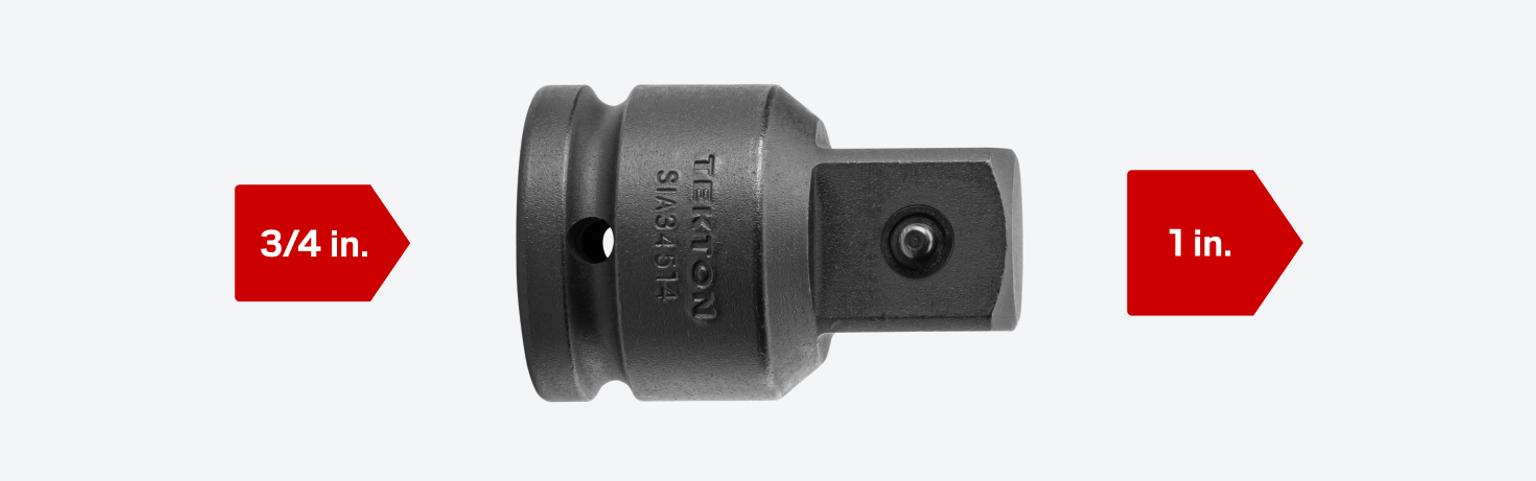

Tekton #SIA34514 impact adapter adapts 3/4 inch drive tools to 1 inch drive sockets.

Adapter

Adapt 3/4 inch drive tools to 1 inch drive sockets.

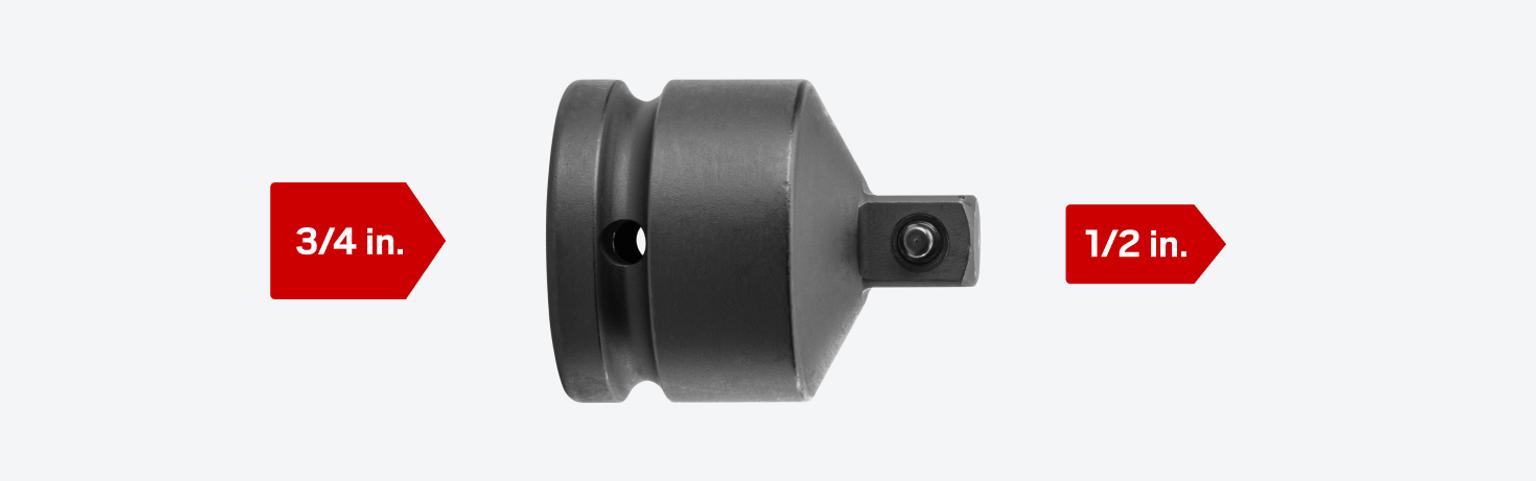

Tekton #SIA33512 adapts 3/4 inch drive tools to 1/2 inch drive sockets

Reducer

Adapt 3/4 inch drive tools to 1/2 inch drive sockets.
Close-up view of the pin detent on a Tekton 3/4 inch drive impact adapter.

Pin Detent Retention

The accessories have a spring-loaded pin detent that locks into the through hole on a socket, offering a secure connection.
A hand pressing down the detent pin on a Tekton 3/4 inch drive impact adapter.
Ring groove supports retaining ring usage, smooth walls support friction ring, and through holes support retaining pin.

Drive Tool Retention

Works with three types of anvils found on 3/4 inch drive impact wrenches.
Graphic showing green check marks on through-hole anvil, friction ring anvil, detent pin anvil.
Tekton #SID32057, #SIA31503, #SIA31506, and #SIA34014 on a light gray background.

Materials and Finish

All of our 3/4 inch drive sockets, extensions, adapters, and reducers are made out of 4140 steel and have a corrosion-resistant manganese phosphate coating.

Specs

3/4 Inch Drive Accessories Set, 5-Piece (Pin Detent)

Country of Origin
Taiwan
Item Weight
7.09 lb.
