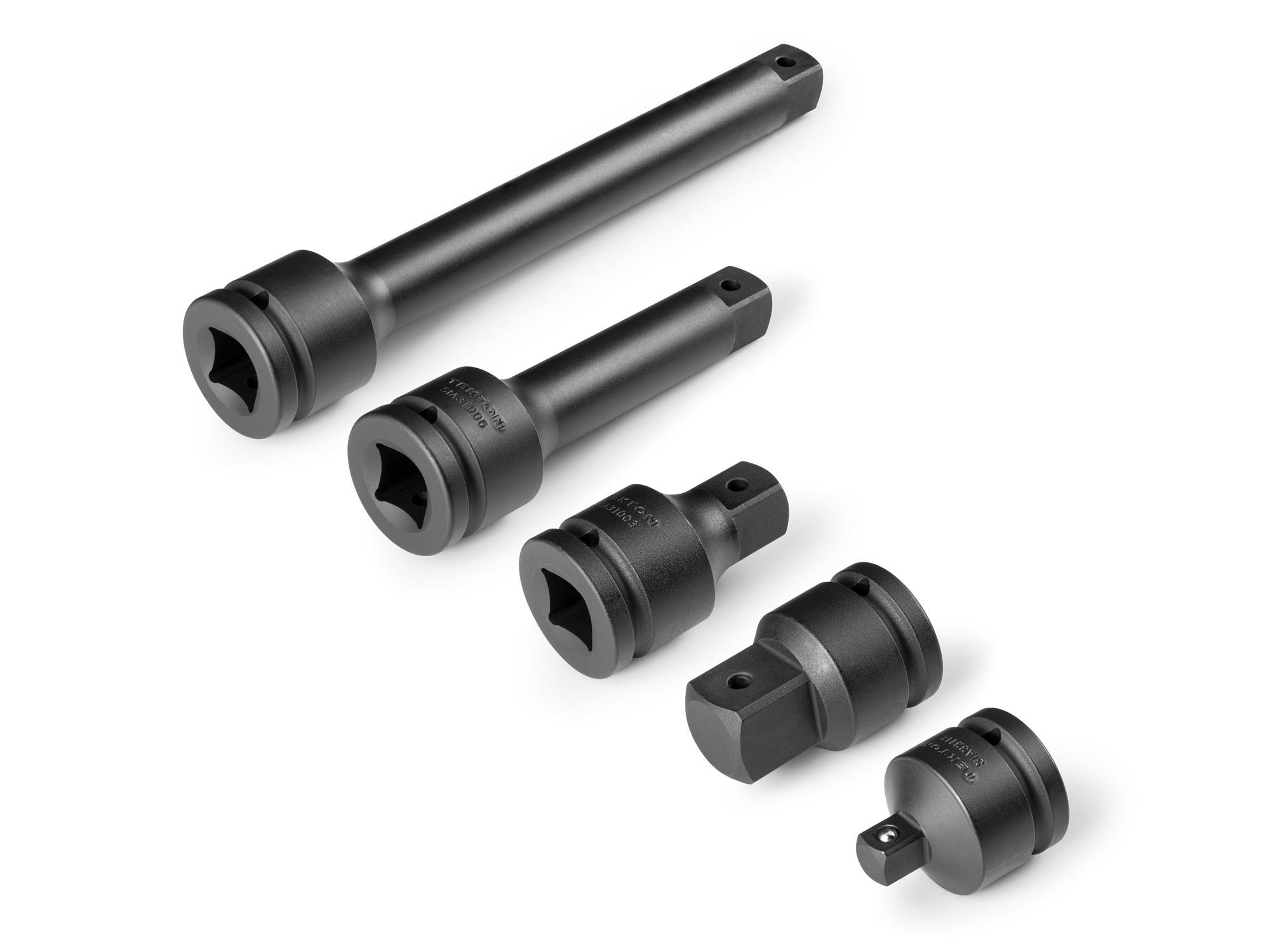

Front-right angle view of Tekton impact drive accessory set. Item #SIA93005

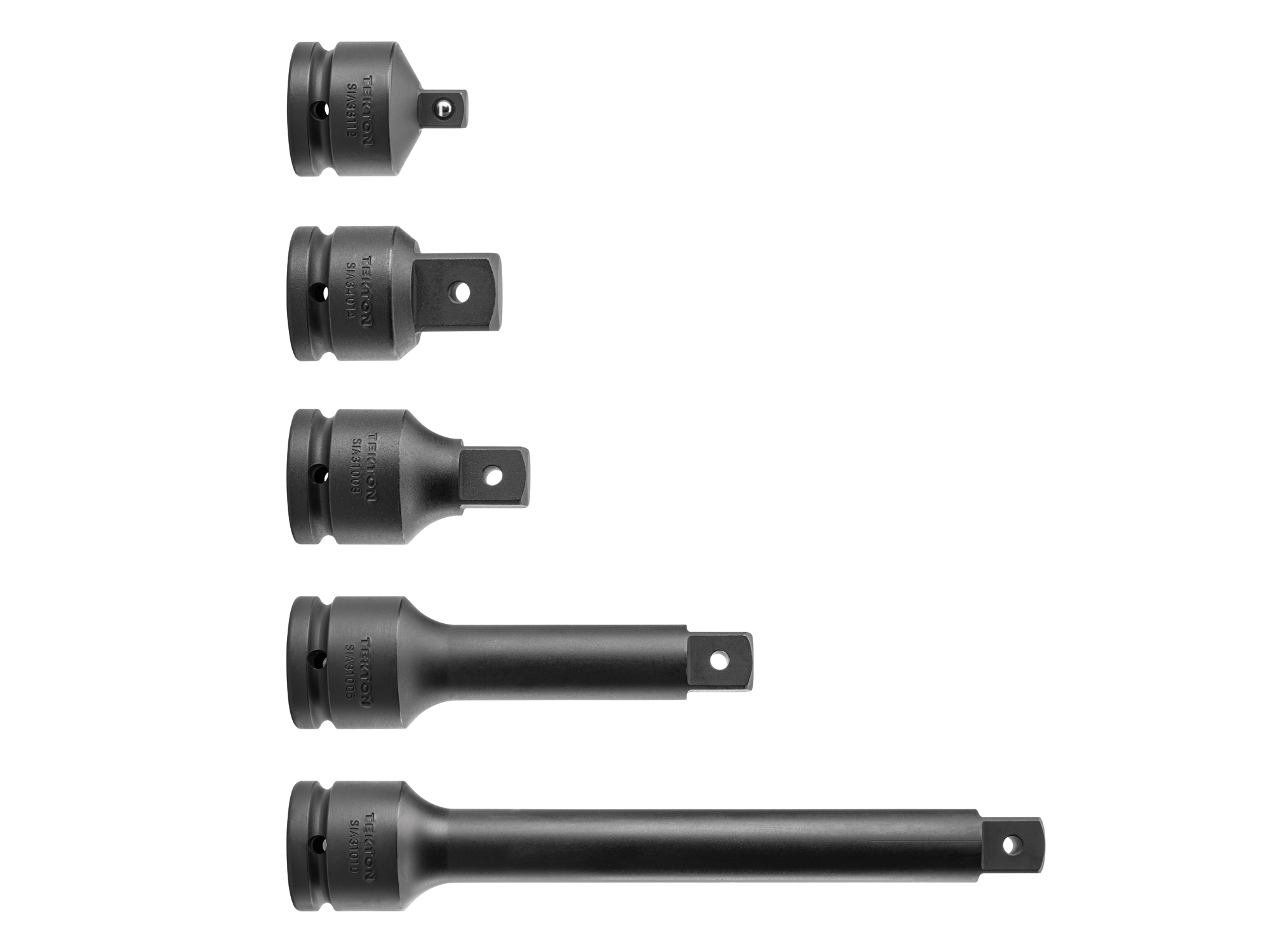

Back angle view of Tekton impact drive accessory set. Item #SIA93005

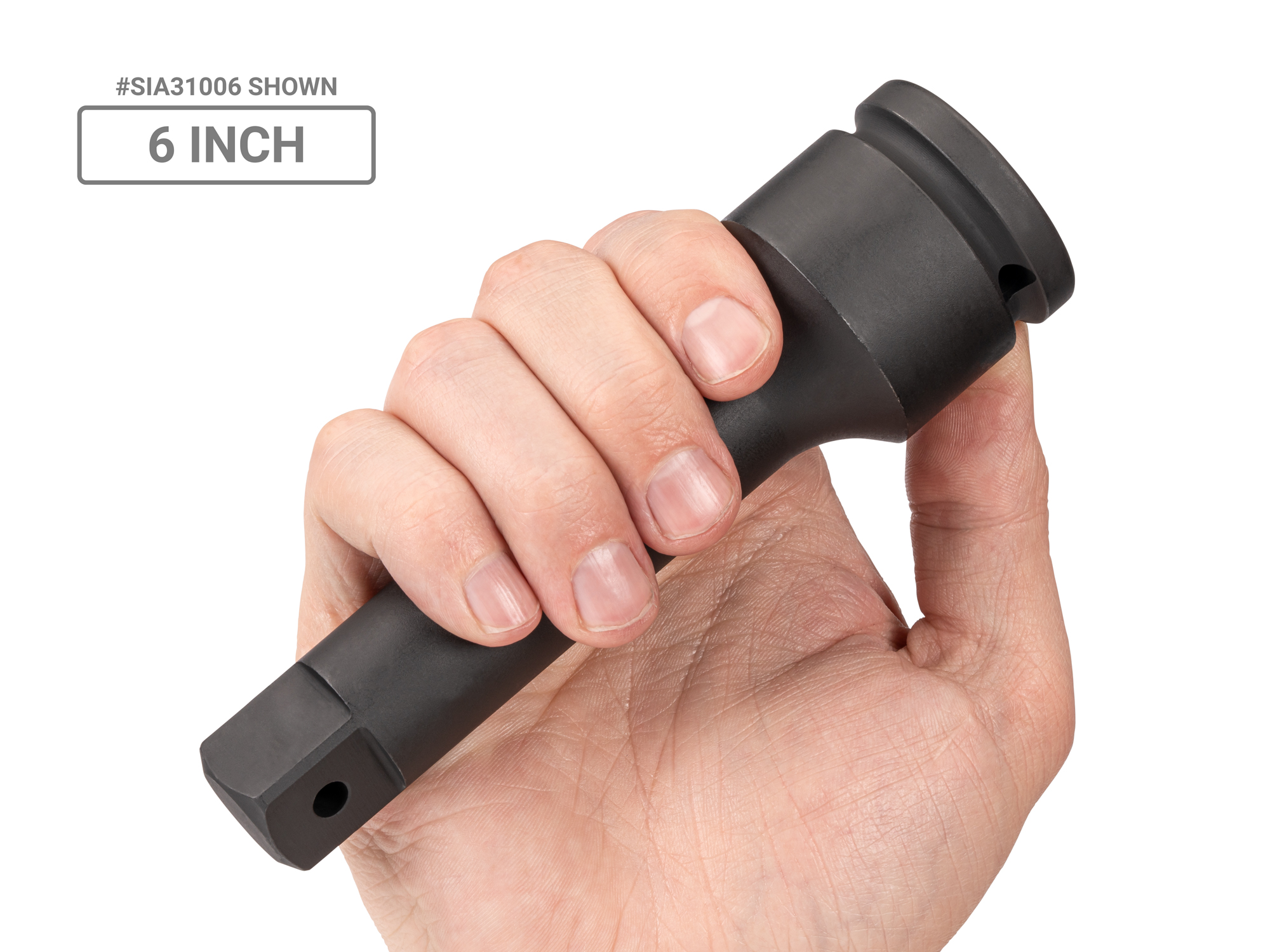

Person holding Tekton impact drive accessory. Item #SIA31006.

Click image to zoom in

Item #SIA93005

3/4 Inch Drive Accessories Set, 5-Piece (Through Hole, Ball Detent)

•

Retention Type

Ball Detent, Through Hole

$65

Pin Detent

$65

$65.00

Set includes:

Details Specs

Details

Tekton 3/4 inch drive impact extensions are available in 3 inch, 6 inch, and 10 inch lengths.

Three Extensions

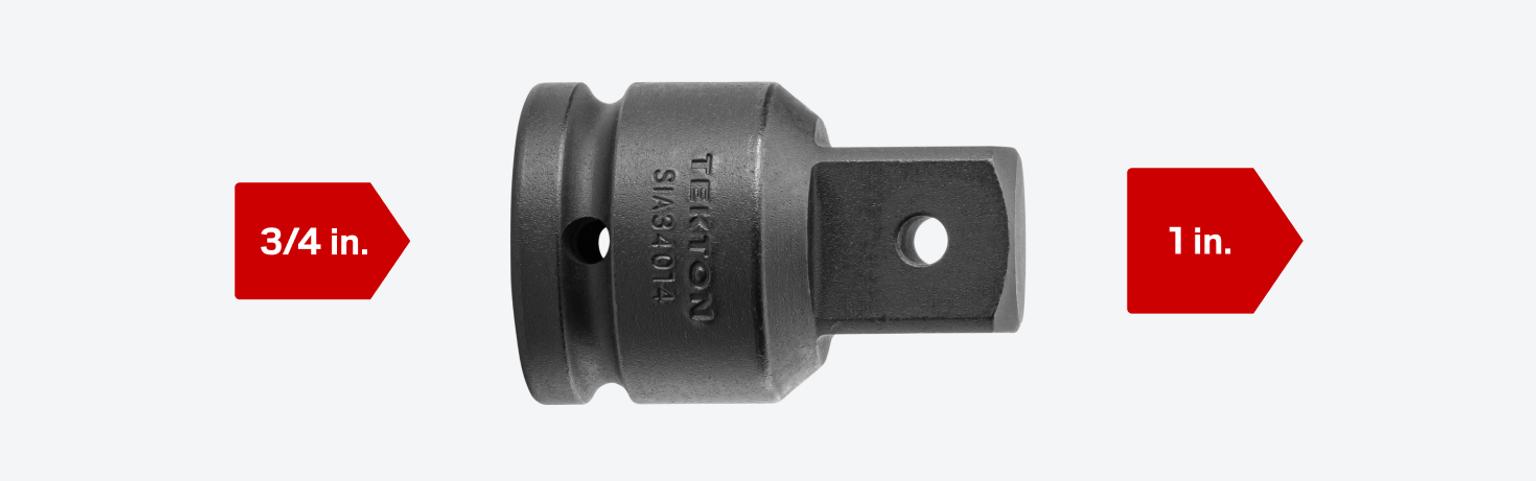

Tekton #SIA34014 adapts 3/4 inch drive tools to 1 inch drive sockets.

Adapter

Adapt 3/4 inch drive tools to 1 inch drive sockets.

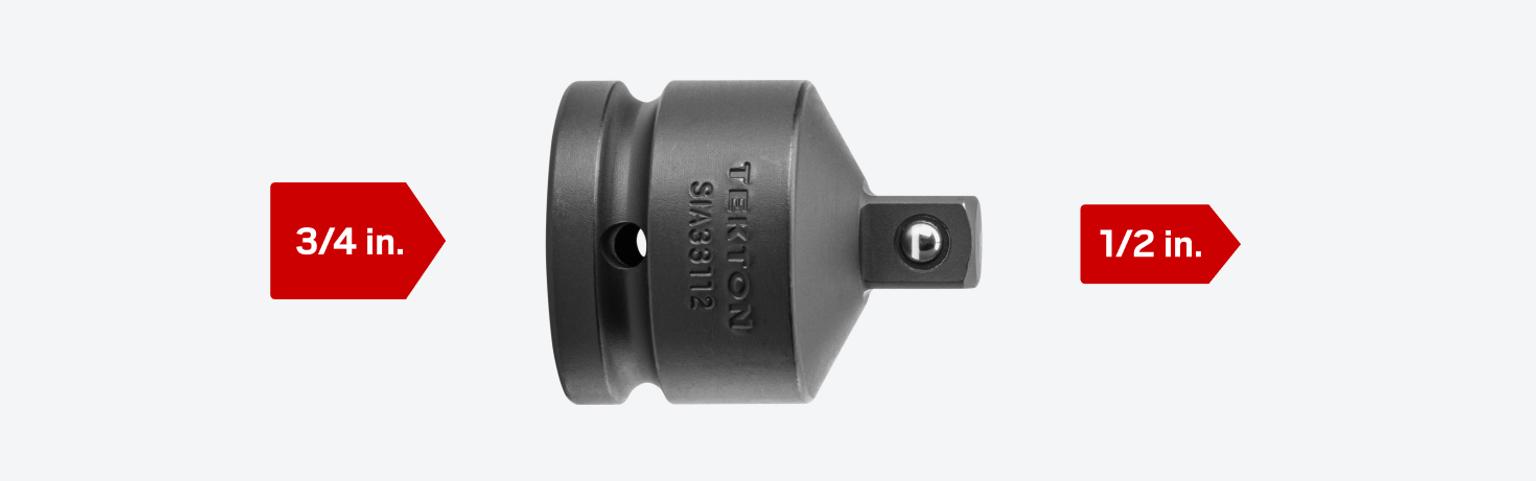

Tekton #SIA33112 adapts 3/4 inch drive tools to 1/2 inch drive sockets.

Reducer

Adapt 3/4 inch drive tools to 1/2 inch drive sockets.

Close-up view of the through hole on a Tekton 3/4 inch drive impact adapter.

Through Hole Retention

The extensions and adapter have a through hole that requires a retaining pin and ring to securely connect to a socket or another accessory.

Close-up view of the ball detent on a Tekton 3/4 inch drive impact reducer.

Ball Detent Retention

The reducer has a spring-loaded ball detent that lightly secures the socket by engaging its through hole.

Ring groove supports retaining ring usage, smooth walls support friction ring, and through holes support retaining pin.

Drive Tool Retention

Works with three types of anvils found on 3/4 inch drive impact wrenches.

Graphic showing green check marks on through-hole anvil, friction ring anvil, detent pin anvil.

Tekton #SID32057, #SIA31503, #SIA31506, and #SIA34014 on a light gray background.

Materials and Finish

All of our 3/4 inch drive sockets, extensions, adapters, and reducers are made out of 4140 steel and have a corrosion-resistant manganese phosphate coating.

Specs
