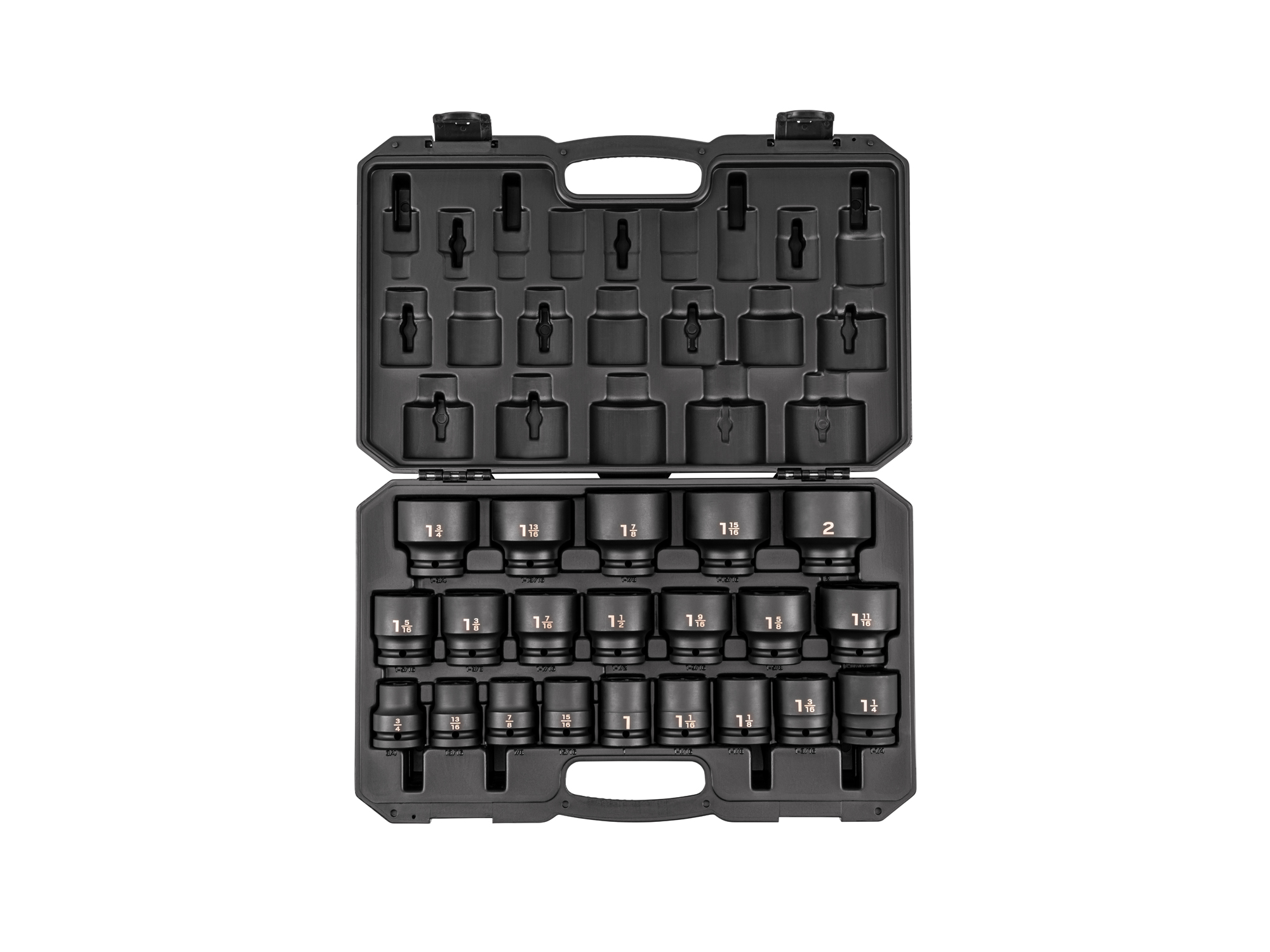

Front view of Tekton case impact drive 6-point socket set. Item #SID93301

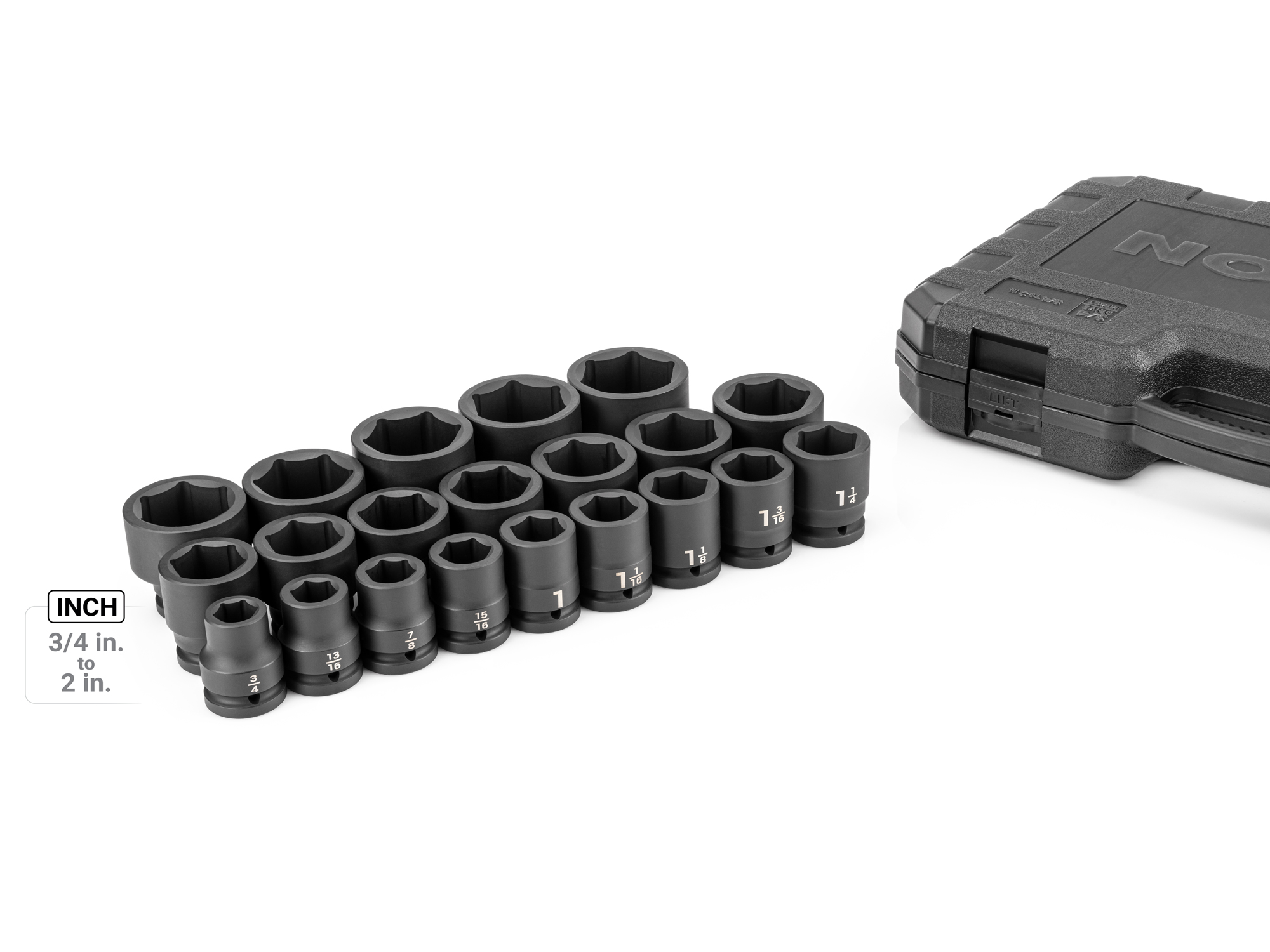

Laid out contents of Tekton case impact drive 6-point socket set. Item #SID93301

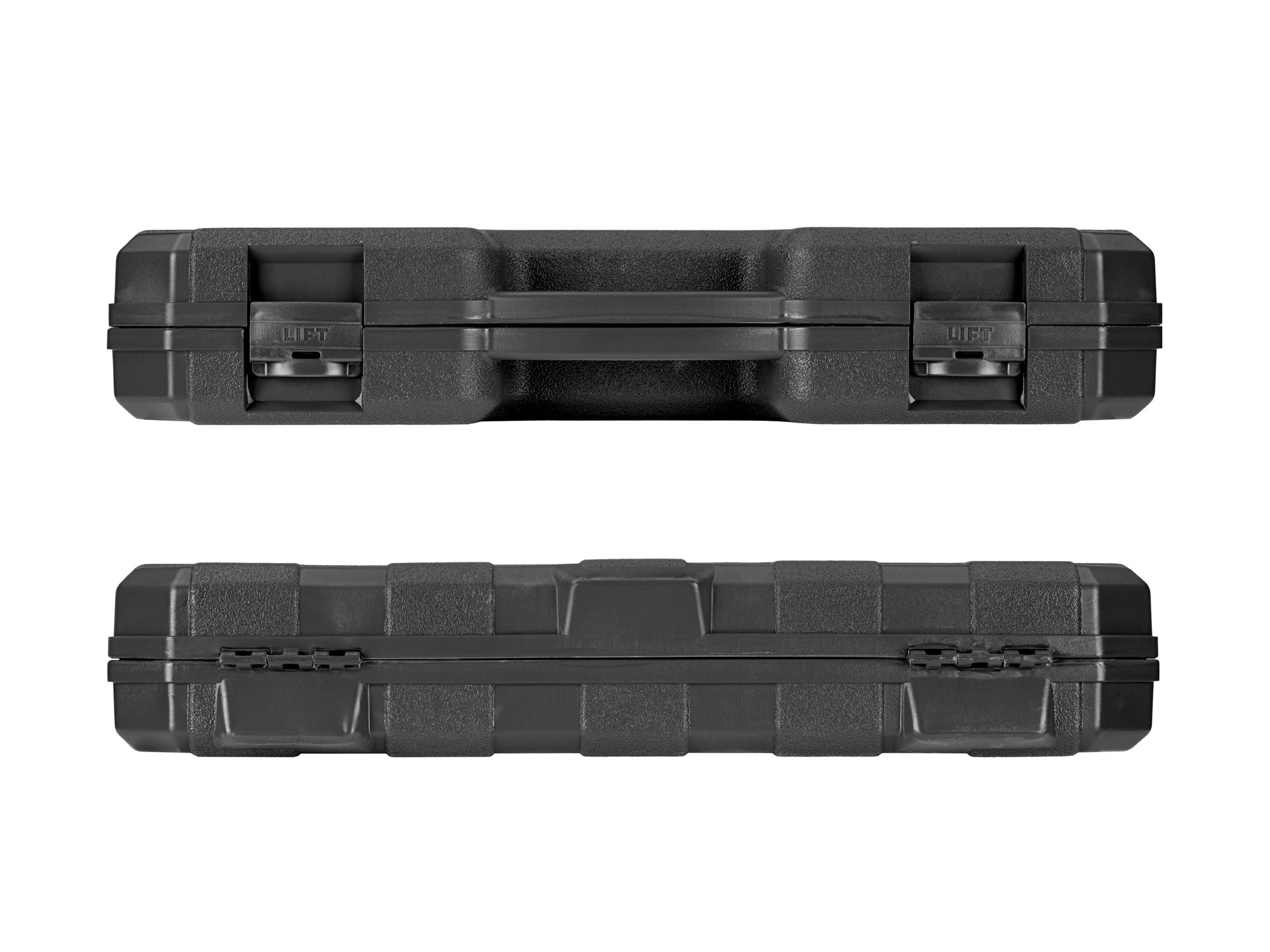

Side view of Tekton case impact drive 6-point socket set. Item #SID93301

Tap Click image to zoom in

Item #SID93301

3/4 Inch Drive Shallow 6-Point Impact Socket Set with Case (21-Piece)

3/4 - 2 in.

3/4 Inch Drive Shallow 6-Point Impact Socket Set with Rails and Trays (21-Piece)

3/4 - 2 in.

•

Socket Depth

$345.00

Set Includes:

IN Shallow Sockets
3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-7/16, 1-1/2, 1-9/16, 1-5/8, 1-11/16, 1-3/4, 1-13/16, 1-7/8, 1-15/16, 2 in. (21 sizes)
Blow Mold Case

Details Specifications

Details

The front of the socket has laser markings, the back has stamped markings.

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.

A socket cut in half with a fastener, showing how far the well extends into the socket, allowing for better engagement with fasteners.

Full-Length Socket Well

While the overall socket is shallow length, the interior well extends fully into the socket, which allows for better fastener engagement in more situations.

Ring groove supports retaining ring usage, smooth walls support friction ring, and through holes support retaining pin.

Drive Tool Retention

Works with three types of anvils found on 3/4 inch drive impact wrenches.

Graphic showing green check marks on through-hole anvil, friction ring anvil, detent pin anvil.

Graphic showing how the force applied by a socket to a fastener is on the flat sides of the socket and not the corners, preventing fastener round-off.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.

Tekton #SID32057, #SIA31503, #SIA31506, and #SIA34014 on a light gray background.

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more

All of our 3/4 inch drive sockets, extensions, universal joints, adapters, and reducers are made out of 4140 steel and have a corrosion-resistant manganese phosphate coating.

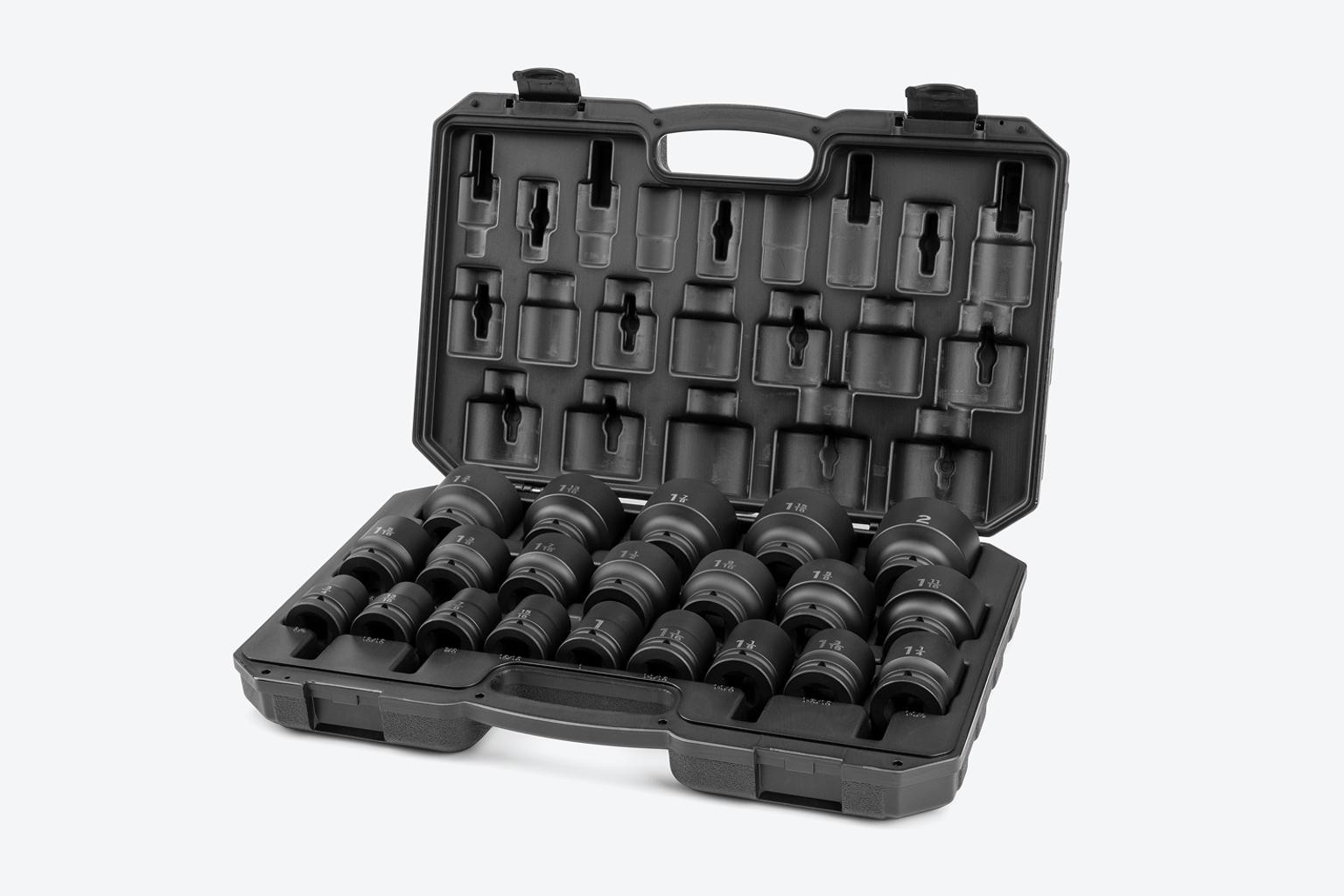

Tekton #SID93301 impact socket set in an open case a light gray background.

Carrying Case

High-density polyethylene case withstands common lubricants, fuels, and solvents.

Specifications
