Home/Wrenches/Crowfoot Wrenches

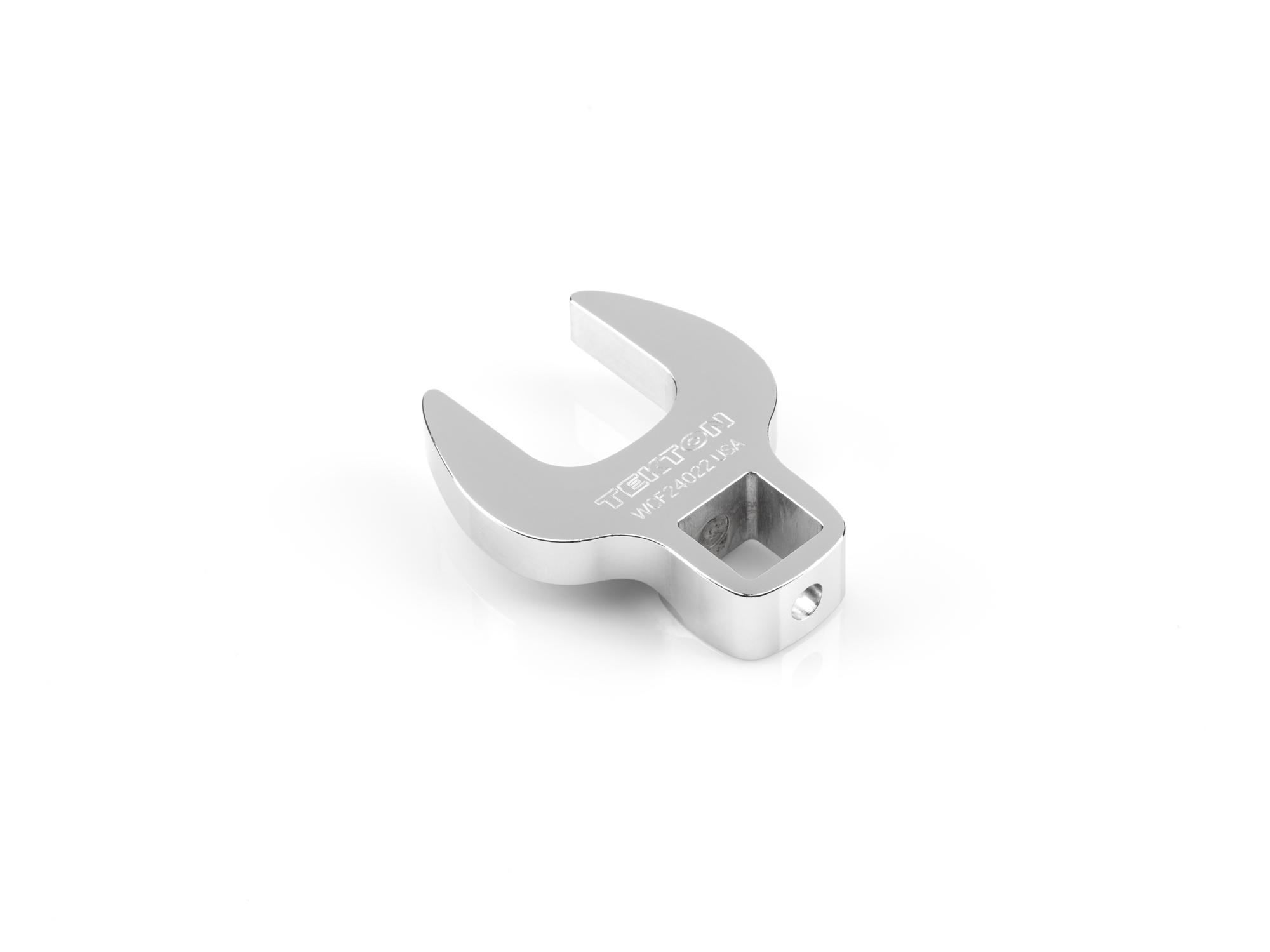

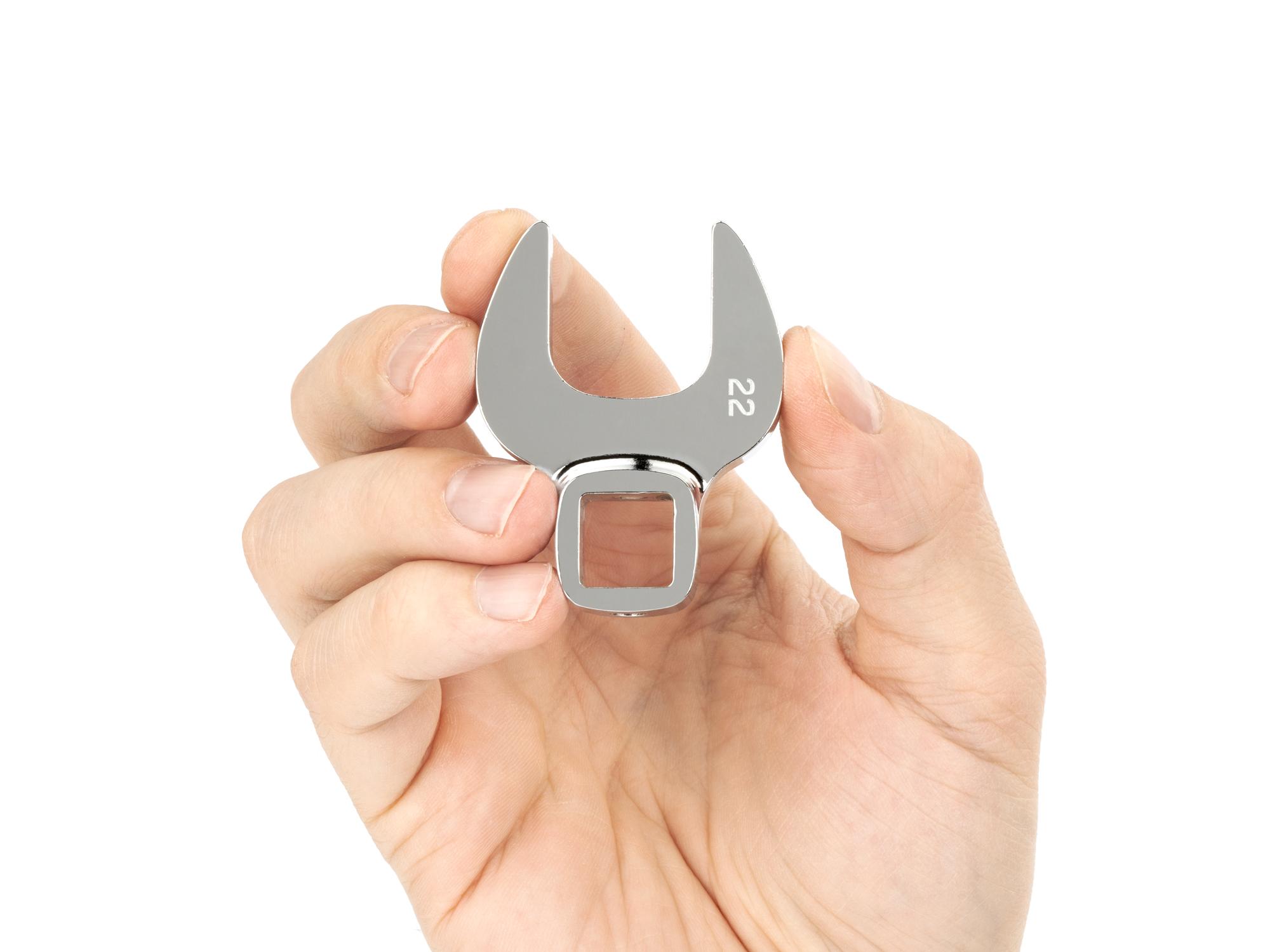

TEKTON WCF24022-T 1/2 Inch Drive x 22 mm Crowfoot Wrench
TEKTON WCF24022-T 1/2 Inch Drive x 22 mm Crowfoot Wrench
TEKTON WCF24022-T 1/2 Inch Drive x 22 mm Crowfoot Wrench
Click image to zoom in

1/2 Inch Drive x 22 mm Crowfoot Wrench

#WCF24022
 •
InchMetric

Size

17 mm
$17
18 mm
$17
19 mm
$18
20 mm
$18
21 mm
$20
22 mm
$20
23 mm
$21
24 mm
$22
27 mm
$23
30 mm
$25
32 mm
$26
33 mm
$27
36 mm
$32
41 mm
$35
46 mm
$40
50 mm
$42
$20.00
DetailsSpecs

Details

TEKTON crowfoot wrench access

Crowfoot wrenches are ultra-compact open-end wrenches made to fit into tight spaces where other tools can't reach.

Ultimate Access Tools

Crowfoot wrenches are ultra-compact open-end wrenches made to fit into tight spaces where other tools can't reach.

Useful with Various Drive Tools

Torque to Specifications

Use with a torque wrench to tighten fittings and fasteners to specifications.

Shop torque wrenches

TEKTON crowfoot wrench angle on a torque wrench

Apply proper torque by positioning the crowfoot wrench at a 90° angle or calculating an adjustment. Learn more

TEKTON crowfoot wrench on a torque wrench
TEKTON crowfoot wrench on an extension

Extend Into Recesses

Use extensions to access fasteners or fittings in confined areas.

Shop extensions

TEKTON crowfoot wrench on a ratchet

Flex Around Obstacles

Use various styles of ratchets to increase your reach or angle of access.

Shop ratchets

Lean Design

We optimized our crowfoot wrenches for both access and strength by using steel only where it matters and eliminating the excess.

Crowfoot Wrench Comparison

Tekton Logo WCF23027 • 1-1/16 in.
TEKTON crowfoot wrench

All excess material is removed to improve access and range of motion.

TEKTON crowfoot wrench drawing (top and side views)

Snap-on

SCO34 • 1-1/16 in.
Snap-on crowfoot wrench

Excess material (shown in red) can obstruct access and range of motion.

Snap-on crowfoot wrench drawing (top and side views)

PROTO

J5334CF • 1-1/16 in.
Proto crowfoot wrench

Excess material (shown in red) can obstruct access and range of motion.

PROTO crowfoot wrench drawing (top and side views)

Two Levels of Retention

TEKTON crowfoot wrench drive end

Two Levels of Retention

TEKTON crowfoot wrench drive end

The smooth sides provide sufficient retention for most applications and easy removal.

TEKTON crowfoot wrench drive end

The detent sides offer maximum retention for situations when you can't risk the wrench coming off.

Clear Markings

Each crowfoot wrench has a permanent high-contrast size marking engraved on the top surface, and an item number on the bottom surface.

TEKTON crowfoot wrench item number marking on bottom surface
TEKTON crowfoot wrench size marking on top surface

Precise Manufacturing

Every crowfoot wrench is made entirely within the USA using Tekton's proprietary LaserMill™ process. Learn more

TEKTON Crowfoot Wrench - Laser Cut Right Arrow TEKTON Crowfoot Wrench - CNC Milled Right Arrow TEKTON Crowfoot Wrench - Heat Treated Right Arrow TEKTON Crowfoot Wrench - Chrome Plated

1. Laser Cut

The rough shape of the wrench is laser cut from a solid sheet of 4140 Chromium-Molybdenum steel.



2. CNC Milled

The wrench jaws and outer surfaces are machined to a precise tolerance. The square drive is broached and the detents are drilled.



3. Heat Treated

The wrench is heat treated to produce a tough part with a hardness of HRC 44-46.



4. Chrome Plated

The wrenches are polished and then plated using a combination of duplex nickel and microporous chrome for a smooth, rust-proof finish.

Swipe

Specs

1/2 Inch Drive x 22 mm Crowfoot Wrench

Specs for 1/2 Inch Drive x 22 mm Crowfoot Wrench
Country of Origin
United States
Item Weight
0.15 lb.
