1/2 Inch Drive Deep 12-Point Socket Sets (15/16 - 1-1/2 in., 27-38 mm)

Item #SHD92116
•
Ships today
$84.00

Also available in standard-length sockets


Set Includes:
Description

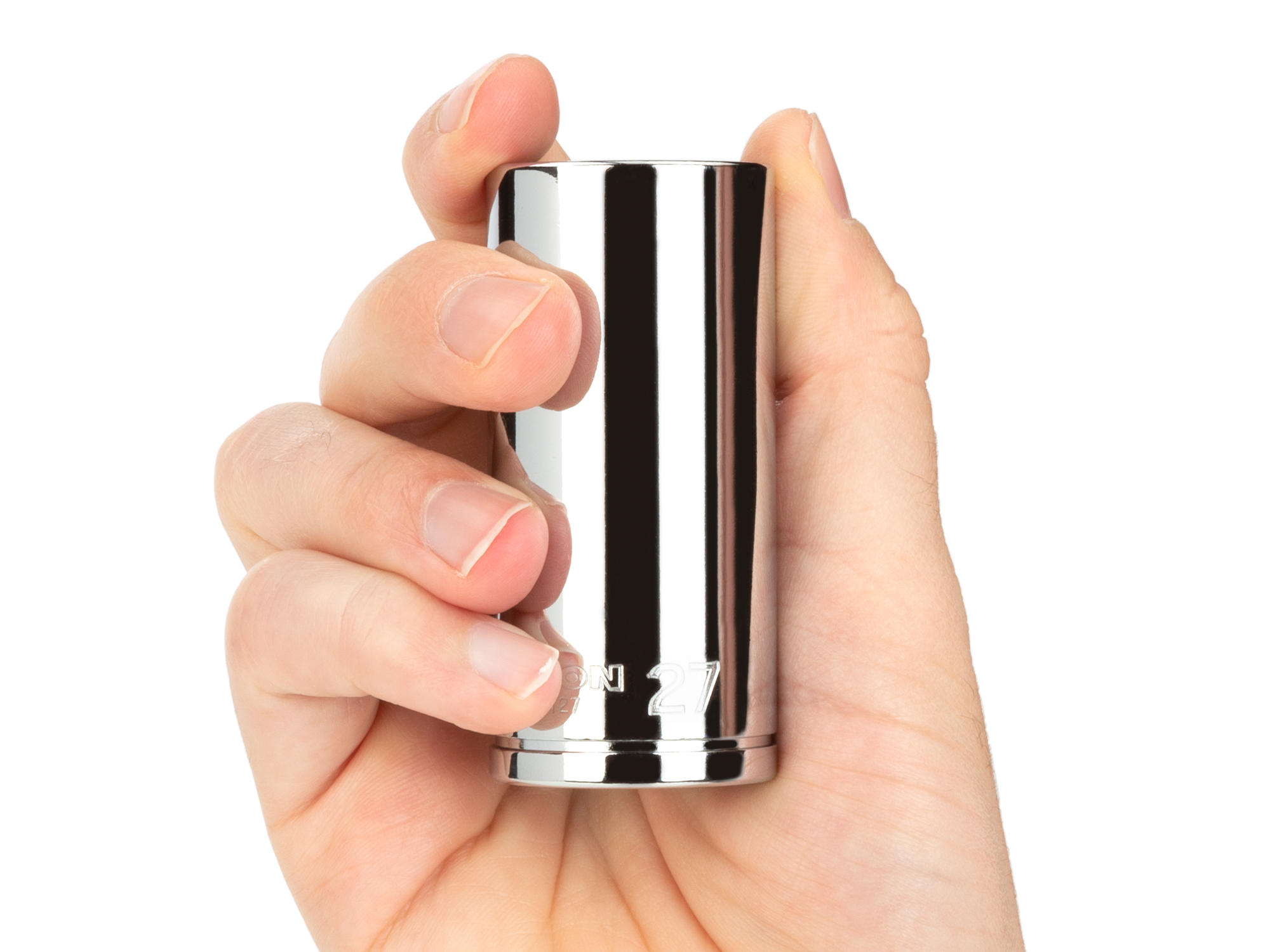

Large, Stamped Markings

  • Permanently impressed into the material by a roll-stamp die
  • As large as possible while still being readable along the socket’s curved surface
  • Clearly visible size numbers with extra-deep outline

Exterior + Interior Finishes

  • Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
  • Interior is protected against rust with clear coat, rather than commonly-used metallic paint

12-Point Socket Opening

Get more access positions for multiple types of fasteners


Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.

Secure Drive Tool Engagement

  • Four detent grooves provide a secure connection with the retaining ball of a drive tool
  • Beveled inner rims help guide the socket onto other tools

High Torque Strength

Meets minimum value of 1.2 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.

METRIC SERIES

ANSITEKTON
Source: ASME B107.5M - 2002

INCH SERIES

ANSITEKTON
Source: ASME B107.1 - 2002

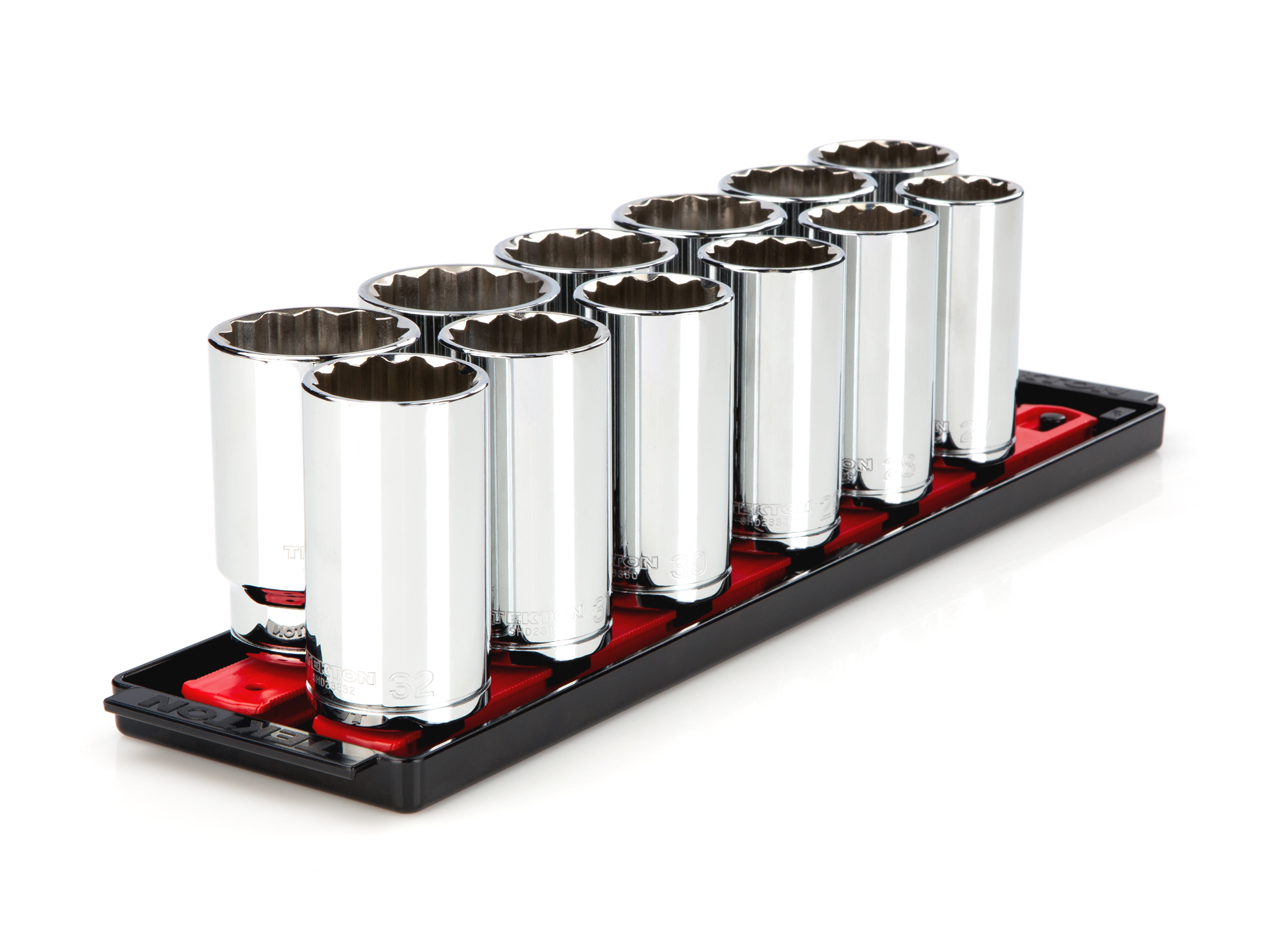

Socket Rail Storage

Specs

1/2 Inch Drive Deep 12-Point Socket Set, 12-Piece (27-38 mm) - Rails

A. Length 3.0 in.
B. Socket End Diameter 1.41 in.
C. Drive End Diameter 1.41 in.
D. Socket Opening Size 27 mm
E. Drive Size 1/2 in.
F. Well Depth 1.3 in.
Weight 0.71 lb.
Country of Origin Taiwan
