Extend Into Recesses
Use extensions to access fasteners or fittings in confined areas.
Click image to zoom in
Details
Crowfoot wrenches are ultra-compact open-end wrenches made to fit into tight spaces where other tools can't reach.
Ultimate Access Tools
Crowfoot wrenches are ultra-compact open-end wrenches made to fit into tight spaces where other tools can't reach.
Useful with Various Drive Tools
Torque to Specifications
Use with a torque wrench to tighten fittings and fasteners to specifications.
|
Apply proper torque by positioning the crowfoot wrench at a 90° angle or calculating an adjustment. Learn more |
Flex Around Obstacles
Use various styles of ratchets to increase your reach or angle of access.
Lean Design
We optimized our crowfoot wrenches for both access and strength by using steel only where it matters and eliminating the excess.
Crowfoot Wrench Comparison
WCF23027 • 1-1/16 in.
All excess material is removed to improve access and range of motion.
Snap-on
SCO34 • 1-1/16 in.
Excess material (shown in red) can obstruct access and range of motion.
PROTO
J5334CF • 1-1/16 in.
Excess material (shown in red) can obstruct access and range of motion.
Two Levels of Retention
Two Levels of Retention
The smooth sides provide sufficient retention for most applications and easy removal.
The detent sides offer maximum retention for situations when you can't risk the wrench coming off.
Clear Markings
Each crowfoot wrench has a permanent high-contrast size marking engraved on the top surface, and an item number on the bottom surface.
Precise Manufacturing
Every crowfoot wrench is made entirely within the USA using Tekton's proprietary LaserMill™ process. Learn more
|
|
|
|
|
|
|
1. Laser CutThe rough shape of the wrench is laser cut from a solid sheet of 4140 Chromium-Molybdenum steel. |
2. CNC MilledThe wrench jaws and outer surfaces are machined to a precise tolerance. The square drive is broached and the detents are drilled. |
3. Heat TreatedThe wrench is heat treated to produce a tough part with a hardness of HRC 44-46. |
4. Chrome PlatedThe wrenches are polished and then plated using a combination of duplex nickel and microporous chrome for a smooth, rust-proof finish. |

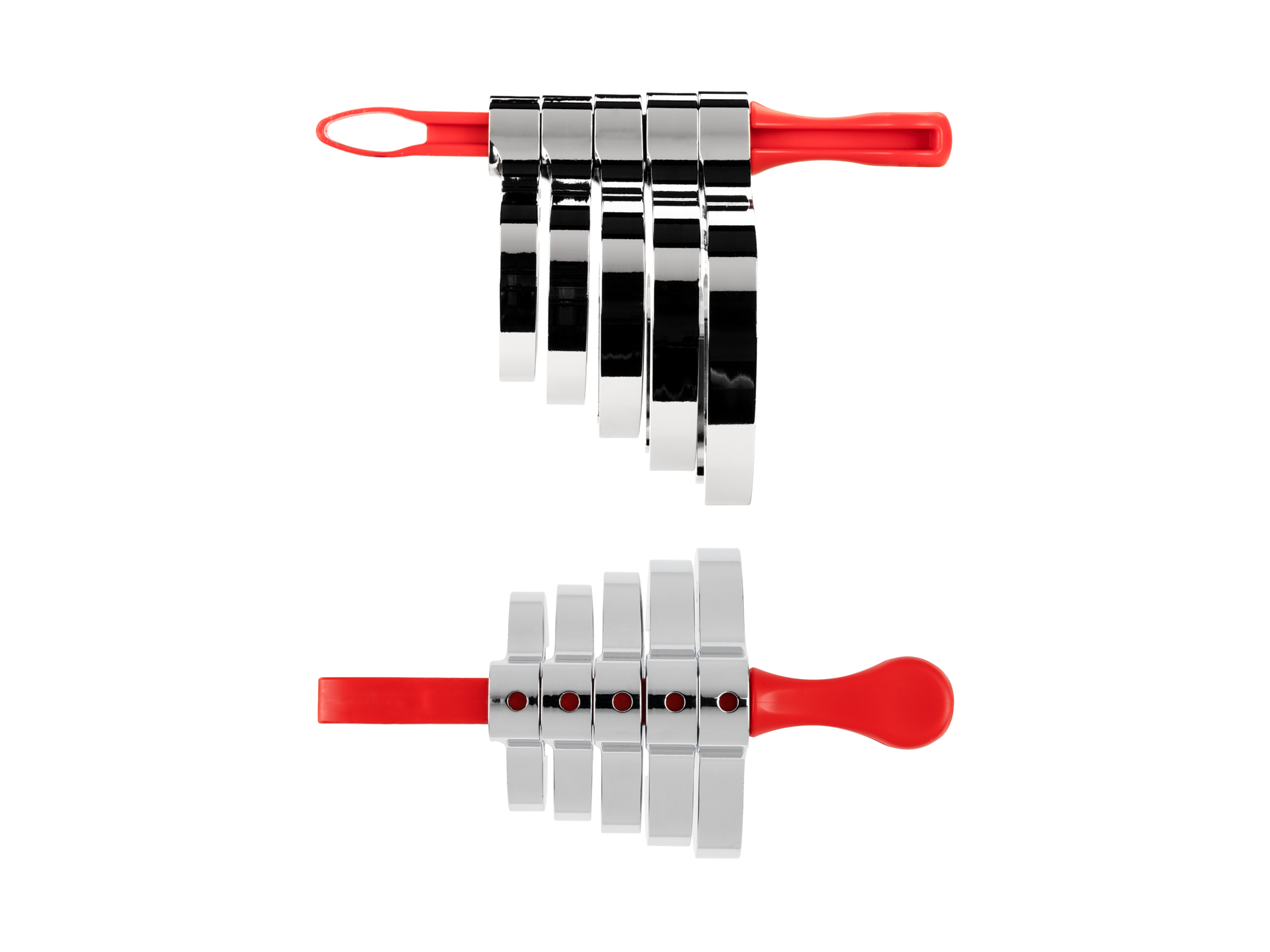

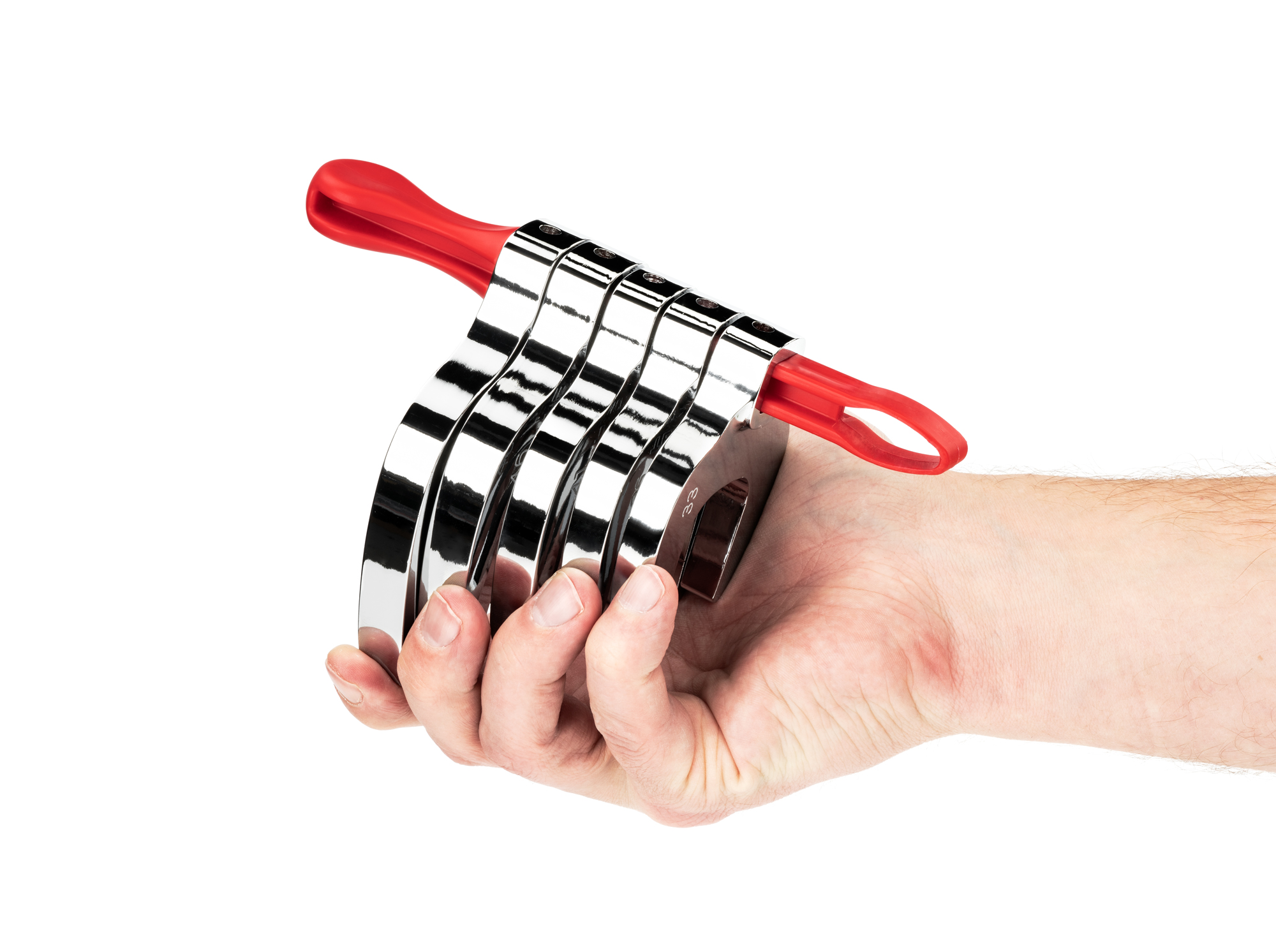

Portable Organizer Key
- The set includes an organizer key to keep wrenches organized, compact, and portable.
- The molded polypropylene key is durable, easy to clean, and made in the USA.
- The set includes an organizer key to keep wrenches organized, compact, and portable.
- The molded polypropylene key is durable, easy to clean, and made in the USA.
Specs

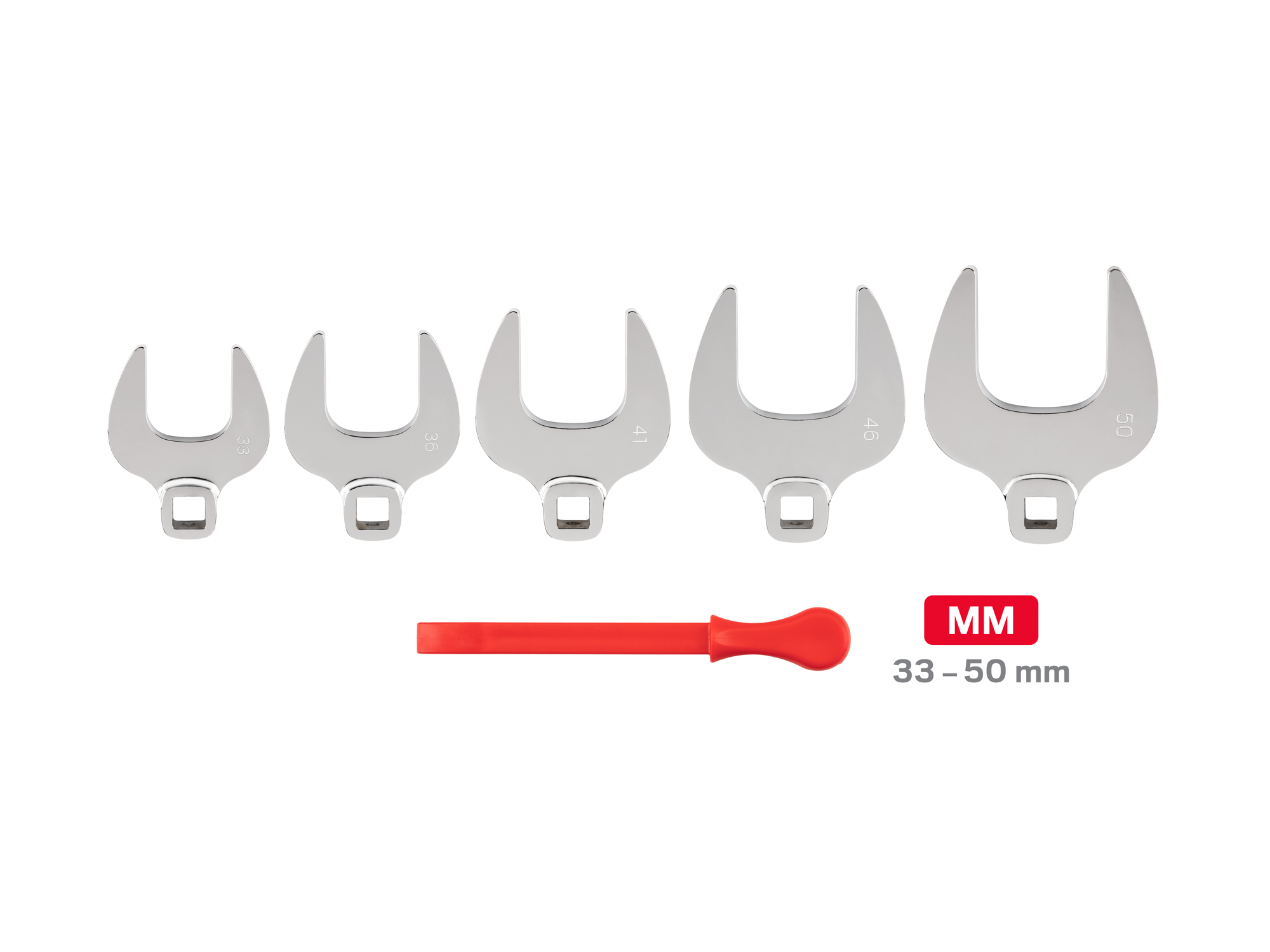

1/2 Inch Drive Crowfoot Wrench Set with Key, 5-Piece (33-50 mm)
| Country of Origin | United States |
| Item Weight | 3.45 lb. |
