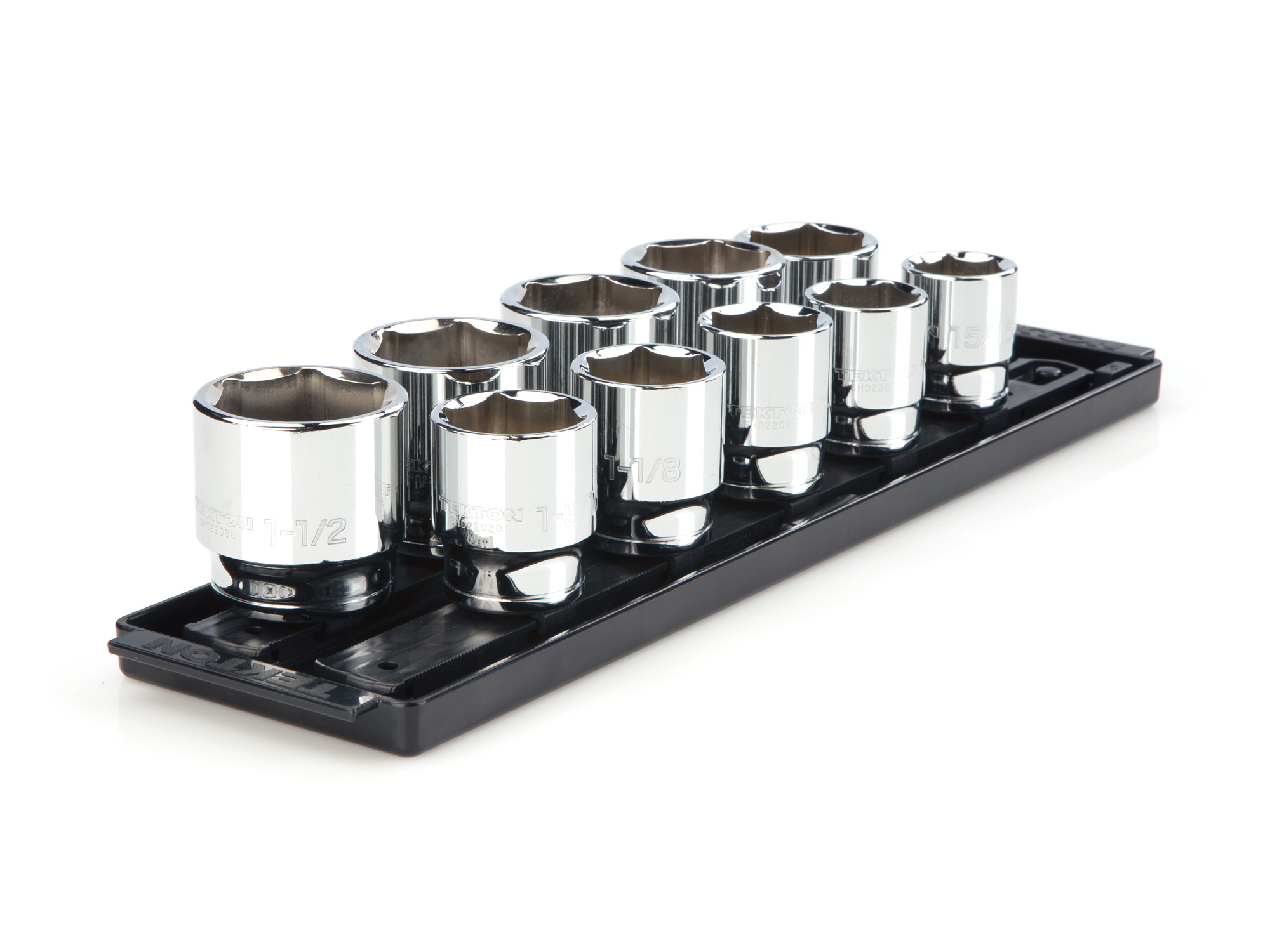

1/2 Inch Drive 6-Point Socket Sets (15/16 - 1-1/2 in., 27-38 mm)

Item #SHD92109

•

Ships Monday

Also available in deep sockets

Set Includes:

IN Standard length
15/16, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-7/16, 1-1/2 in. (10 sizes)
13 inch socket rails
18 inch storage tray

Description

Large, Stamped Markings

Permanently impressed into the material by a roll-stamp die
As large as possible while still being readable along the socket’s curved surface
Clearly visible size numbers with extra-deep outline

Exterior + Interior Finishes

Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
Interior is protected against rust with clear coat, rather than commonly-used metallic paint

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.

Secure Drive Tool Engagement

Four detent grooves provide a secure connection with the retaining ball of a drive tool
Beveled inner rims help guide the socket onto other tools

High Torque Strength

Meets minimum value of 1.3 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.

METRIC SERIES

	ANSI		TEKTON
Source: ASME B107.5M - 2002

INCH SERIES

	ANSI		TEKTON
Source: ASME B107.1 - 2002

Socket Rail Storage

Patented twist-to-lock design securely holds sockets on the rail
Keyhole slot mounts to wall or workbench
Combine multiple socket rails with storage trays and other accessories

Specs

1/2 Inch Drive 6-Point Socket Set, 10-Piece (15/16 - 1-1/2 in.) - Rails

A. Length	1.6 in.
B. Socket End Diameter	1.29 in.
C. Drive End Diameter	1.18 in.
D. Socket Opening Size	15/16 in.
E. Drive Size	1/2 in.
F. Well Depth	0.7 in.
Weight	0.27 lb.
Country of Origin	Taiwan
