Two Size Markings
The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
Full-Length Socket Well
While the overall socket is a standard length, the interior well extends fully into the socket, which allows better fastener engagement in more situations.
Drive Tool Retention
Sockets work for both types of anvils found on 1/2 inch drive impact wrenches:
Friction Ring Anvil | Detent Pin Anvil |
6-Point Socket Opening
Provides an exact fit for hex fasteners. Learn more
6-Point Socket Opening
Provides an exact fit for hex fasteners. Learn more
Prevents Fastener Round-Off
Prevents Fastener Round-Off
Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.
Sockets Exceed ANSI Torque Standards
Each socket size meets a minimum of 1.3 times the ANSI/ASME standard for proof torque.
(A single-cycle test applies torque until a specified value is reached without failure or permanent deformation.)
INCH SERIES
ANSI | TEKTON | ||
Source: ASME B107.2 - 2002 |
METRIC SERIES
ANSI | TEKTON | ||
Source: ASME B107.33M - 2002 |
Note: There are no published ASME standards for 5/16 in., 11/32 in., 8 mm, 37 mm, and 38 mm impact sockets in 1/2 inch drive.
High-Performing Steel Alloys
Part by part, we choose the best combination of steel alloys, heat treating specifications, and formation methods to meet the highest performance requirements. Learn more
50BV30 Chromium-Vanadium (Cr-V) Show Elements Carbon: 0.27 - 0.33% |
4140 Chromium-Molybdenum (Cr-Mo) Show Elements Carbon: 0.38 - 0.43% |
6140 Chromium-Vanadium (Cr-V) Show Elements Carbon: 0.38 - 0.43% |
8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo) Show Elements Carbon: 0.56 - 0.64% |
All pieces have a corrosion-resistant manganese phosphate coating.
Sockets (Standard and Deep Lengths)
INCH
5/16 – 1-1/4 in.
(50BV30 Cr-V)
1-5/16 – 1-1/2 in.
(4140 Cr-Mo)
METRIC
8 – 32 mm
(50BV30 Cr-V)
33 – 38 mm
(4140 Cr-Mo)
Accessories
3 in., 6 in., and 10 in. Extensions
(6140 Cr-V)
Adapter and Reducer
(8660 Ni-Cr-Mo)
Universal Joint
(Ball: 8660 Ni-Cr-Mo)
(Socket: 4140 Cr-Mo)
Storage Case
High-density polyethylene case withstands common lubricants, fuels, and solvents.

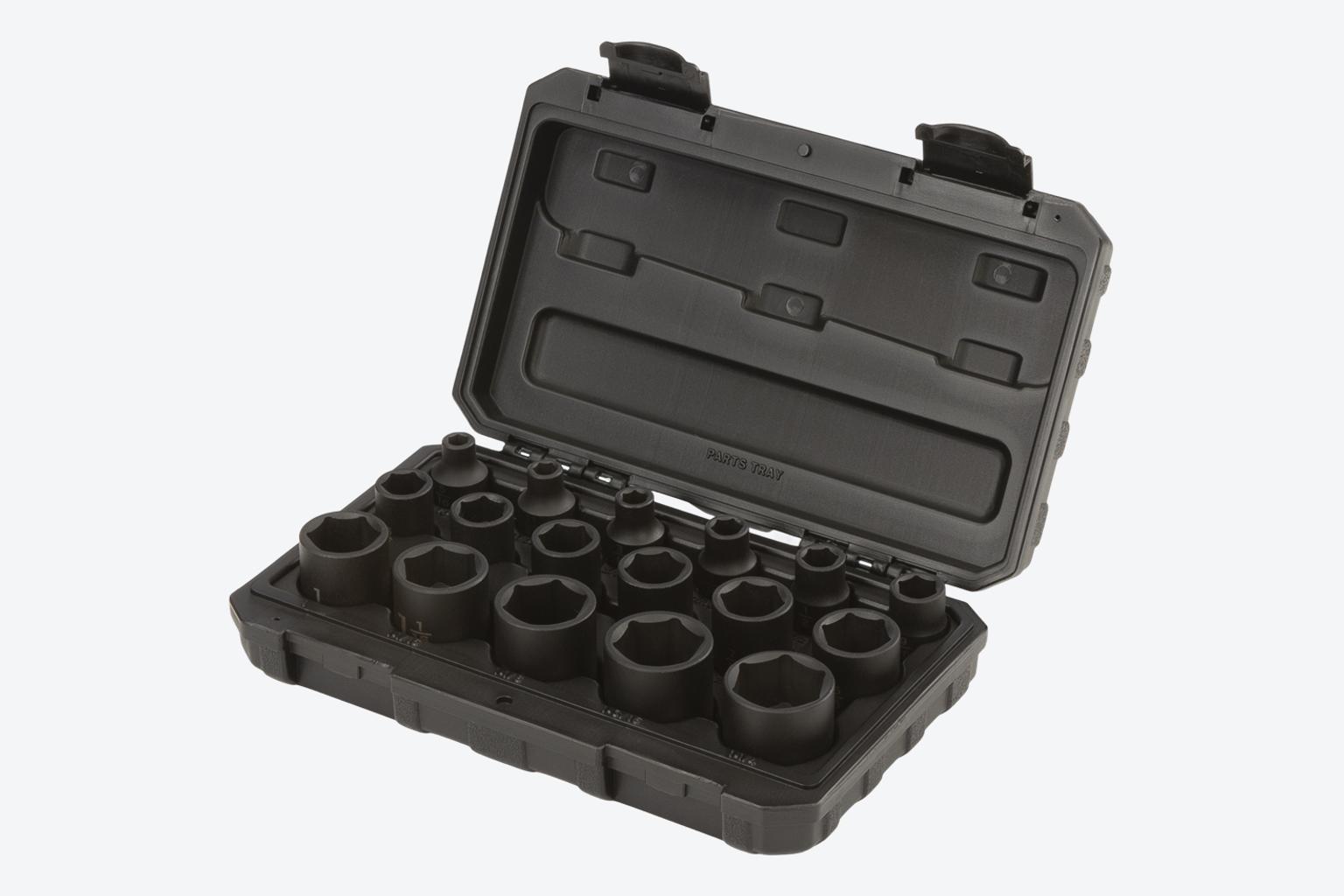

1/2 Inch Drive 6-Point Impact Socket Set, 17-Piece (5/16 - 1-1/4 in.)
A. Length | 10.7 in. |
B. Width | 6.3 in. |
C. Height | 2.4 in. |
Weight | 6 lb. |
Country of Origin | Taiwan |
